Front Brake Rotor & Ceramic Pad Kit for Nissan Elgrand E51 E52 2002-2012

PRODUCT OVERVIEW

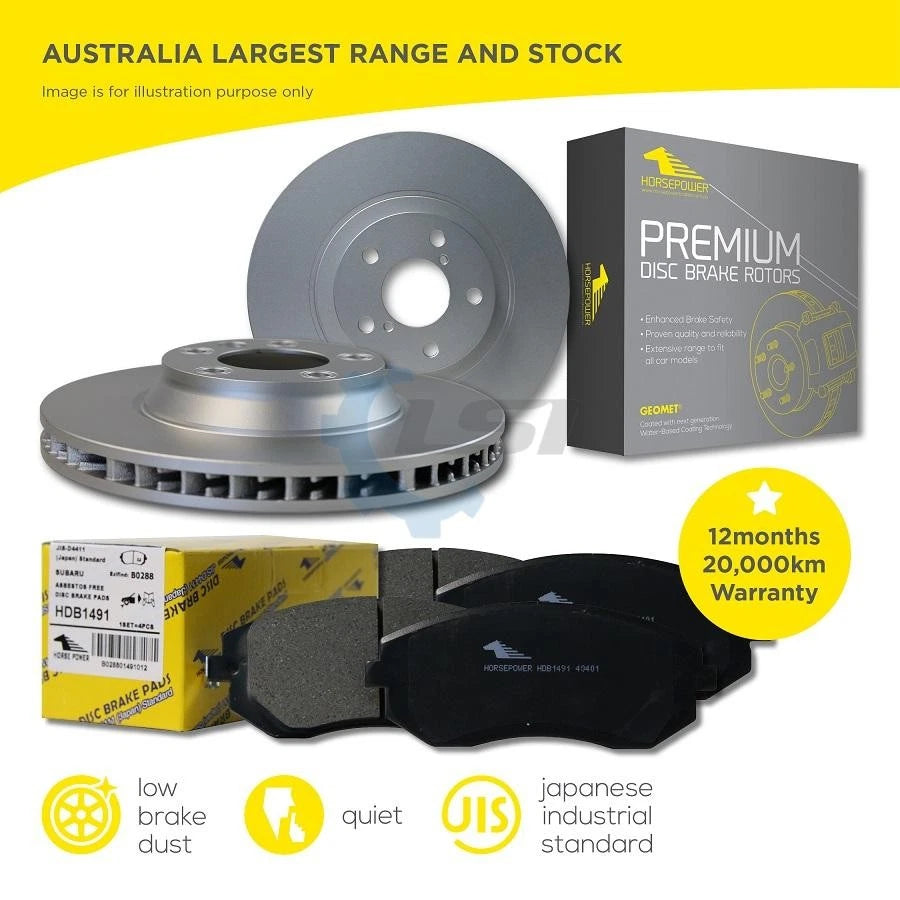

This front brake kit includes two disc rotors and one set of ceramic brake pads to service both left-hand and right-hand front wheels on selected Nissan Elgrand E51 and E52 models.

DISC ROTOR FEATURES

• Direct replacement design matched to OE specifications
• Optimal thermal conductivity for effective heat dissipation
• Helps prevent brake judder and vibration
• Improved damping to reduce braking noise
• High resistance to distortion and thermal cracking
• Enhanced braking safety and consistent performance
• Maximised rotor service life
• Improved brake effectiveness with reduced pedal effort
• Lower operating temperatures to reduce stress on brake components
• Reduced wear for longer-lasting braking performance

BRAKE PAD FEATURES

• Advanced ceramic friction formula
• Suitable for everyday driving conditions
• Consistent, confident pedal feel
• Low brake noise
• Low dust formulation to help keep wheels cleaner

DISC ROTOR SPECIFICATIONS

• Diameter: 290 mm
• Height: 49 mm
• Maximum thickness: 28 mm
• Minimum thickness: 26 mm
• Centre hole: 68 mm
• Stud holes: 5
• Type: Vented

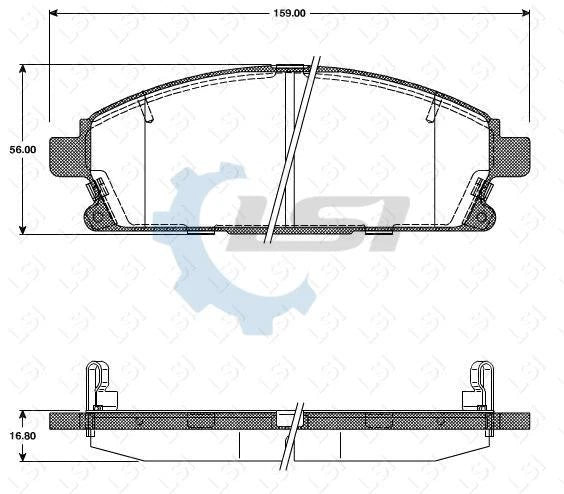

BRAKE PAD DIMENSIONS

• Length: 159 mm
• Height: 56 mm
• Thickness: 16 mm

COMPATIBILITY

• Nissan Elgrand (import) E51 / E52 4WD Van 3.5L, 2002 onwards, front axle
• Nissan Elgrand E51 2.5L V6 137 kW & 3.5L V6 177 kW, RWD & 4WD, 12/2004–08/2010, front axle

Parts compatibility data is a guide only. For accurate fitment, always confirm rotor dimensions and pad shape against your existing components before purchase or installation.

PACKAGE CONTENTS

• 2 x front disc rotors
• 1 x set of front ceramic brake pads (for both LH and RH wheels)

WARRANTY

This product is supplied with a 1-year parts replacement warranty. Proof of purchase is required for all warranty claims. Return postage and installation labour are not included.
