Front Brake Pads & Premium Rotors Kit for Ford Falcon BA BF FG

PRODUCT OVERVIEW

This complete front brake kit includes two premium vented disc rotors and one set of advanced ceramic front brake pads, engineered as an OE-style replacement for selected Ford Falcon BA, BF, FG and related models. Designed to improve braking safety, pedal feel and component life in everyday driving.

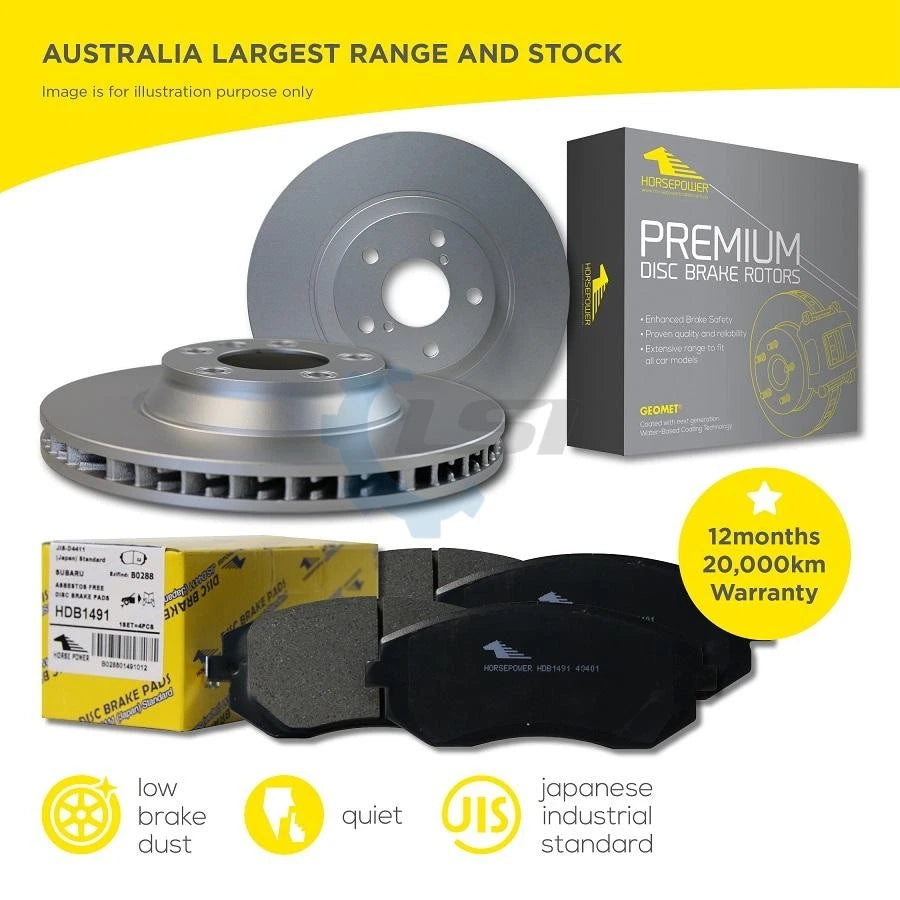

KIT CONTENTS

• 2 x front vented disc rotors
• 1 x set of front brake pads (LH & RH wheels)
• SKU / Part Reference: SET_R504D1473

DISC ROTOR FEATURES

• Direct replacement with OE-style design and fitment
• Optimised thermal conductivity for stable braking performance
• Helps prevent brake judder and vibration
• Improved damping characteristics to reduce braking noise
• High resistance to distortion and thermal cracking
• Enhanced braking safety and consistent stopping power
• Maximised rotor service life
• Reduced pedal effort for effective braking
• Lower operating temperatures to reduce stress on brake components
• Lower wear rate for extended component life

BRAKE PAD FEATURES

• Advanced ceramic friction formula
• Developed for Australian, Japanese and Korean vehicle conditions
• Excellent pedal feel and modulation
• Low brake noise for comfortable everyday use
• Low dust generation to help keep wheels cleaner
• Ideal for daily driving applications

DISC ROTOR DIMENSIONS (FRONT)

• Diameter: 298 mm
• Height: 65 mm
• Maximum thickness: 28 mm
• Minimum thickness: 26 mm
• Centre hole: 71.8 mm
• Stud holes: 5
• Type: Vented

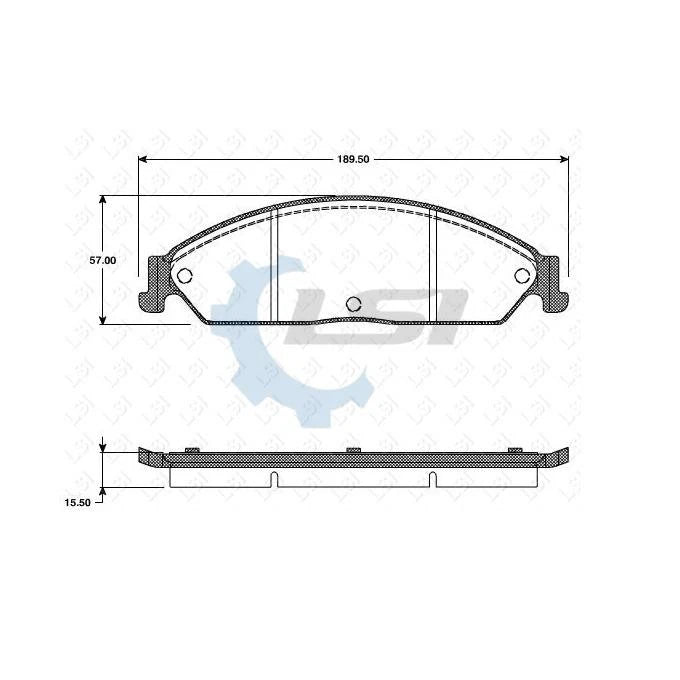

BRAKE PAD DIMENSIONS (FRONT)

• Length: 189.5 mm
• Height: 57 mm
• Thickness: 15.5 mm

VEHICLE COMPATIBILITY

Use this information as a guide only. Always confirm rotor and pad dimensions and specifications against your existing components before purchase.

• Ford Falcon BA 6 Cyl XR6, XR6T, XR8 (09/2002 - 09/2005)
• Ford Falcon BA 4.0L LPG 156 kW Sedan, Wagon & Ute (09/2002 - 09/2005)
• Ford Falcon BA Ute all models (09/2002 - 09/2005)
• Ford Falcon BF 4.0L Ute (11/2005 - 01/2008)
• Ford Falcon BF 4.0L 156 kW LPG Sedan, Wagon & Ute, excludes XR6 (10/2005 - 07/2011)
• Ford Falcon BF 6 Cyl XR6 non-turbo (10/2005 - 04/2008)
• Ford Fairlane BA & BF 6 Cyl & V8 (10/2002 - 10/2005)
• Ford LTD BA & BF (10/2002 - 2005)
• Ford Falcon FG 4.0L including XT, G6, G6E (from 05/2008 onwards)
• Ford Falcon FG 4.0L LPG 156 kW Ute (05/2008 - 06/2011)
• Ford Falcon FG Ute including XT, XR6 non-turbo, G6 & G6E non-turbo (from 2008 onwards)

WARRANTY

• Supplied with 1-year parts replacement warranty (conditions apply)
• Proof of purchase is required for all warranty claims
• Return freight and installation labour are at the buyer's expense

INSTALLATION NOTE

• Professional installation is recommended
• Ensure all friction surfaces are clean and free from contaminants
• Follow proper bedding-in procedures for new pads and rotors
