Front Brake Disc Rotors, Pads & Wear Sensor Kit for BMW Z3 E36 2.8L

PRODUCT OVERVIEW

This front brake kit includes vented disc rotors, ceramic brake pads for left and right wheels, and a wear sensor, designed for BMW Z3 E36 2.8L models from 1997–2000. Refer to all dimensions to verify compatibility with your vehicle.

KIT CONTENTS

• 2 x Front vented disc rotors
• 1 x Set of front ceramic brake pads (LH & RH)
• 1 x Front brake pad wear sensor

DISC ROTOR FEATURES

• Matched to OE-style design for proper fit and function
• Optimal thermal conductivity for effective heat dissipation
• Helps reduce brake judder and vibration
• Improved damping characteristics to minimise brake noise
• High resistance to distortion and thermal cracking
• Enhanced braking safety and consistent performance
• Maximised rotor service life
• Improved brake effectiveness with reduced pedal effort
• Lower operating temperatures to reduce stress on components
• Reduced wear for longer rotor and pad life

BRAKE PAD FEATURES

• Advanced ceramic friction formulation
• Engineered for reliable everyday driving performance
• Consistent, confident pedal feel
• Low brake noise
• Low dust output to help keep wheels cleaner

DISC ROTOR SPECIFICATIONS (FRONT)

• Diameter: 286 mm
• Height: 51.5 mm
• Maximum thickness: 22 mm
• Minimum thickness: 20.4 mm
• Centre hole: 79 mm
• Number of studs: 5
• Type: Vented

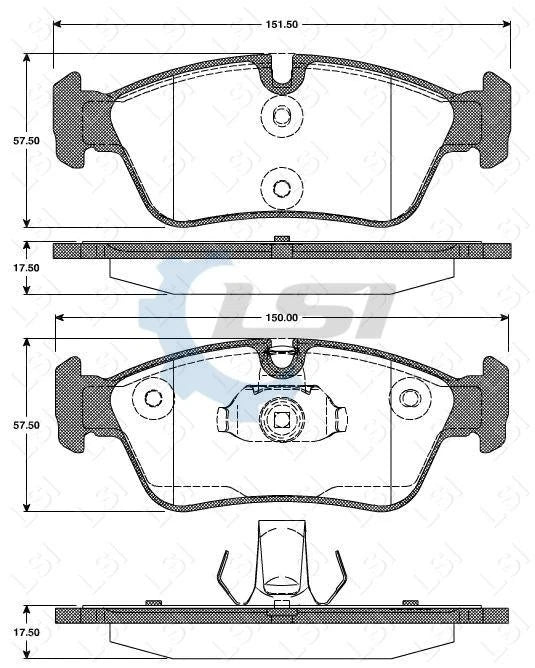

BRAKE PAD & SENSOR MEASUREMENTS

• Pad length: 150 / 151 mm
• Pad height: 58 mm
• Pad thickness: 17 mm

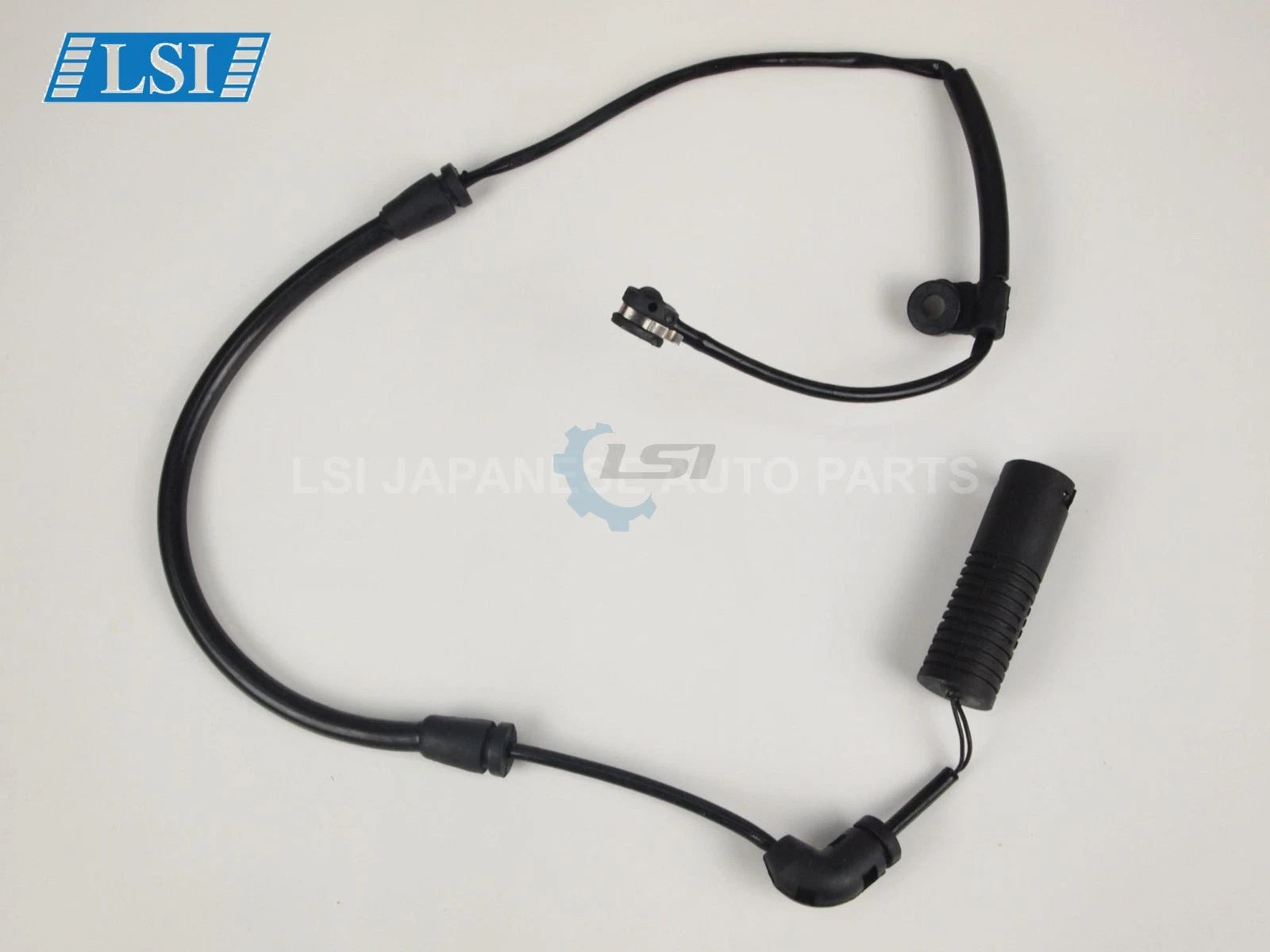

• Sensor cable length: 788 mm

ADDITIONAL INFORMATION

• Front brake pads and rotors set with wear sensor
• 1-year parts replacement warranty (installation and return freight not included)
• Professional installation is recommended
• Please confirm all measurements and specifications before purchase
