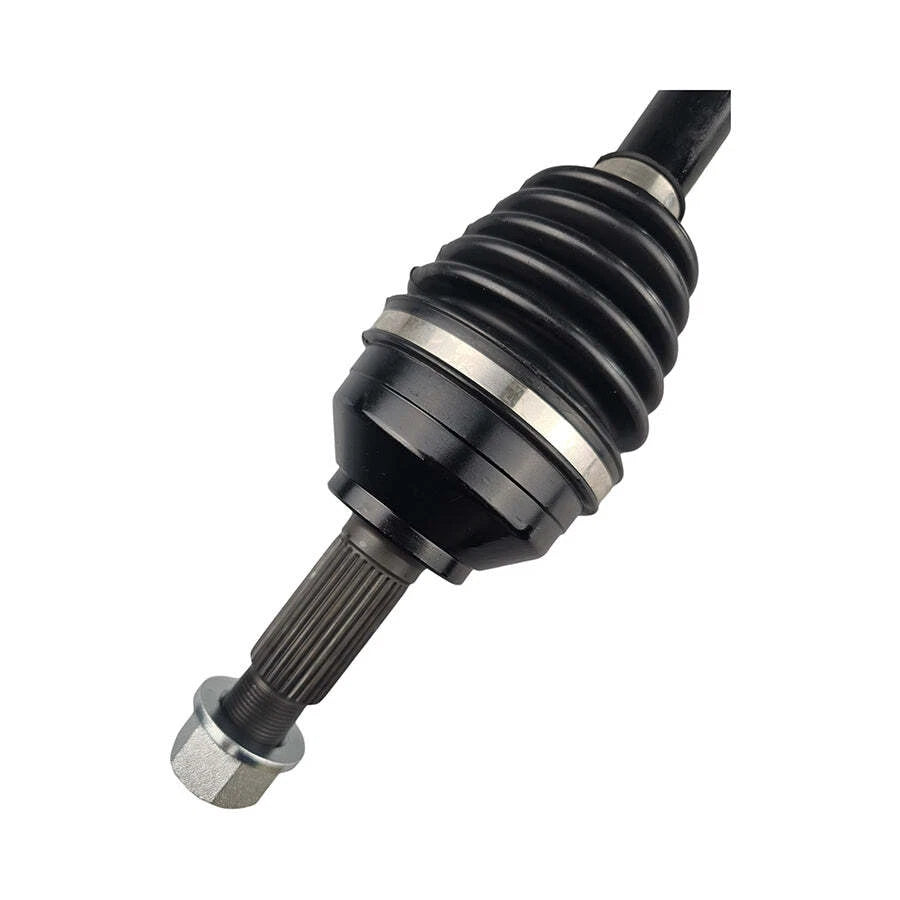

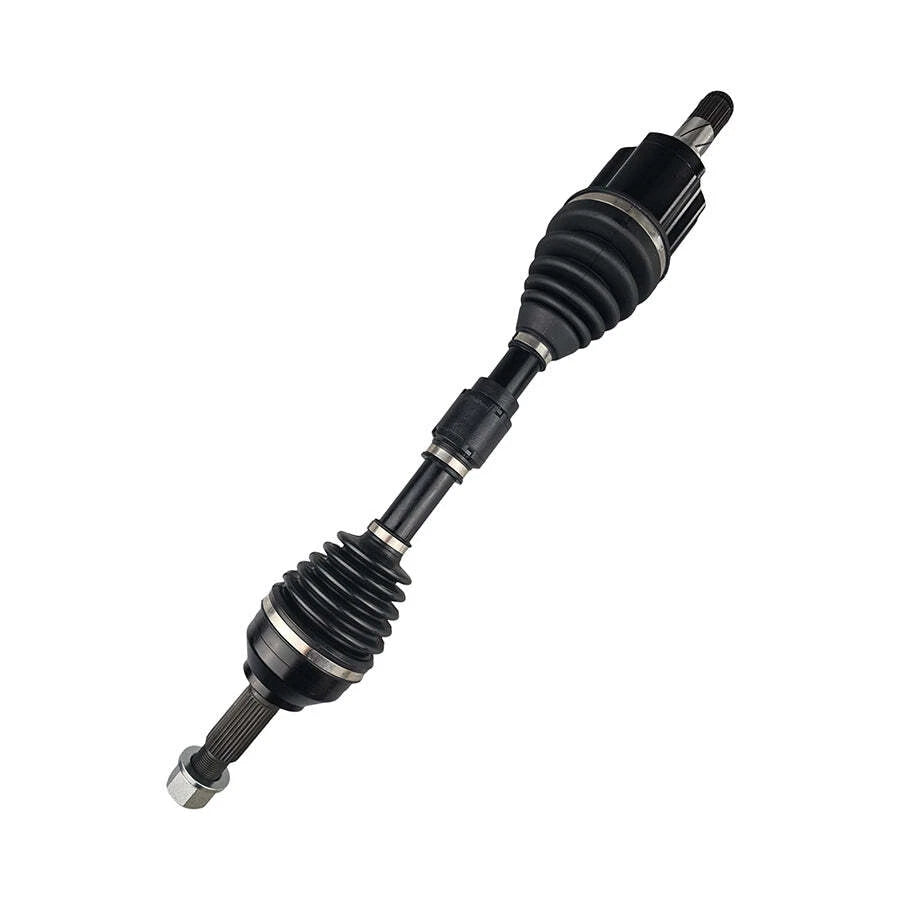

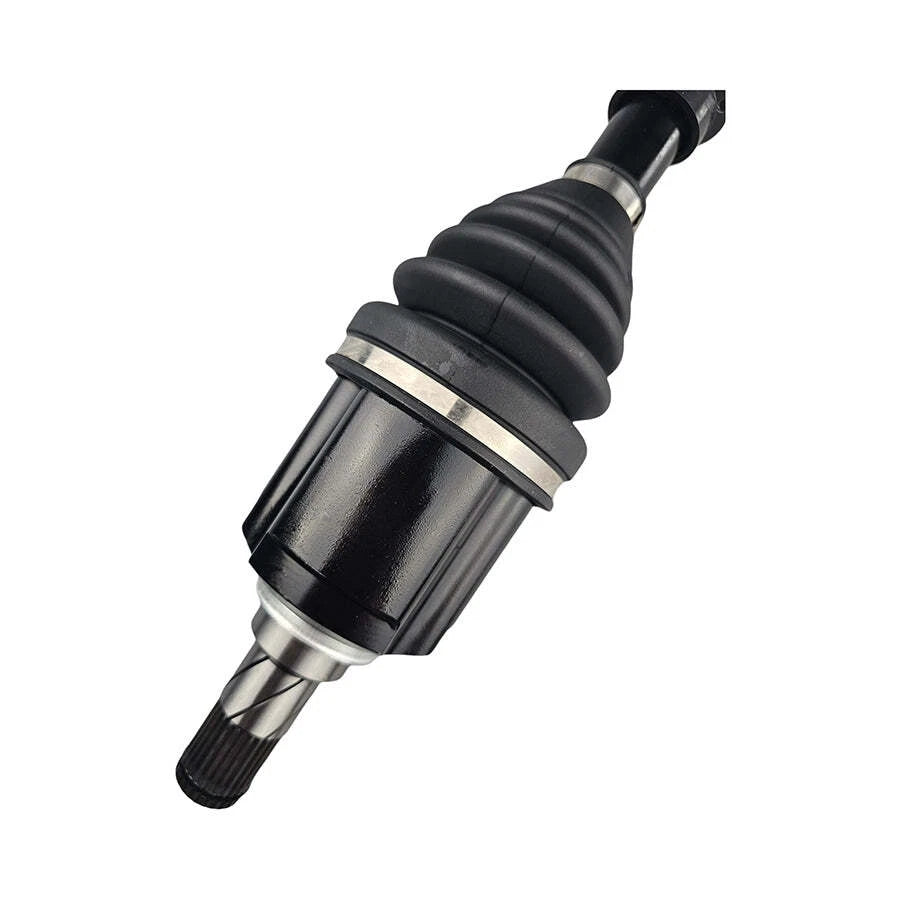

Front Left CV Axle Shaft for Renault Koleos H45 2008-2016 FWD/AWD CVT

PRODUCT OVERVIEW

This front left CV axle drive shaft is designed for Renault Koleos H45 models with CVT transmissions, covering selected FWD and AWD applications. It is built to OEM specifications for a precise fit and reliable driveline performance.

Note: CVT only. For AWD models, check inner joint spline length. If not correct, refer to part no: CVA1087.

KEY FEATURES

• Built to OEM specifications using heat-treated chrome steel for durability.
• High-quality neoprene dust boots with stainless steel clamps to resist contamination.
• Filled with molybdenum grease for smooth operation at varying angles and speeds.
• Engineered for reliable performance in passenger and 4WD applications.

VEHICLE COMPATIBILITY

• Renault Koleos H45 2.0L M9R.832 DOHC Turbo I/C Diesel FWD CVT (09/2009 - 04/2010), left side only. Includes sub-models Dynamique.
• Renault Koleos H45 2.5L 2TR.700/2/3 DOHC VVT Petrol FWD/AWD CVT (09/2008 - 08/2016), for left and right AWD CVT only. Check inner joint spline length; if not correct, use part no: CVA1087. Includes sub-models BOSE SE, Dynamique, Expression, Privilege, Sport Way Limited Edition.

Always confirm transmission type, side (left/right), and spline details against your existing part before purchase.

SPECIFICATIONS

• Position: Front left (CVT applications)
• Length (compressed): 667 mm
• Spline count – outer/wheel side: 29T
• Spline count – inner/diff side: 27T
• Inboard joint type: Tripod
• Outboard joint type: Ball
• ABS ring teeth: 48
• Hub nut style: M24 x 1.5

WHAT'S INCLUDED

• 1 x Front CV axle shaft

WARRANTY

Covered by a 12 month / 20,000 km warranty on the CV driveshaft. CV boots are warranted for 3 months from date of purchase.
