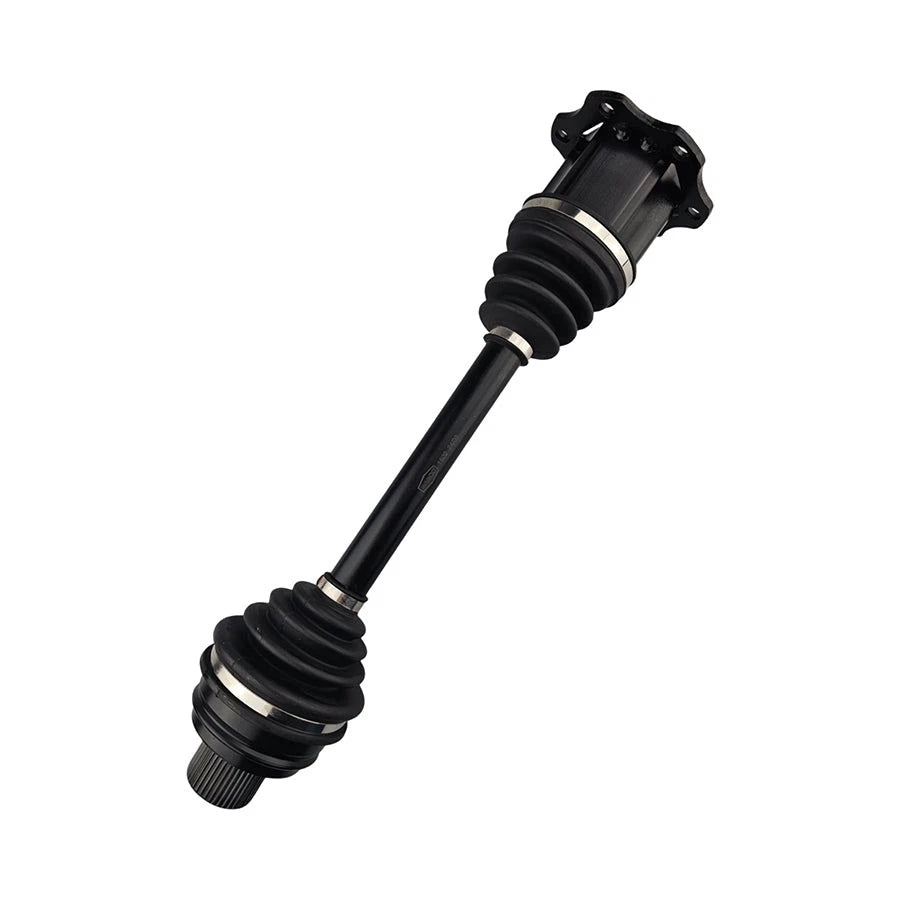

Front CV Drive Shaft for Audi A4 A5 S4 S5 RS5 B8 B9 F5 42T 6-Bolt

PRODUCT OVERVIEW

Front CV axle drive shaft suitable for left or right-hand side on select Audi A4, A5, S4, S5 and RS5 models. Designed to meet OEM performance with a 42-tooth spline and 6-bolt inner joint for CVT, DCT, manual, FWD and AWD applications where specified.

KEY FEATURES

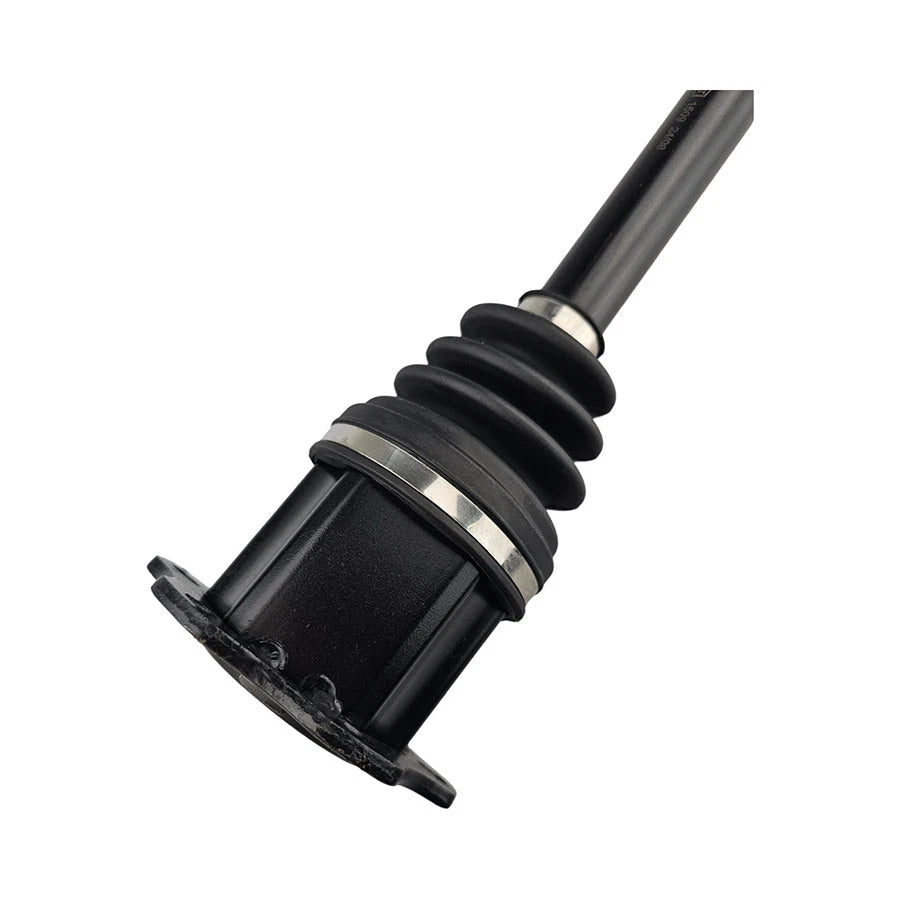

• OEM-style 42T spline with 6-bolt inner joint (bolt-on flange)
• Heat-treated chrome steel construction for strength and durability
• High-quality neoprene dust boots with stainless steel clamps to resist contamination
• Molybdenum grease for smooth operation at varying angles and high RPM
• Suits front left or right position where matching specifications are required

VEHICLE COMPATIBILITY

This front CV drive shaft is suitable for the following Audi applications where a 42T spline and 6-bolt inner joint are used. Always confirm against existing shaft, spline profile and dimensions before purchase.

• Audi A4 B8 8K 1.8L / 2.0L / 2.7L / 3.0L / 3.2L (04/2008 - 12/2017) – 42T, 6-bolt inner joint
• Audi A4 B9 F4 1.4L / 2.0L AWD & FWD DCT (10/2015 - Onwards) – 42T, 6-bolt inner joint

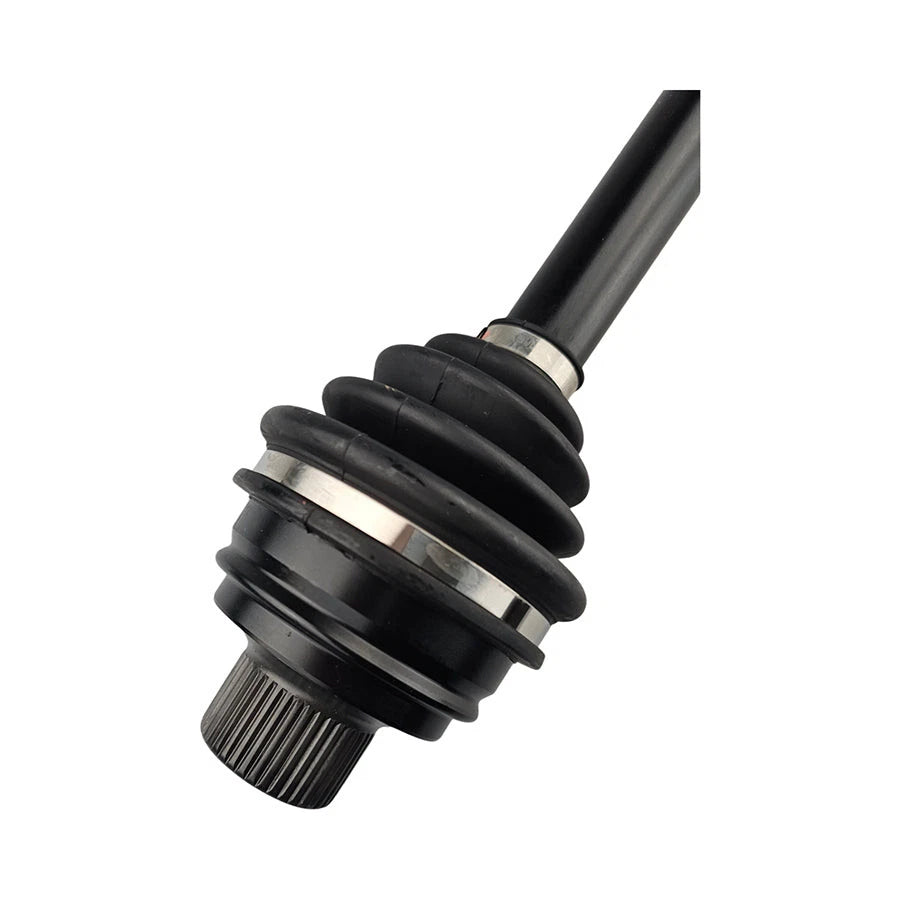

  Wheel-side spline and shape must be visually checked for compatibility.
• Audi A5 F5 2.0L AWD & FWD DCT (03/2017 - Onwards) – 42T, 6-bolt inner joint
  Wheel-side spline and shape must be visually checked for compatibility.
• Audi A5 8T 1.8L / 2.0L / 3.0L / 3.2L AWD & FWD AT / CVT / DCT (10/2007 - 07/2017) – 42T, 6-bolt inner joint
• Audi RS5 8T / 8F 4.2L & F5 3.0L AWD AT / DCT (10/2010 - Onwards) – 42T, 6-bolt inner joint
• Audi S5 F5 3.0L AWD AT (03/2017 - Onwards) – 42T, 6-bolt inner joint
• Audi S5 8T / 8F 3.0L / 4.2L AWD MT / AT / DCT (10/2007 - 03/2017) – 42T, 6-bolt inner joint
• Audi S4 B9 8W 3.0L AWD AT (10/2016 - Onwards) – 42T, 6-bolt inner joint
• Audi S4 B8 8K 3.0L AWD MT / DCT (05/2009 - 02/2017) – 42T, 6-bolt inner joint

If you are unsure about fitment, compare the existing shaft (spline count, bolt pattern, length and flange diameter) or consult a qualified technician.

DIMENSIONS & SPECIFICATIONS

• Compressed length: 465 mm
• Mounting bolt centre-to-centre: 104 mm
• Spline count: 42T
• Inboard joint type: bolt-on, 6 bolts, 10.5 mm hole diameter
• Bolt-on flange outer diameter: 123 mm

WHAT'S INCLUDED

• 1 x complete front CV drive shaft assembly

QUALITY & WARRANTY

Manufactured to stringent standards for driveline performance and durability. Covered by a 12 month / 20,000 km warranty on the CV driveshaft assembly. CV boots are warranted for 3 months from date of purchase.
