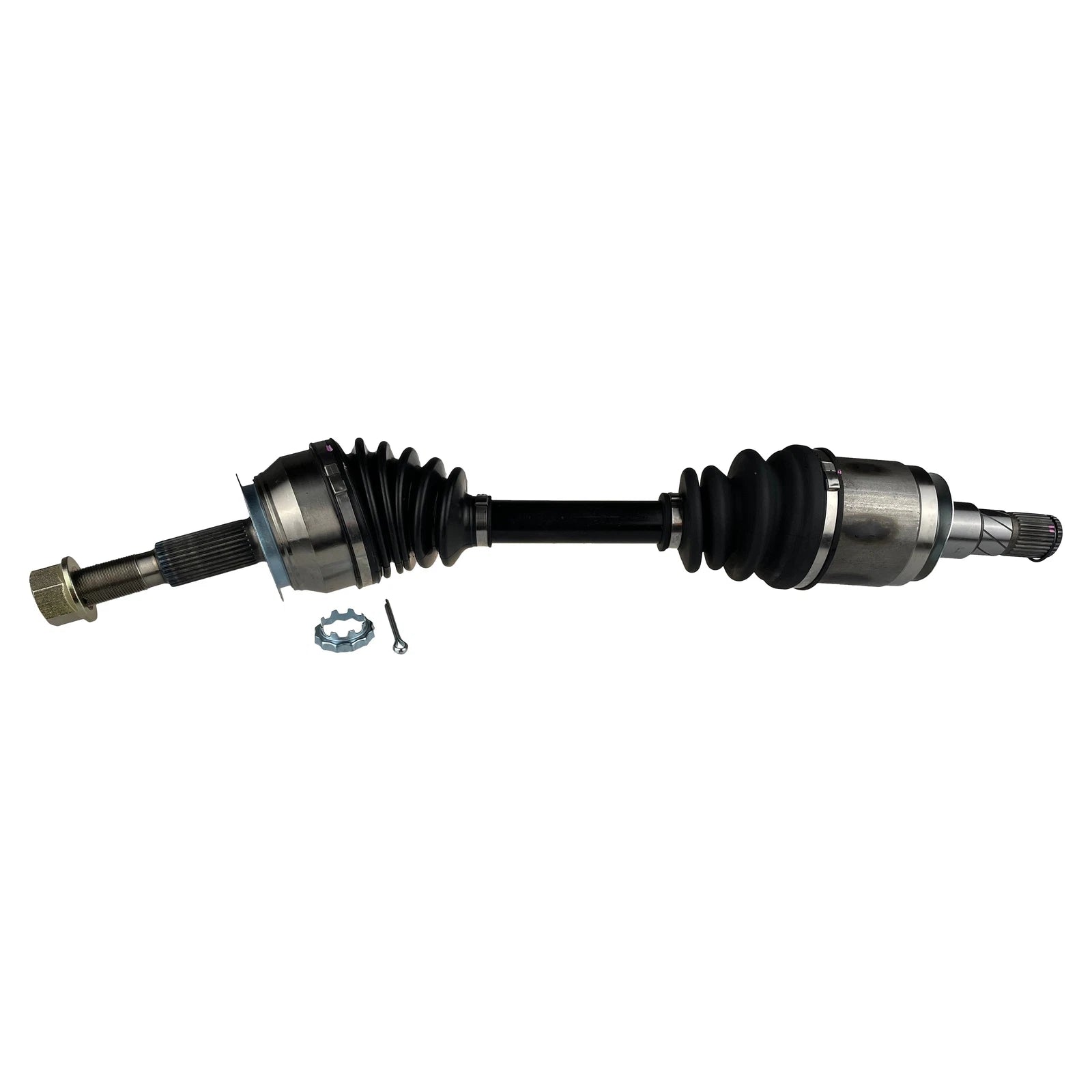

Front CV Drive Shaft for Navara D23 NP300 & Mercedes X-Class 4WD
A$241.72
PRODUCT OVERVIEW Front CV axle drive shaft suitable for left or right-hand side on automatic or manual 4WD applications. Built to OEM specifications to provide reliable power transfer and long...
Guaranteed Fitment
Fast Shipping
Product Details
PRODUCT OVERVIEW
Front CV axle drive shaft suitable for left or right-hand side on automatic or manual 4WD applications. Built to OEM specifications to provide reliable power transfer and long service life.
Important: Check spline count before purchase. For 32 spline applications, use part number CVA1543.
KEY FEATURES
- Manufactured to OEM specifications for fit and performance
- Heat-treated chrome steel construction for durability
- High-quality neoprene dust boots with stainless steel clamps
- Molybdenum grease for smooth operation at varying angles and speeds
- Suitable for front left or right position on 4WD models
VEHICLE COMPATIBILITY
Designed for select 4WD models, including:
- Mercedes-Benz X250d 470 (12/2017~On) 2.3L Diesel YS23DDTT
- Mercedes-Benz X350d 470 (12/2018~On) 3.0L Diesel OMG642.889
- Nissan Navara D23, NP300 CBND23 (12/2020~2025) 2.3L Diesel YS23DDTT
- Nissan Navara SL D23, NP300 DBND23 (12/2020~2025) 2.3L Diesel YS23DDTT
- Nissan Navara SL, ST, ST-X King Cab D23, NP300 BBND23 (12/2020~2025) 2.3L Diesel YS23DDTT
- Nissan Navara SL King Cab D23, NP300 EBND23 (12/2020~2025) 2.3L Diesel YS23DDTT
- Nissan Navara SL, ST, ST-X D23, NP300 CBND23 (12/2020~2026) 2.3L Diesel YS23DDTT
Always confirm spline counts and dimensions against your original part before ordering.
SPECIFICATIONS
- Position: Front, left or right
- Drivetrain: 4WD
- Length (compressed): 641 mm
- Spline count (outer / wheel side): 29T
- Spline count (inner / diff side): 30T
- Inboard joint type: Tripod
- Outboard joint type: Ball
- Hub nut: M24 x 1.5
WHAT'S INCLUDED
- 1 x complete front CV drive shaft assembly
QUALITY & WARRANTY
This CV driveshaft is part of a comprehensive aftermarket driveline range designed for passenger and 4WD applications. It is covered by a 12 month / 20,000 km warranty.
Note: CV boots are warranted for 3 months from date of purchase.
Vehicle Compatibility
| Make | Model | Year | Submodel | Variant | Engine | Notes |
|---|---|---|---|---|---|---|
| Mercedes Benz | X-Class | 2021 | 470 Platform/Chassis X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.301 | 2298cc 140kW (Diesel) | |
| Mercedes Benz | X-Class | 2021 | 470 Ute X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.301 | 2298cc 140kW (Diesel) | |
| Mercedes Benz | X-Class | 2021 | 470 Ute X 350 d 4-matic (470.252) | AWD Diesel 3.0L 6cyl 190kW OM 642.889 | 2987cc 190kW (Diesel) | |
| Mercedes Benz | X-Class | 2020 | 470 Platform/Chassis X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.303,OM 699.305,OM 699.301 | 2298cc 140kW (Diesel) | |
| Mercedes Benz | X-Class | 2020 | 470 Ute X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.303,OM 699.305,OM 699.301 | 2298cc 140kW (Diesel) | |
| Mercedes Benz | X-Class | 2020 | 470 Ute X 350 d 4-matic (470.252) | AWD Diesel 3.0L 6cyl 190kW OM 642.889 | 2987cc 190kW (Diesel) | |
| Nissan | Navara | 2020 | D23 Platform/Chassis 2.3 dCi 4x4 | AWD Diesel 2.3L 4cyl 120kW YS23DDT | 2298cc 120kW (Diesel) | Production date 2015, month 11 to 2020, month 12; Production date 2015, month 5 to 2020, month 12 Read more Read more compatibility notes |
| Mercedes Benz | X-Class | 2019 | 470 Platform/Chassis X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.303,OM 699.305,OM 699.301 | 2298cc 140kW (Diesel) | |
| Mercedes Benz | X-Class | 2019 | 470 Ute X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.303,OM 699.305,OM 699.301 | 2298cc 140kW (Diesel) | |
| Mercedes Benz | X-Class | 2019 | 470 Ute X 350 d 4-matic (470.252) | AWD Diesel 3.0L 6cyl 190kW OM 642.889 | 2987cc 190kW (Diesel) | |
| Nissan | Navara | 2019 | D23 Platform/Chassis 2.3 dCi 4x4 | AWD Diesel 2.3L 4cyl 120kW YS23DDT | 2298cc 120kW (Diesel) | Production date 2015, month 11 to 2020, month 12; Production date 2015, month 5 to 2020, month 12 Read more Read more compatibility notes |
| Mercedes Benz | X-Class | 2018 | 470 Platform/Chassis X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.303,OM 699.305,OM 699.301 | 2298cc 140kW (Diesel) | |
| Mercedes Benz | X-Class | 2018 | 470 Ute X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.303,OM 699.305,OM 699.301 | 2298cc 140kW (Diesel) | |
| Mercedes Benz | X-Class | 2018 | 470 Ute X 350 d 4-matic (470.252) | AWD Diesel 3.0L 6cyl 190kW OM 642.889 | 2987cc 190kW (Diesel) | |
| Nissan | Navara | 2018 | D23 Platform/Chassis 2.3 dCi 4x4 | AWD Diesel 2.3L 4cyl 120kW YS23DDT | 2298cc 120kW (Diesel) | Production date 2015, month 11 to 2020, month 12; Production date 2015, month 5 to 2020, month 12 Read more Read more compatibility notes |
| Mercedes Benz | X-Class | 2017 | 470 Platform/Chassis X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.303,OM 699.305,OM 699.301 | 2298cc 140kW (Diesel) | |
| Mercedes Benz | X-Class | 2017 | 470 Ute X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.303,OM 699.305,OM 699.301 | 2298cc 140kW (Diesel) | |
| Nissan | Navara | 2017 | D23 Platform/Chassis 2.3 dCi 4x4 | AWD Diesel 2.3L 4cyl 120kW YS23DDT | 2298cc 120kW (Diesel) | Production date 2015, month 11 to 2020, month 12; Production date 2015, month 5 to 2020, month 12 Read more Read more compatibility notes |
| Nissan | Navara | 2016 | D23 Platform/Chassis 2.3 dCi 4x4 | AWD Diesel 2.3L 4cyl 120kW YS23DDT | 2298cc 120kW (Diesel) | Production date 2015, month 11 to 2020, month 12; Production date 2015, month 5 to 2020, month 12 Read more Read more compatibility notes |
| Nissan | Navara | 2015 | D23 Platform/Chassis 2.3 dCi 4x4 | AWD Diesel 2.3L 4cyl 120kW YS23DDT | 2298cc 120kW (Diesel) | Production date 2015, month 11 to 2020, month 12; Production date 2015, month 5 to 2020, month 12 Read more Read more compatibility notes |
PRODUCT OVERVIEW
Front CV axle drive shaft suitable for left or right-hand side on automatic or manual 4WD applications. Built to OEM specifications to provide reliable power transfer and long service life.
Important: Check spline count before purchase. For 32 spline applications, use part number CVA1543.
KEY FEATURES
- Manufactured to OEM specifications for fit and performance
- Heat-treated chrome steel construction for durability
- High-quality neoprene dust boots with stainless steel clamps
- Molybdenum grease for smooth operation at varying angles and speeds
- Suitable for front left or right position on 4WD models
VEHICLE COMPATIBILITY
Designed for select 4WD models, including:
- Mercedes-Benz X250d 470 (12/2017~On) 2.3L Diesel YS23DDTT
- Mercedes-Benz X350d 470 (12/2018~On) 3.0L Diesel OMG642.889
- Nissan Navara D23, NP300 CBND23 (12/2020~2025) 2.3L Diesel YS23DDTT
- Nissan Navara SL D23, NP300 DBND23 (12/2020~2025) 2.3L Diesel YS23DDTT
- Nissan Navara SL, ST, ST-X King Cab D23, NP300 BBND23 (12/2020~2025) 2.3L Diesel YS23DDTT
- Nissan Navara SL King Cab D23, NP300 EBND23 (12/2020~2025) 2.3L Diesel YS23DDTT
- Nissan Navara SL, ST, ST-X D23, NP300 CBND23 (12/2020~2026) 2.3L Diesel YS23DDTT
Always confirm spline counts and dimensions against your original part before ordering.
SPECIFICATIONS
- Position: Front, left or right
- Drivetrain: 4WD
- Length (compressed): 641 mm
- Spline count (outer / wheel side): 29T
- Spline count (inner / diff side): 30T
- Inboard joint type: Tripod
- Outboard joint type: Ball
- Hub nut: M24 x 1.5
WHAT'S INCLUDED
- 1 x complete front CV drive shaft assembly
QUALITY & WARRANTY
This CV driveshaft is part of a comprehensive aftermarket driveline range designed for passenger and 4WD applications. It is covered by a 12 month / 20,000 km warranty.
Note: CV boots are warranted for 3 months from date of purchase.
Vehicle Compatibility
| Make | Model | Year | Submodel | Variant | Engine | Notes |
|---|---|---|---|---|---|---|
| Mercedes Benz | X-Class | 2021 | 470 Platform/Chassis X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.301 | 2298cc 140kW (Diesel) | |
| Mercedes Benz | X-Class | 2021 | 470 Ute X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.301 | 2298cc 140kW (Diesel) | |
| Mercedes Benz | X-Class | 2021 | 470 Ute X 350 d 4-matic (470.252) | AWD Diesel 3.0L 6cyl 190kW OM 642.889 | 2987cc 190kW (Diesel) | |
| Mercedes Benz | X-Class | 2020 | 470 Platform/Chassis X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.303,OM 699.305,OM 699.301 | 2298cc 140kW (Diesel) | |
| Mercedes Benz | X-Class | 2020 | 470 Ute X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.303,OM 699.305,OM 699.301 | 2298cc 140kW (Diesel) | |
| Mercedes Benz | X-Class | 2020 | 470 Ute X 350 d 4-matic (470.252) | AWD Diesel 3.0L 6cyl 190kW OM 642.889 | 2987cc 190kW (Diesel) | |
| Nissan | Navara | 2020 | D23 Platform/Chassis 2.3 dCi 4x4 | AWD Diesel 2.3L 4cyl 120kW YS23DDT | 2298cc 120kW (Diesel) | Production date 2015, month 11 to 2020, month 12; Production date 2015, month 5 to 2020, month 12 Read more Read more compatibility notes |
| Mercedes Benz | X-Class | 2019 | 470 Platform/Chassis X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.303,OM 699.305,OM 699.301 | 2298cc 140kW (Diesel) | |
| Mercedes Benz | X-Class | 2019 | 470 Ute X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.303,OM 699.305,OM 699.301 | 2298cc 140kW (Diesel) | |
| Mercedes Benz | X-Class | 2019 | 470 Ute X 350 d 4-matic (470.252) | AWD Diesel 3.0L 6cyl 190kW OM 642.889 | 2987cc 190kW (Diesel) | |
| Nissan | Navara | 2019 | D23 Platform/Chassis 2.3 dCi 4x4 | AWD Diesel 2.3L 4cyl 120kW YS23DDT | 2298cc 120kW (Diesel) | Production date 2015, month 11 to 2020, month 12; Production date 2015, month 5 to 2020, month 12 Read more Read more compatibility notes |
| Mercedes Benz | X-Class | 2018 | 470 Platform/Chassis X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.303,OM 699.305,OM 699.301 | 2298cc 140kW (Diesel) | |
| Mercedes Benz | X-Class | 2018 | 470 Ute X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.303,OM 699.305,OM 699.301 | 2298cc 140kW (Diesel) | |
| Mercedes Benz | X-Class | 2018 | 470 Ute X 350 d 4-matic (470.252) | AWD Diesel 3.0L 6cyl 190kW OM 642.889 | 2987cc 190kW (Diesel) | |
| Nissan | Navara | 2018 | D23 Platform/Chassis 2.3 dCi 4x4 | AWD Diesel 2.3L 4cyl 120kW YS23DDT | 2298cc 120kW (Diesel) | Production date 2015, month 11 to 2020, month 12; Production date 2015, month 5 to 2020, month 12 Read more Read more compatibility notes |
| Mercedes Benz | X-Class | 2017 | 470 Platform/Chassis X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.303,OM 699.305,OM 699.301 | 2298cc 140kW (Diesel) | |
| Mercedes Benz | X-Class | 2017 | 470 Ute X 250 d 4-matic (470.231) | AWD Diesel 2.3L 4cyl 140kW OM 699.303,OM 699.305,OM 699.301 | 2298cc 140kW (Diesel) | |
| Nissan | Navara | 2017 | D23 Platform/Chassis 2.3 dCi 4x4 | AWD Diesel 2.3L 4cyl 120kW YS23DDT | 2298cc 120kW (Diesel) | Production date 2015, month 11 to 2020, month 12; Production date 2015, month 5 to 2020, month 12 Read more Read more compatibility notes |
| Nissan | Navara | 2016 | D23 Platform/Chassis 2.3 dCi 4x4 | AWD Diesel 2.3L 4cyl 120kW YS23DDT | 2298cc 120kW (Diesel) | Production date 2015, month 11 to 2020, month 12; Production date 2015, month 5 to 2020, month 12 Read more Read more compatibility notes |
| Nissan | Navara | 2015 | D23 Platform/Chassis 2.3 dCi 4x4 | AWD Diesel 2.3L 4cyl 120kW YS23DDT | 2298cc 120kW (Diesel) | Production date 2015, month 11 to 2020, month 12; Production date 2015, month 5 to 2020, month 12 Read more Read more compatibility notes |
