Front CV drive shaft axle for Subaru Impreza WRX, Liberty BL BP and Outback BP

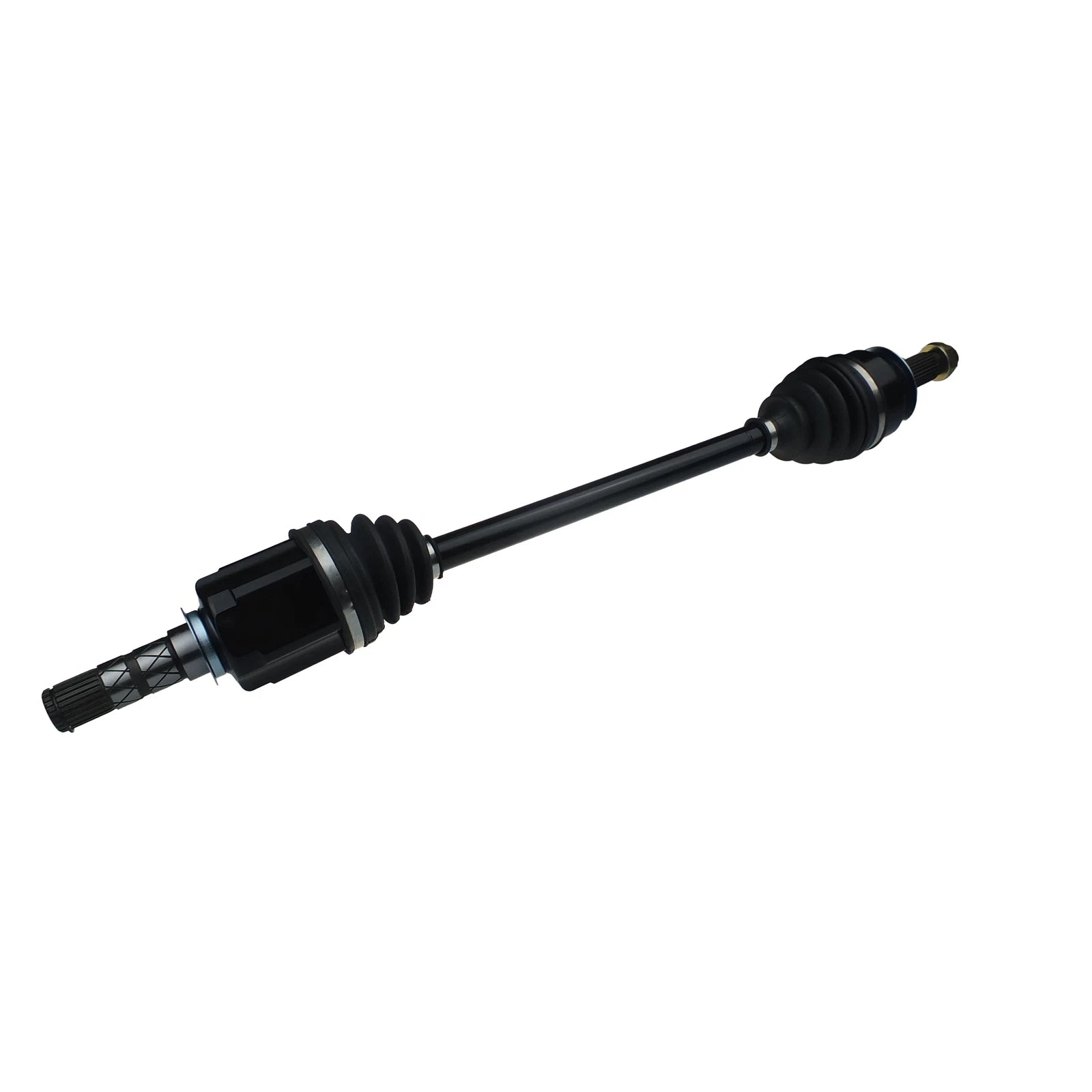

Front CV Drive Shaft Axle for Subaru Impreza WRX, Liberty BL BP, Outback

A$212.78
PRODUCT OVERVIEW This front CV axle shaft is engineered to meet OEM specifications for selected Subaru Impreza (including WRX & STi), Liberty and Outback applications, providing reliable driveline performance and...
Guaranteed Fitment
Fast Shipping

Product Details

PRODUCT OVERVIEW

This front CV axle shaft is engineered to meet OEM specifications for selected Subaru Impreza (including WRX & STi), Liberty and Outback applications, providing reliable driveline performance and fit.

VEHICLE COMPATIBILITY

  • Subaru Impreza (including WRX & STi) GE 2008–2011
  • Subaru Impreza (including WRX & STi) GH 2007–2011
  • Subaru Liberty BL, BP 08/2005–2009
  • Subaru Outback BP 08/2005–2009

Always confirm spline count, dimensions and specifications against your original component before purchase.

WHAT YOU RECEIVE

  • 1 x complete front CV shaft assembly

FEATURES & BENEFITS

  • Built to OEM specifications using heat-treated chrome steel for durability and long service life.
  • High-quality neoprene dust boots with stainless steel clamps to help prevent contamination.
  • Packed with moly grease for smooth operation at varying angles, speeds and high revolutions.
  • Designed for consistent performance in passenger and 4WD driveline applications.

SPECIFICATIONS

  • Spline (wheel side): 27
  • Spline (inner): 25
  • Nut thread: M22 x 1.5
  • Drive shaft seal ID (inner): 35.0 mm
  • Length (compressed): 780.0 mm

If a longer shaft is required, reference part CVA1327. For lifted vehicles, part CVA1046 may be required. Verify against your vehicle setup.

WARRANTY

  • CV driveshaft: 12 month / 20,000 km warranty (whichever occurs first).
  • CV boots: 3 month warranty from date of purchase.

Warranty applies to manufacturing faults only and is subject to correct installation and application.

Vehicle Compatibility

Make Model Year Submodel Variant Engine Notes
Subaru Impreza 2016 GR,GE7 Sedan 2.0 i AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2015 GR,GE7 Sedan 2.0 i AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2014 GR,GE7 Sedan 2.0 i AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2013 GE,GH,GR,GRF Hatchback 2.5 WRX STi AWD AWD Petrol 2.5L 4cyl 221kW EJ257 2457cc 221kW (Petrol)
Subaru Impreza 2013 GR,GE7 Sedan 2.0 i AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2012 GE,GH,GR,GH7 Hatchback 2.0 R AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2012 GE,GH,GR,GRF Hatchback 2.5 WRX STi AWD AWD Petrol 2.5L 4cyl 221kW EJ257 2457cc 221kW (Petrol)
Subaru Impreza 2012 GR,GE7 Sedan 2.0 i AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2011 GE,GH,GR,GH7 Hatchback 2.0 R AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2011 GE,GH,GR,GHE Hatchback 2.5 i WRX AWD AWD Petrol 2.5L 4cyl 169kW EJ255 2457cc 169kW (Petrol)
Subaru Impreza 2011 GE,GH,GR,GRF Hatchback 2.5 WRX STi AWD AWD Petrol 2.5L 4cyl 221kW EJ257 2457cc 221kW (Petrol)
Subaru Impreza 2011 GR,GE7 Sedan 2.0 i AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2010 GE,GH,GR,GH7 Hatchback 2.0 R AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2010 GE,GH,GR,GHE Hatchback 2.5 i WRX AWD AWD Petrol 2.5L 4cyl 169kW EJ255 2457cc 169kW (Petrol)
Subaru Impreza 2010 GE,GH,GR,GRF Hatchback 2.5 WRX STi AWD AWD Petrol 2.5L 4cyl 221kW EJ257 2457cc 221kW (Petrol)
Subaru Impreza 2010 GR,GE7 Sedan 2.0 i AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2009 GE,GH,GR,GH7 Hatchback 2.0 R AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2009 GE,GH,GR,GHE Hatchback 2.5 i WRX AWD AWD Petrol 2.5L 4cyl 169kW EJ255 2457cc 169kW (Petrol)
Subaru Impreza 2009 GE,GH,GR,GRF Hatchback 2.5 WRX STi AWD AWD Petrol 2.5L 4cyl 221kW EJ257 2457cc 221kW (Petrol)
Subaru Impreza 2009 GR,GE7 Sedan 2.0 i AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Description

PRODUCT OVERVIEW

This front CV axle shaft is engineered to meet OEM specifications for selected Subaru Impreza (including WRX & STi), Liberty and Outback applications, providing reliable driveline performance and fit.

VEHICLE COMPATIBILITY

  • Subaru Impreza (including WRX & STi) GE 2008–2011
  • Subaru Impreza (including WRX & STi) GH 2007–2011
  • Subaru Liberty BL, BP 08/2005–2009
  • Subaru Outback BP 08/2005–2009

Always confirm spline count, dimensions and specifications against your original component before purchase.

WHAT YOU RECEIVE

  • 1 x complete front CV shaft assembly

FEATURES & BENEFITS

  • Built to OEM specifications using heat-treated chrome steel for durability and long service life.
  • High-quality neoprene dust boots with stainless steel clamps to help prevent contamination.
  • Packed with moly grease for smooth operation at varying angles, speeds and high revolutions.
  • Designed for consistent performance in passenger and 4WD driveline applications.

SPECIFICATIONS

  • Spline (wheel side): 27
  • Spline (inner): 25
  • Nut thread: M22 x 1.5
  • Drive shaft seal ID (inner): 35.0 mm
  • Length (compressed): 780.0 mm

If a longer shaft is required, reference part CVA1327. For lifted vehicles, part CVA1046 may be required. Verify against your vehicle setup.

WARRANTY

  • CV driveshaft: 12 month / 20,000 km warranty (whichever occurs first).
  • CV boots: 3 month warranty from date of purchase.

Warranty applies to manufacturing faults only and is subject to correct installation and application.

Vehicle Compatibility

Make Model Year Submodel Variant Engine Notes
Subaru Impreza 2016 GR,GE7 Sedan 2.0 i AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2015 GR,GE7 Sedan 2.0 i AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2014 GR,GE7 Sedan 2.0 i AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2013 GE,GH,GR,GRF Hatchback 2.5 WRX STi AWD AWD Petrol 2.5L 4cyl 221kW EJ257 2457cc 221kW (Petrol)
Subaru Impreza 2013 GR,GE7 Sedan 2.0 i AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2012 GE,GH,GR,GH7 Hatchback 2.0 R AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2012 GE,GH,GR,GRF Hatchback 2.5 WRX STi AWD AWD Petrol 2.5L 4cyl 221kW EJ257 2457cc 221kW (Petrol)
Subaru Impreza 2012 GR,GE7 Sedan 2.0 i AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2011 GE,GH,GR,GH7 Hatchback 2.0 R AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2011 GE,GH,GR,GHE Hatchback 2.5 i WRX AWD AWD Petrol 2.5L 4cyl 169kW EJ255 2457cc 169kW (Petrol)
Subaru Impreza 2011 GE,GH,GR,GRF Hatchback 2.5 WRX STi AWD AWD Petrol 2.5L 4cyl 221kW EJ257 2457cc 221kW (Petrol)
Subaru Impreza 2011 GR,GE7 Sedan 2.0 i AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2010 GE,GH,GR,GH7 Hatchback 2.0 R AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2010 GE,GH,GR,GHE Hatchback 2.5 i WRX AWD AWD Petrol 2.5L 4cyl 169kW EJ255 2457cc 169kW (Petrol)
Subaru Impreza 2010 GE,GH,GR,GRF Hatchback 2.5 WRX STi AWD AWD Petrol 2.5L 4cyl 221kW EJ257 2457cc 221kW (Petrol)
Subaru Impreza 2010 GR,GE7 Sedan 2.0 i AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2009 GE,GH,GR,GH7 Hatchback 2.0 R AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
Subaru Impreza 2009 GE,GH,GR,GHE Hatchback 2.5 i WRX AWD AWD Petrol 2.5L 4cyl 169kW EJ255 2457cc 169kW (Petrol)
Subaru Impreza 2009 GE,GH,GR,GRF Hatchback 2.5 WRX STi AWD AWD Petrol 2.5L 4cyl 221kW EJ257 2457cc 221kW (Petrol)
Subaru Impreza 2009 GR,GE7 Sedan 2.0 i AWD AWD Petrol 2.0L 4cyl 110kW EJ204 1994cc 110kW (Petrol)
