Front CV Drive Shaft Pair for Ford Ranger PJ PK 4WD / Mazda BT-50 3.0L

PRODUCT OVERVIEW

This front CV drive shaft pair is engineered as a direct replacement for selected Ford Ranger PJ/PK 4WD 3.0L diesel and Mazda BT-50 3.0L diesel models. Built to OEM specifications, these shafts provide reliable power delivery and durability in demanding 4WD applications.

COMPATIBILITY

• Ford Ranger PJ PK 4WD 3.0L Diesel (2006–2011)
• Mazda BT-50 UN 3.0L Diesel (2006–2011)

Always confirm shaft lengths, spline counts and seal sizes against your original components before purchase.

WHAT'S INCLUDED

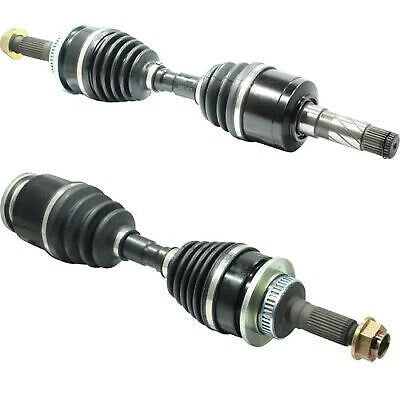

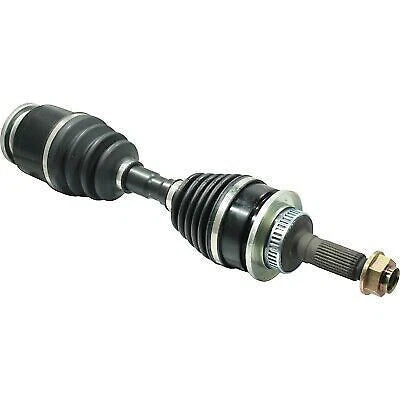

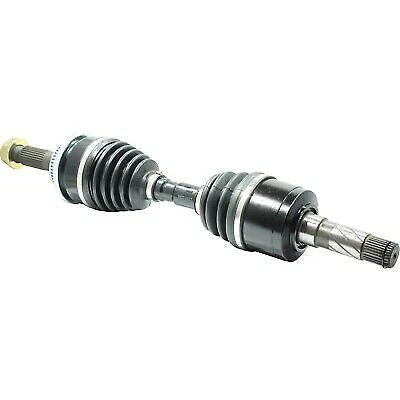

• 1 x Front Right Hand CV Driveshaft (Part No: CVA1011)
• 1 x Front Left Hand CV Driveshaft (Part No: CVA1014)

KEY FEATURES

• Manufactured to OEM specifications for fit and performance
• Heat-treated chrome steel construction for extended service life
• High-quality neoprene dust boots with stainless steel clamps
• Pre-lubricated with high-performance moly grease for smooth operation at varying angles and speeds
• Supplied as a matched left and right front shaft pair

SPECIFICATIONS

• ABS ring: 44 tooth (each shaft)
• Wheel-end spline: 28 tooth (each shaft)
• Right-hand shaft length: 585–620 mm
• Right-hand CV seal size: 38 mm
• Right-hand diff-side spline: 30 tooth
• Left-hand shaft length: 490–520 mm
• Left-hand CV seal size: 42 mm
• Left-hand diff-side spline: 26 tooth + 2 blanks

WARRANTY

• CV driveshafts: 12 months / 20,000 km (whichever occurs first)
• CV boots: 3 months from date of purchase

Installation by a qualified technician is recommended to ensure correct fitment and to maintain warranty coverage.
