Front Brake Pad & Rotor Kit for Toyota Hilux 4WD KUN25 GGN25 2005-2010

PRODUCT OVERVIEW

This front brake kit includes 2 x vented disc rotors and 1 x set of front brake pads (LH and RH) for selected Toyota Hilux 4WD models. Designed as an OE-style replacement to restore reliable braking performance.

DISC ROTOR FEATURES

• OE-style design for direct fitment
• Optimal thermal conductivity for improved heat dissipation
• Helps prevent brake judder and vibration
• Reduced braking noise due to improved damping characteristics
• High resistance to distortion and thermal cracking
• Enhanced braking safety and consistency
• Maximised rotor service life
• Improved brake effectiveness with less pedal effort
• Lower operating temperatures to reduce stress on components
• Reduced wear for longer-lasting braking performance

BRAKE PAD FEATURES

• OE-quality friction material
• High durability versus most aftermarket options
• Consistent and confident pedal feel
• High-temperature performance for demanding use
• Shortened braking distance (manufacturer tested)
• ECE R90 compliant

DISC ROTOR SPECIFICATIONS

• Diameter: 297 mm
• Height: 68 mm
• Maximum thickness: 25 mm
• Minimum thickness: 23 mm
• Centre hole: 108 mm
• Number of studs: 6
• Type: Vented

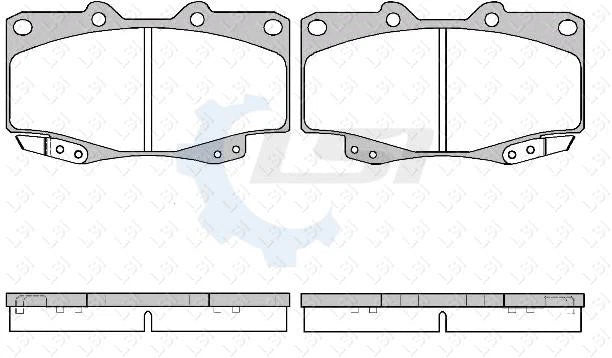

BRAKE PAD DIMENSIONS

• Length: 119.2 mm
• Height: 68 mm
• Thickness: 17 mm

VEHICLE COMPATIBILITY

Front axle fitment for selected Toyota Hilux 4WD models with 297 mm front rotors, without Vehicle Stability Control (VSC) only:

• Toyota Hilux 4WD KUN / GGN / TGN / LAN 2.5L & 3.0TD, 4/2005 onwards (front, 297 mm)
• Toyota Hilux SR5 4WD KUN26R 3.0TD 126 kW, 3/2005–6/2010 (front)
• Toyota Hilux SR5 4WD GGN25R 4.0L 175 kW, 3/2005–9/2015 (front)

Note: Suits vehicles without Vehicle Stability Control (VSC) only. Always confirm rotor diameter, specifications and pad shape against your existing components before purchase.

WARRANTY

Supplied with a 1-year parts replacement warranty, subject to correct installation and normal use. Proof of purchase is required for all warranty claims.
