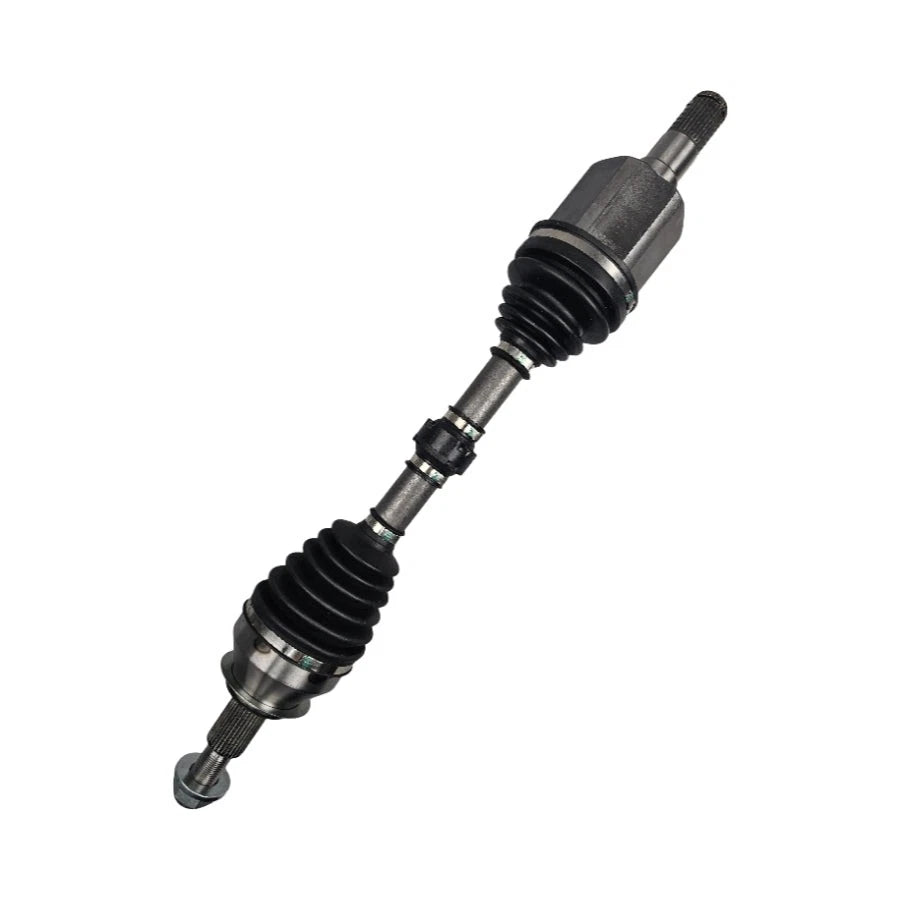

Front Left CV Axle Drive Shaft for Mazda CX-9 TC 2.5L FWD/AWD 2016+

PRODUCT OVERVIEW

This front left CV axle drive shaft is designed for Mazda CX-9 TC 2.5L (PY 16V DOHC VVT) models from 07/2016 onwards, suitable for both FWD and AWD automatic transmissions.

Manufactured to OEM specifications using heat-treated chrome steel, this shaft delivers strength, durability and smooth power transfer for daily driving and demanding conditions.

KEY FEATURES

• OEM-style front left CV axle for Mazda CX-9 TC 2.5L (2016-on)
• Heat-treated chrome steel construction for extended service life
• High-quality neoprene dust boots with stainless steel clamps to resist contamination
• Filled with moly grease for smooth operation at varying angles and speeds
• Engineered for reliable performance in both FWD and AWD applications

APPLICATION DETAILS

Suitable for Mazda CX-9 TC 2.5L PY 16V DOHC VVT (07/2016-on), including the following variants:

• AZAMI
• AZAMI 100TH ANNIVERSARY
• AZAMI LE
• GT
• GT SP
• SPORT
• TOURING

Position: Front Left (Driver Side in RHD markets).

SIZING & SPECIFICATIONS

• Length (compressed): 675 mm
• Spline count (outer / wheel side): 31T
• Spline count (inner / diff side): 31T
• Outboard joint type: Ball
• Inboard joint type: Tripod
• Hub nut style: M22 x 1.5

WHAT'S INCLUDED

• 1 x Complete CV axle drive shaft (front left)

WARRANTY

• 12-month / 20,000 km warranty on CV driveshaft
• CV boots warranted for 3 months from date of purchase

Ensure all specifications and vehicle details are checked against your existing component before purchase and installation.
