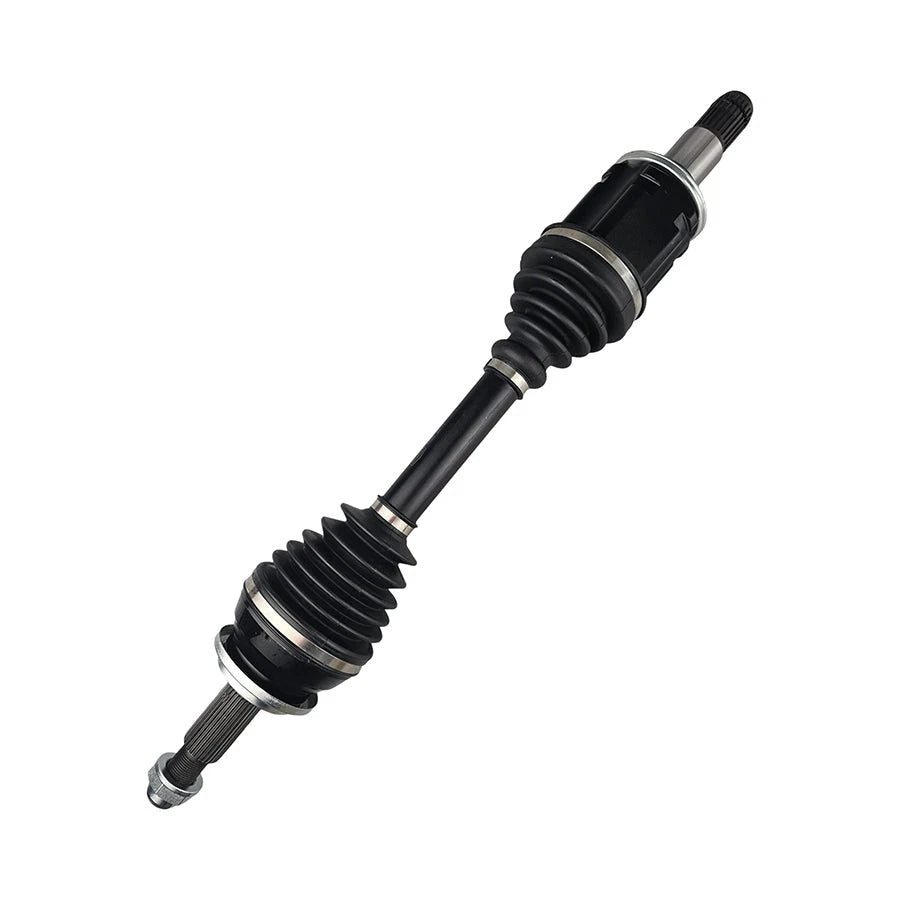

Front Left CV Drive Shaft for Toyota RAV4 ALA49 GSA33 2007-2019 76mm

PRODUCT OVERVIEW

Front left CV axle drive shaft suitable for automatic or manual AWD/4WD Toyota RAV4 ALA49 and GSA33 models. Designed to meet OEM specifications for durability and smooth power delivery.

Important: This shaft has a 76mm inner stub length. If your vehicle requires 67mm, this part will not be suitable.

KEY FEATURES

• Built to OEM specifications for fit and performance
• Heat-treated chrome steel construction for strength and longevity
• High-quality neoprene dust boots to protect against contamination
• Stainless steel clamps for secure boot retention
• Filled with moly grease for smooth operation at varying angles and speeds

VEHICLE COMPATIBILITY

Suitable for the following Toyota RAV4 applications (check inner stub length 76mm before purchase):

• Toyota RAV4 ALA49 2.2L 2AD-FTV AWD MN/AT (02/2013 - 11/2015) – models: GXL, Cruiser, GX
• Toyota RAV4 ALA49 2.2L 2AD-FHV AWD AT (12/2015 - 02/2019) – models: GX, Cruiser, GXL
• Toyota RAV4 ALA49 2.2L 2AD-FHV AWD MN (12/2015 - 02/2019) – models: GX, GXL
• Toyota RAV4 GSA33 3.5L 2GR-FE 4WD AT (10/2007 - 01/2013) – models: CV6, SX6, ZR6

Always confirm spline counts, compressed length and inner stub length against your original shaft before ordering.

SPECIFICATIONS

• Position: Front left (driver side in RHD markets)
• Drivetrain: AWD / 4WD
• Compressed length: 647mm
• Inner stub length: 76mm
• Spline count (outer / wheel side): 30T
• Spline count (inner / diff side): 24T

WHAT'S INCLUDED

• 1 x complete front left CV drive shaft assembly

WARRANTY

• 12 month / 20,000 km warranty on CV driveshaft
• CV boots warranted for 3 months from date of purchase

Warranty applies to manufacturing defects only and is subject to correct installation and application.
