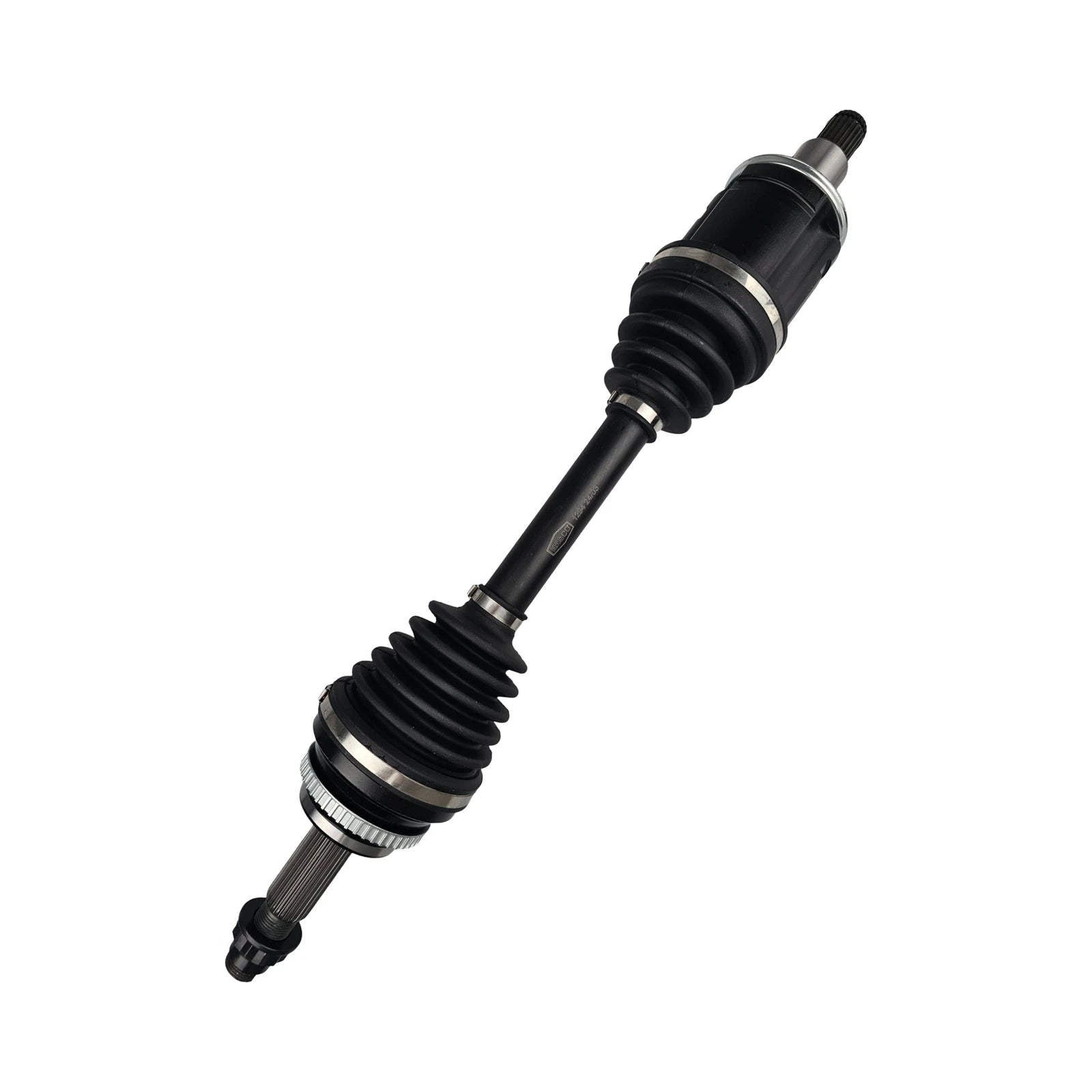

Front Left CV Axle Drive Shaft for Toyota RAV4 ACA20 ACA21 ACA22 ACA23

PRODUCT OVERVIEW

Front left CV axle drive shaft suitable for selected Toyota RAV4 ACA20, ACA21, ACA22 and ACA23 applications. Designed to meet OEM specifications for reliable power transfer from transmission to wheel.

KEY FEATURES

• Heat-treated chrome steel construction for durability and strength.
• High-quality neoprene dust boots with stainless steel clamps to help prevent contamination.
• Molybdenum grease for smooth operation at varying angles, speeds and high RPM.
• Manufactured to OEM-style specifications for fit and performance.

INCLUDED IN THE BOX

• 1 x Front left CV axle drive shaft

SPECIFICATIONS

• Position: Front left (driver side on right-hand-drive vehicles)
• Length (compressed): 595 mm
• Spline count – outer/wheel side: 26T
• Spline count – inner/diff side: 23T

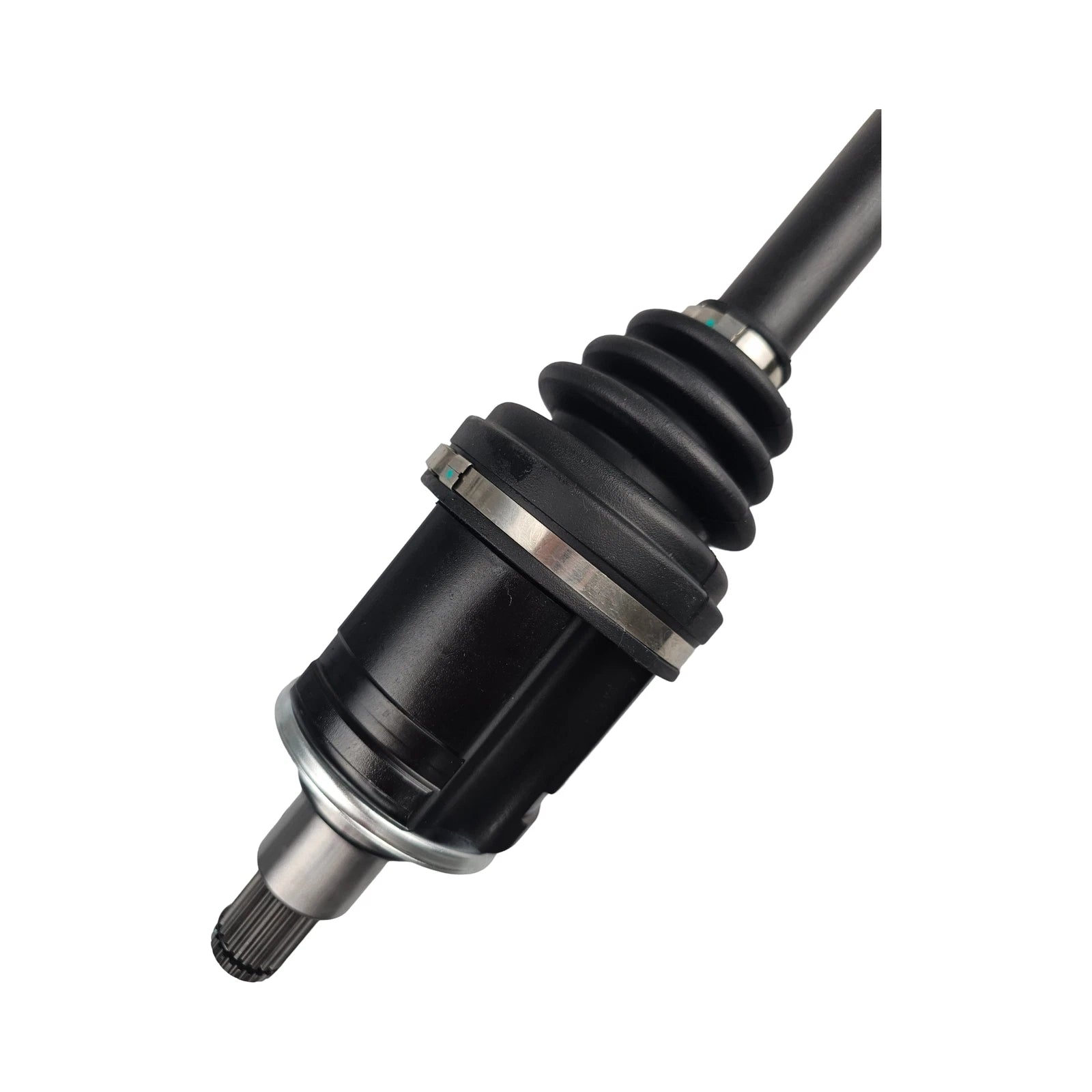

• Inboard joint type: Tripod

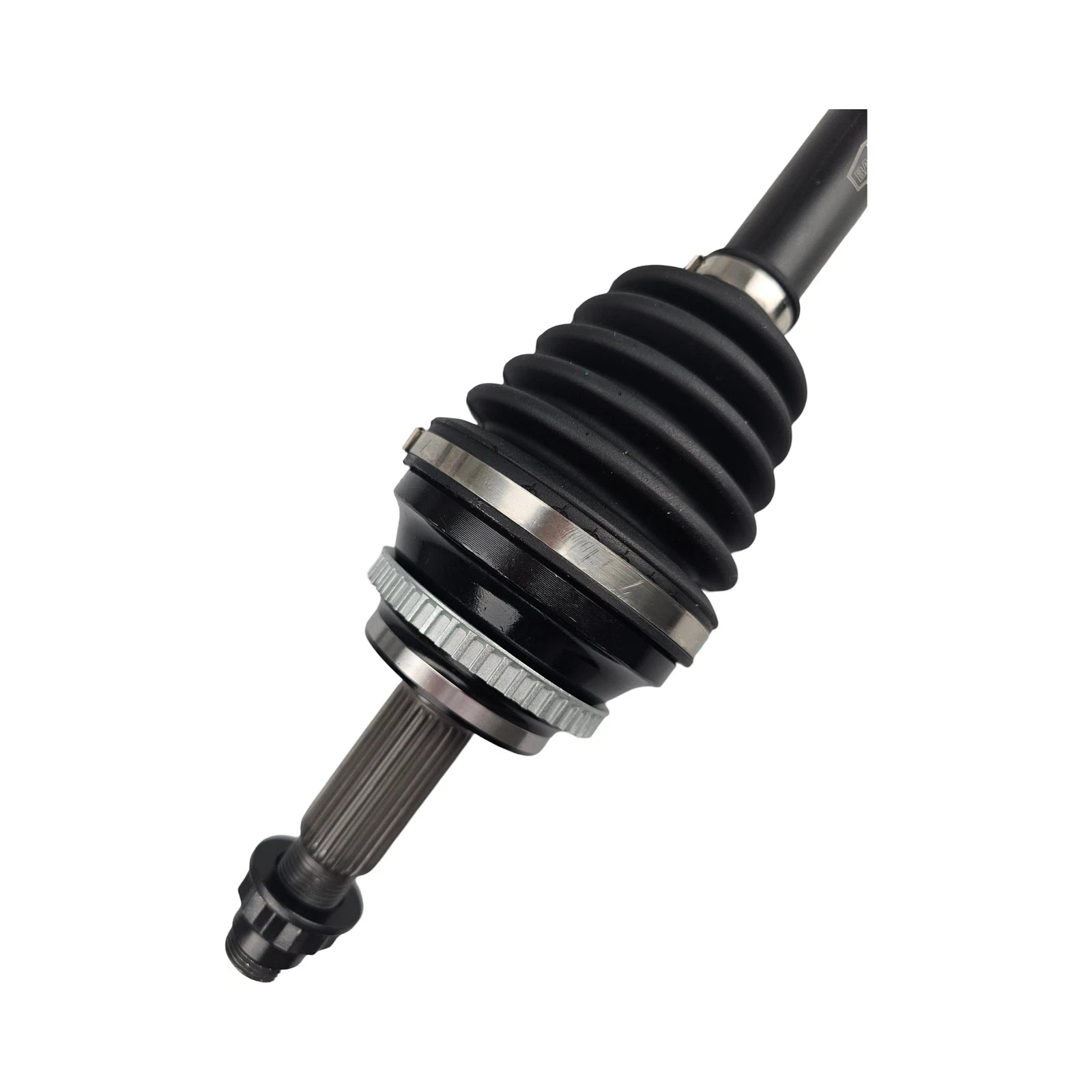

• Outboard joint type: Ball
• ABS ring teeth: 48T

VEHICLE DETAILS (REFERENCE ONLY)

The following information is provided as a general reference only. Always verify spline counts, lengths and other specifications against your original part.

• Toyota RAV4 2000–2005 ACA20 / ACA20R (selected builds, date ranges may vary)
• Toyota RAV4 2000–2005 ACA21R (selected builds)
• Toyota RAV4 2003–2006 ACA22R / ACA23R (selected builds)

Model codes and year ranges are indicative only. Check all measurements and specifications before purchase.

WARRANTY INFORMATION

• CV driveshaft: 12 month / 20,000 km warranty (whichever occurs first).
• CV boots: 3 month warranty from date of purchase.

Warranty is subject to correct installation, normal operating conditions and use as intended by the vehicle manufacturer.
