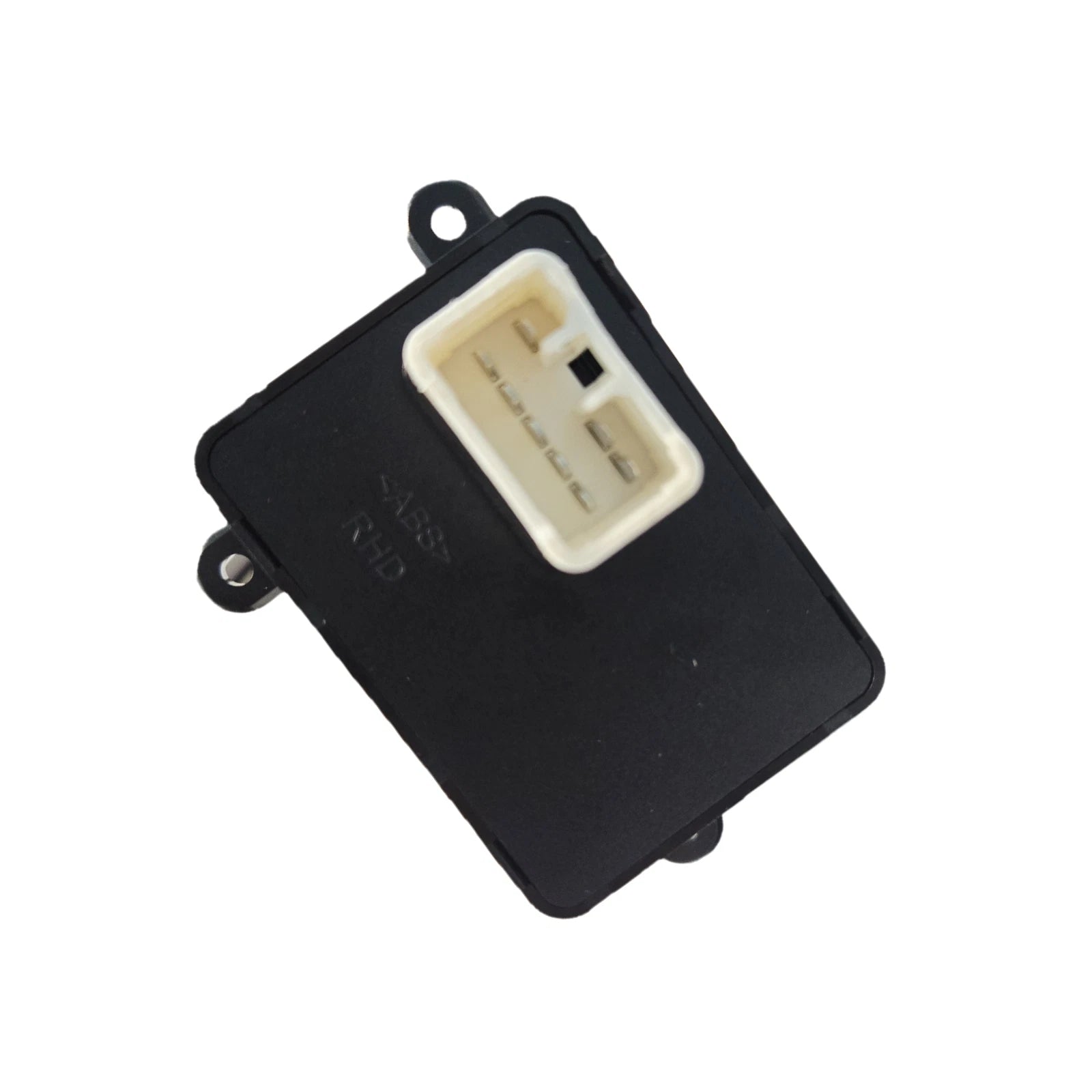

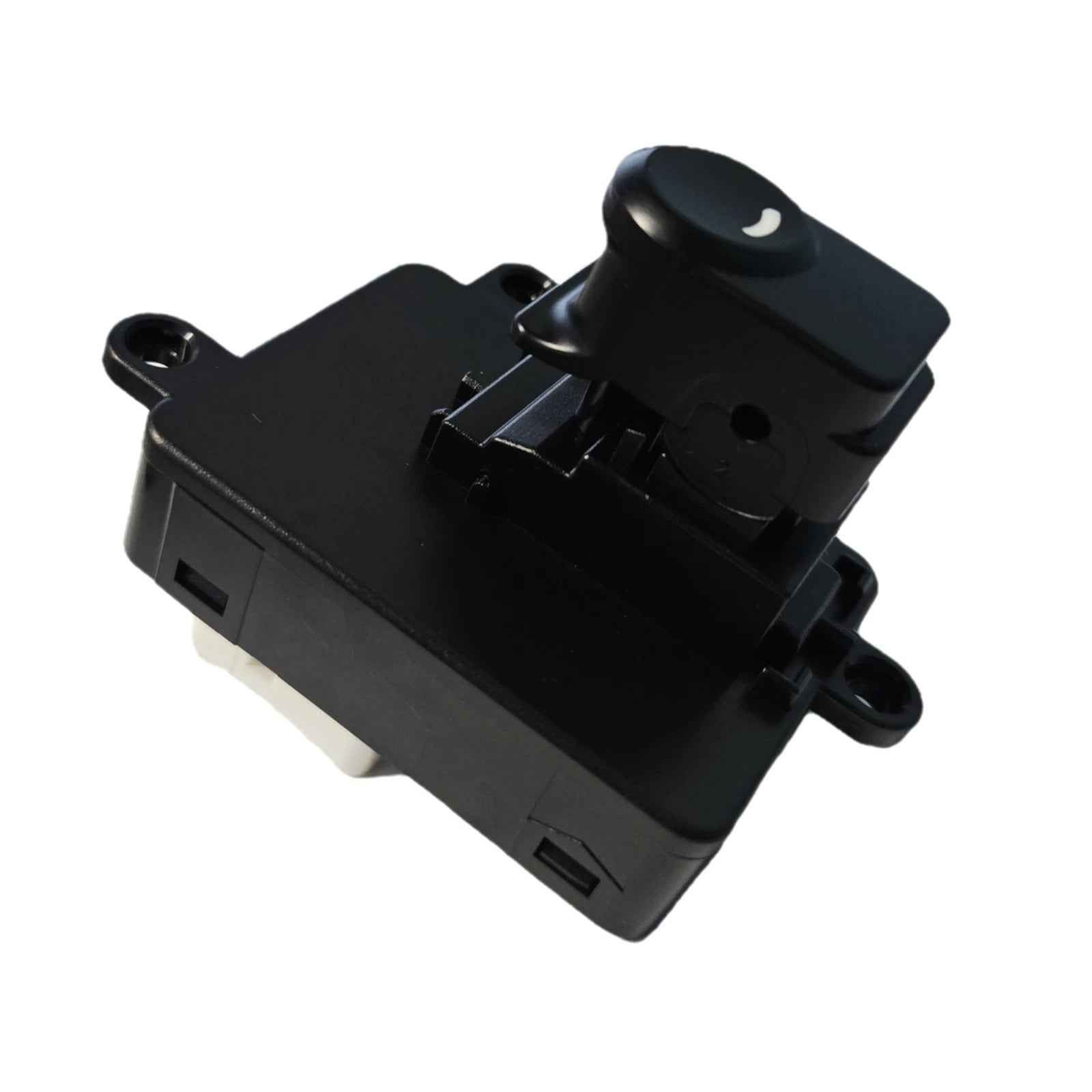

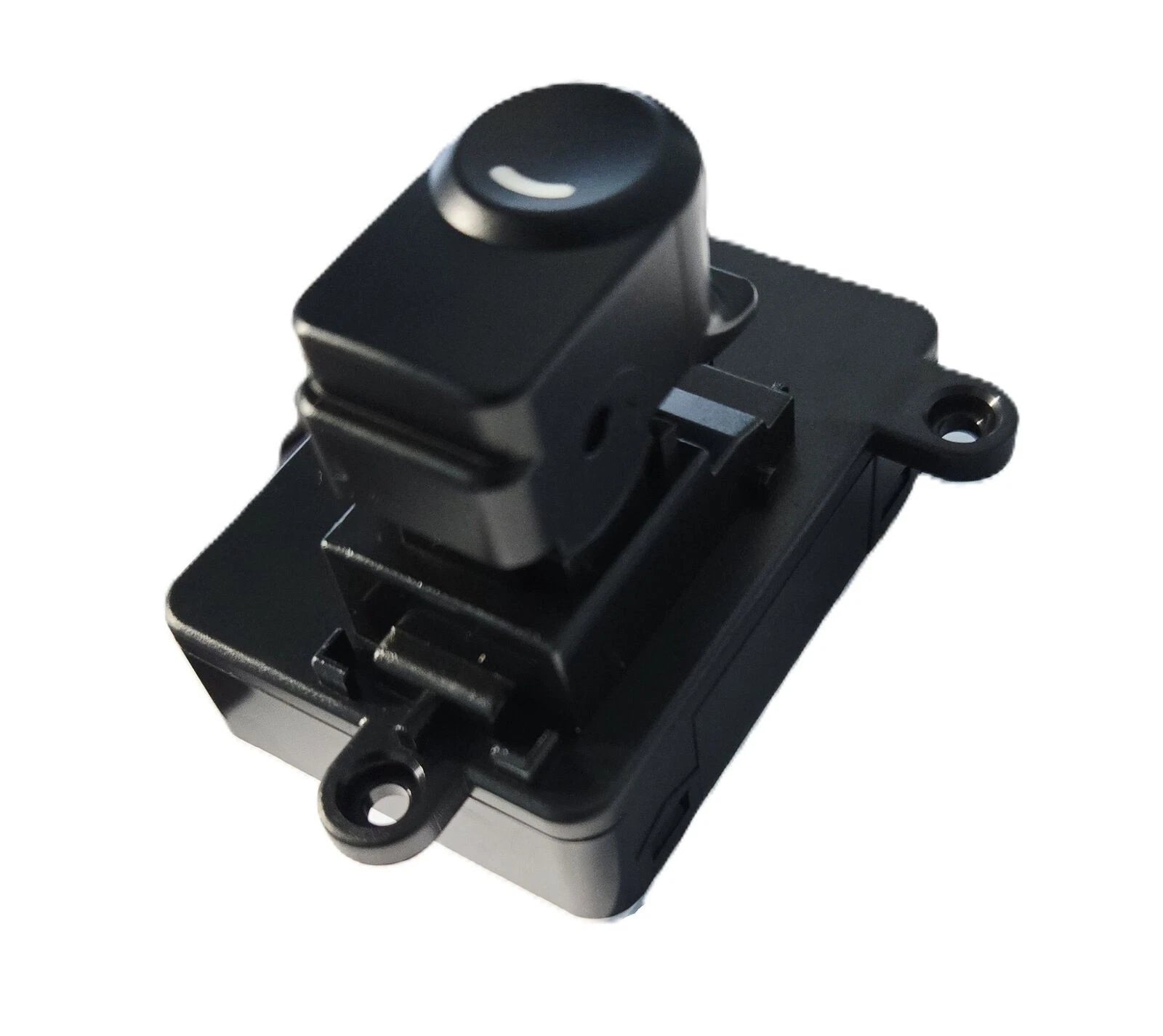

Front Left 8-Pin Power Window Switch for Hyundai i30 FD 2007-2012 RHD

Product Overview

This front left electric power window switch is a high-quality aftermarket replacement designed for right-hand-drive Hyundai i30 FD models. It is supplied brand new as a single piece and provides reliable control of the passenger-side front window.

Key Features

• Direct replacement front left (front passenger side) power window switch
• 8-pin electric operating mode for precise window control
• High-quality aftermarket construction
• Supplied brand new as 1 piece
• Covered by 3-month manufacturer warranty (part only)

Specifications

• Product: Power window switch
• Operating mode: Electric
• Position: Front left (front passenger side)
• Connector: 8 pins
• Condition: Brand new
• Part type: High quality aftermarket
• MPN / Item No.: 102173
• Ref. OEM numbers: 93575-2L911, 935752L911
• Quantity supplied: 1 piece
• Manufacturer warranty: 3 months (part only)

Fitment

• Hyundai i30 FD 01/2007 – 03/2012, RHD (right-hand drive)

Before purchasing, visually compare this switch and 8-pin connector layout with your original part and confirm the OEM reference numbers where possible.

Installation & Anti-Pinch Reset

If used with a window regulator motor that has an anti-pinch function, correct setup is required for one-touch operation:

• Do not test the motor before it is installed in the door, otherwise the anti-pinch function may need resetting.
• Install the motor and connect it to the one-touch window switch, then check that the window travels fully up.
• If the window drops down after reaching the top, perform an anti-pinch reset.

Anti-pinch reset procedure:

• Step 1: Pull the window switch briefly to move the glass slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly to move the glass slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to move the window fully up and confirm it no longer drops down.

If the window still drops after reaching the top, repeat the above steps until the reset is successful.

Additional Information

• Intended for use as a replacement part only.
• Product images are for reference; colour may vary slightly due to screen settings and lighting.
• Professional installation by a qualified automotive technician is recommended to maintain warranty coverage.
