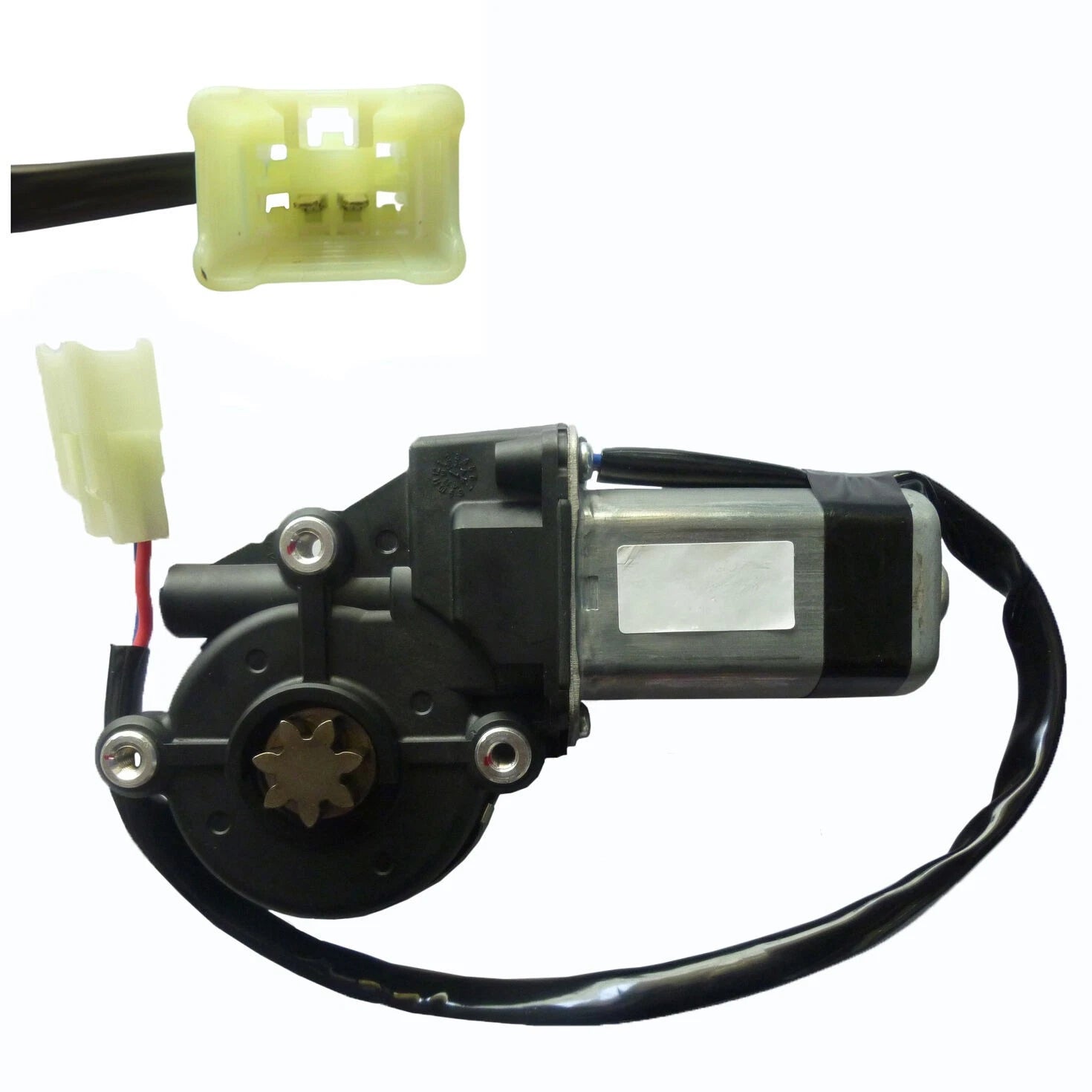

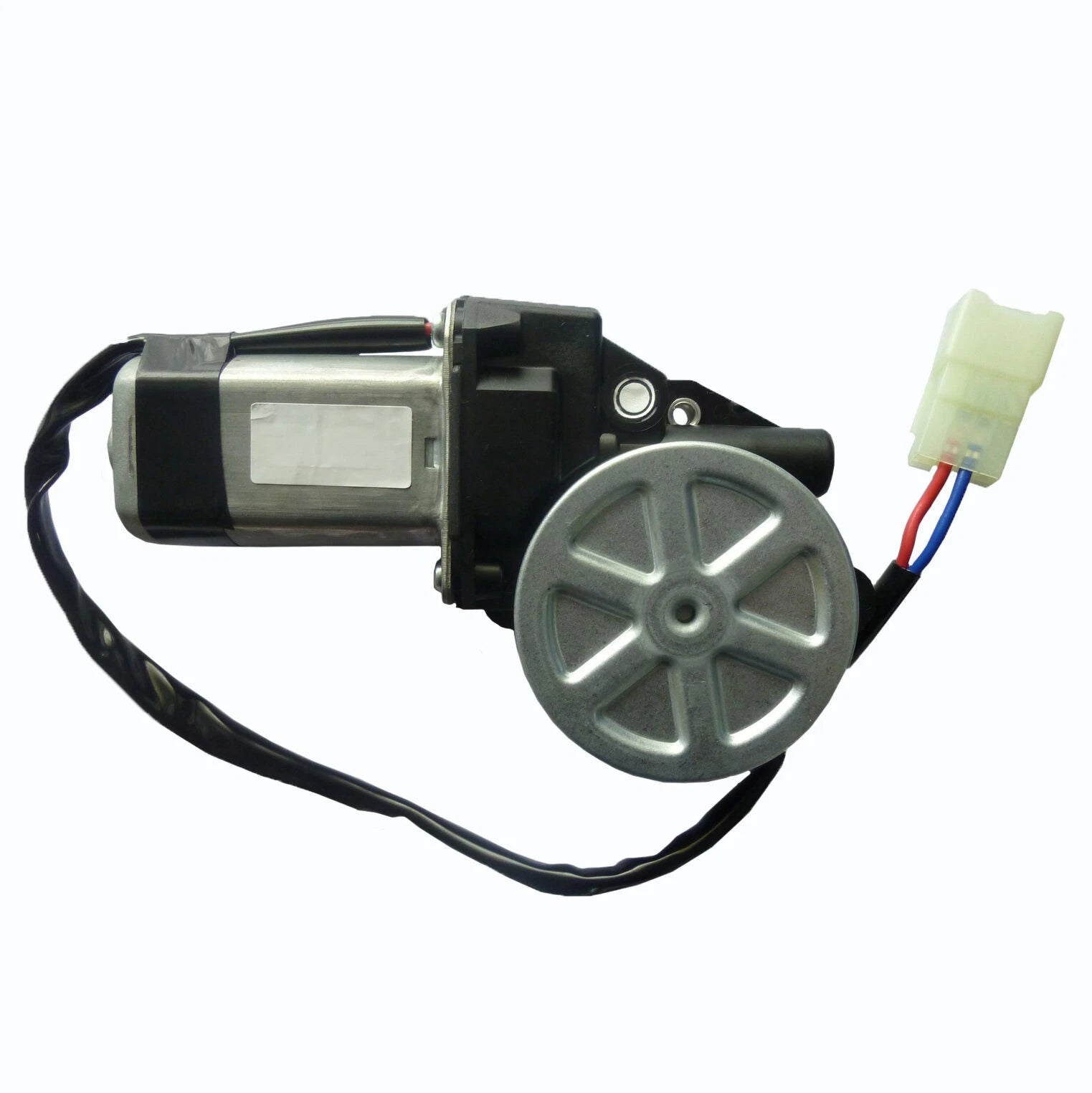

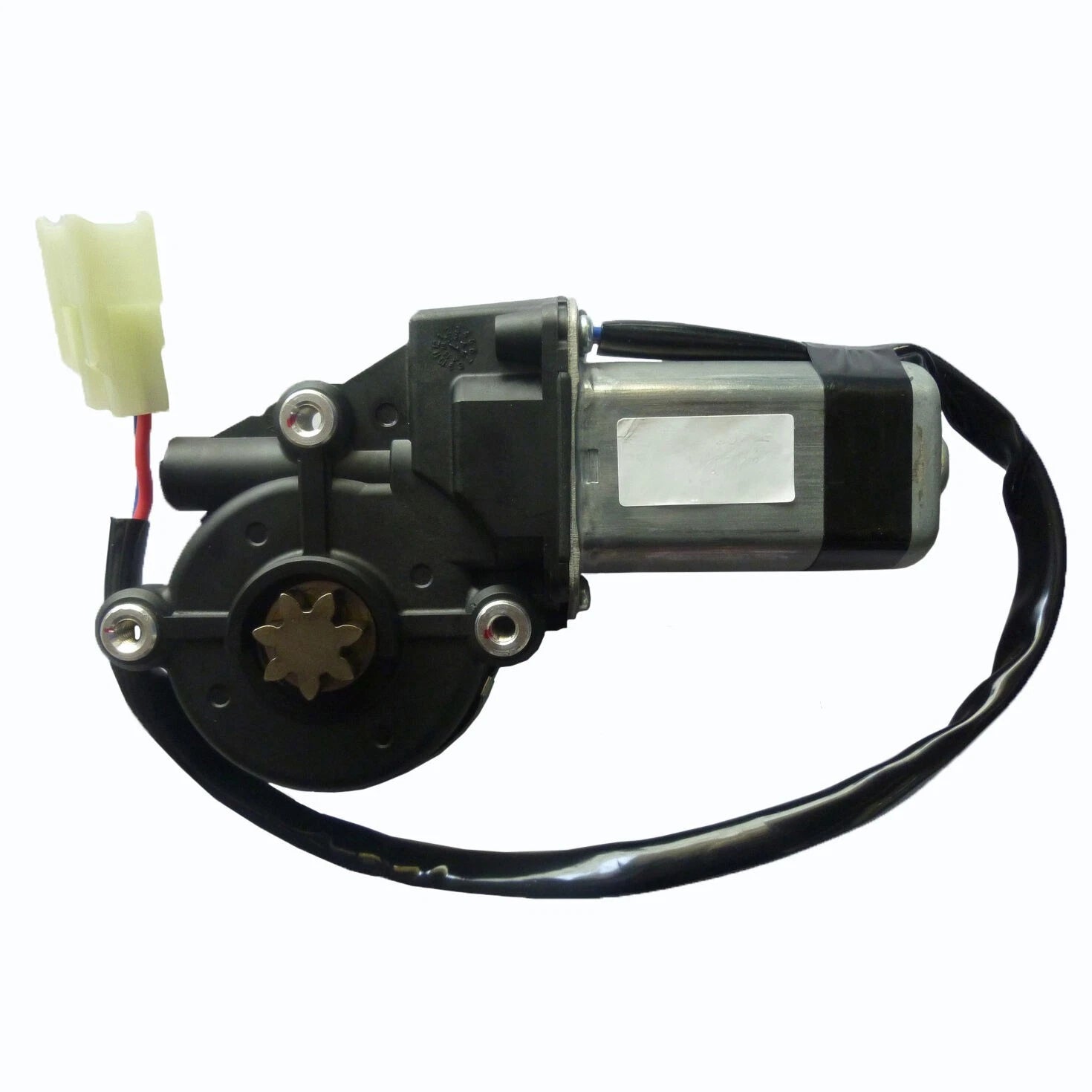

Front Left Window Lift Motor 2-Pin for Toyota Camry ACV36 2002-2006

PRODUCT OVERVIEW

This front left electric window lift motor is a high-quality aftermarket replacement designed for Toyota Camry ACV36 models produced from 09/2002 to 06/2006. It is supplied as a brand new unit and is suitable for repair and restoration applications.

KEY FEATURES

• Electric window lift motor
• Front left (front passenger side) position
• 2-pin motor connector
• High-quality aftermarket construction
• Supplied brand new
• 1-year manufacturer warranty (part only)
• Supplied as 1 piece

PART DETAILS

• Product type: Window lift motor
• Operating mode: Electric
• Placement on vehicle: Front left (front passenger side)

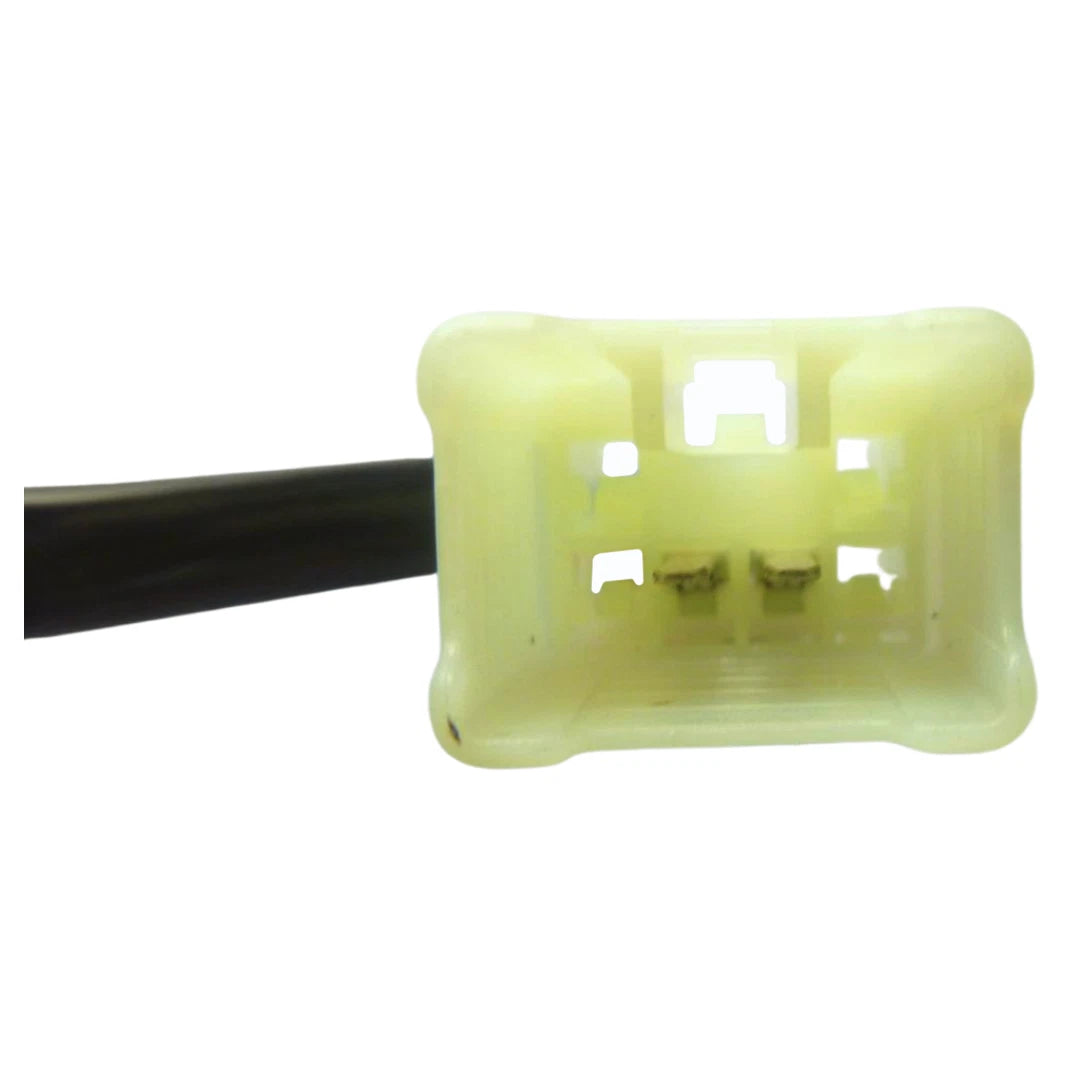

• Motor connector: 2 pins
• Condition: Brand new
• Part specs: High quality aftermarket
• MPN/Item No.: 101499
• Warranty: 1 year (part only)
• Quantity supplied: 1 piece

VEHICLE COMPATIBILITY

• Toyota Camry ACV36R 09/2002–06/2006 2AZ-FE 2.4L Sedan

Always compare the part number, connector type, and product images with your original motor before purchasing.

ANTI-PINCH FUNCTION SETUP (IF APPLICABLE)

For window motors equipped with an anti-pinch (one-touch) function, correct setup is critical for proper operation.

• Do not test the motor before it is installed in the door, or the anti-pinch function may lose calibration.
• The motors are tested and set prior to dispatch.
• Install the motor, connect it to the one-touch window switch, and operate the switch to confirm the window travels fully up.
• If the window drops after reaching the top position, perform a reset of the anti-pinch function.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly to move the window slightly up to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the window switch briefly to move the window slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to move the window fully up and confirm it no longer drops automatically.

If the window still moves down after reaching the top, repeat the reset procedure until the function operates correctly.

INSTALLATION & WARRANTY NOTES

• Professional installation by a qualified automotive mechanic is strongly recommended.
• This component is intended as a replacement/repair part.
• Colour and finish may vary slightly from images due to screen and lighting differences.
• Match the connector style, mounting points, and overall design to your original part before installation.

Warranty generally covers replacement of the defective part only and does not include labour, incorrect installation, misuse, or modification. Retain proof of purchase and follow any specific return or assessment procedures required by your seller.
