Front Left Window Lift Motor 2-Pin for Toyota RAV4 2000–2006

Product Overview

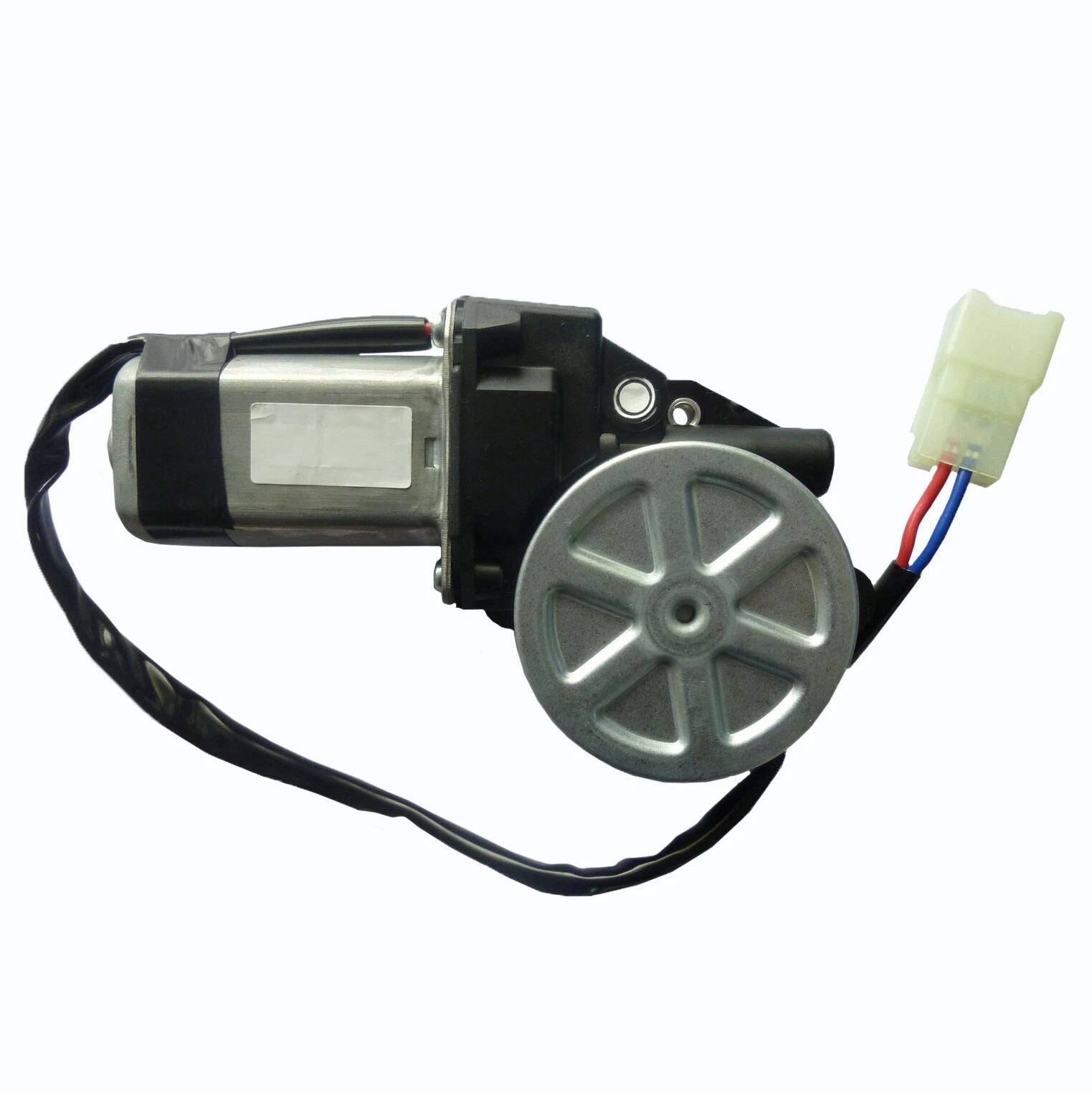

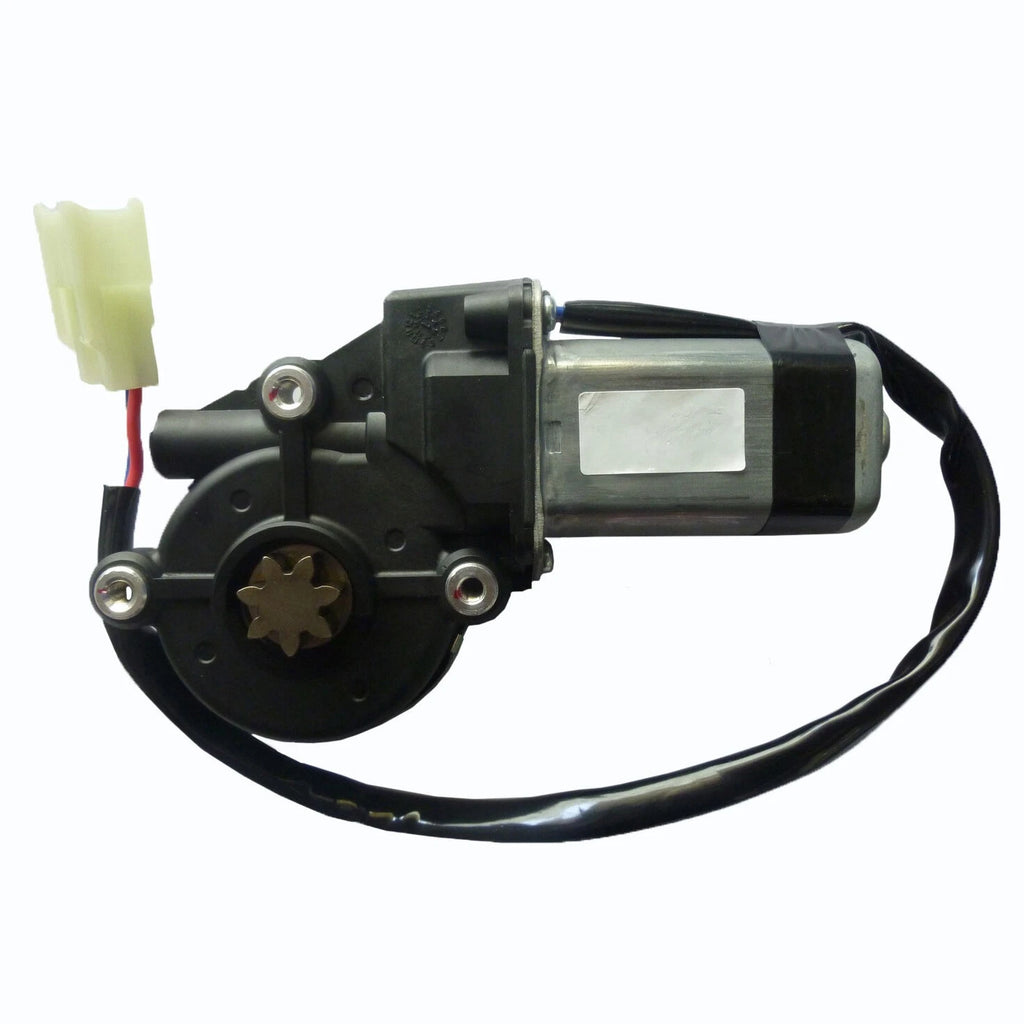

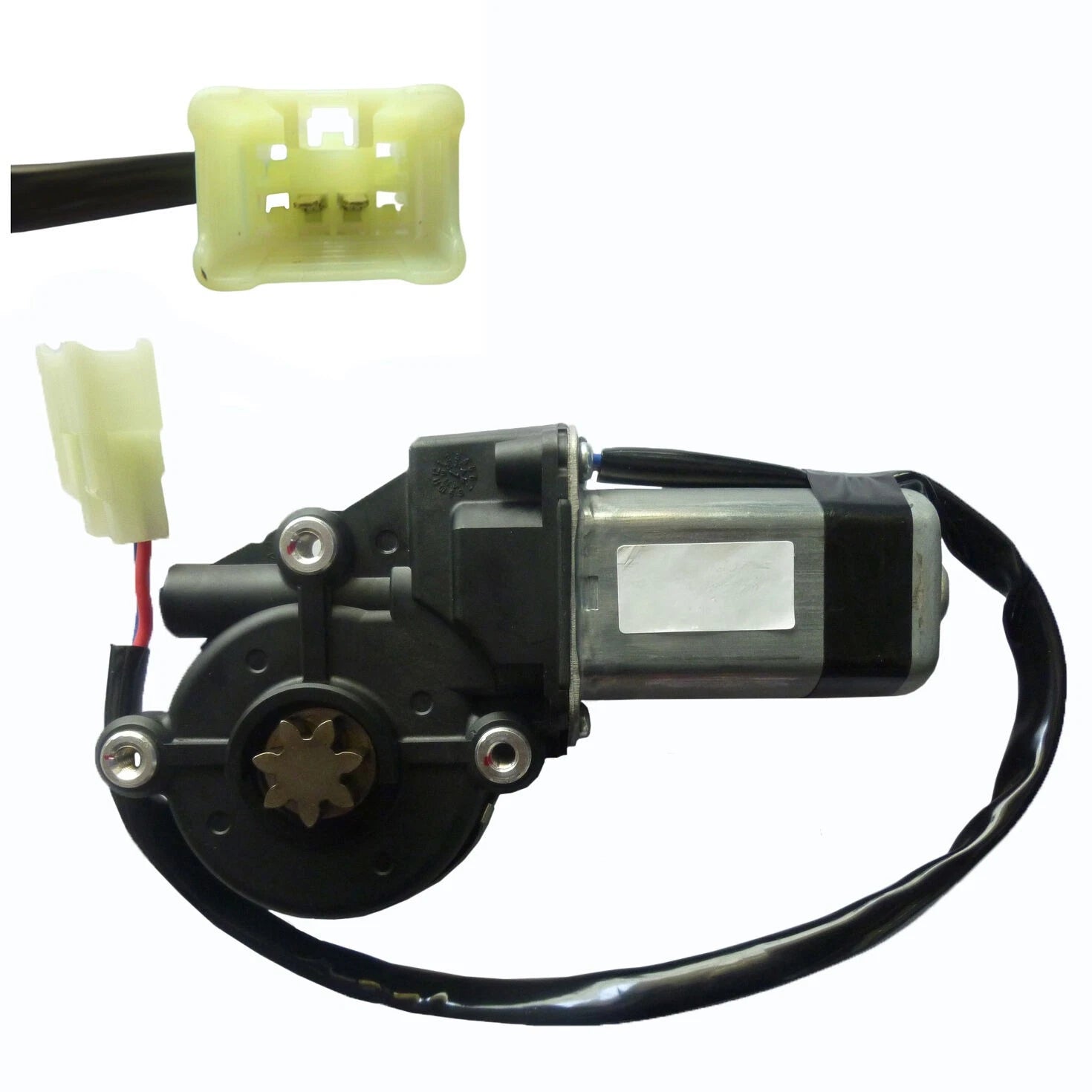

This front left electric window lift motor is a high-quality aftermarket replacement for selected Toyota RAV4 ACA20R–ACA23R models from 2000–2006. It is supplied brand new as a single piece and is suitable for vehicles using a 2-pin motor connection.

Key Features

• Electric window lift motor assembly
• Front left (front passenger side) position

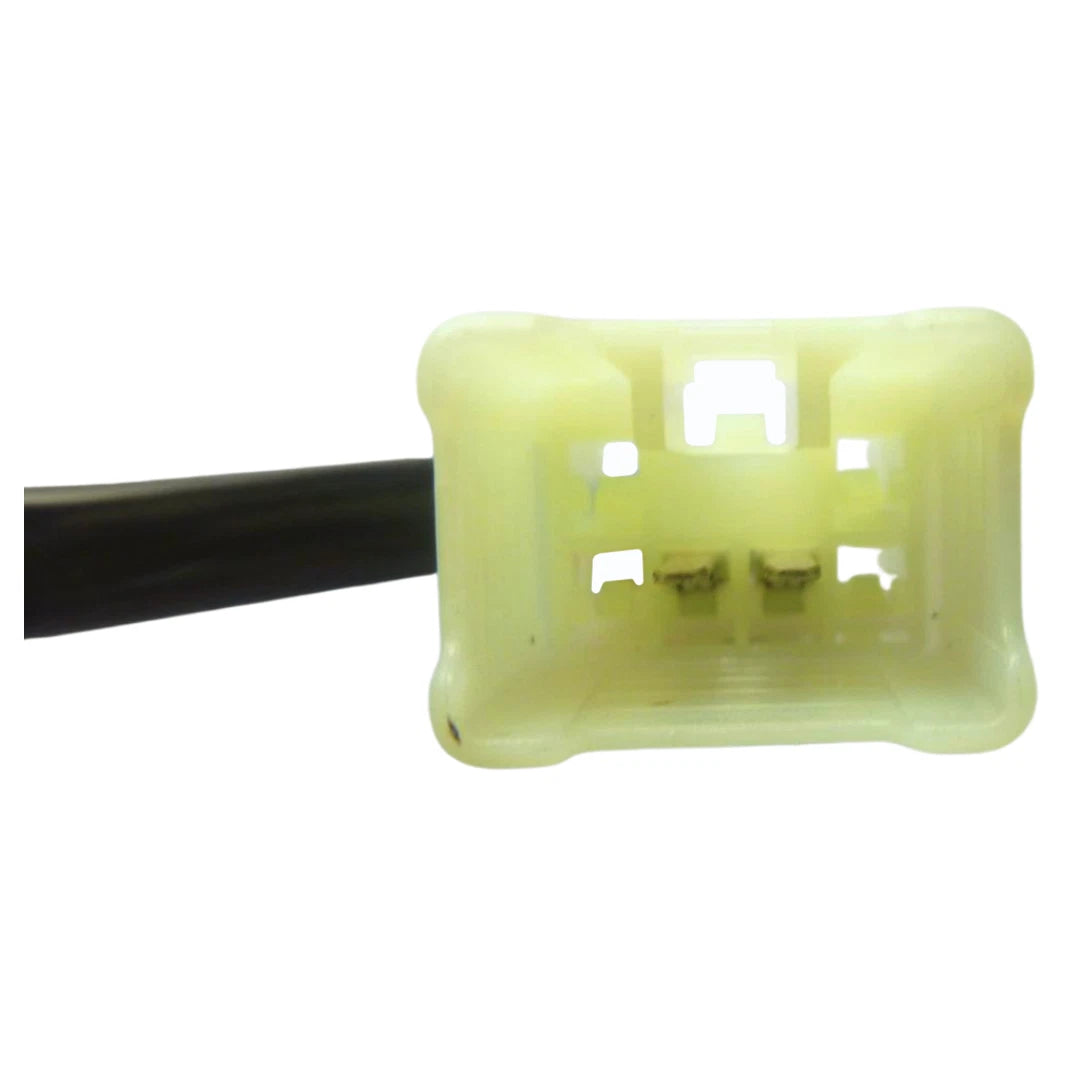

• 2-pin motor connector
• High-quality aftermarket construction
• Brand new part
• MPN / Item No.: 101499A
• Supplied as 1 piece
• 12-month manufacturer warranty (part only)

Vehicle Compatibility

Confirm your vehicle details and existing part match the specifications below before purchase.

• Toyota RAV4 ACA20R 07/2000–09/2003 1AZ-FE 2.0L 2-door SUV compact
• Toyota RAV4 ACA21R 07/2000–03/2003 1AZ-FE 2.0L 4-door SUV compact
• Toyota RAV4 ACA22R 10/2003–01/2006 2AZ-FE 2.4L 2-door SUV compact
• Toyota RAV4 ACA23R 10/2003–01/2006 2AZ-FE 2.4L 4-door SUV compact

Compare the motor body, mounting points, and 2-pin connector with your original part to confirm compatibility.

Anti-Pinch Function Setup (If Applicable)

Some window regulators and motors feature an anti-pinch safety function. Incorrect testing or installation can cause this function to fail and require resetting.

• Do not test the motor before it is installed in the door.
• Install the motor and connect it to the one-touch window switch.
• Pull up the switch; the window should travel fully to the top.
• If the window drops after reaching the top, reset the anti-pinch function.

Anti-Pinch Reset Instructions

• Step 1: Pull the window switch briefly to move the window slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly to move the window slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch again to move the window fully to the top.

If the window still drops after reaching the top, repeat the reset procedure until it remains closed.

Installation & Important Notes

• Professional installation by a qualified automotive mechanic is strongly recommended.
• Part is intended for repair and replacement use only.
• Product images are for reference; colour or finish may vary slightly due to screen and lighting.
• Always match the physical part and connector to your original unit before ordering.
• Tamper-evident seals on plugs or housings (where fitted) should not be removed, as this may affect return eligibility.

Warranty Summary

• Standard 12-month manufacturer warranty on this part (from invoice or delivery date).
• Warranty covers replacement of the defective part only.
• Labour, installation costs, and consequential damage are not covered.
• Incorrect installation, misuse, modification, or use outside the intended purpose voids warranty.

For any warranty claim, the part must be returned for inspection and assessment in line with the seller’s warranty and returns policy.
