Front Left Electric Window Regulator With Motor & Panel for Hyundai i30 GD

PRODUCT OVERVIEW

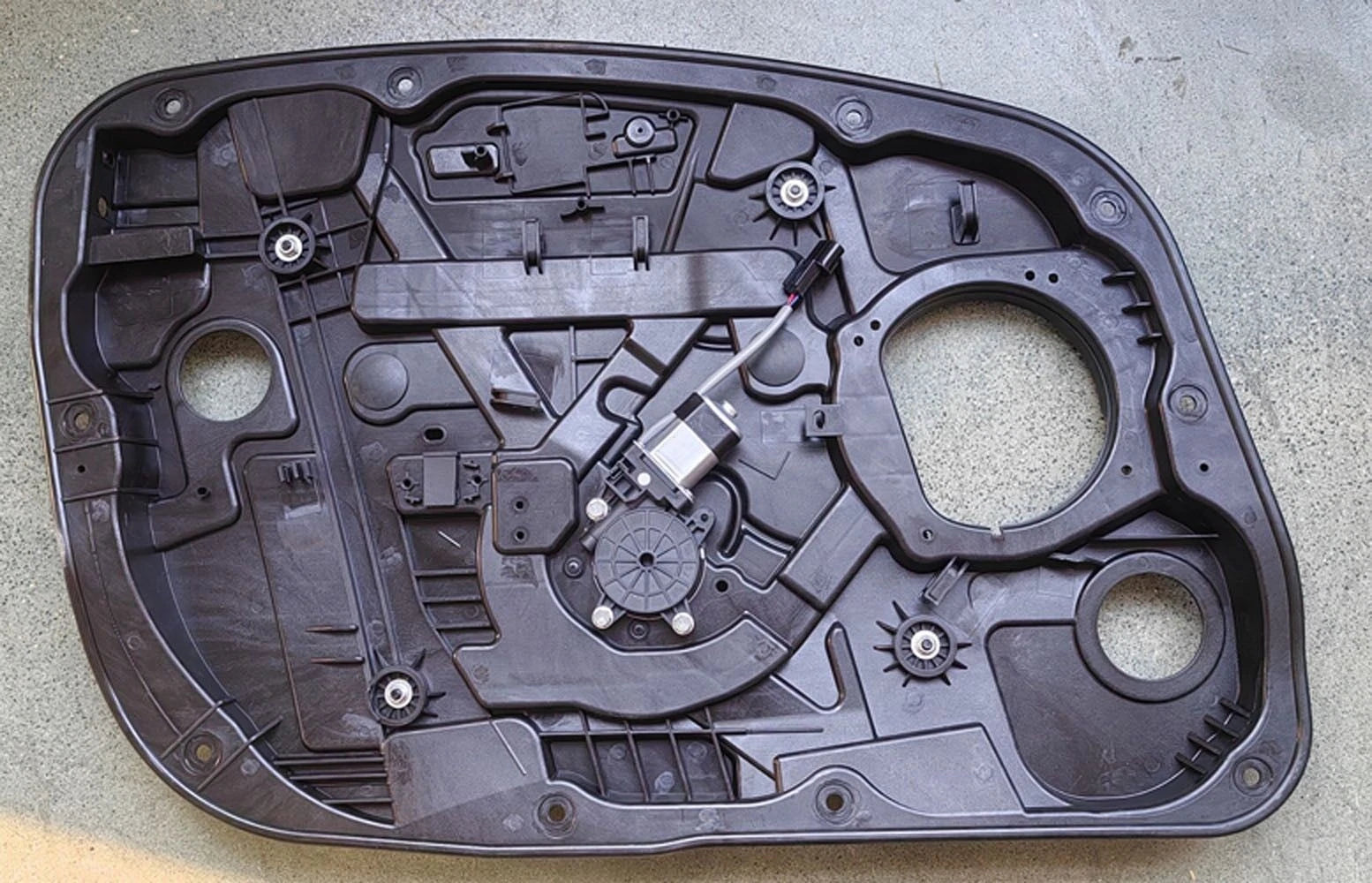

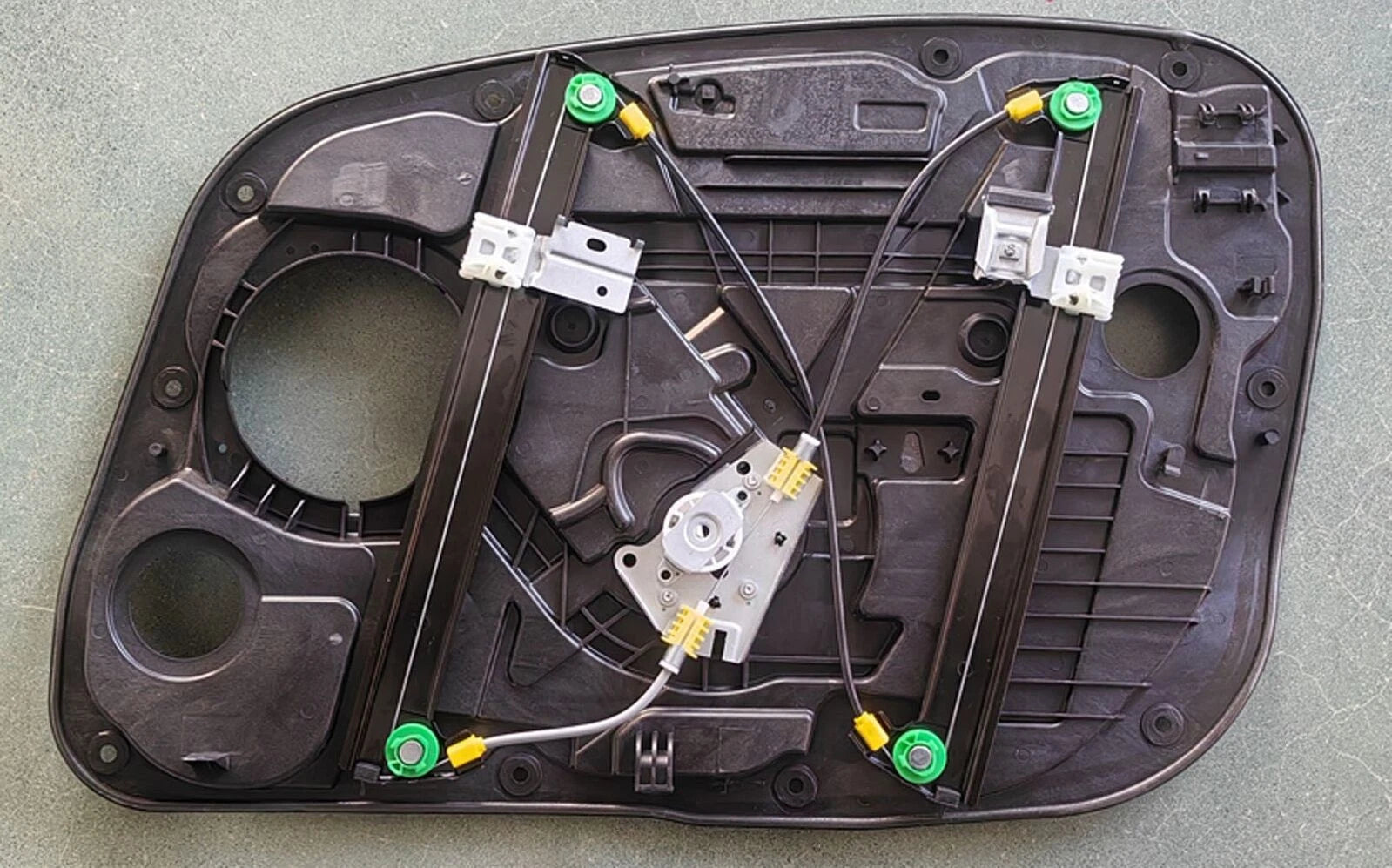

This front left electric window regulator is supplied as a complete assembly with 2-pin motor and mounting panel, designed as a high-quality aftermarket replacement for Hyundai i30 GD models.

KEY FEATURES

• Complete assembly with regulator, electric motor and mounting panel
• 2-pin motor connector for electric window operation
• Direct replacement for the original front left window regulator
• High-quality aftermarket construction for reliable performance
• Supplied brand new with 1-year parts warranty

SPECIFICATIONS

• Product: Window regulator assembly
• Operating mode: Electric
• Placement on vehicle: Front left (front passenger side in RHD markets)
• Motor: 2-pin connector
• Panel: Included
• Part type: High quality aftermarket
• Condition: Brand new
• MPN / Item No.: 102257LM2D
• Warranty: 1 year (part only)
• Quantity supplied: 1 piece

FITMENT

• Hyundai i30 GD 05/2012 - 03/2017

Always compare the product images, plug type and mounting points with your original regulator before purchase.

ANTI-PINCH FUNCTION RESET (IF APPLICABLE)

Some electric window motors feature an anti-pinch (one-touch) safety function. If the window drops after reaching the top, the motor may require resetting.

• Install the motor and connect it to the one-touch window switch before testing.
• If the window goes fully up and stays at the top, no reset is required.
• If the window drops after reaching the top, follow the reset steps below.

• Step 1: Pull the window switch briefly so the window moves slightly up to the top position.
• Step 2: Hold the one-touch switch in the up position for 3–5 seconds at the top.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch in the down position for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to move the window fully up to the top and check it no longer drops.

If the window still drops after reaching the top, repeat the reset procedure until successful.

INSTALLATION & WARRANTY NOTES

• Professional installation by a qualified automotive technician is recommended to maintain warranty.
• Warranty covers the part only and does not cover labour or associated costs.
• Do not modify or tamper with the regulator or motor; damage from incorrect installation is not covered.
• Colour or finish may appear slightly different due to screen and lighting variations.

This window regulator is intended as a replacement component for repair and maintenance of compatible vehicles only.
