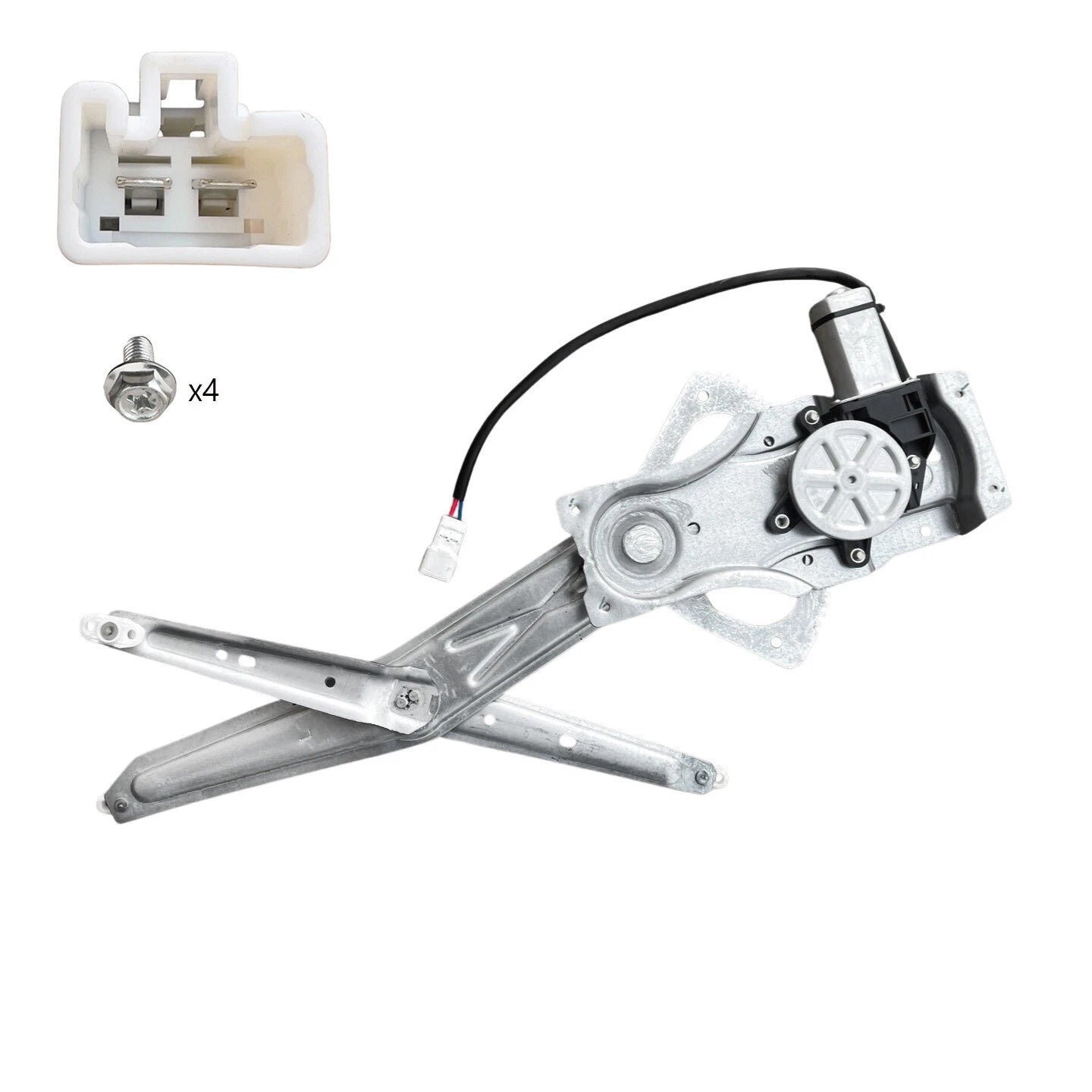

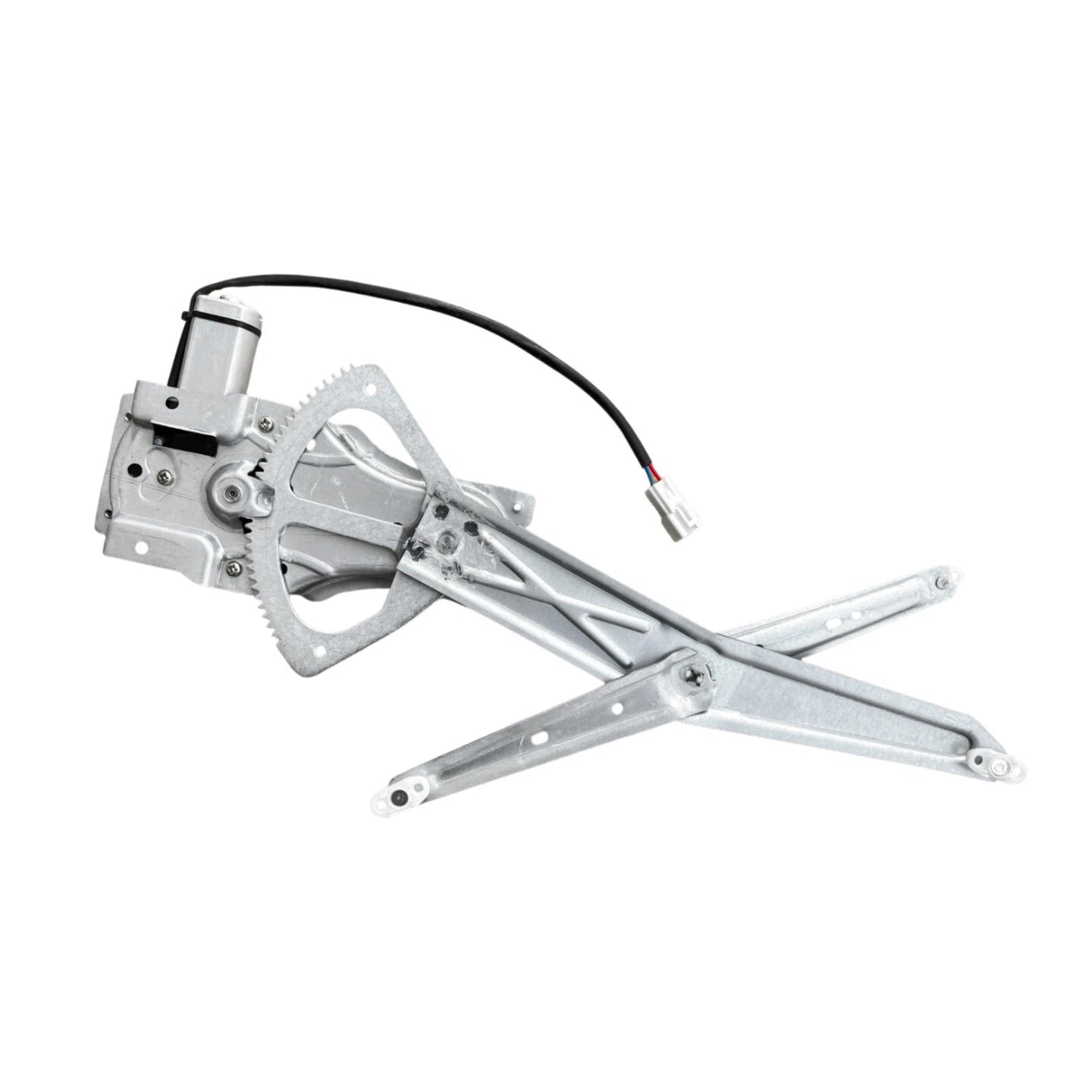

Front Left Power Window Regulator with Motor 2-Pin for Holden

PRODUCT OVERVIEW

This front left electric window regulator with 2-pin motor is a high-quality aftermarket replacement, designed for reliable power window operation on compatible Holden Commodore, Statesman and Crewman models.

KEY FEATURES

• Complete assembly supplied with pre-fitted electric motor
• 2-pin motor connection for direct-fit replacement
• Front left (front passenger side) position
• Brand new, high-quality aftermarket construction
• Supplied as a single piece

SPECIFICATIONS

• Product type: Window regulator with motor
• Operating mode: Electric
• Placement on vehicle: Front left (front passenger side)

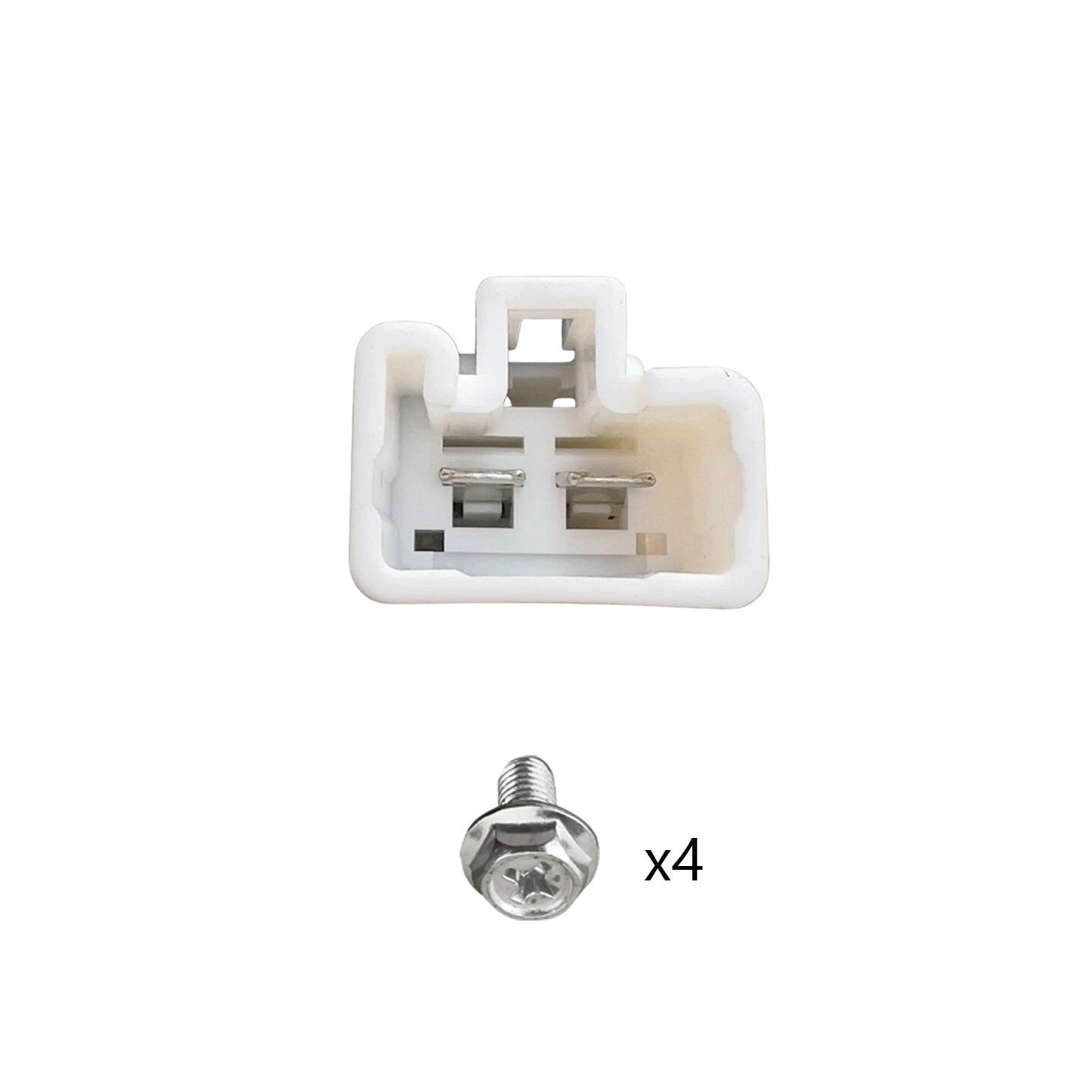

• Connector type: 2-pin motor plug
• Build: High-quality aftermarket replacement
• Condition: Brand new
• MPN/Item No.: 101641
• Warranty: 12 months (part only)
• Quantity supplied: 1 piece

VEHICLE FITMENT

Use this list as a guide only. Always compare the part, mounting points and connector with your original before purchase.

• Holden Commodore VT 09/1997 - 10/2000
• Holden Commodore VX/VU 10/2000 - 08/2002
• Holden Commodore VY 09/2002 - 08/2004
• Holden Commodore VZ 08/2004 - 2007
• Holden Statesman WH 06/1999 - 05/2003
• Holden Crewman VY 09/2003 - 10/2004
• Holden Crewman VZ 08/2004 - 09/2007

ANTI-PINCH FUNCTION SETUP (IF APPLICABLE)

For motors with anti-pinch and one-touch function, the feature may need to be initialised after installation.

• Do not operate the motor before it is installed in the door, otherwise the anti-pinch may require resetting.
• Install the motor and connect it to the one-touch window switch.
• Operate the switch to check if the window travels fully up and stays at the top.
• If the window drops after reaching the top, reset the anti-pinch function as outlined below.

ANTI-PINCH RESET STEPS

• Step 1: Pull the window switch briefly so the window moves slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to raise the window fully to the top and confirm it no longer drops.

If the window still drops after reaching the top, repeat the reset procedure until successful.

INSTALLATION & NOTES

• Professional installation by a qualified automotive mechanic is recommended.
• Compare the images, mounting points and plug type with your original part before ordering.
• Colour or finish may vary slightly due to lighting and screen settings; this does not affect function.
• Part supplied is an aftermarket replacement for repair and maintenance purposes.
