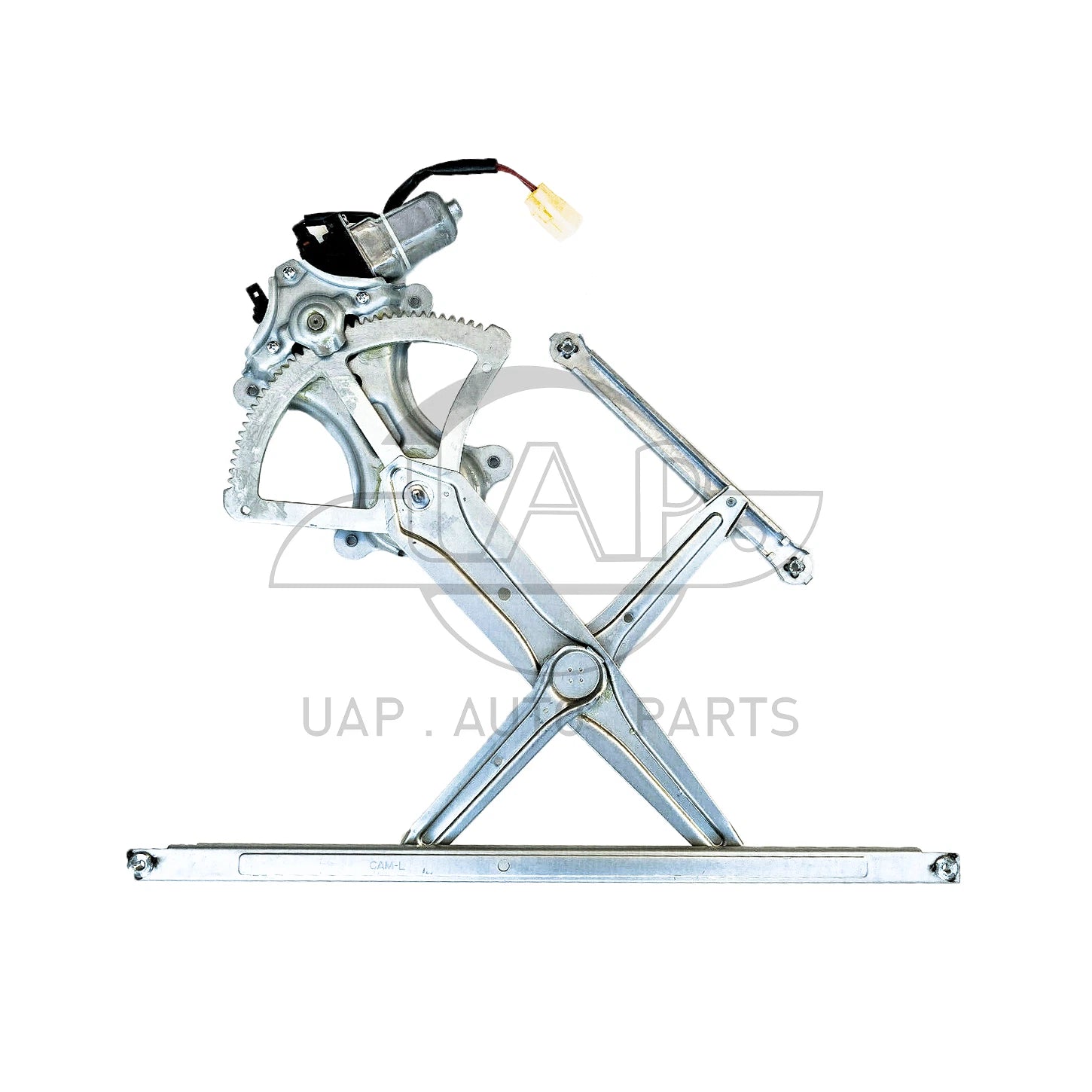

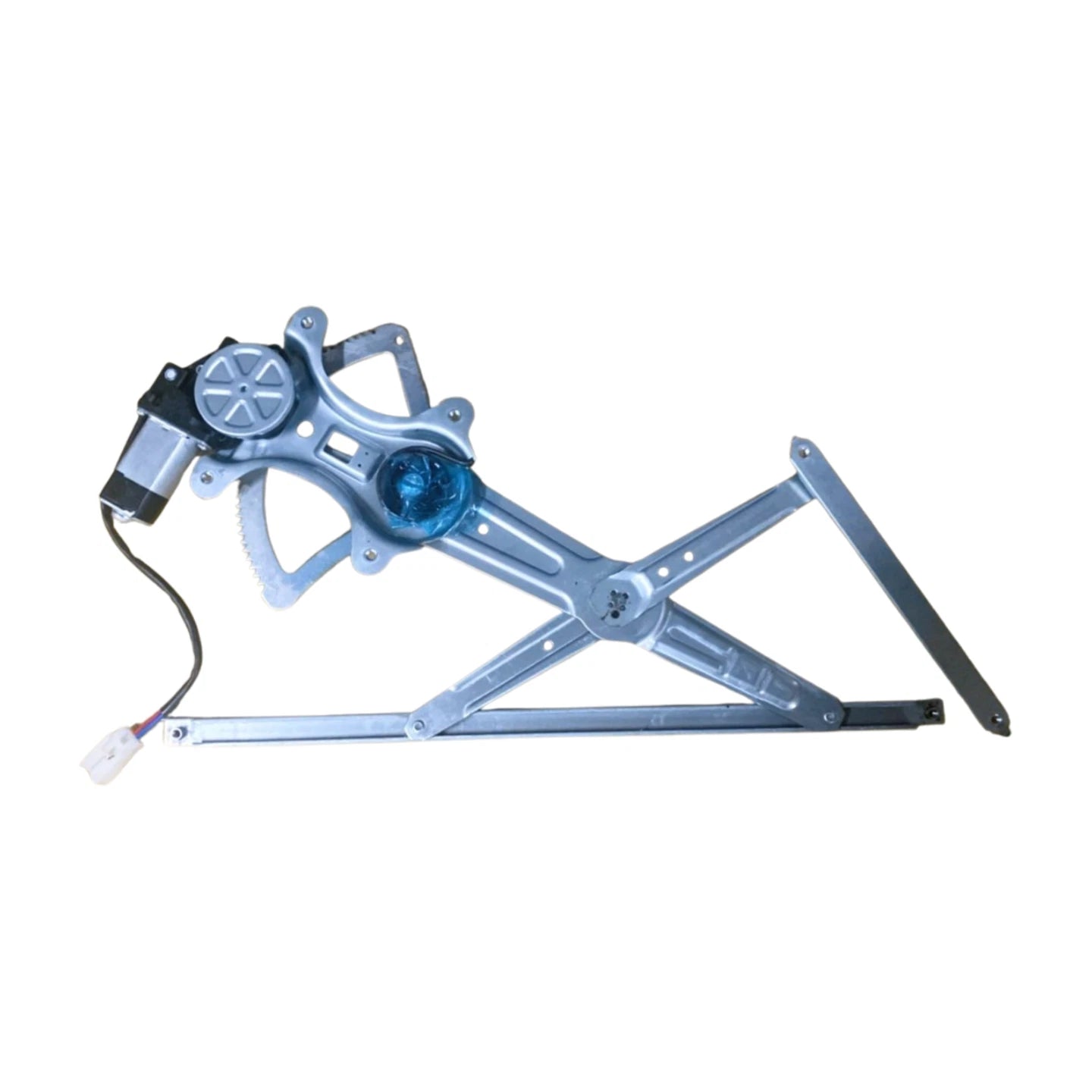

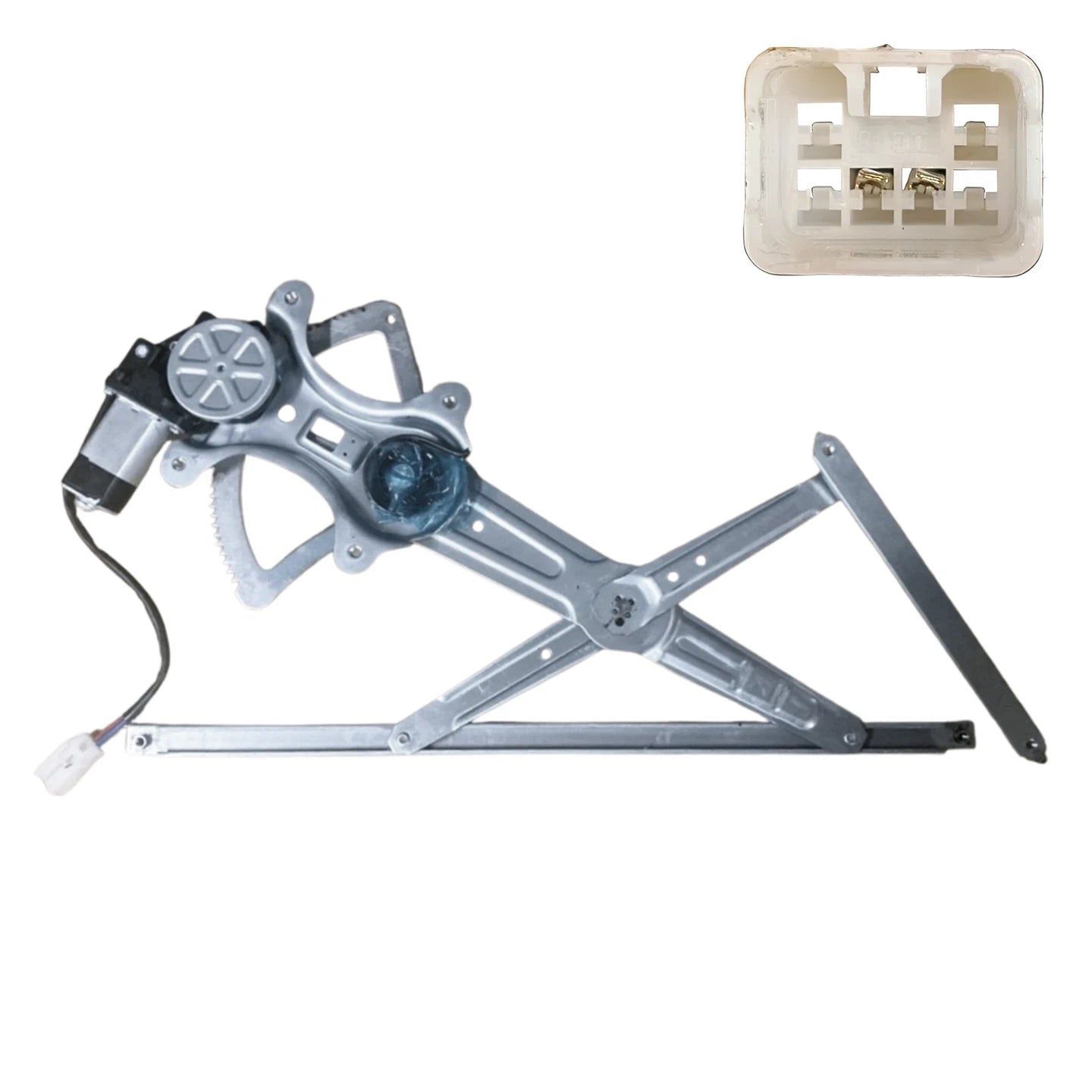

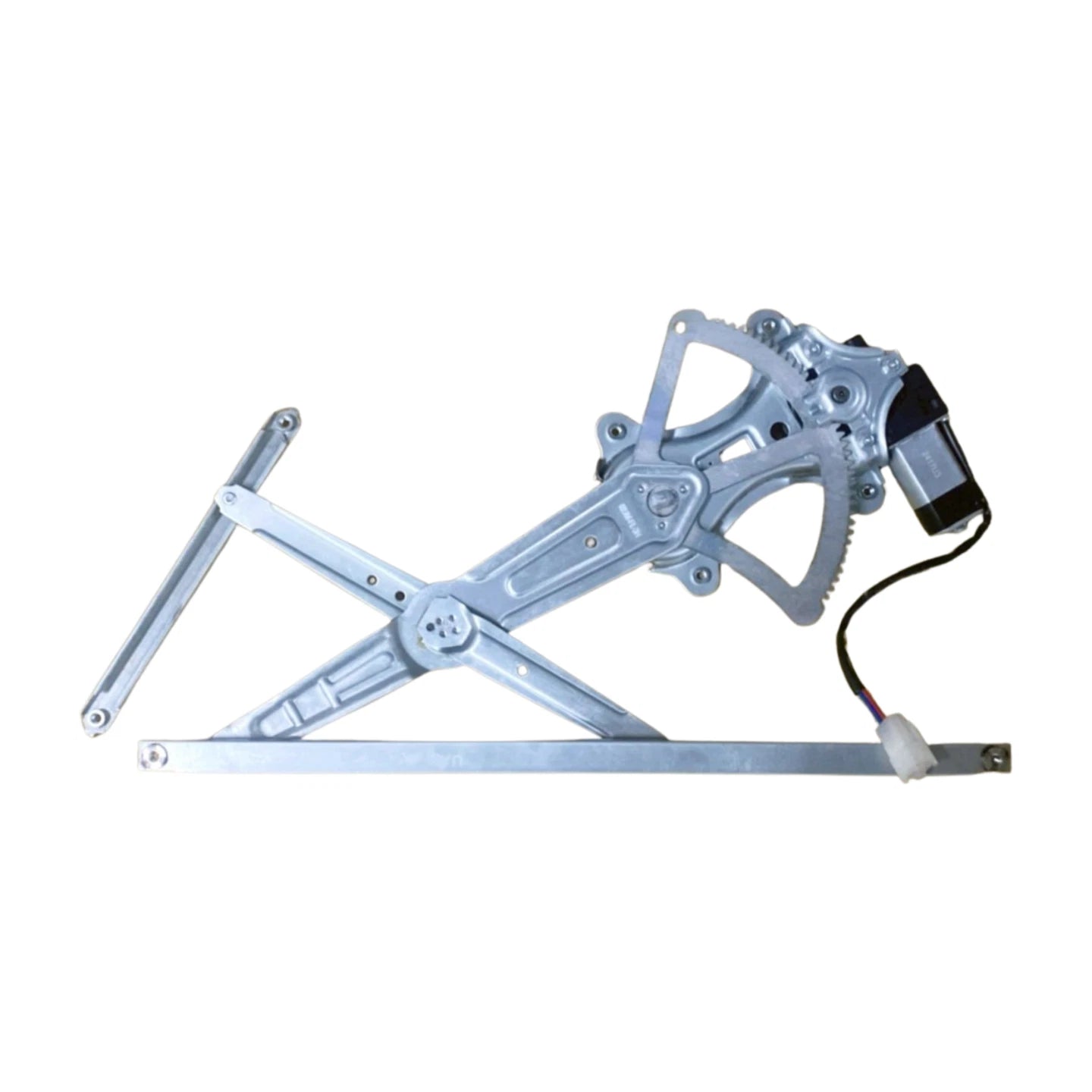

Front Left Power Window Regulator & 2-Pin Motor for Toyota Camry ACV36 02–06

PRODUCT OVERVIEW

This front left electric window regulator with integrated 2-pin motor is a high-quality aftermarket replacement, engineered to restore smooth and reliable window operation.

KEY FEATURES

• Complete assembly supplied with pre-fitted electric motor
• Front left (front passenger side) door application

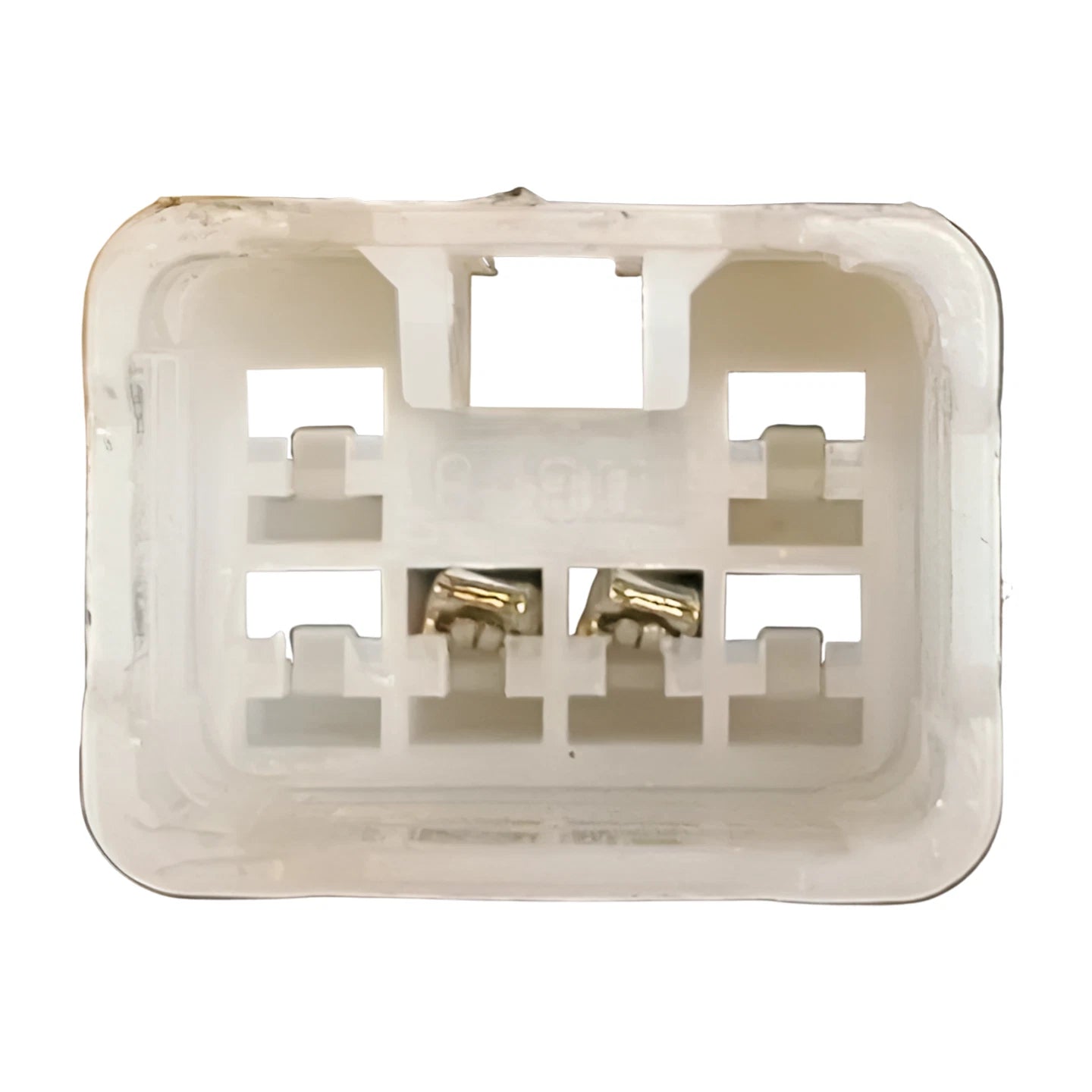

• 2-pin motor electrical connector
• Durable, high quality aftermarket construction
• Brand new component supplied as a single piece
• 12-month warranty on part (conditions apply)

SPECIFICATIONS

VEHICLE FITMENT

• Toyota Camry ACV36R 09/2002–06/2006 2AZ-FE 2.4L sedan

Always visually compare this regulator with your original unit and confirm connector type and mounting points before purchase.

ANTI-PINCH FUNCTION RESET (IF APPLICABLE)

Some electric window motors include an anti-pinch safety function that must be correctly initialised after installation.

• Do not operate or test the motor before it is fully installed in the door.
• Install the regulator and connect it to the one-touch window switch.
• Operate the switch to confirm the window travels fully upward.
• If the window drops after reaching the top, perform the reset procedure below.

Reset procedure:

• Step 1: Pull the window switch briefly so the glass moves up slightly to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the switch briefly so the glass moves slightly down to the bottom position.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to move the window fully up and confirm it remains at the top.

If the window still drops after reaching the top, repeat the reset steps until the function is correctly set.

INSTALLATION & NOTES

• Designed as a direct replacement for the original regulator assembly.
• Professional installation by a qualified automotive technician is recommended.
• For accurate fitment, match the images, mounting points, and plug type to your original part.
• Product images are for reference only; colour or finish may vary slightly due to screen settings and lighting.
