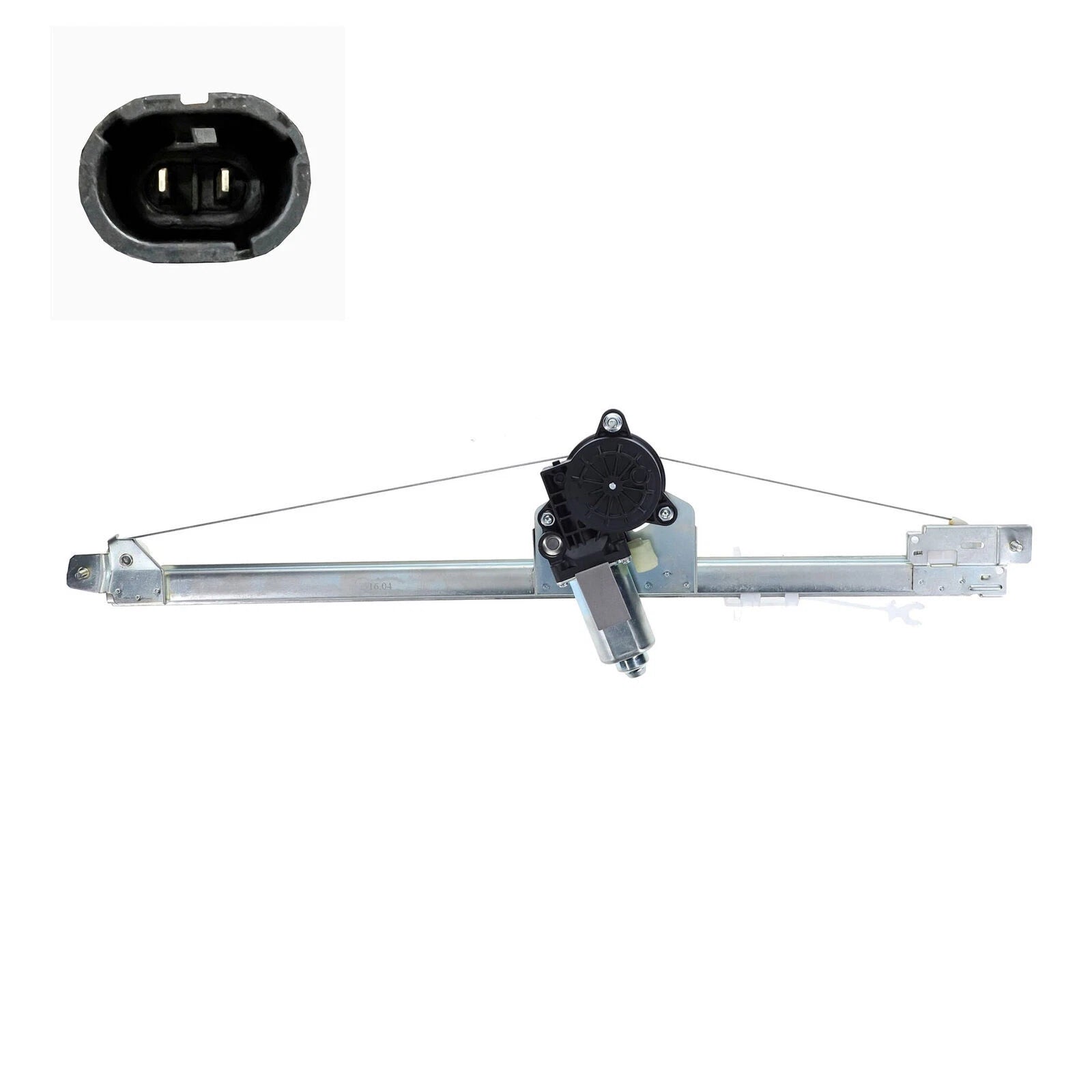

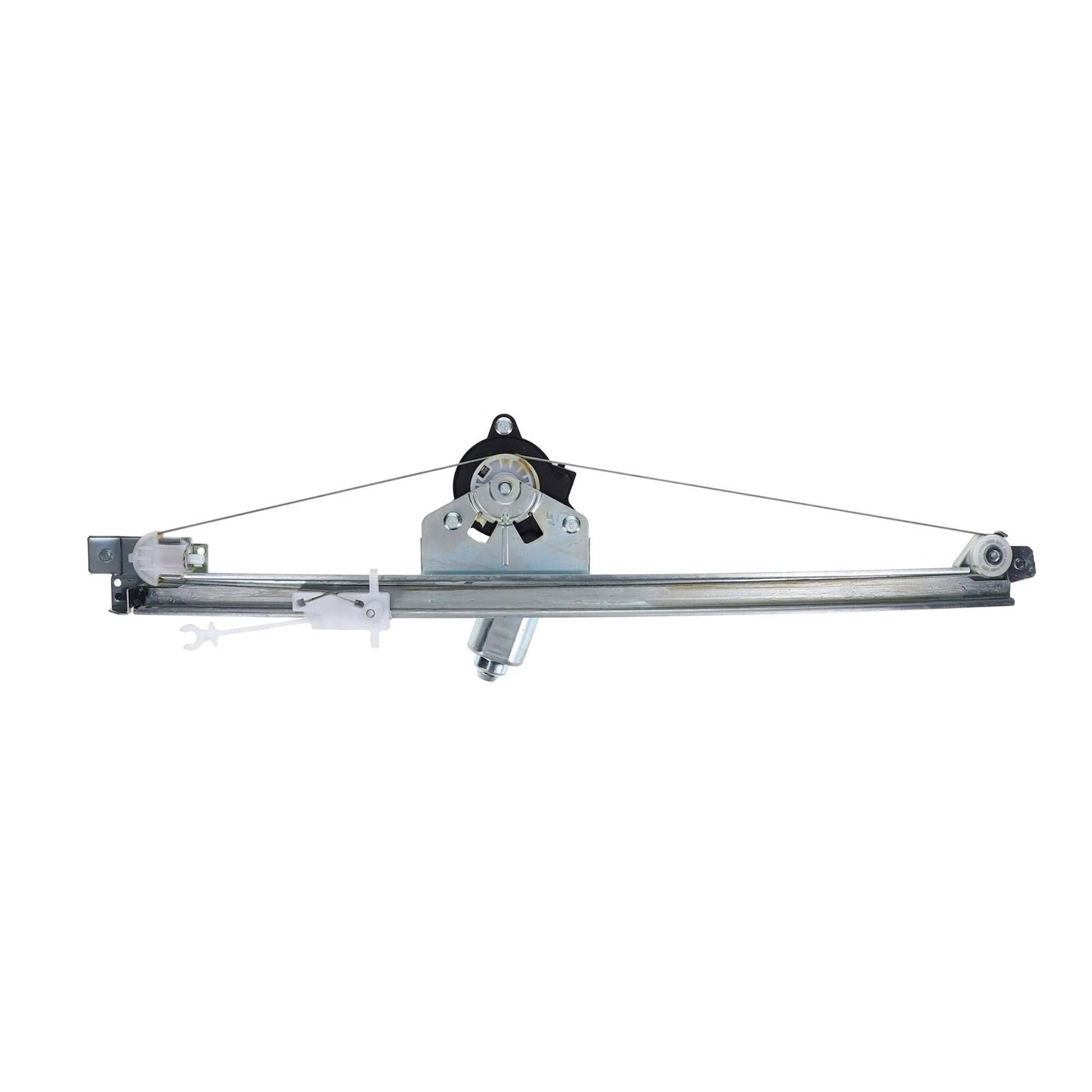

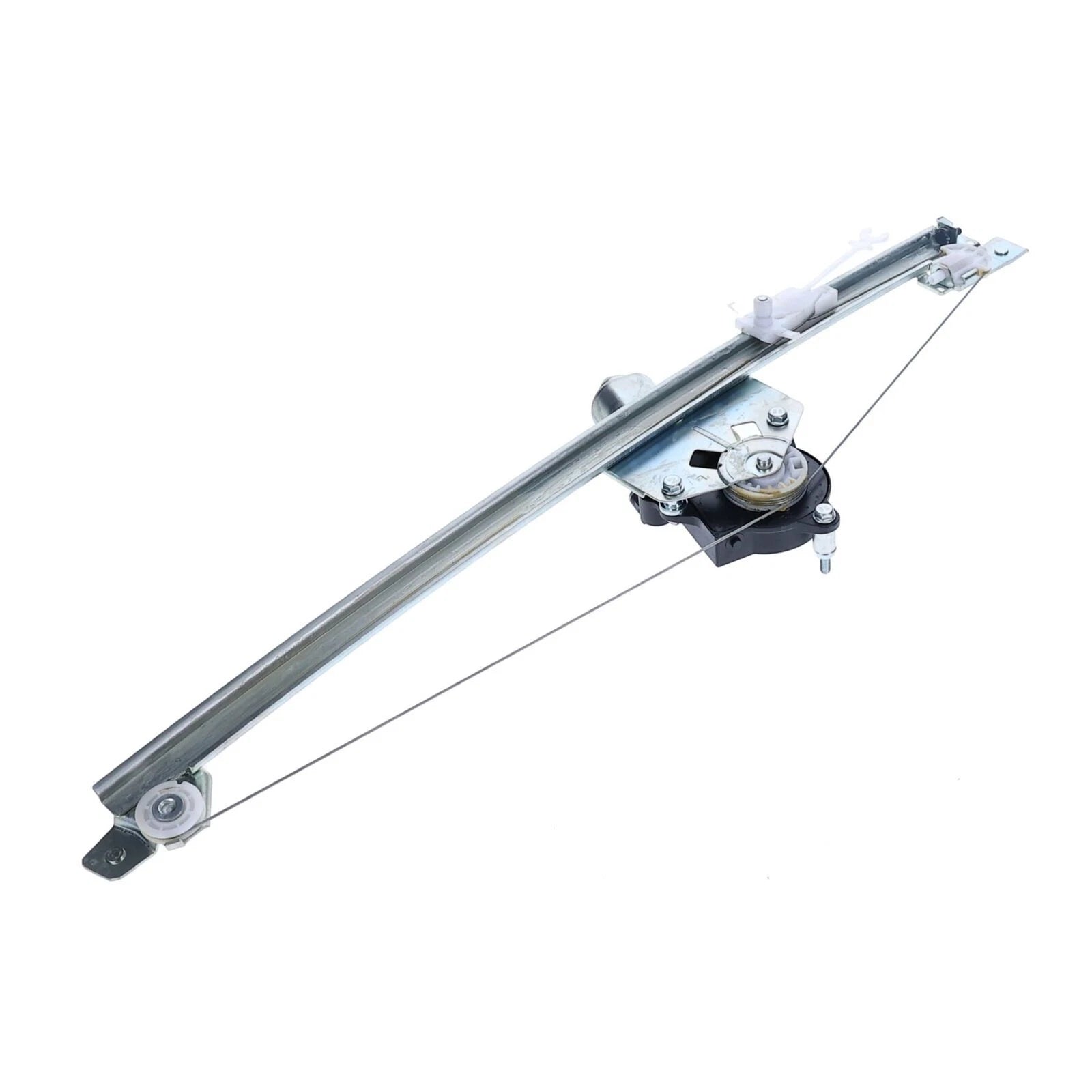

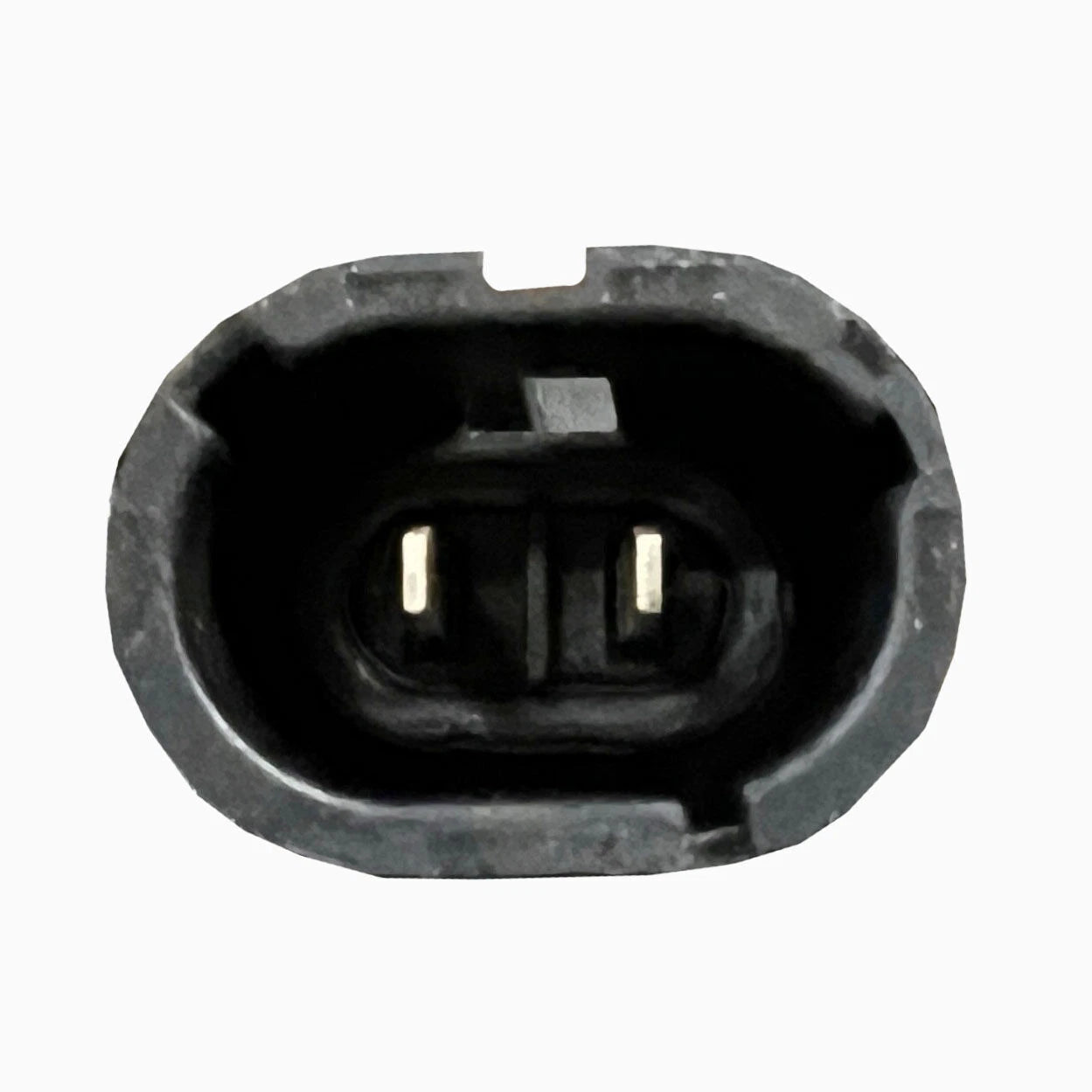

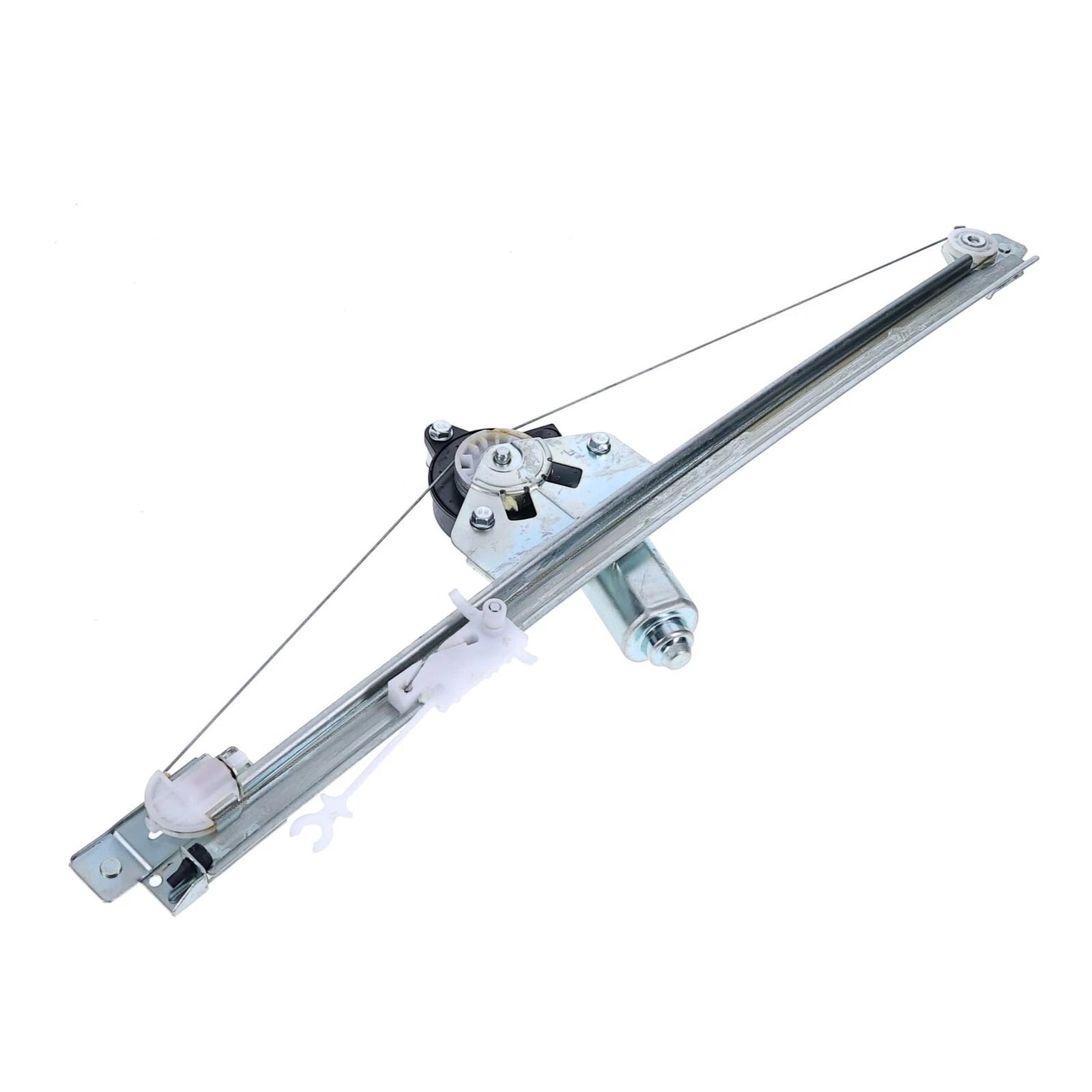

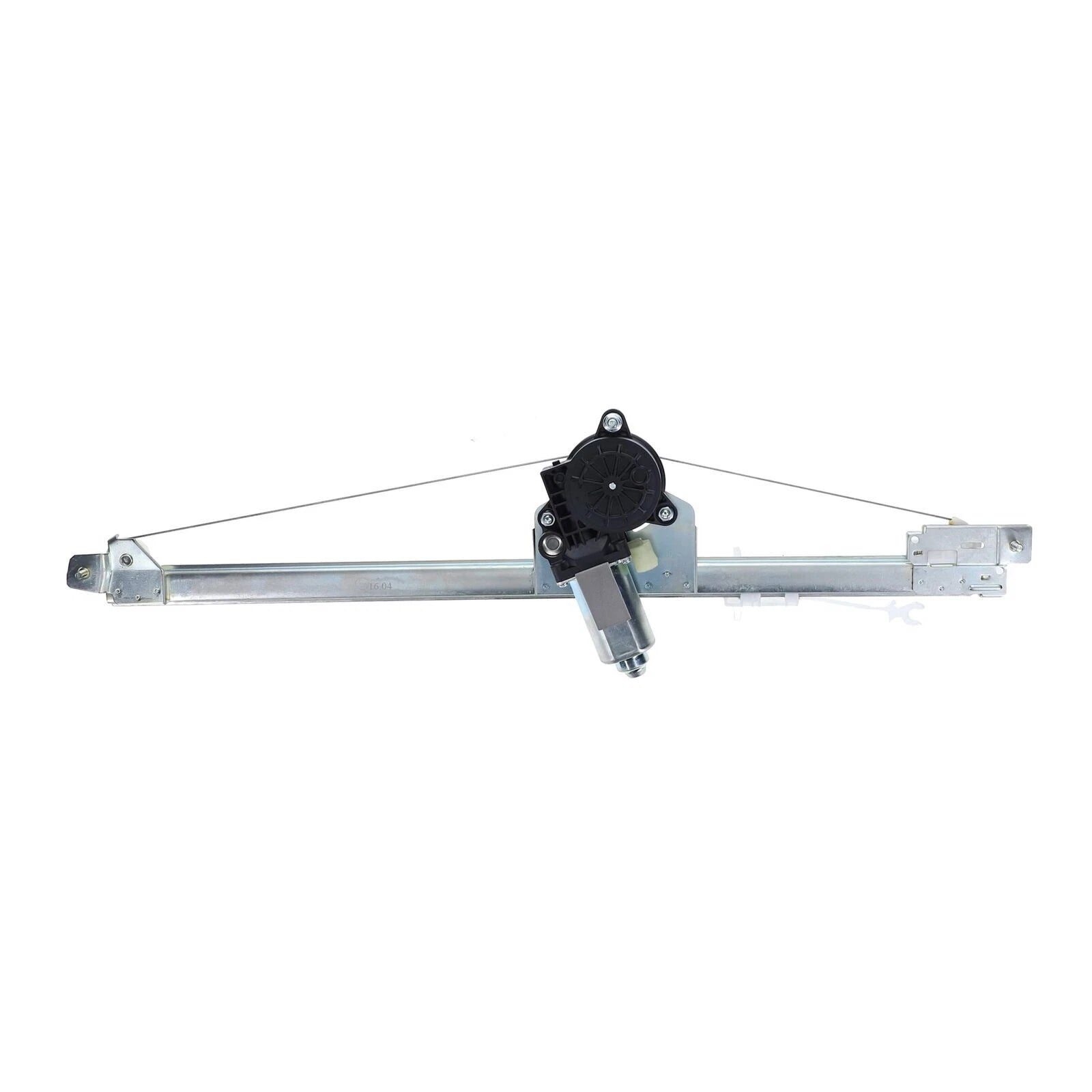

Front Left Electric Window Regulator with Motor 2-Pin for Renault Trafic II

PRODUCT OVERVIEW

This front left electric window regulator with integrated 2-pin motor is a high quality aftermarket replacement, designed to restore smooth and reliable window operation.

KEY FEATURES

• Complete assembly: window regulator with pre-fitted motor
• Electric operation for smooth raising and lowering of the window
• Direct-fit design for specified applications
• Durable construction suitable for daily use
• Supplied as a single unit (1 piece)

SPECIFICATIONS

VEHICLE COMPATIBILITY

• Renault Trafic X83 2004–2014 (front left door, verify OE number 7700311820)

Always compare the part number, connector type, and product images with your original regulator before purchase.

ANTI-PINCH FUNCTION SETUP (IF APPLICABLE)

• Do not power the motor before it is installed in the door.
• Install the regulator and connect it to the one-touch window switch.
• Pull the switch up to raise the window fully and check operation.
• If the window drops after reaching the top, perform the reset procedure.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly so the window moves slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to raise the window fully and confirm it no longer drops.

If the window still drops after reaching the top, repeat the reset steps until successful.

INSTALLATION & WARRANTY NOTES

• For best results, have the part installed by a qualified automotive technician.
• Part is supplied for repair and replacement purposes.
• Colour or finish may vary slightly due to screen and lighting differences.
• Warranty covers replacement of the defective part only and excludes labour or consequential damage.

Ensure all tamper-evident seals and labels on the motor and connectors remain intact to retain return and warranty eligibility, where applicable.
