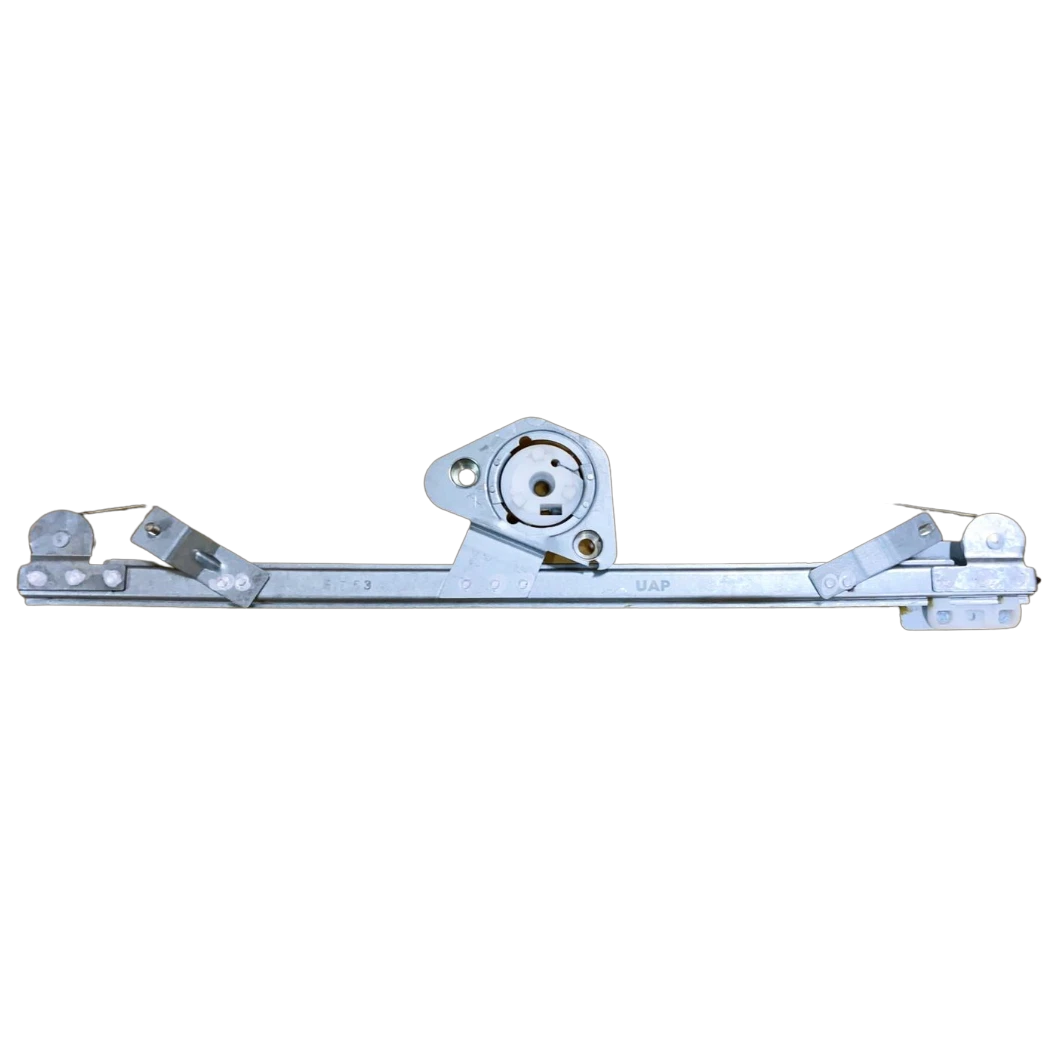

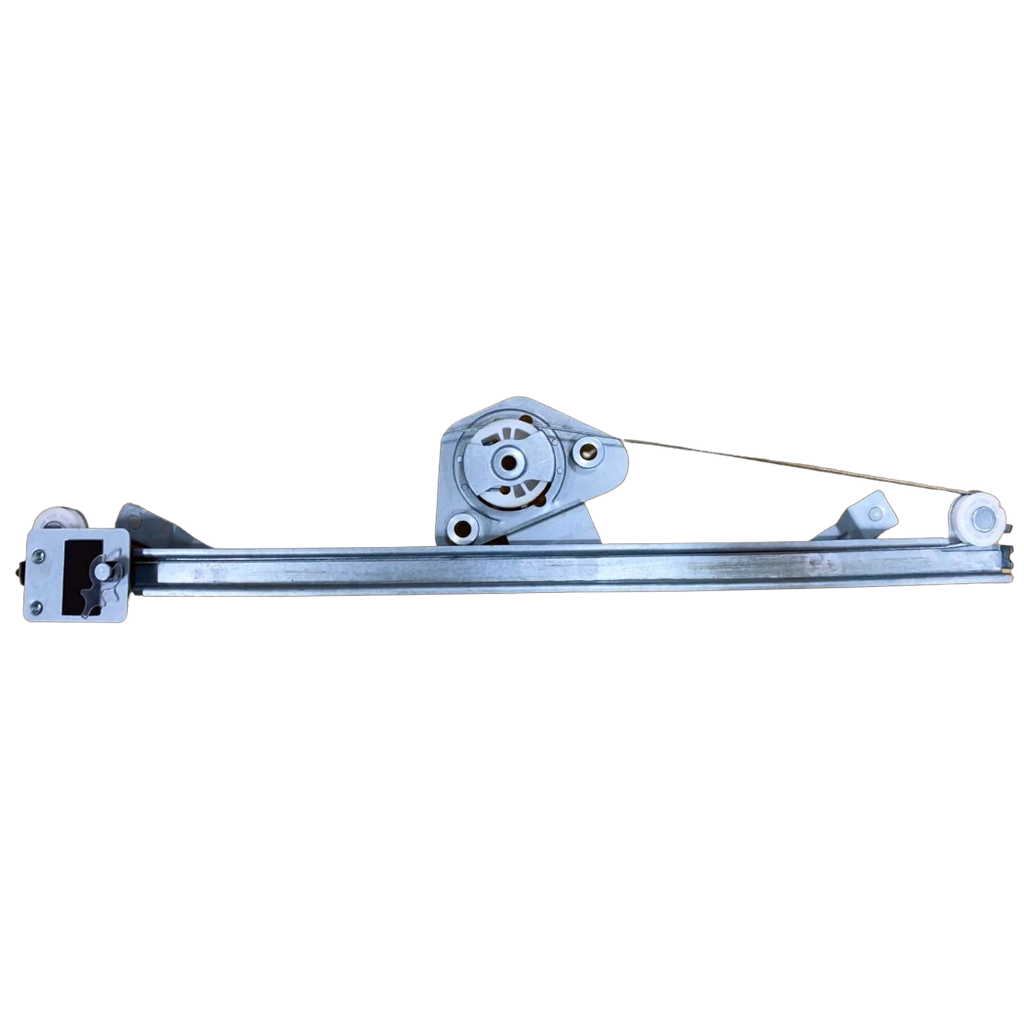

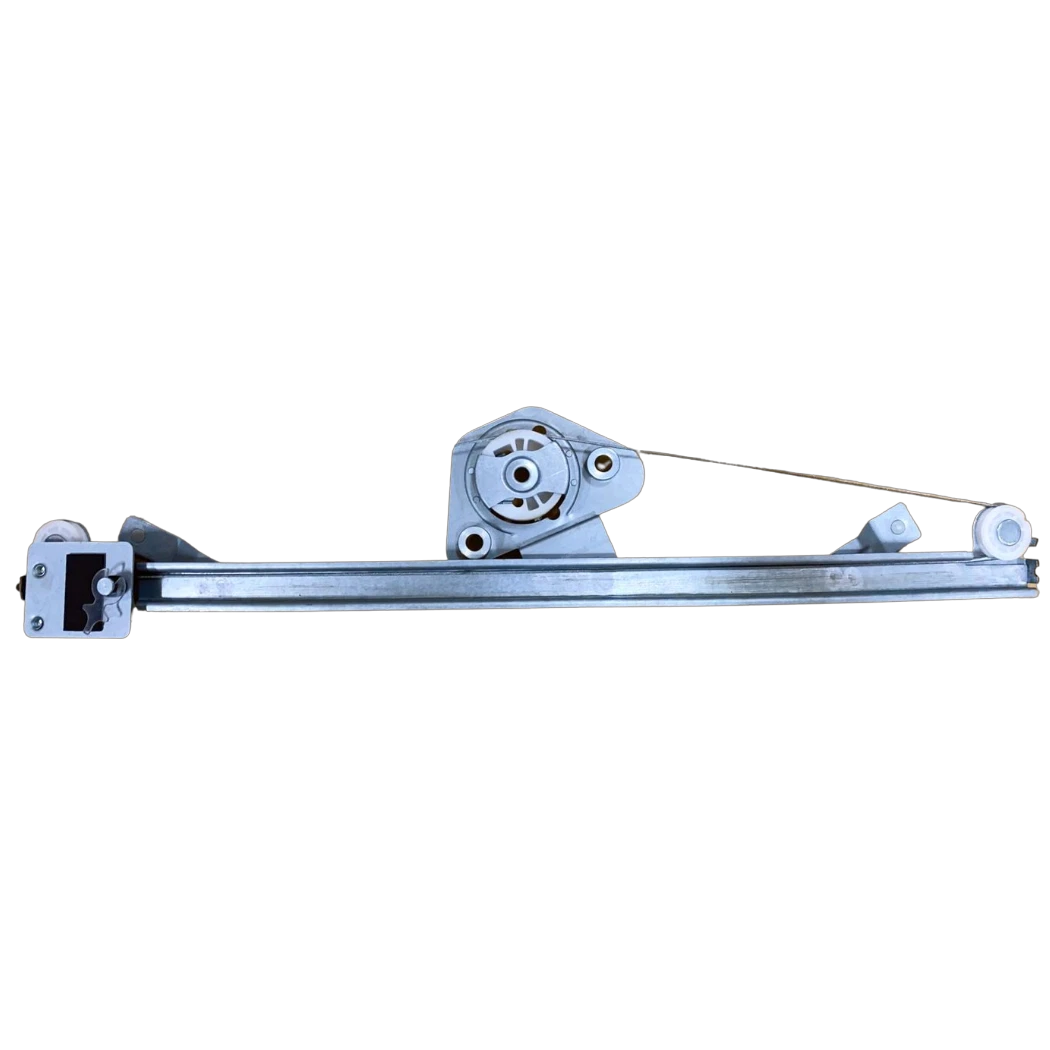

Front Left Electric Window Regulator Without Motor for Fiat 500L

PRODUCT OVERVIEW

This front left electric window regulator is a high-quality aftermarket replacement designed for Fiat 500L 4-door models (2012-on). It is supplied without the motor and is suitable for vehicles using OE reference 51974654.

KEY FEATURES

• Application: Fiat 500L 4-door (2012-on)
• Placement: Front left (front passenger side)
• Operating mode: Electric
• Motor: Not included (regulator mechanism only)
• OE reference number: 51974654
• Part type: High-quality aftermarket replacement
• Condition: Brand new
• MPN/Item No.: 101390
• Supply: 1 piece
• Warranty: 1 year (part only)

FITMENT INFORMATION

• Fiat 500L 2012-on, 4-door

Compare the OE reference and product images with your original window regulator to confirm compatibility before purchase.

ANTI-PINCH MOTOR SETUP NOTICE

If used with an electric window motor that includes an anti-pinch function, the motor must be correctly set up after installation. Do not test the motor before it is fitted to the door, as the anti-pinch function may fail and require resetting.

ANTI-PINCH RESET PROCEDURE

• Step 1: With the motor installed and connected to the one-touch switch, pull the window switch briefly to move the glass slightly up to the top position.
• Step 2: Hold the one-touch switch in the up position for 3–5 seconds when the window reaches the top.
• Step 3: Press the window switch briefly to move the glass slightly down to the bottom position.
• Step 4: Hold the one-touch switch in the down position for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch again to raise the window fully to the top and check that it no longer drops after reaching the top.

If the window still drops after reaching the top, repeat the reset steps until the anti-pinch function is correctly calibrated.

INSTALLATION & WARRANTY NOTES

• Installation should be performed by a qualified automotive mechanic.
• This part is intended as a replacement component for repair and maintenance.
• Colour appearance may vary slightly from images due to screen and lighting differences.
• Images shown are of the actual product supplied.
