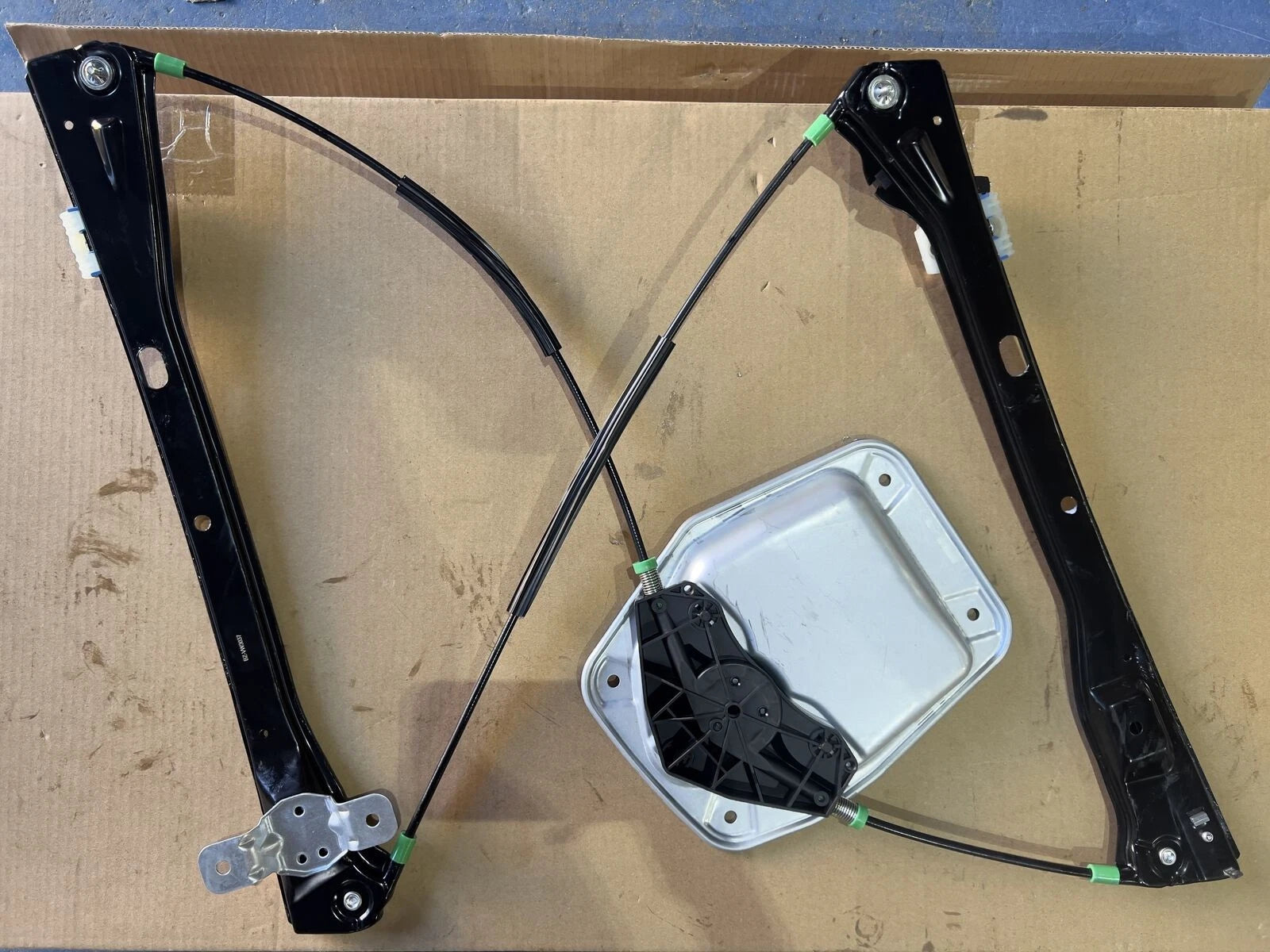

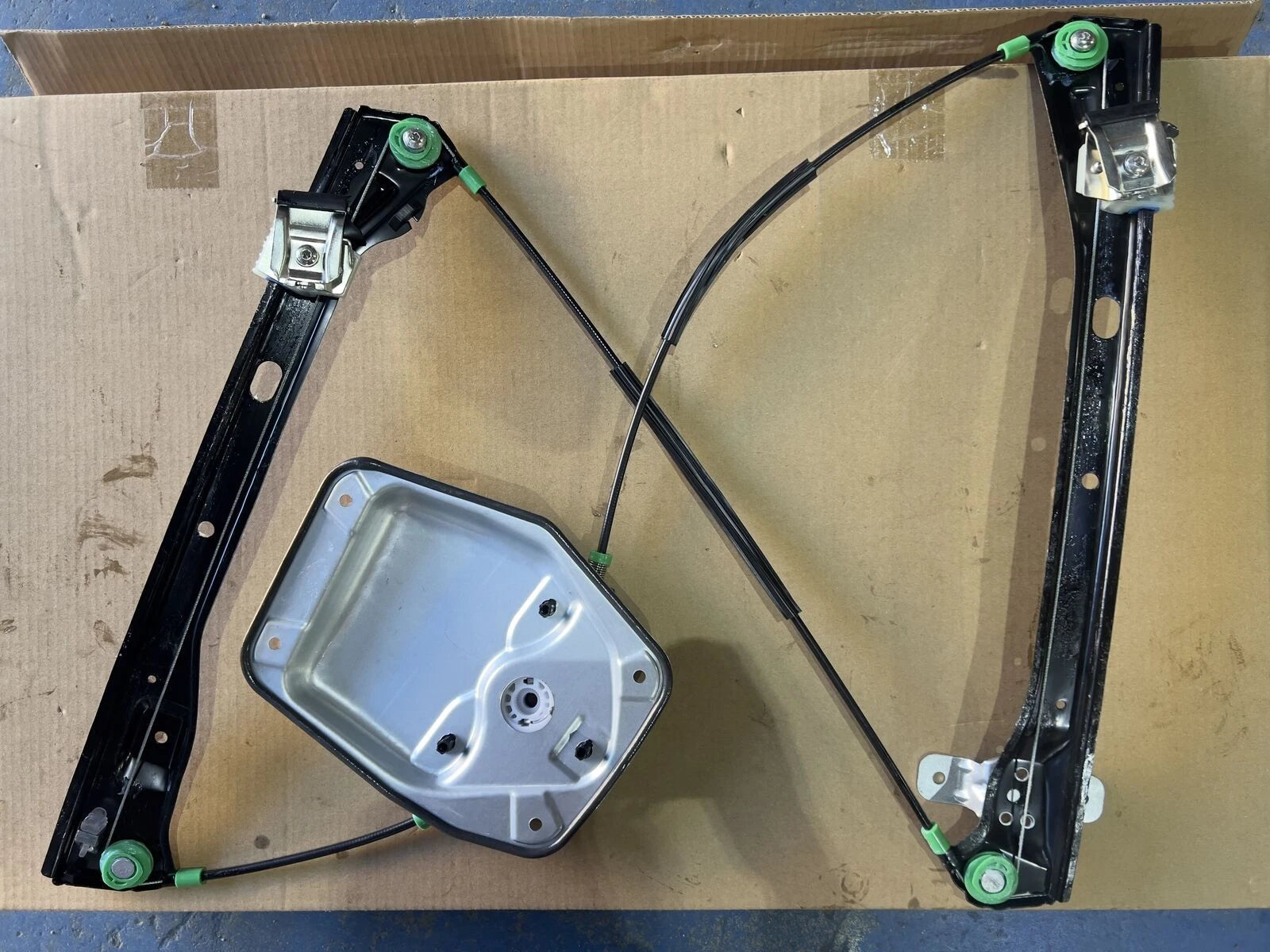

Front Left Window Regulator w/ Panel (No Motor) for VW Golf MK6 Wagon

PRODUCT OVERVIEW

Front left electric window regulator with carrier panel, supplied without motor. Designed as a high quality aftermarket replacement for specified Volkswagen applications.

KEY FEATURES

• Front left (front passenger side) window regulator assembly
• Supplied with mounting panel for direct door fitment
• Electric operation (uses existing window motor)
• Motor not included – reuse or replace separately
• High quality aftermarket construction
• Brand new part with 1-year parts-only warranty

SPECIFICATIONS

• Product type: Window regulator
• Operating mode: Electric
• Placement on vehicle: Front left (front passenger side)
• Panel: Included
• Motor: Not included
• OE reference number: 1K5837461B
• MPN / Item no.: 102233LF
• Condition: Brand new
• Quantity supplied: 1 piece
• Warranty: 1 year (part only)

FITMENT

• Volkswagen Golf MK6 02/2009–01/2014 4-door wagon
• Volkswagen Jetta 1K 05/2005–07/2011

Fitment information is a guide only. Always compare the OE reference number and images with your original part before purchase.

ANTI-PINCH MOTOR RESET NOTE

For vehicles equipped with window motors that have an anti-pinch function, the motor may require resetting after installation.

ANTI-PINCH RESET INSTRUCTIONS

• Do not test the motor before it is installed in the door, or the anti-pinch function may fail and require reset.
• Install the motor on the regulator and connect to the one-touch window switch.
• Operate the switch to confirm the window travels fully to the top.
• If the window drops after reaching the top, perform the reset procedure.

Reset procedure:

• Step 1: Pull the window switch briefly so the window moves slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to move the window back to the top and confirm it no longer drops.

If the window still drops after reaching the top, repeat the above steps until the anti-pinch function is correctly set.

INSTALLATION & WARRANTY NOTES

• This part is intended for repair and replacement use.
• Professional installation by a qualified automotive mechanic is strongly recommended.
• Warranty covers the replacement of the defective part only and excludes labour, incorrect installation, misuse, or modification.

Product images are for reference and may appear slightly different due to screen settings and lighting. Always match the part number and mounting points with your original regulator.
