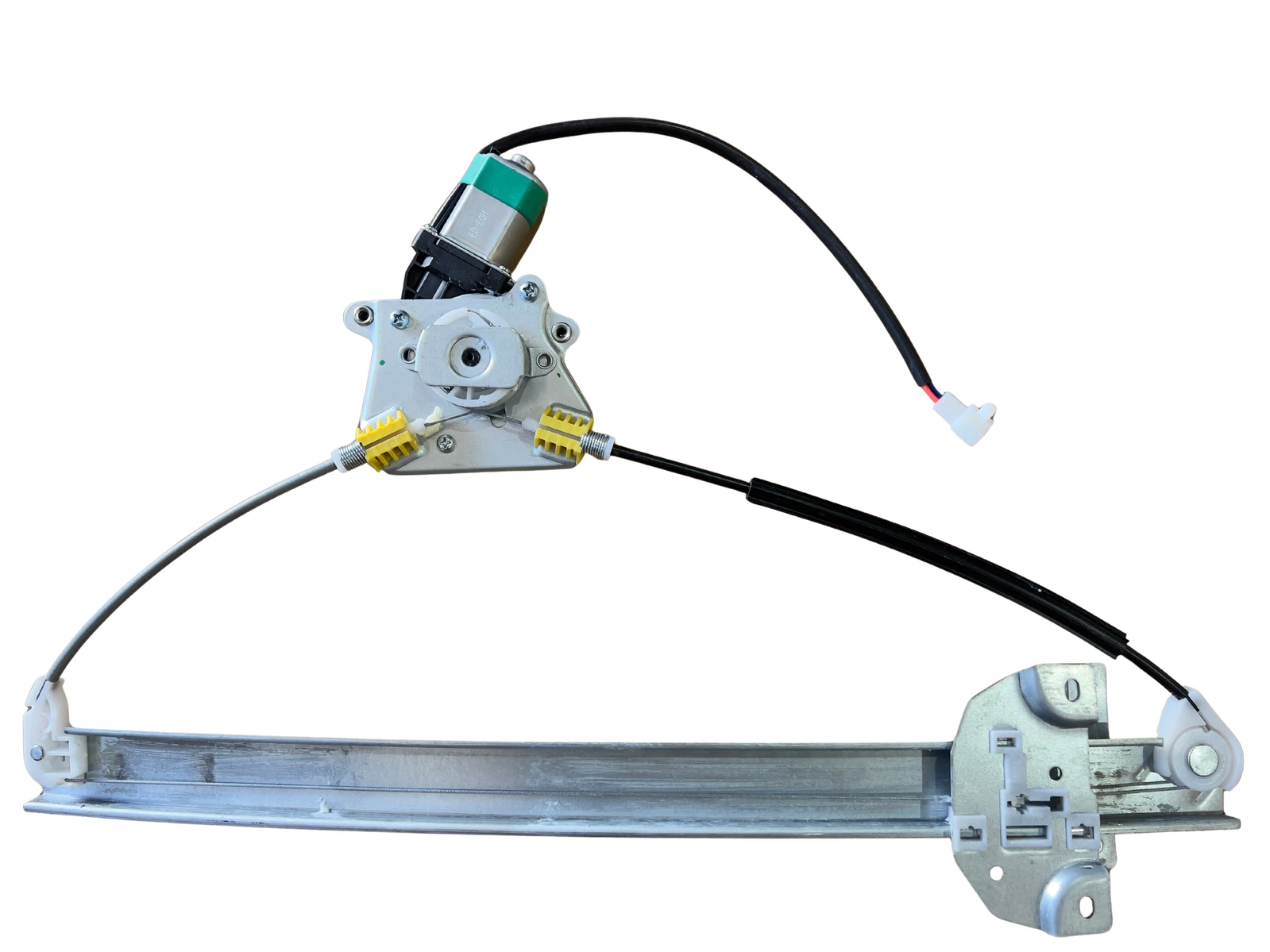

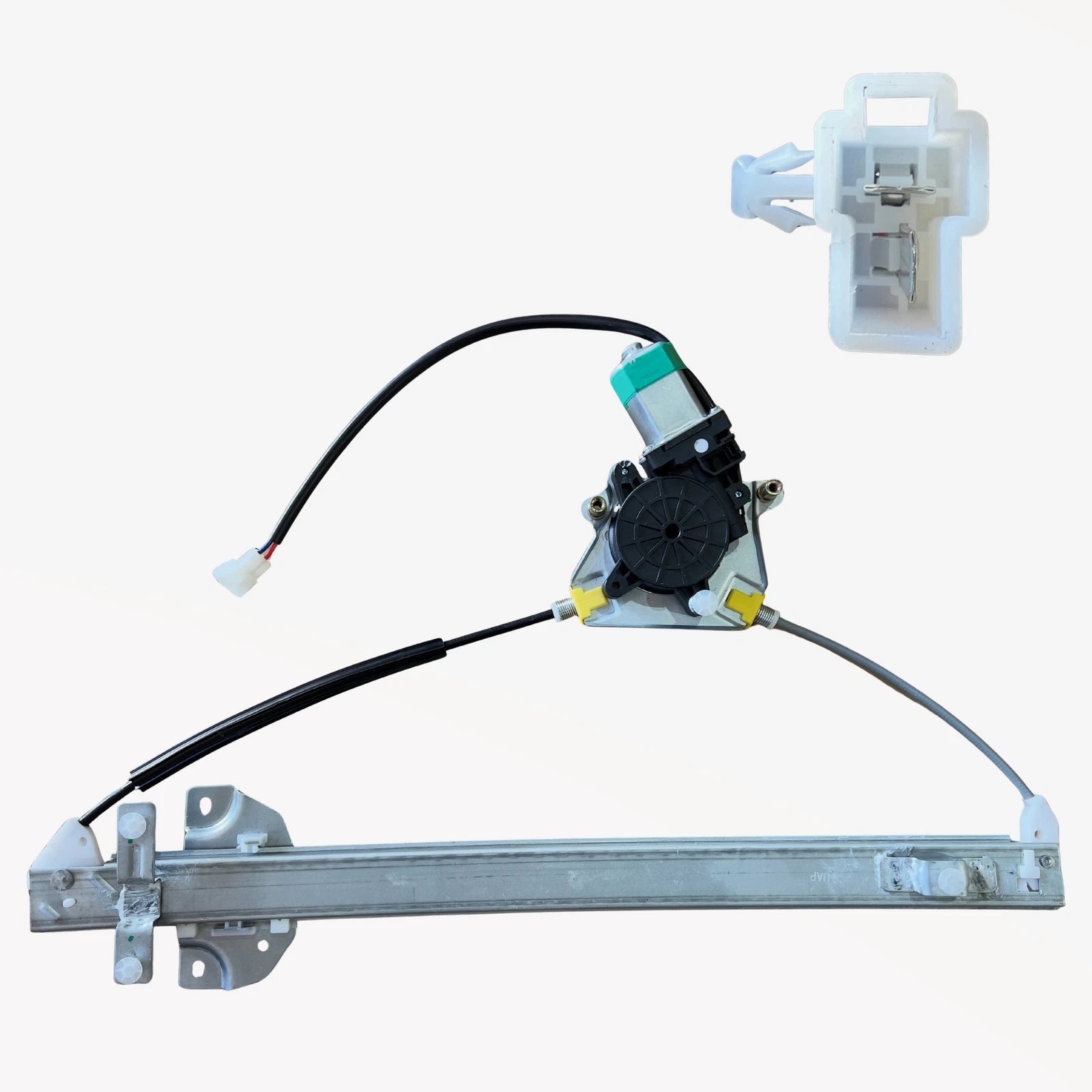

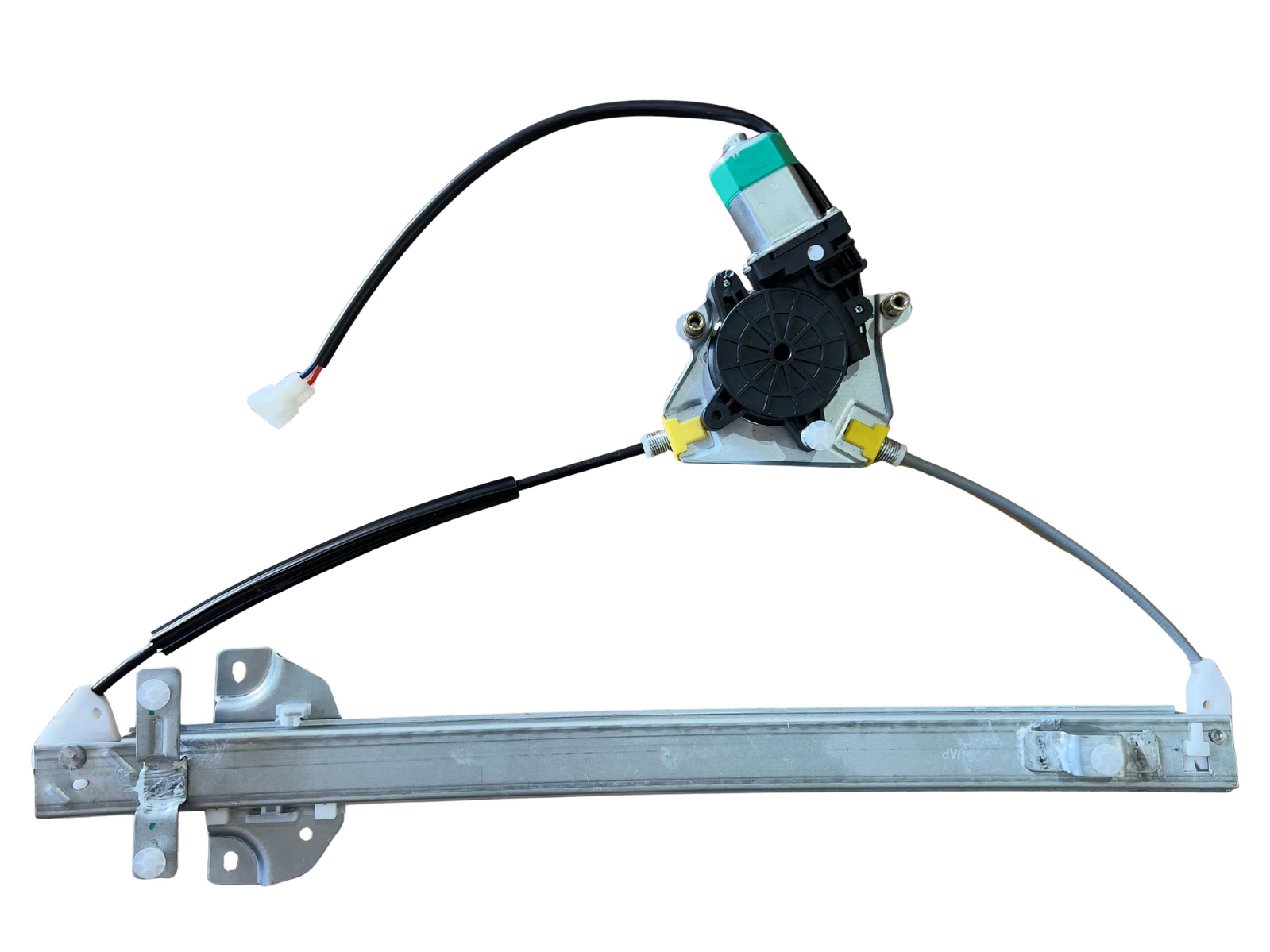

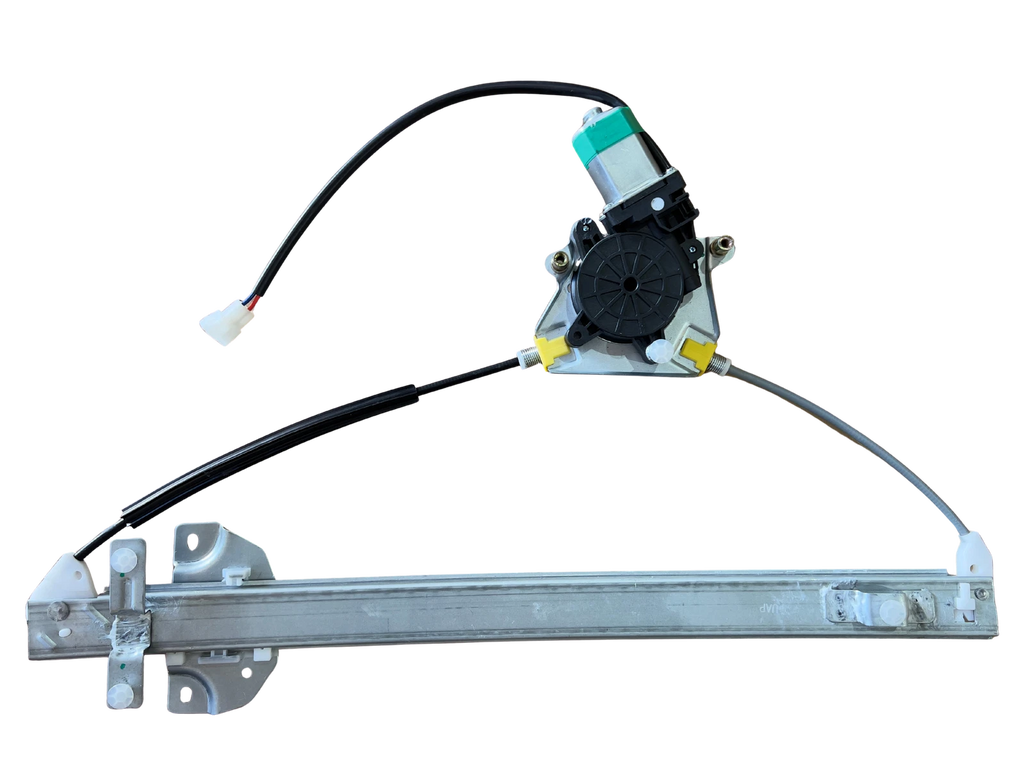

Front Left Electric Window Regulator with 2-Pin Motor for Suzuki Vitara

PRODUCT OVERVIEW

This front left electric window regulator with integrated 2-pin motor is a high-quality aftermarket replacement designed to restore smooth and reliable window operation on compatible Suzuki Vitara 4-door models.

KEY FEATURES

• Complete assembly with electric motor for direct replacement
• 2-pin motor connection for correct electrical compatibility
• Engineered for smooth, consistent window movement
• Durable high quality aftermarket construction
• Brand new part supplied as a single piece (1 x regulator)

SPECIFICATIONS

• Product: Window regulator with motor
• Operating mode: Electric
• Placement on vehicle: Front left (front passenger side)

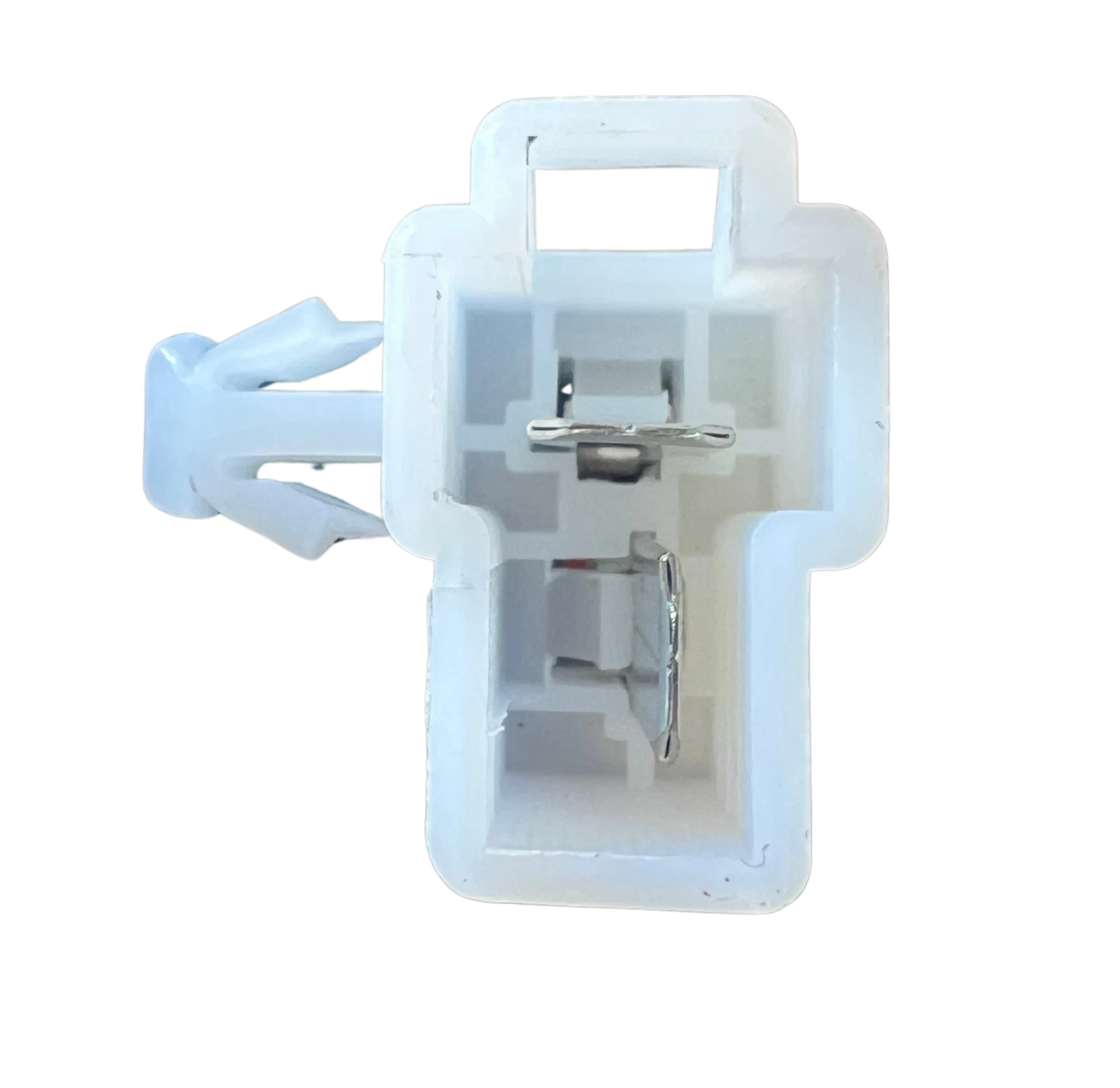

• Motor type: 2-pin connection
• Condition: Brand new
• Part type: High quality aftermarket replacement
• MPN/Item No.: 101319M2D
• Quantity supplied: 1 piece
• Manufacturer warranty: 12 months (part only)

VEHICLE FITMENT

• Suzuki Vitara SE 08/1991 – 12/1998, 4-door
• Suzuki Vitara SV 04/1995 – 09/1998, 4-door

Please compare the product images, connector type, and specifications with your original part to confirm compatibility before purchase.

ANTI-PINCH FUNCTION SETUP (IF APPLICABLE)

For window regulators with motors that include an anti-pinch function, the motor must be set correctly after installation to ensure proper operation.

• Do not power-test the motor before it is installed in the door.
• Install the regulator and connect it to the one-touch window switch.
• Pull the switch up to raise the window; if it reaches the top and then drops, a reset is required.

Reset procedure:

• Step 1: Pull the window switch briefly to move the window up slightly to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the switch briefly to move the window down slightly to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to move the window fully up again and confirm it no longer drops.

If the window still drops after reaching the top, repeat the above reset steps until successful.

INSTALLATION & USAGE NOTES

• Intended for repair and replacement of existing window regulators.
• Professional installation by a qualified automotive technician is strongly recommended.
• Colour or finish may vary slightly from images due to screen settings and lighting.
• Images are representative of the actual part supplied.

WARRANTY SUMMARY

• Standard 12-month manufacturer’s warranty on this part (from invoice/delivery date).
• Warranty covers replacement of the defective part only.
• Labour, installation, and consequential damage are not covered.
• Parts must be installed by a qualified mechanic to maintain warranty validity.

For warranty or returns, retain your proof of purchase and follow the seller’s returns process as provided at checkout or in your order documentation.
