Front Left Electric Window Regulator 6-Pin Motor for Toyota Corolla ZRE152 07-14

PRODUCT OVERVIEW

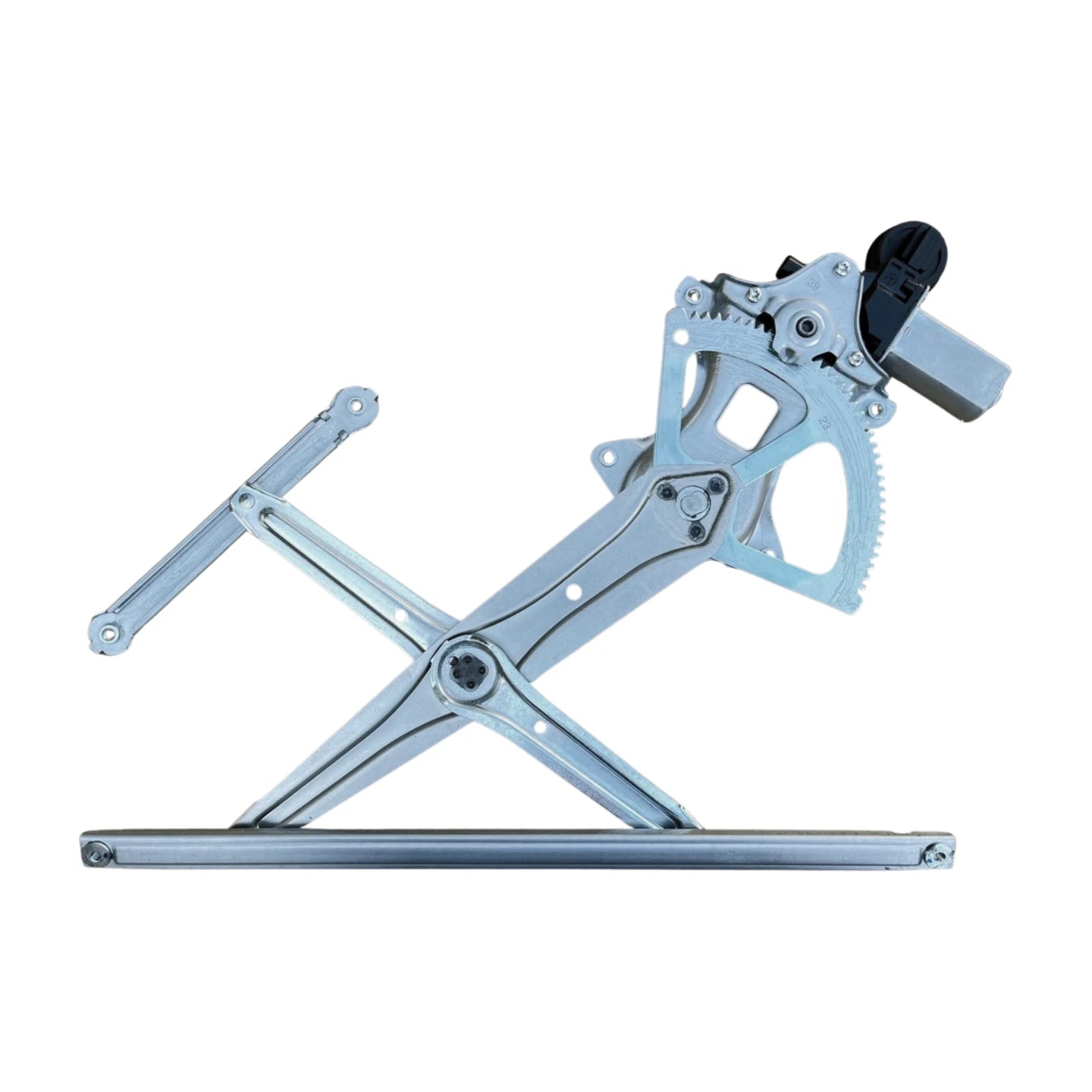

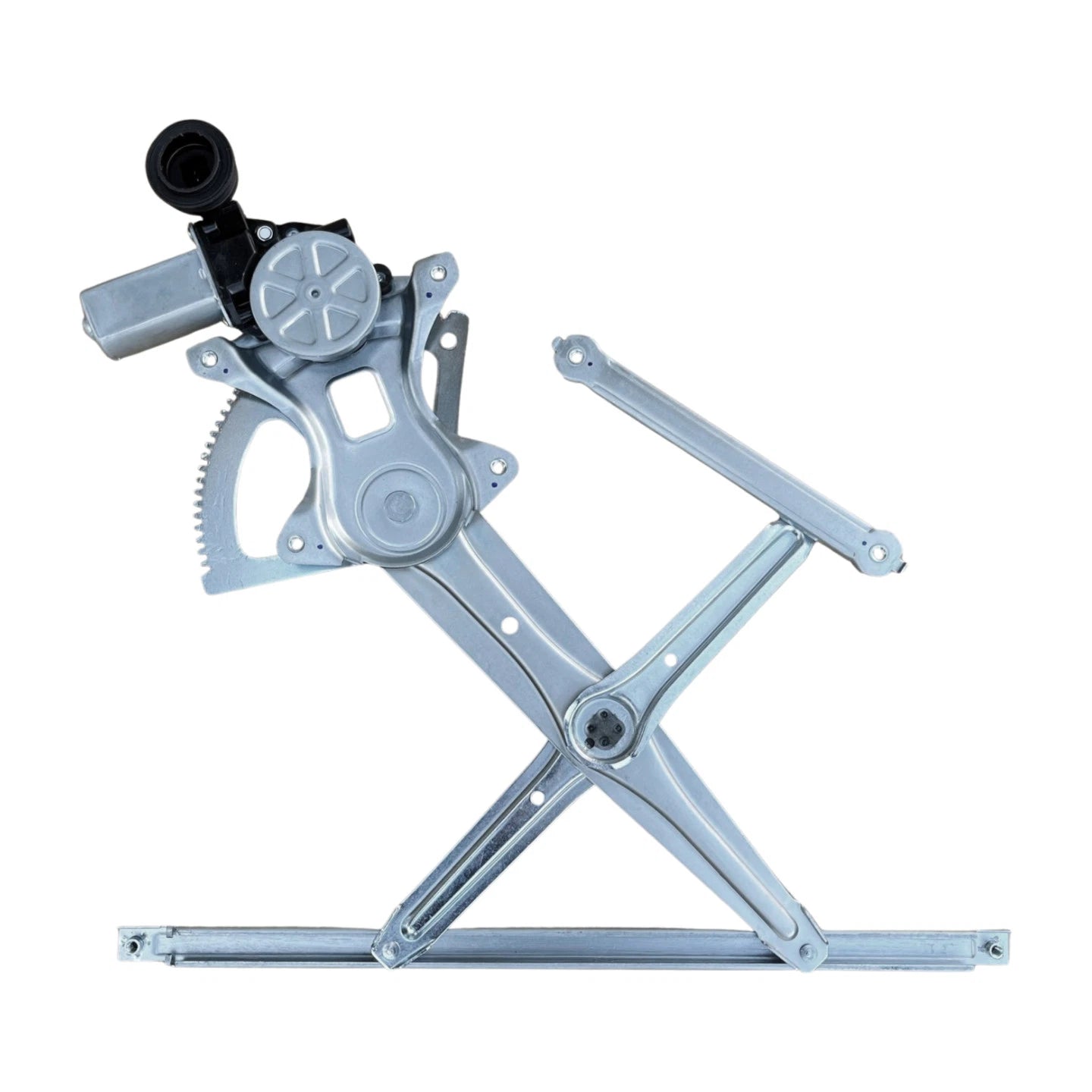

Front left electric window regulator with 6-pin motor, designed as a high quality aftermarket replacement for selected Toyota Corolla ZRE152R models.

KEY FEATURES

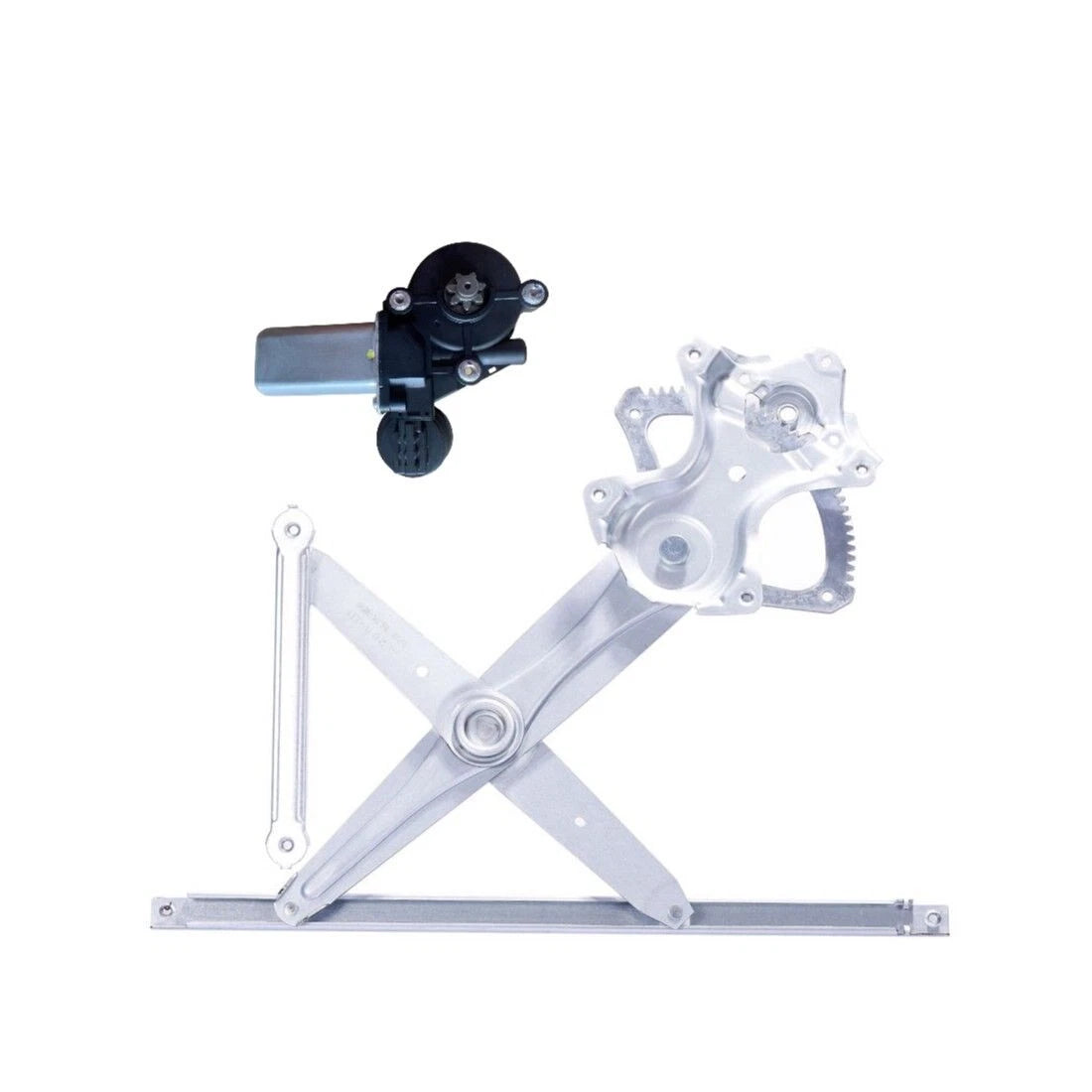

• Complete window regulator assembly with motor
• Electric operation for smooth window control
• Front left (front passenger side) position
• 6-pin motor configuration
• High quality aftermarket construction
• Brand new part supplied as a single piece

SPECIFICATIONS

• Product: Window regulator
• Operating mode: Electric
• Placement on vehicle: Front left (front passenger side)

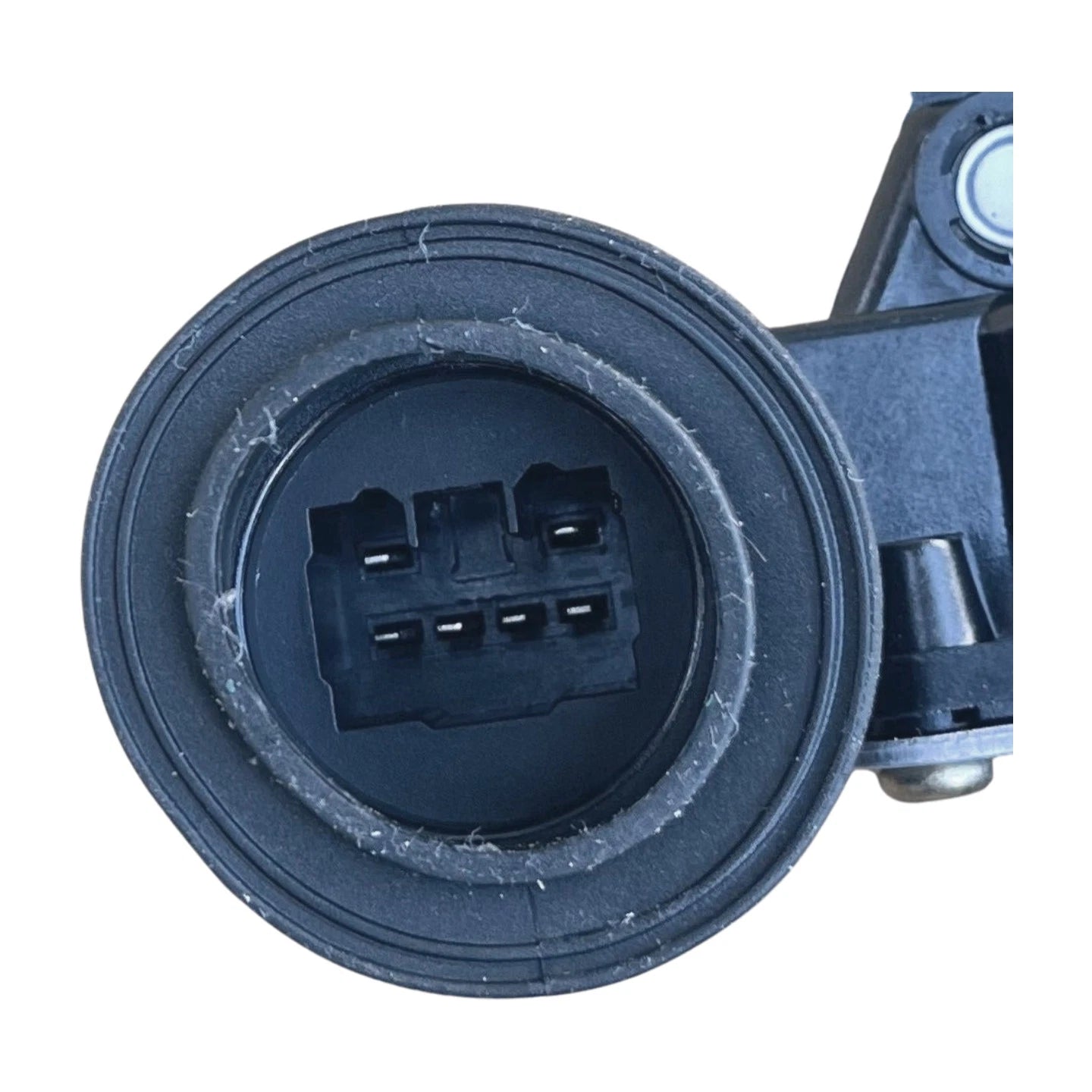

• Motor: 6 pins
• Condition: Brand new
• Part specs: High quality aftermarket
• MPN / Item No.: 101514M6D
• Quantity supplied: 1 piece
• Manufacturer warranty: 1 year (part only)

FITMENT

• Toyota Corolla ZRE152R 05/2007 - 01/2014

Fitment information is provided as a guide only. Always compare the part number, plug type (6-pin motor) and product images with your original component before purchase.

ANTI-PINCH FUNCTION SETUP

This window regulator motor is compatible with anti-pinch (one-touch) function. Do not test the motor before it is installed in the door, otherwise the anti-pinch function may need to be reset.

• Install the motor and connect it to the one-touch window switch.
• Operate the switch to ensure the window travels fully to the top.
• If the window drops after reaching the top, follow the reset procedure below.

Reset procedure:

• Step 1: Pull the window switch briefly so the window moves slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch again to move the window fully up.

If the window does not drop after reaching the top, the reset is complete. If it still drops, repeat the above steps.

INSTALLATION & NOTES

• Professional installation by a qualified automotive technician is recommended.
• Part is intended for repair and replacement use only.
• Actual product colour or finish may vary slightly due to screen settings and lighting.
• Compare mounting points, plug type and layout with your original regulator before installation.

WARRANTY OVERVIEW

This window regulator is supplied with a 12-month manufacturer warranty covering the replacement of the defective part only.

• Warranty period: 12 months from invoice or delivery date
• Applies to manufacturing defects in the part
• Does not cover labour, incorrect installation, misuse or modification
• Installation by a qualified mechanic is required to maintain warranty

For any warranty claim, the part must be returned for assessment. Approved claims are resolved by replacement of the part in accordance with the seller’s terms and conditions.
