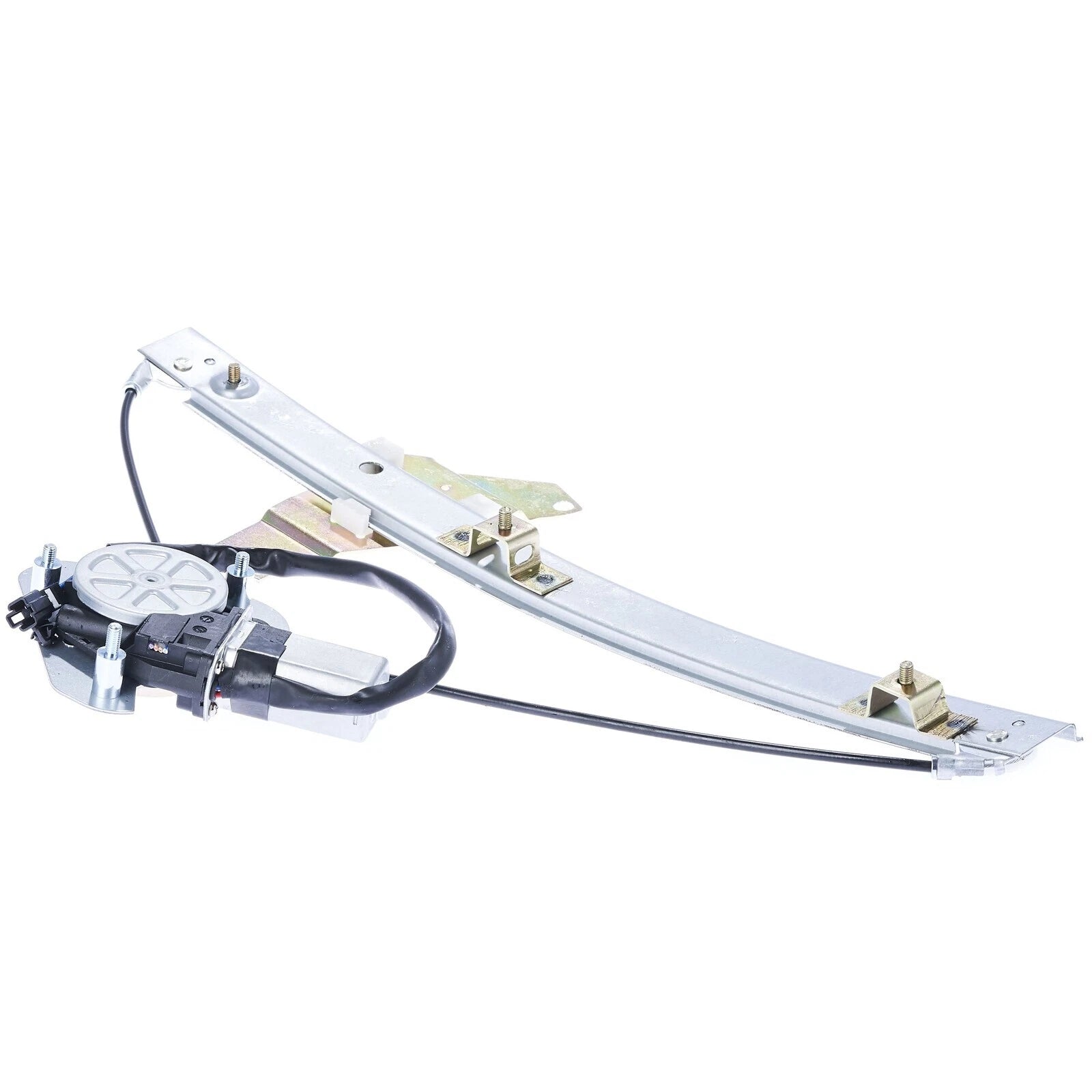

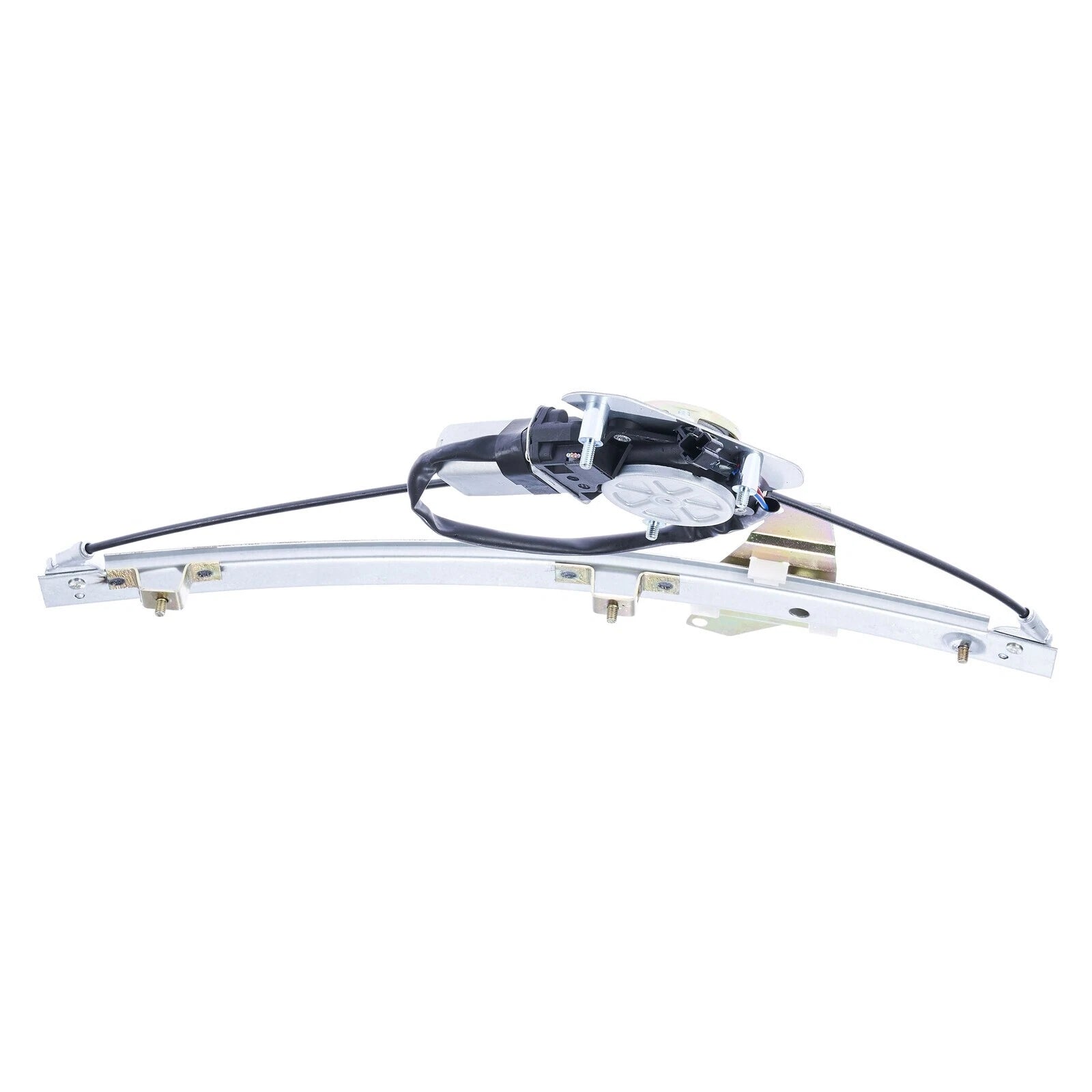

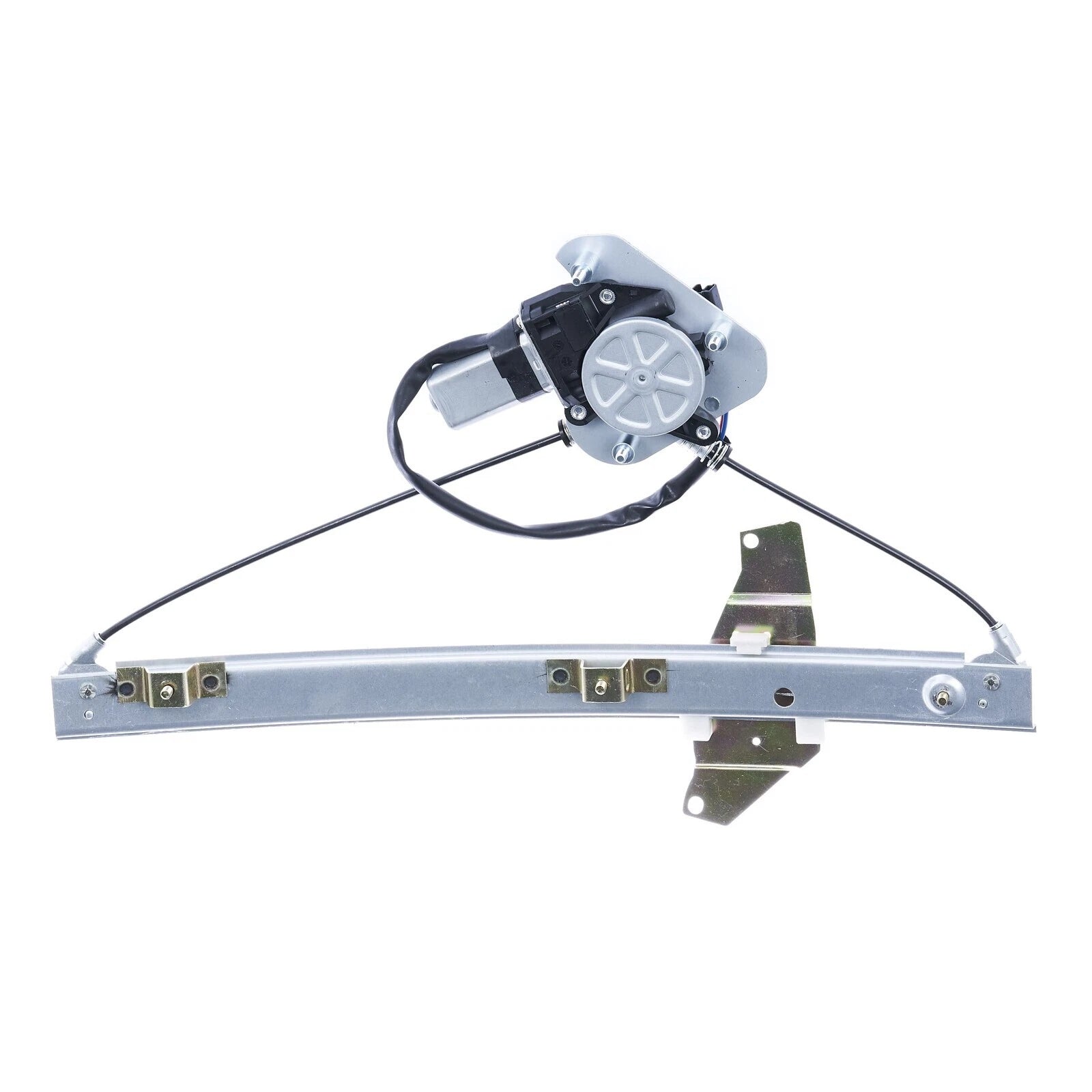

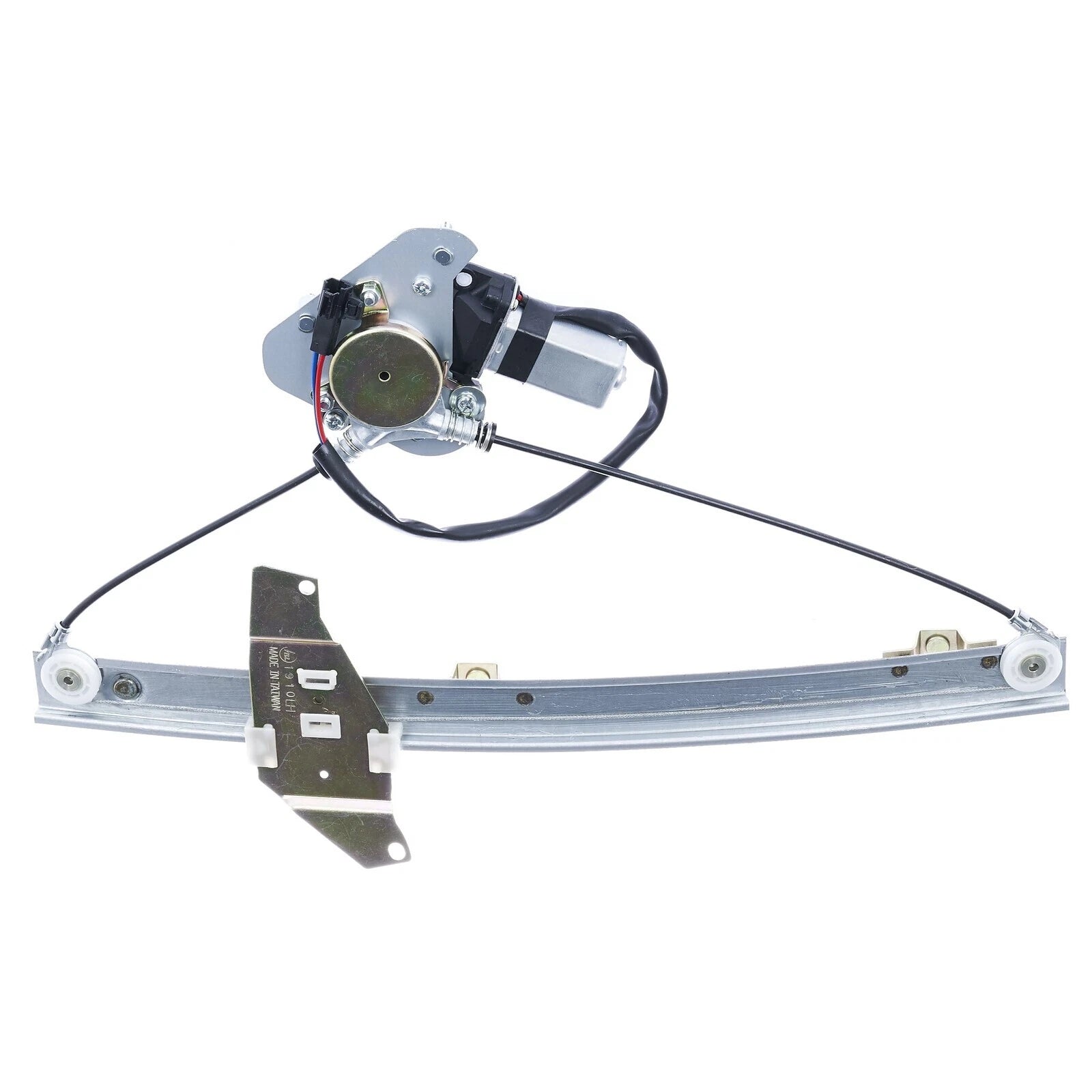

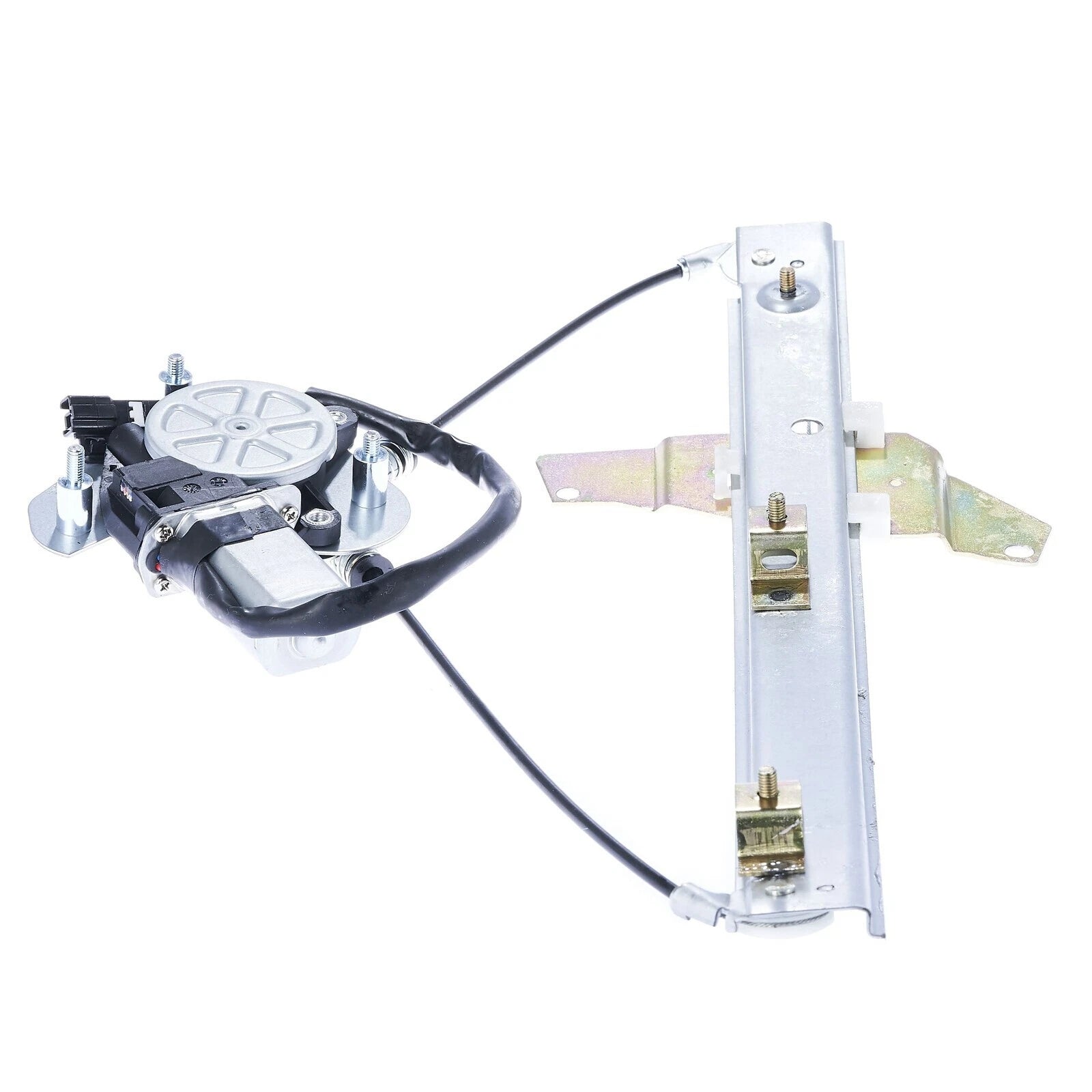

Front Left Electric Window Regulator with Motor 2-Pin for Toyota Avalon MCX10

PRODUCT OVERVIEW

This electric window regulator is designed as a direct replacement for the original front left window mechanism on specified Toyota Avalon MCX10 models. Supplied as a complete assembly with motor, it is ideal for repair and restoration applications where reliable window operation is required.

KEY FEATURES

• Complete front left (front passenger side) window regulator assembly

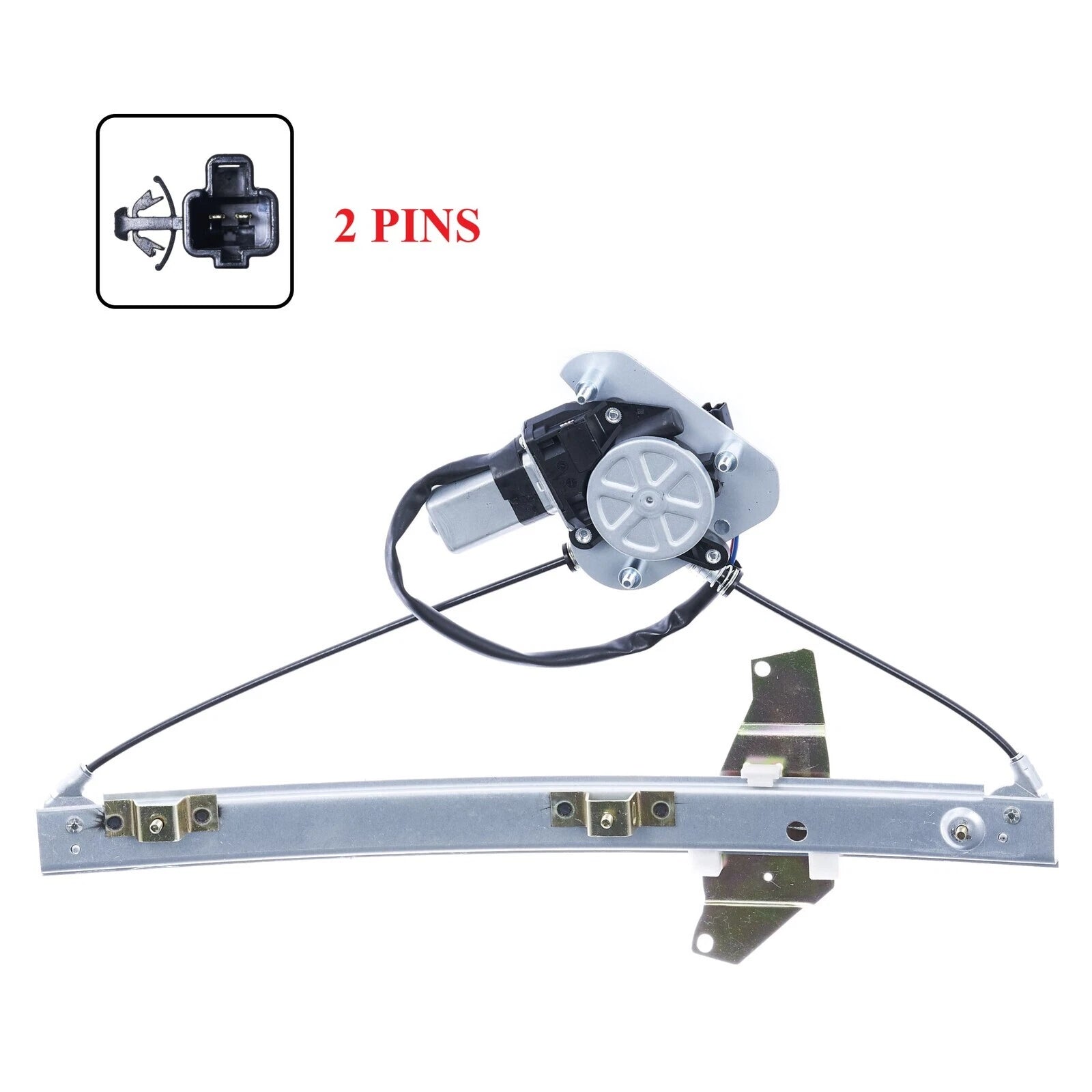

• Electric operation with 2-pin motor connector
• High-quality aftermarket construction for dependable performance
• Brand new part supplied as a single complete unit
• 12-month warranty on the part (conditions apply)

SPECIFICATIONS

FITMENT

• Toyota Avalon MCX10 07/2000 - 06/2005

Fitment information is provided as a general guide only. Always compare the part number (where available), connector type, mounting points and product images with your original window regulator before purchase.

ANTI-PINCH FUNCTION RESET (WHERE APPLICABLE)

• Do not test the motor before it is installed in the door, or the anti-pinch function may require resetting.
• Install the motor and connect it to the one-touch window switch.
• Pull up the switch to confirm the window travels fully to the top.
• If the window drops after reaching the top, follow the reset steps below.

Reset procedure:

• Step 1: Pull the window switch briefly so the window moves slightly up to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch again to move the window fully to the top and confirm it no longer drops.

If the window still drops after reaching the top, repeat the reset procedure until successful.

INSTALLATION & WARRANTY NOTES

• Intended for use as a replacement part for repair purposes only.
• For warranty validity, installation by a qualified automotive mechanic is recommended.
• Ensure all electrical connections and mounting points are secure before operating the window.
• Colour and finish may vary slightly due to screen settings and lighting.
• Images shown represent the type of product supplied; always compare carefully with your original part.
