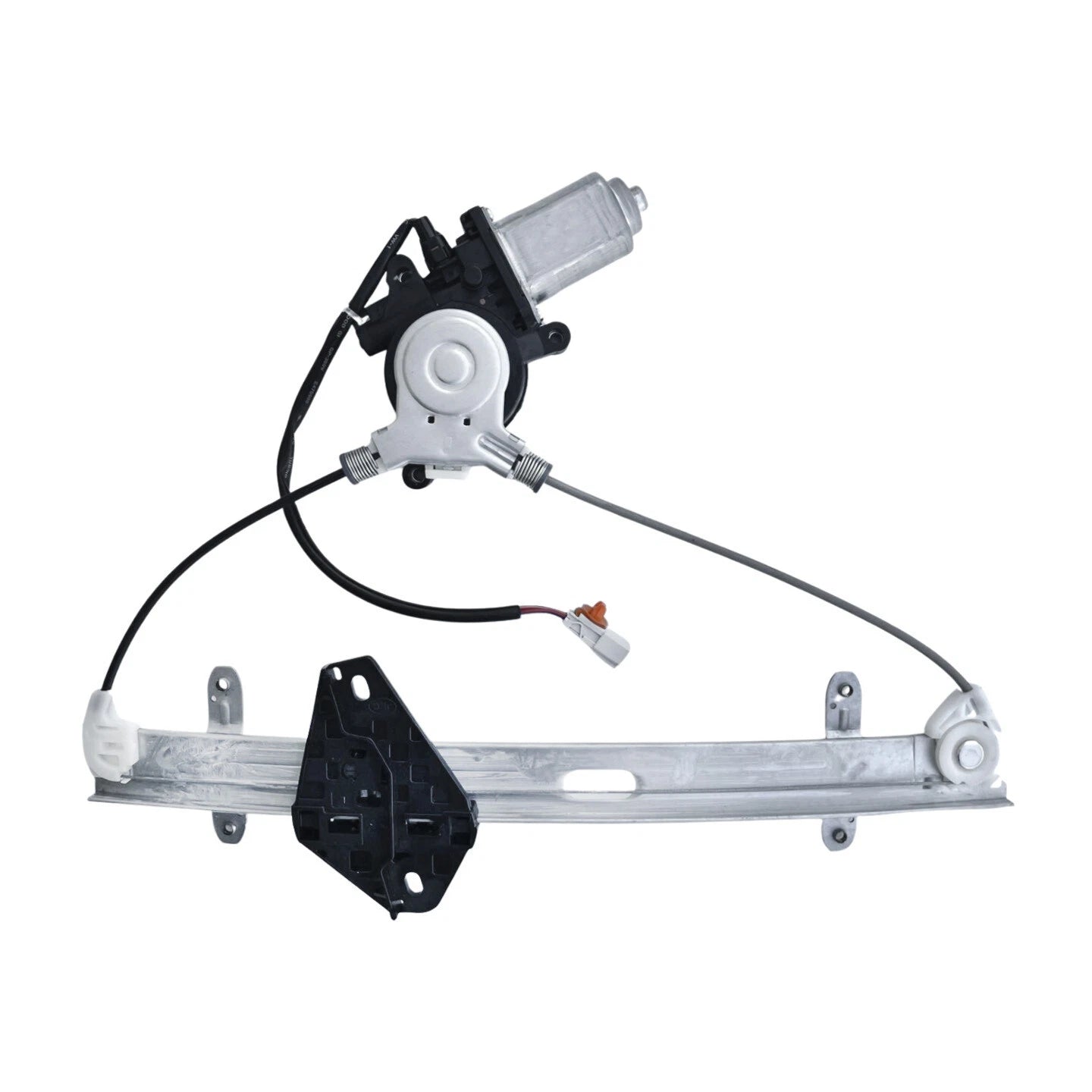

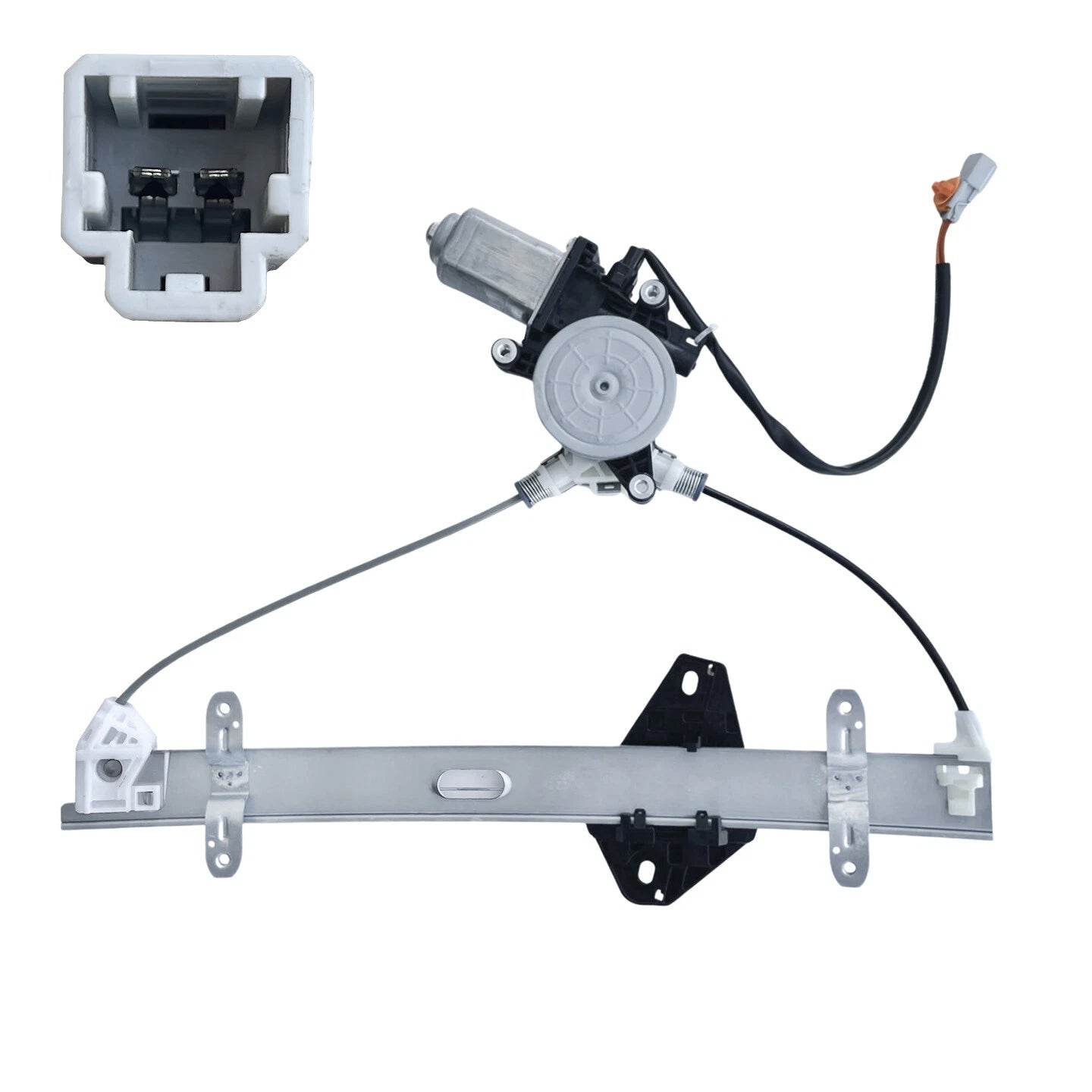

Front Left Electric Window Regulator with Motor for Honda Integra DC5

PRODUCT OVERVIEW

This front left electric window regulator with 2-pin motor is a high quality aftermarket replacement, designed to restore smooth and reliable window operation on compatible Honda Integra DC5 models.

KEY FEATURES

• Complete assembly with pre-fitted electric motor
• Front left (front passenger side) fitment
• 2-pin motor connection
• Direct replacement for worn or faulty regulator
• High quality aftermarket construction
• Supplied brand new, ready to install

SPECIFICATIONS

• Product: Window regulator with motor
• Operating mode: Electric
• Position: Front left (front passenger side)

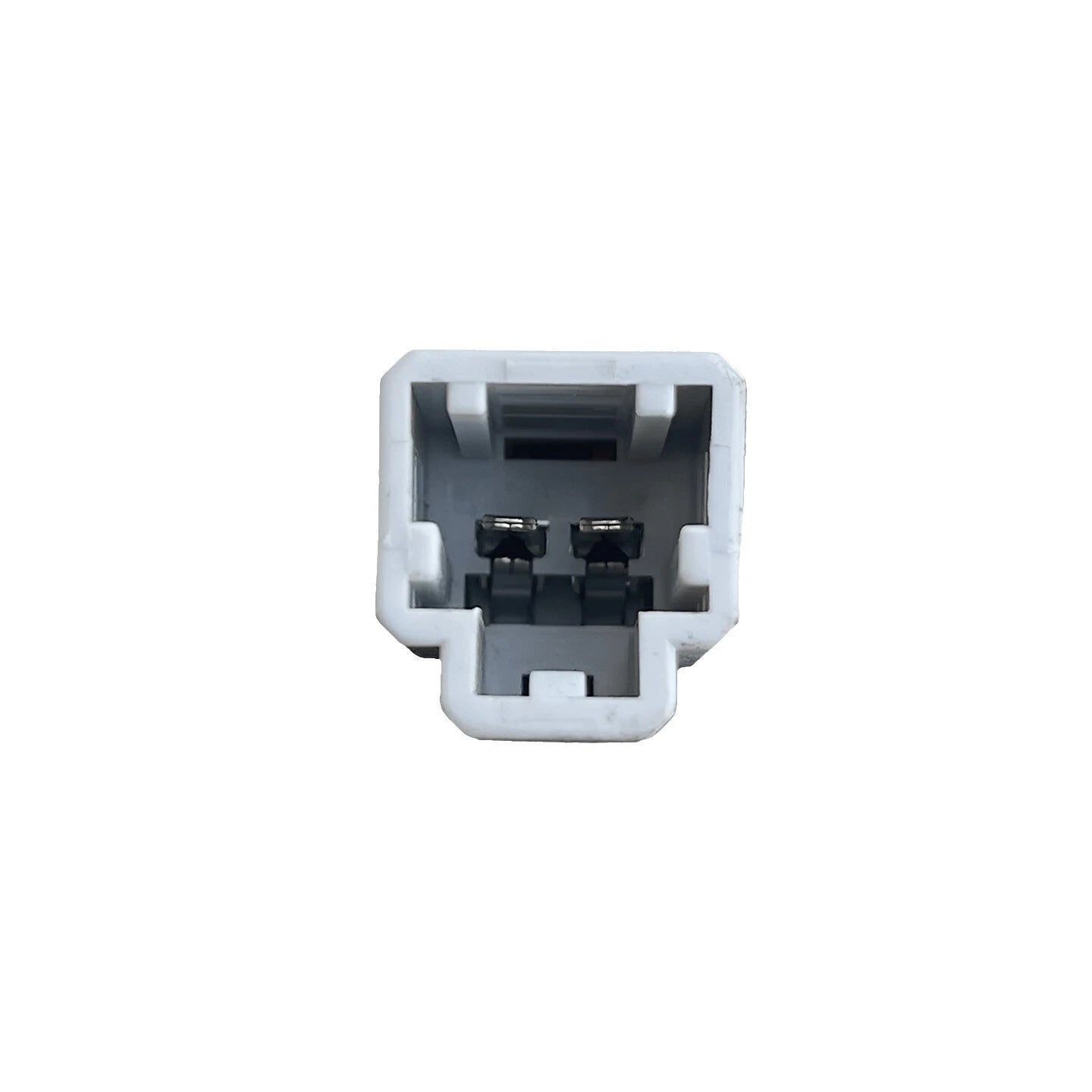

• Motor connection: 2 pins
• Part type: High quality aftermarket
• Condition: Brand new
• MPN / Item No.: 101364
• Warranty: 1-year part-only warranty
• Quantity supplied: 1 piece

FITMENT

• Honda Integra DC5 08/2001 – 12/2006

Always compare this part and connector style with your original window regulator and motor before purchase.

ANTI-PINCH FUNCTION SETUP

This motor may be equipped with an anti-pinch function. Incorrect testing before installation can cause malfunction and require a reset.

• Do not test the motor before it is installed in the door.
• The motors are pre-tested and set before dispatch.
• Install the regulator and connect it to the one-touch window switch.
• Operate the switch to confirm the window travels fully to the top.
• If the window drops after reaching the top, perform the reset procedure.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly so the window moves slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch and allow the window to travel fully to the top.

If the window still drops after reaching the top, repeat the above steps until the function is set correctly.

NOTES

• For best results and warranty validity, installation should be carried out by a qualified automotive technician.
• Product images are for reference; colour or minor details may vary slightly from the actual part.
• Check plug type, mounting points and orientation against your original unit before fitting.
