Front Left Electric Window Regulator w/ Motor 2-Pin for Suzuki Grand Vitara SQ 1998-2005

PRODUCT OVERVIEW

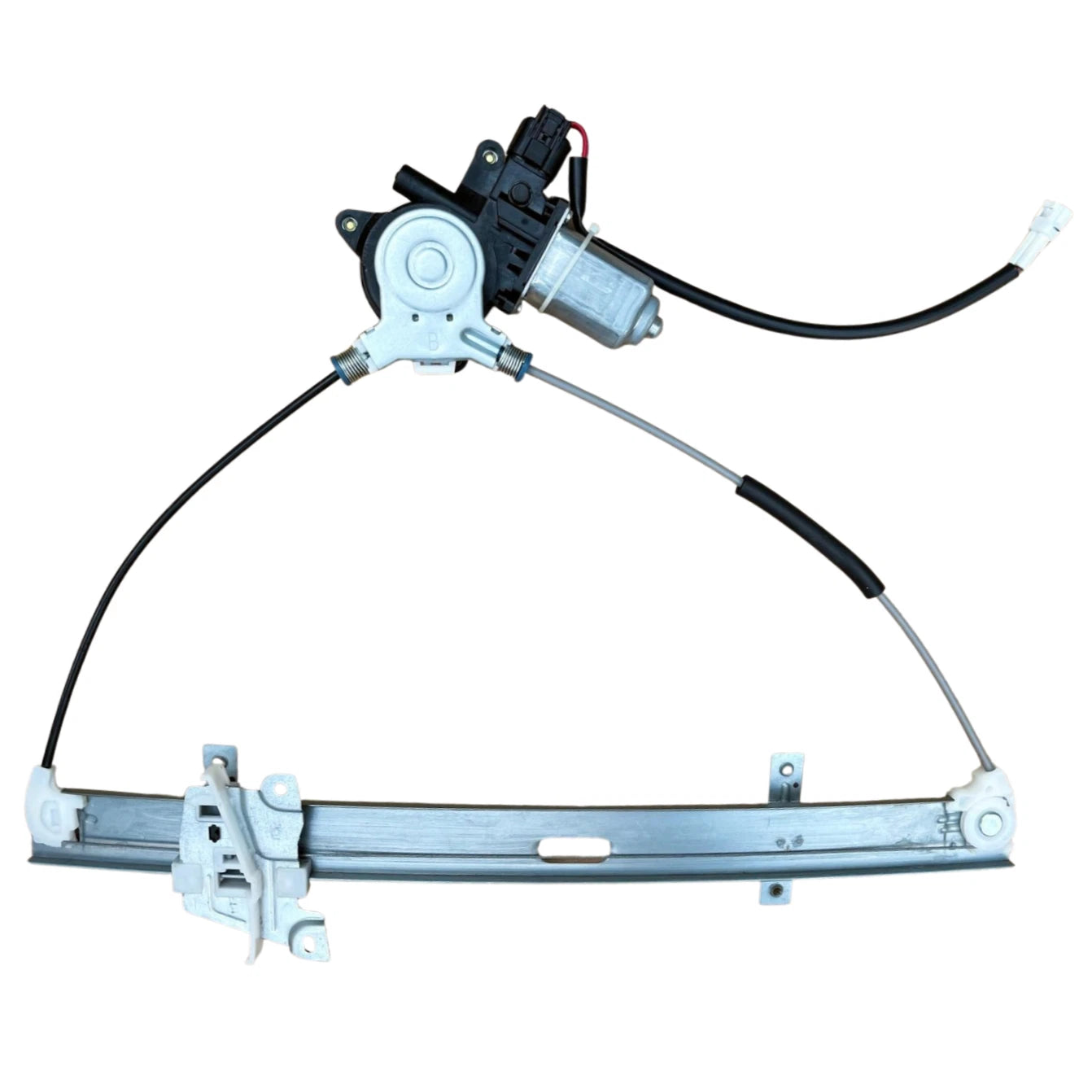

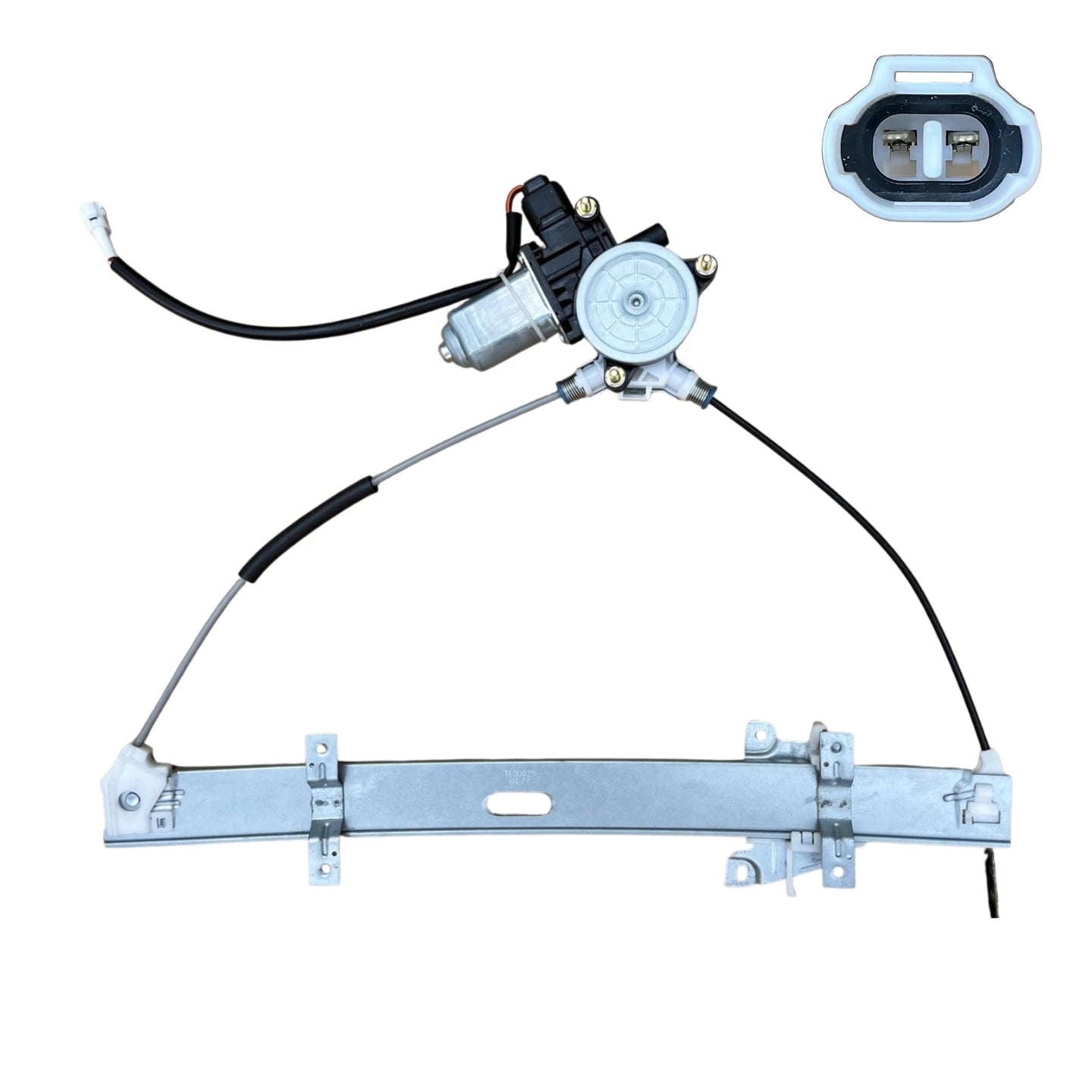

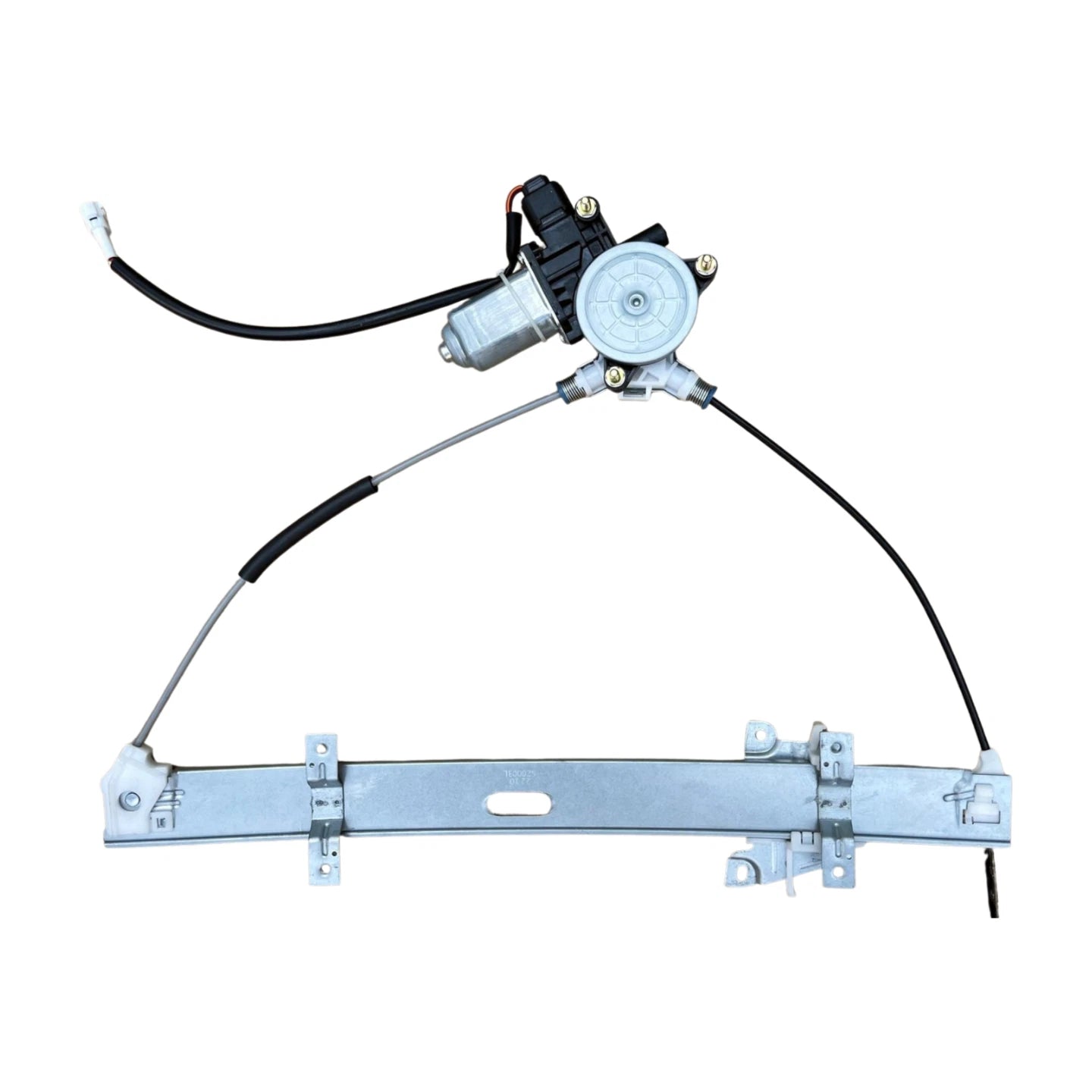

This front left electric window regulator with integrated 2-pin motor is a high-quality aftermarket replacement, designed for reliable operation and smooth window movement.

KEY FEATURES

• Complete assembly with electric motor
• Front left (front passenger side) fitment
• 2-pin motor connection
• High-quality aftermarket construction
• Brand new part, supplied as a single piece

SPECIFICATIONS

• Product: Window regulator
• Operating mode: Electric
• Placement on vehicle: Front left (front passenger side)

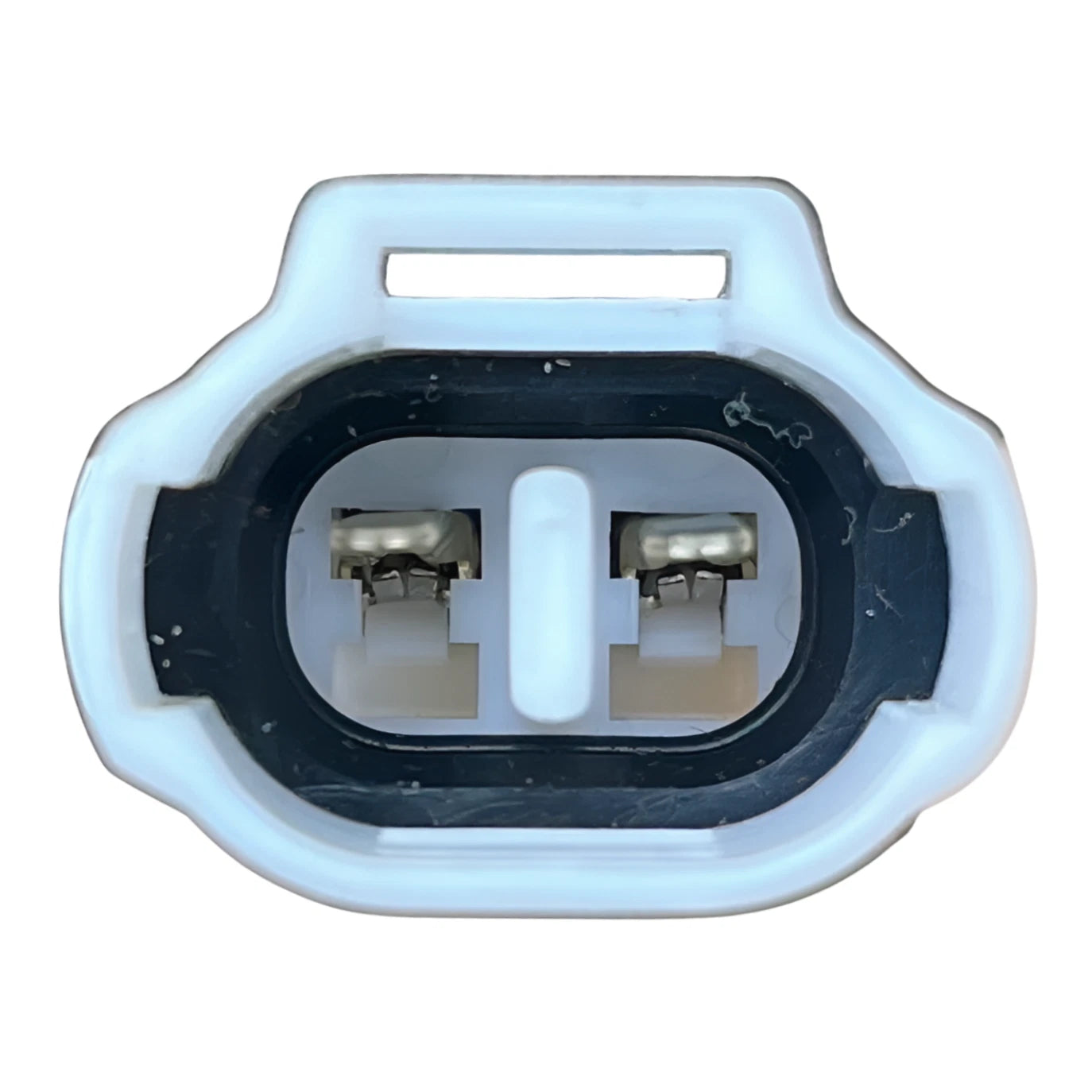

• Motor connection: 2 pins
• Part type: High quality aftermarket
• Condition: Brand new
• MPN/Item No.: 101303
• Warranty: 12 months (part only)
• Quantity supplied: 1 piece

VEHICLE FITMENT

• Suzuki Grand Vitara SQ 03/1998 – 12/2005

Always compare the product images and specifications with your original part to confirm compatibility before purchase.

ANTI-PINCH FUNCTION SETUP (WHERE APPLICABLE)

For regulators with motors that include an anti-pinch function, do not power the motor before installation, as this may require a reset of the function.

• The motors are pre-tested and set correctly before dispatch.
• Install the motor in the door and connect it to the one-touch window switch.
• Pull the switch up; the window should travel fully to the top.
• If the window drops down after reaching the top, follow the reset procedure below.

Reset procedure:

• Step 1: Pull the window switch briefly so the window moves slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to raise the window fully to the top.

If the window still drops after reaching the top, repeat the steps until the anti-pinch function is correctly set.

IMPORTANT NOTES

• Intended for use as a replacement/repair part.
• Installation by a qualified automotive technician is recommended.
• Product colour/finish may vary slightly due to screen and lighting differences.
• Images are representative of the actual product supplied.
