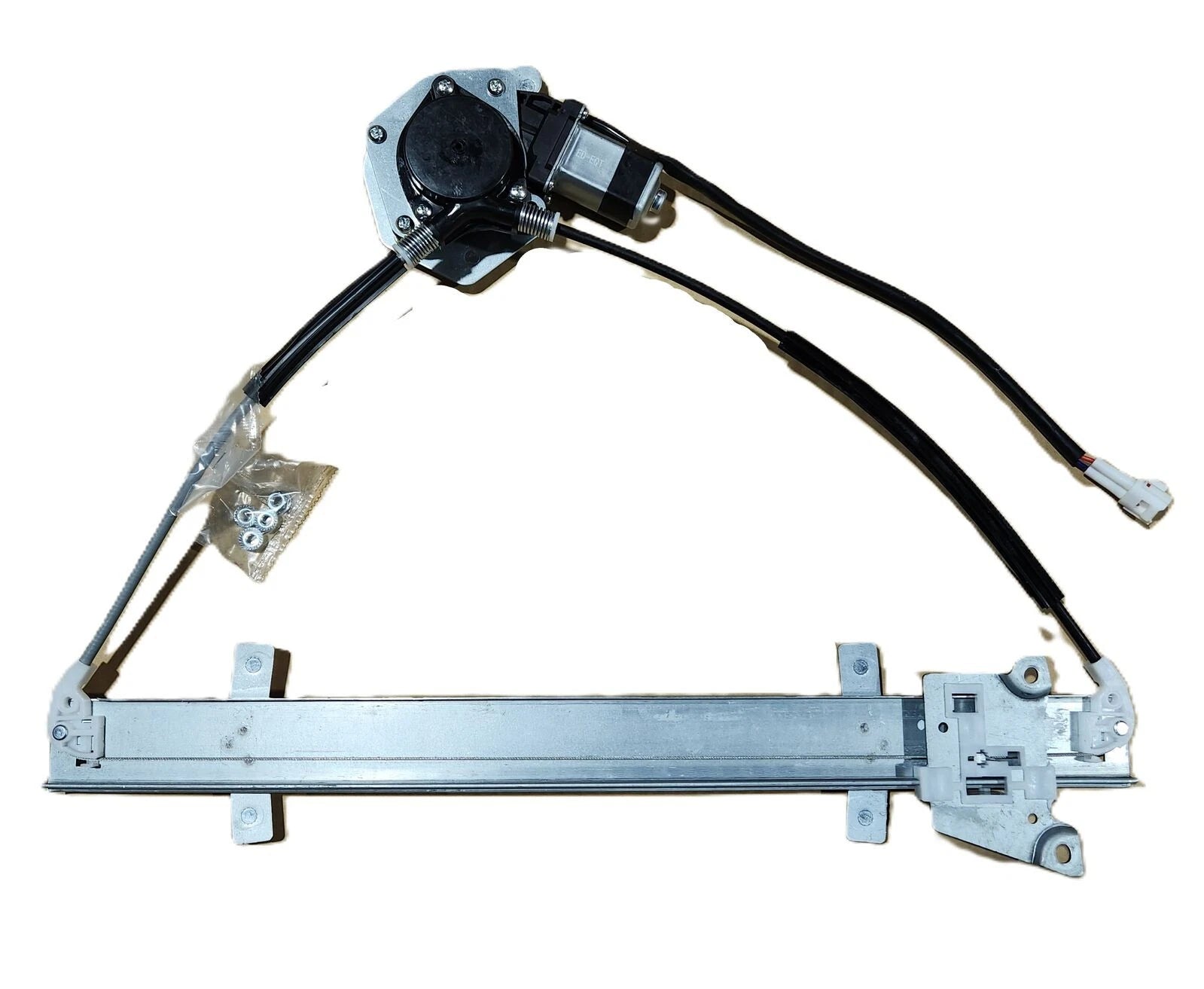

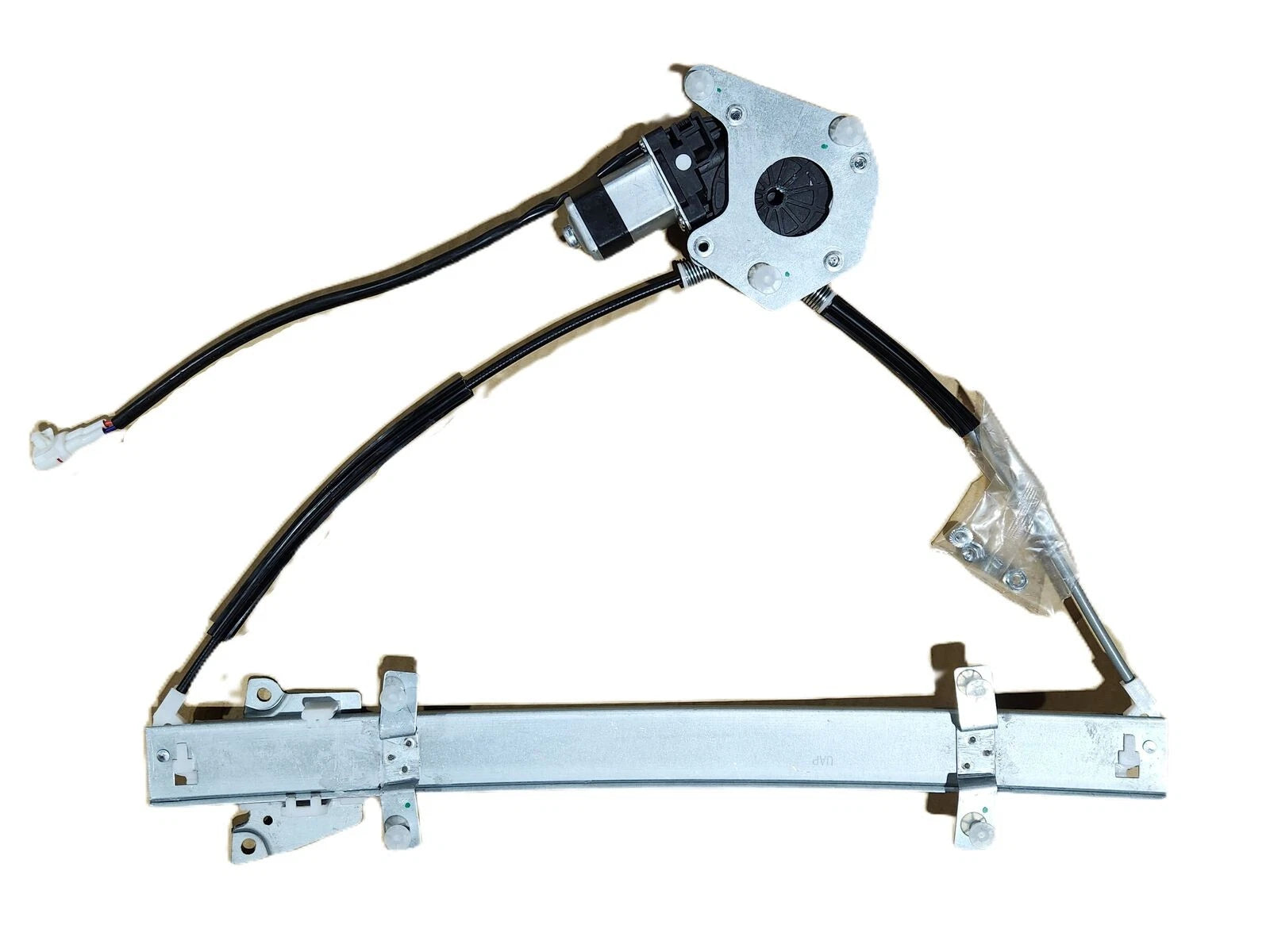

Front Left Electric Window Regulator & Motor 2-Pin for Suzuki Grand Vitara SQ 1998-2005

PRODUCT OVERVIEW

This electric window regulator with motor is designed for reliable operation and smooth window movement on the front left (front passenger) side of compatible Suzuki Grand Vitara SQ models. Supplied as a complete assembly with a 2-pin motor, it is ideal for direct replacement of a worn or faulty unit.

KEY FEATURES

• Complete electric window regulator with motor assembly
• Front left (front passenger side) placement
• 2-pin motor connection
• High-quality aftermarket construction
• Brand new part supplied as a single piece
• Backed by a 1-year parts-only warranty

SPECIFICATIONS

• Product: Window regulator with motor
• Operating mode: Electric
• Placement on vehicle: Front left (front passenger side)

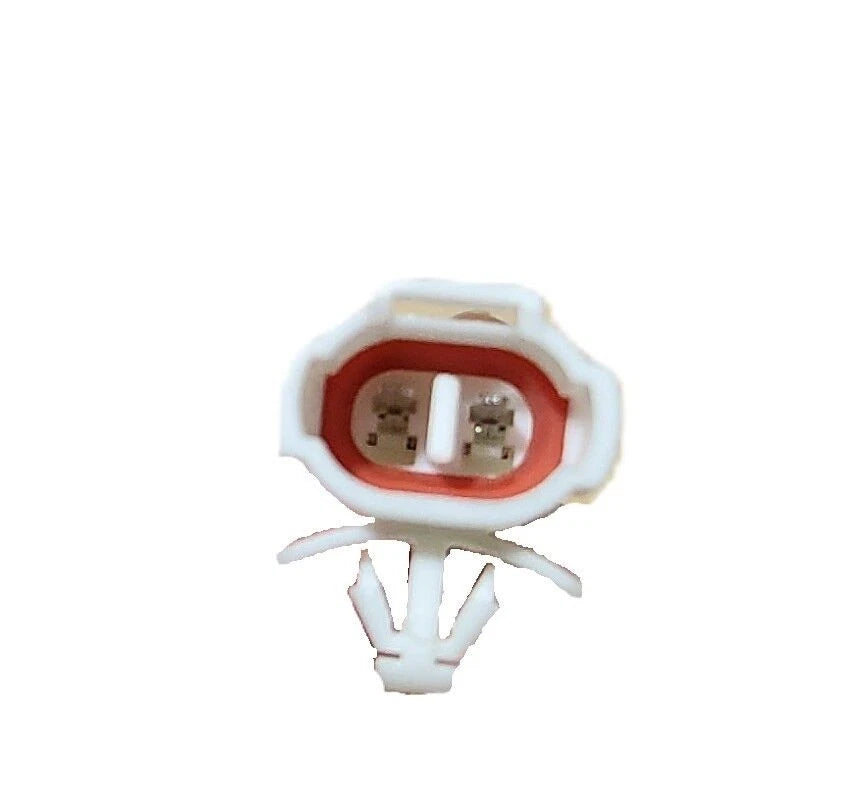

• Motor connection: 2 pins
• Part specification: High quality aftermarket
• Condition: Brand new
• MPN / Item No.: 101303M2D
• Warranty: 1 year (part only)
• Quantity supplied: 1 piece

FITMENT

• Suzuki Grand Vitara SQ 03/1998 – 12/2005

Vehicle compatibility information is provided as a guide only. Always compare the part number and product photos with your original component to confirm suitability before purchase.

ANTI-PINCH FUNCTION RESET (IF APPLICABLE)

For window regulators with motors that include an anti-pinch or one-touch function, correct setup is essential:

• Do not test the motor before it is installed in the door, or the anti-pinch function may require resetting.
• The motors are pre-tested and set correctly before dispatch.
• After installation, connect the one-touch window switch and raise the window. It should travel fully to the top.
• If the window drops down after reaching the top, perform the reset procedure below.

Anti-pinch reset procedure:

• Step 1: Pull the window switch briefly to move the window slightly up to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the window switch briefly to move the window slightly down to the bottom position.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to move the window fully up to the top.

The reset is complete if the window remains at the top. If it still drops, repeat the steps until successful.

INSTALLATION & WARRANTY NOTES

• This part is intended for repair and replacement use.
• For warranty validity, installation by a qualified automotive mechanic is strongly recommended.
• Warranty covers replacement of the defective part only and does not cover labour, incorrect installation, misuse, or modification.
• Some window regulators and motors may be supplied with tamper-evident seals; removal or damage to these seals may affect return eligibility.

The product images are for reference and may appear slightly different in colour due to lighting and screen settings. Always match the design and connector style with your original window regulator before purchasing.
