Front Left Electric Window Regulator w/ Motor 4 Pin for Honda CR-V RD 1997-2001

PRODUCT OVERVIEW

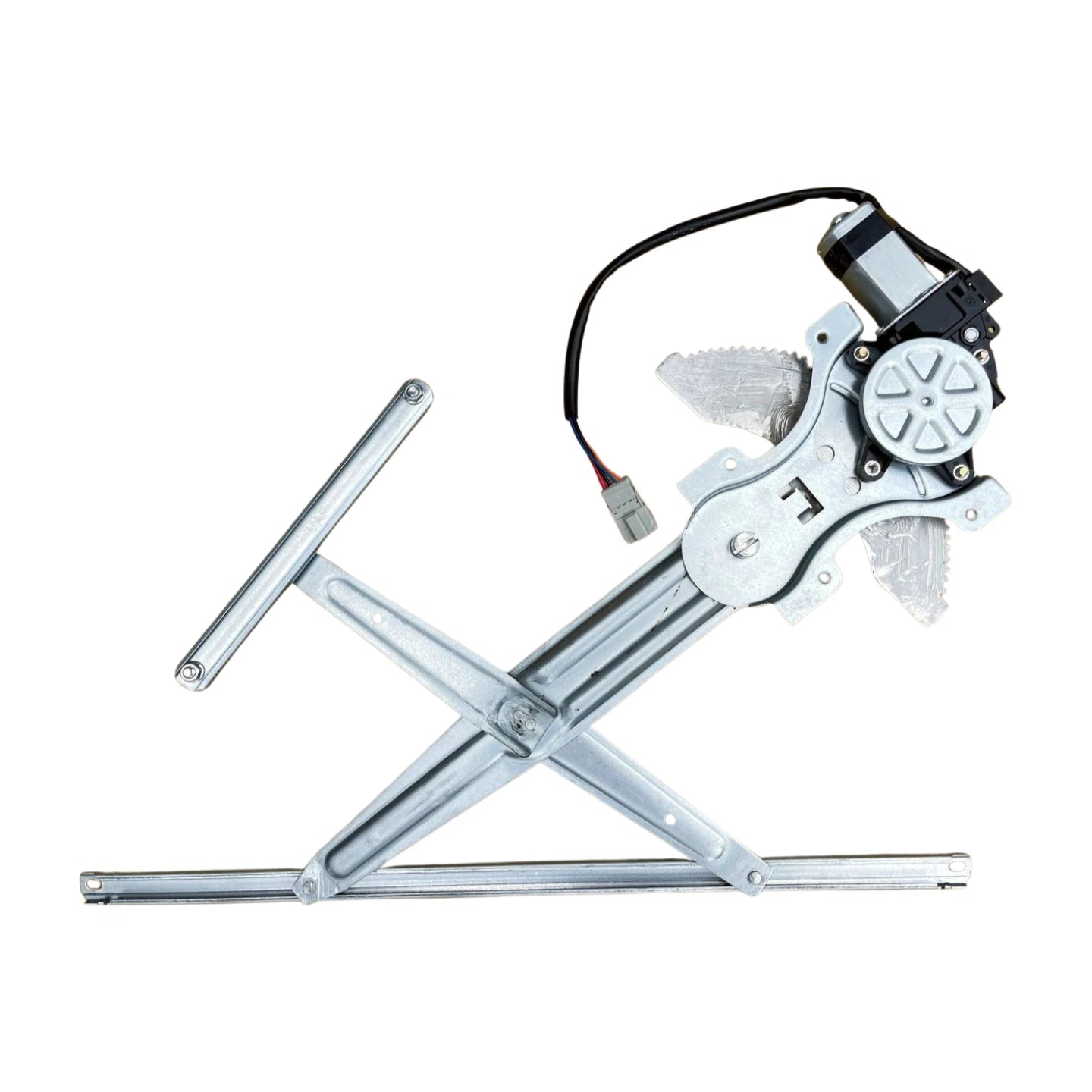

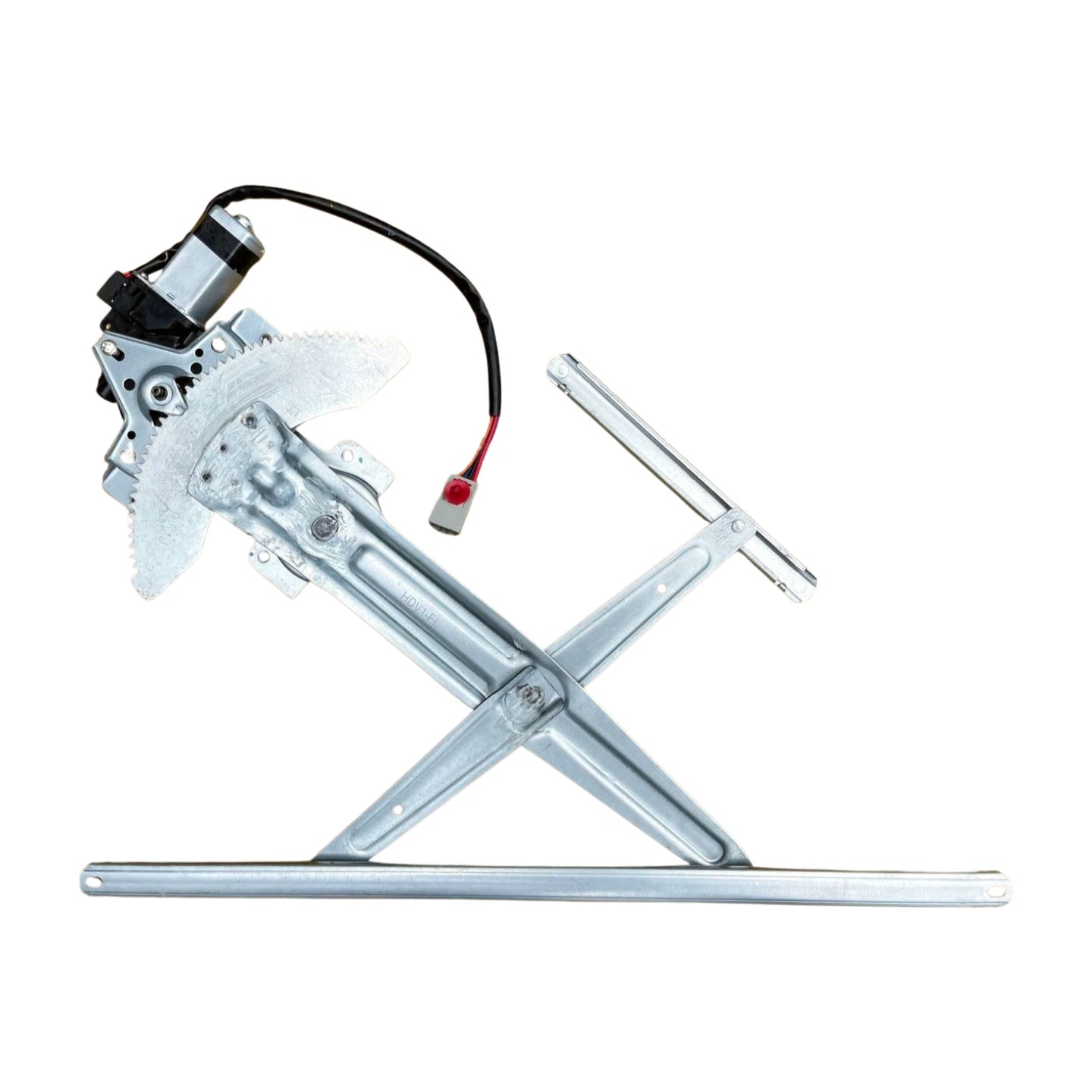

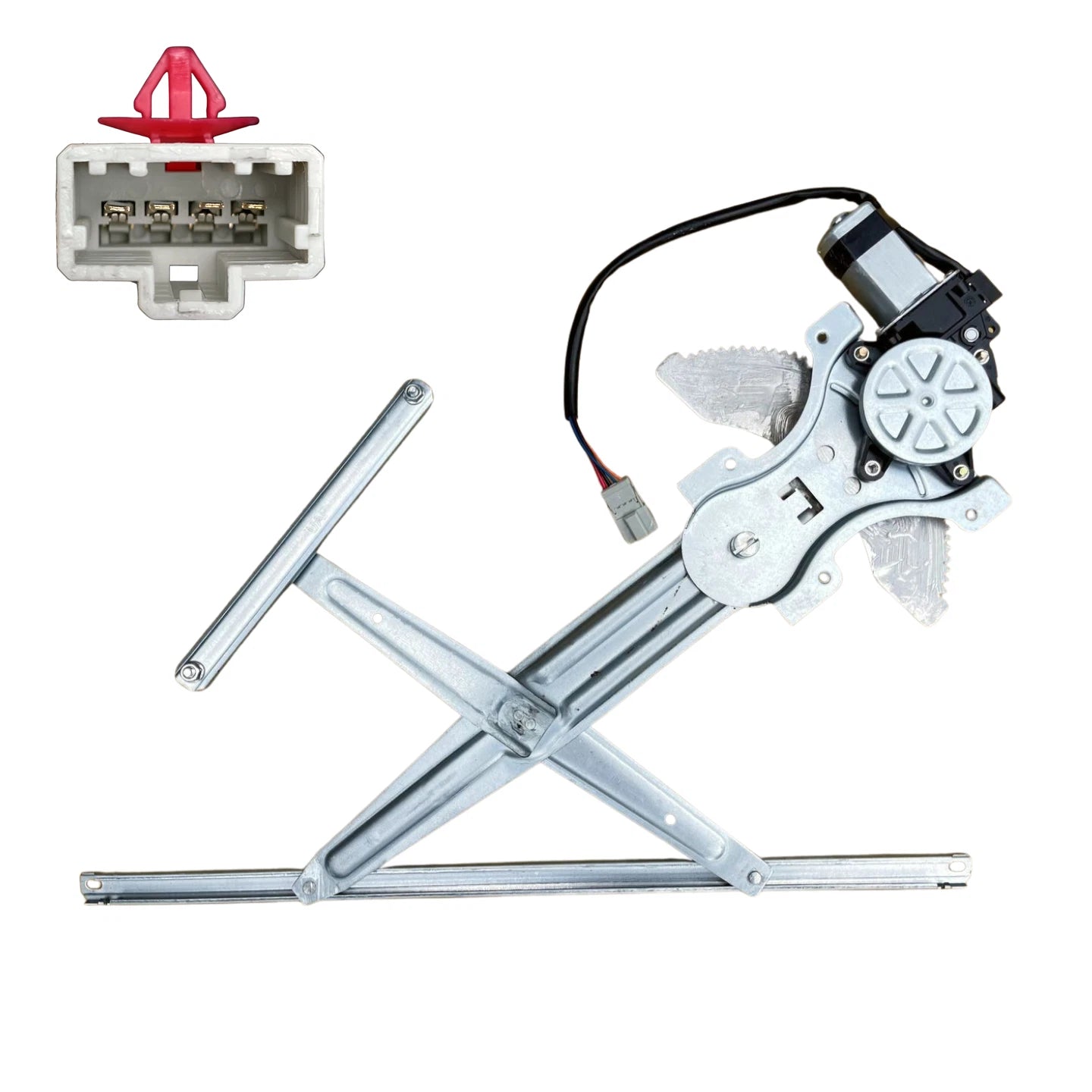

This front left electric window regulator with motor is a high-quality aftermarket replacement, designed to restore smooth and reliable window operation on applicable Honda CR-V RD models.

KEY FEATURES

• Complete assembly with pre-fitted electric motor
• 4-pin motor connection for correct electrical compatibility
• Direct replacement for damaged or faulty original regulator
• Engineered for smooth, consistent window movement
• Brand new, high-quality aftermarket component

SPECIFICATIONS

• Product: Window regulator with motor
• Operating mode: Electric
• Placement on vehicle: Front left (front passenger side)

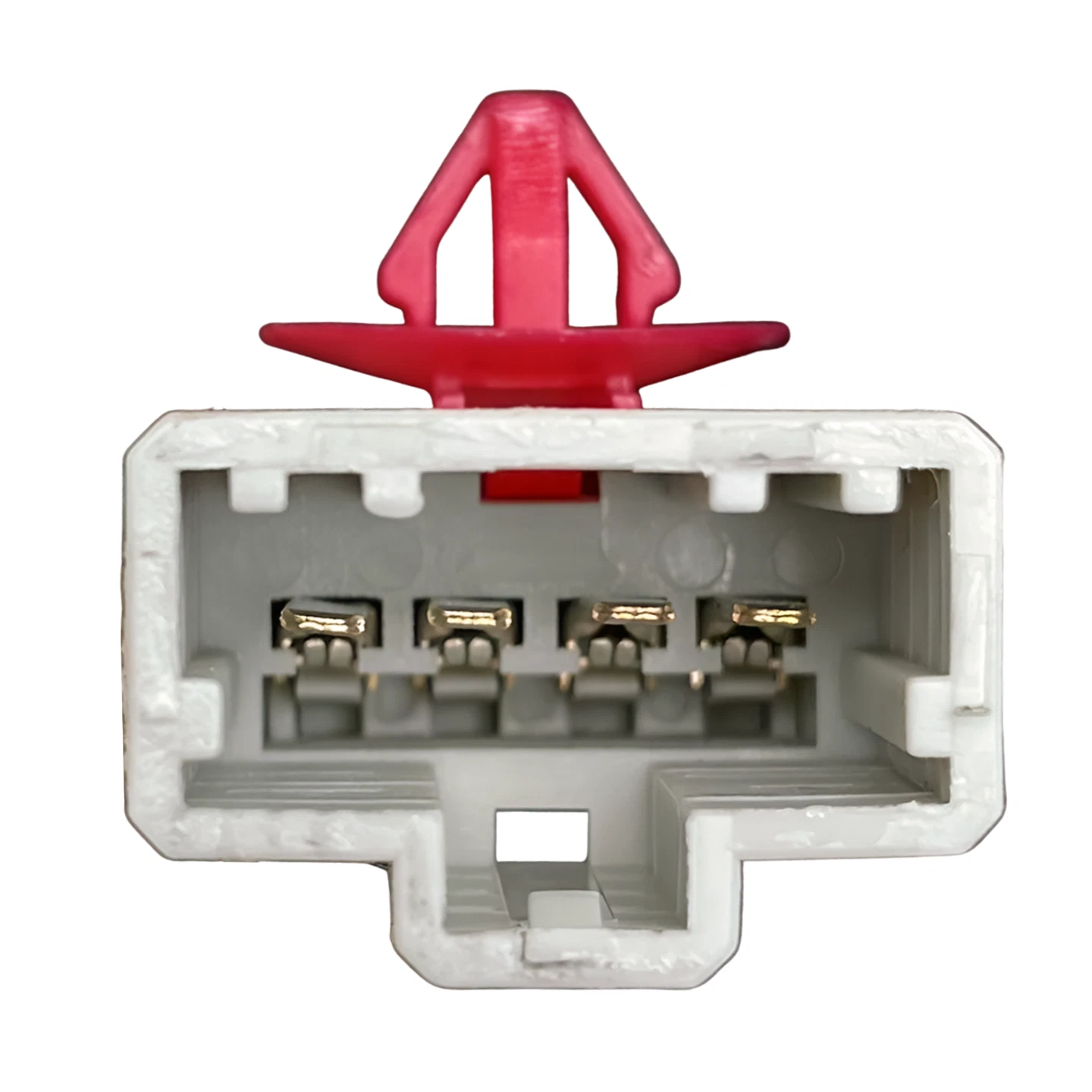

• Motor connector: 4 pins
• Part type: High quality aftermarket
• Condition: Brand new
• MPN / Item No.: 101290M4D
• Quantity supplied: 1 piece
• Manufacturer warranty: 1 year (part only)

VEHICLE COMPATIBILITY

• Honda CR-V RD 10/1997 – 12/2001

Always compare the part and connector with your original regulator and motor before purchase to confirm compatibility.

ANTI-PINCH FUNCTION SETUP (IF EQUIPPED)

If the vehicle is equipped with an anti-pinch one-touch window function, the motor must be installed and initialised correctly. Do not power the motor before it is mounted in the door, otherwise the anti-pinch setting may be lost.

• Install the regulator and motor in the door and connect the one-touch window switch.
• Operate the switch to raise the window fully and check if it stays at the top.
• If the window drops after reaching the top, perform the reset procedure below.

Anti-pinch reset procedure:

• Step 1: Pull the window switch briefly to move the window fully to the top stop.
• Step 2: Hold the one-touch switch in the “up” position for 3–5 seconds at the top.
• Step 3: Press the window switch briefly to move the window fully to the bottom stop.
• Step 4: Hold the one-touch switch in the “down” position for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to raise the window to the top and confirm it no longer drops.

If the window still drops after reaching the top, repeat the reset procedure until the anti-pinch function is correctly initialised.

INSTALLATION & WARRANTY NOTES

• Professional installation by a qualified automotive mechanic is strongly recommended.
• Warranty covers replacement of the defective part only and does not include labour costs.
• Do not modify the regulator or motor, and do not remove any tamper-evident labels or seals.
• Inspect the item before installation; fitted or modified parts may not be eligible for return.

The images used are for reference; minor variations in appearance may occur. Always match the product to your original part and connector before final installation.
