Front Left Electric Window Regulator w/ Panel for Hyundai i30 GD 12–17

PRODUCT OVERVIEW

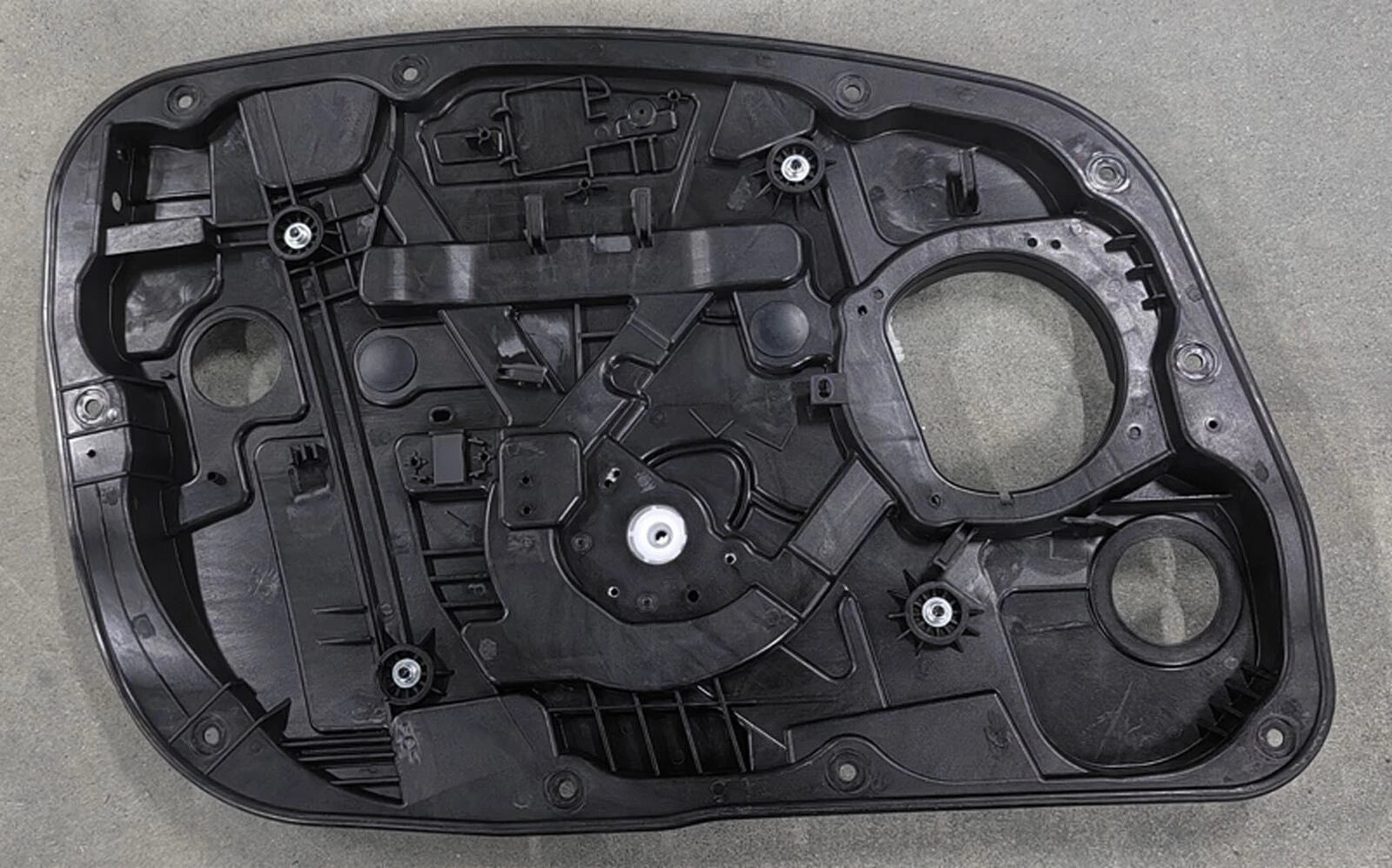

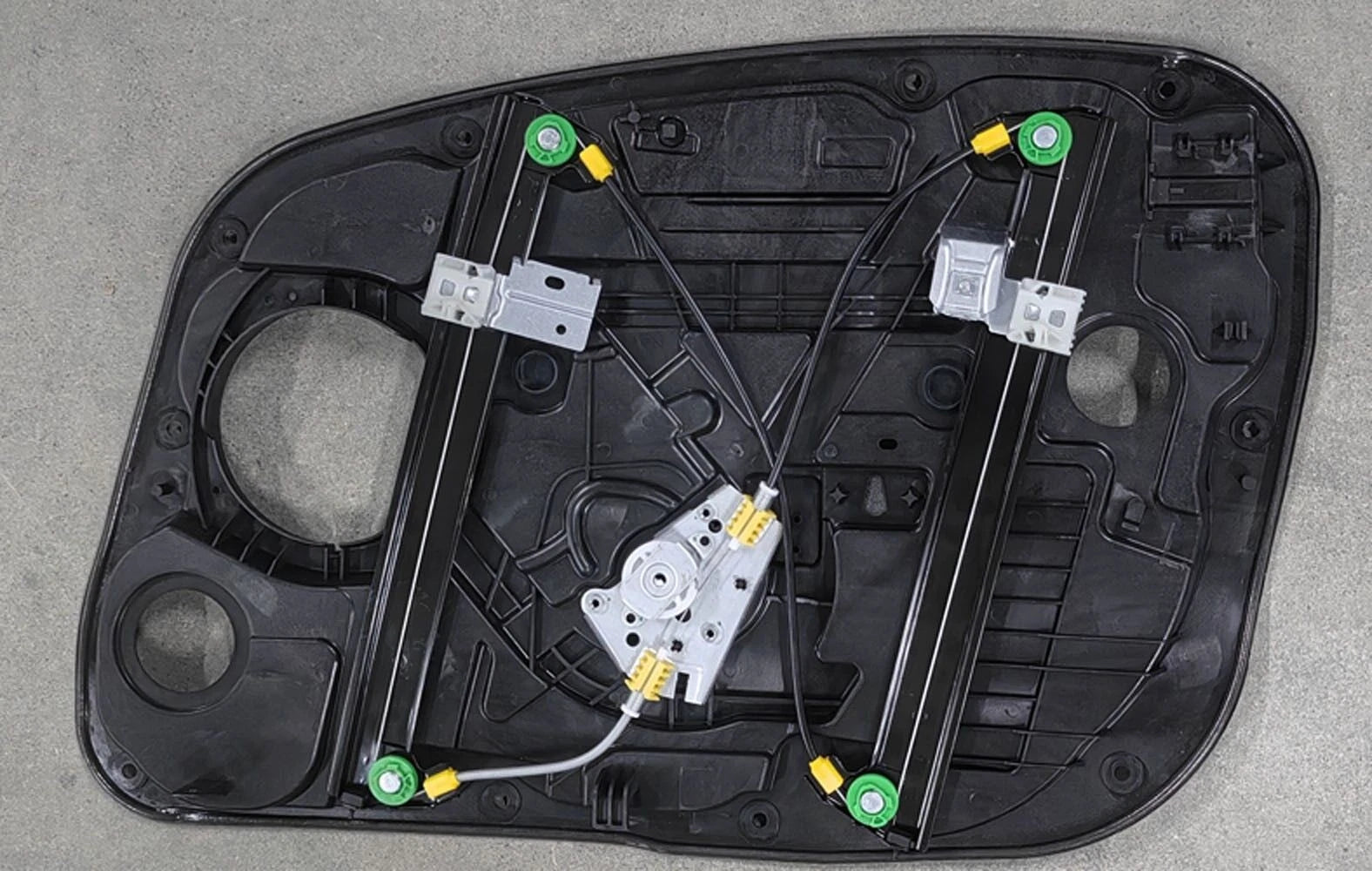

This front left electric window regulator is supplied with panel and is designed as a high quality aftermarket replacement for Hyundai i30 GD models. Motor is not included.

KEY FEATURES

• Electric window regulator assembly with panel
• Front left (front passenger side) position
• Supplied without motor (reuse existing compatible motor)
• High quality aftermarket construction
• Brand new part, 1-year manufacturer warranty (part only)
• Supplied as 1 piece (MPN/Item No.: 102257LD)

SPECIFICATIONS

• Product: Window regulator
• Operating mode: Electric
• Placement on vehicle: Front left (front passenger side)
• Motor: Not included
• Configuration: With panel
• Part specs: High quality aftermarket
• Condition: Brand new
• MPN/Item No.: 102257LD
• Warranty: 1 year (part only)
• Quantity supplied: 1 piece

FITMENT

• Hyundai i30 GD 05/2012 – 03/2017 (front left, front passenger side)

Always match the part number, images, and mounting points with your original regulator before purchase to confirm compatibility.

ANTI-PINCH FUNCTION NOTICE (FOR MOTORS)

If your vehicle uses a window motor with an anti-pinch function, the motor must be correctly set after installation to ensure proper one-touch operation. Do not test the motor before it is installed in the door or the anti-pinch function may fail and require resetting.

ANTI-PINCH RESET PROCEDURE (GENERAL GUIDE)

• Step 1: With the glass at the top, pull the window switch briefly to move the window slightly up into the top stop.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly to move the window slightly down to the bottom stop.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to raise the window fully to the top and check it no longer drops after reaching the top.

If the window still drops after reaching the top, repeat the reset steps until the function is correctly learned. Always refer to the vehicle-specific workshop information where available.

INSTALLATION & WARRANTY NOTES

• Professional installation by a qualified automotive mechanic is strongly recommended.
• Warranty applies to the replacement of the defective part only and does not cover labour or associated costs.
• The product image and actual item may vary slightly due to lighting and screen differences.
• Inspect the part before installation; fitted, modified or damaged items may not be eligible for return.

RETURN & REFUND HIGHLIGHTS

• Standard products are generally returnable within 30 days of receipt if unused and in original, resalable condition.
• Proof of purchase is required for all returns.
• Items that are modified, damaged or incorrectly installed are typically not eligible for return.
• Return shipping is usually the customer’s responsibility unless an incorrect item has been supplied.
• Refunds typically cover product cost only, excluding original shipping charges.

DELIVERY INFORMATION (SUMMARY)

• Ensure your delivery address is complete and correct at checkout.
• Shipping costs are calculated based on location and parcel size/weight.
• Tracking details are provided after dispatch; please monitor the shipment and ensure someone is available to receive it.
• Missed deliveries may incur redelivery or storage fees imposed by the courier.
• Inspect goods on arrival and report any damage or discrepancies within the specified time frame.
