Front Left Electric Window Regulator with 6-Pin Motor for Toyota Corolla 12–18

PRODUCT OVERVIEW

This front left electric window regulator with integrated 6-pin motor is a high quality aftermarket replacement, designed for precise fit and reliable operation on specified Toyota Corolla models.

KEY FEATURES

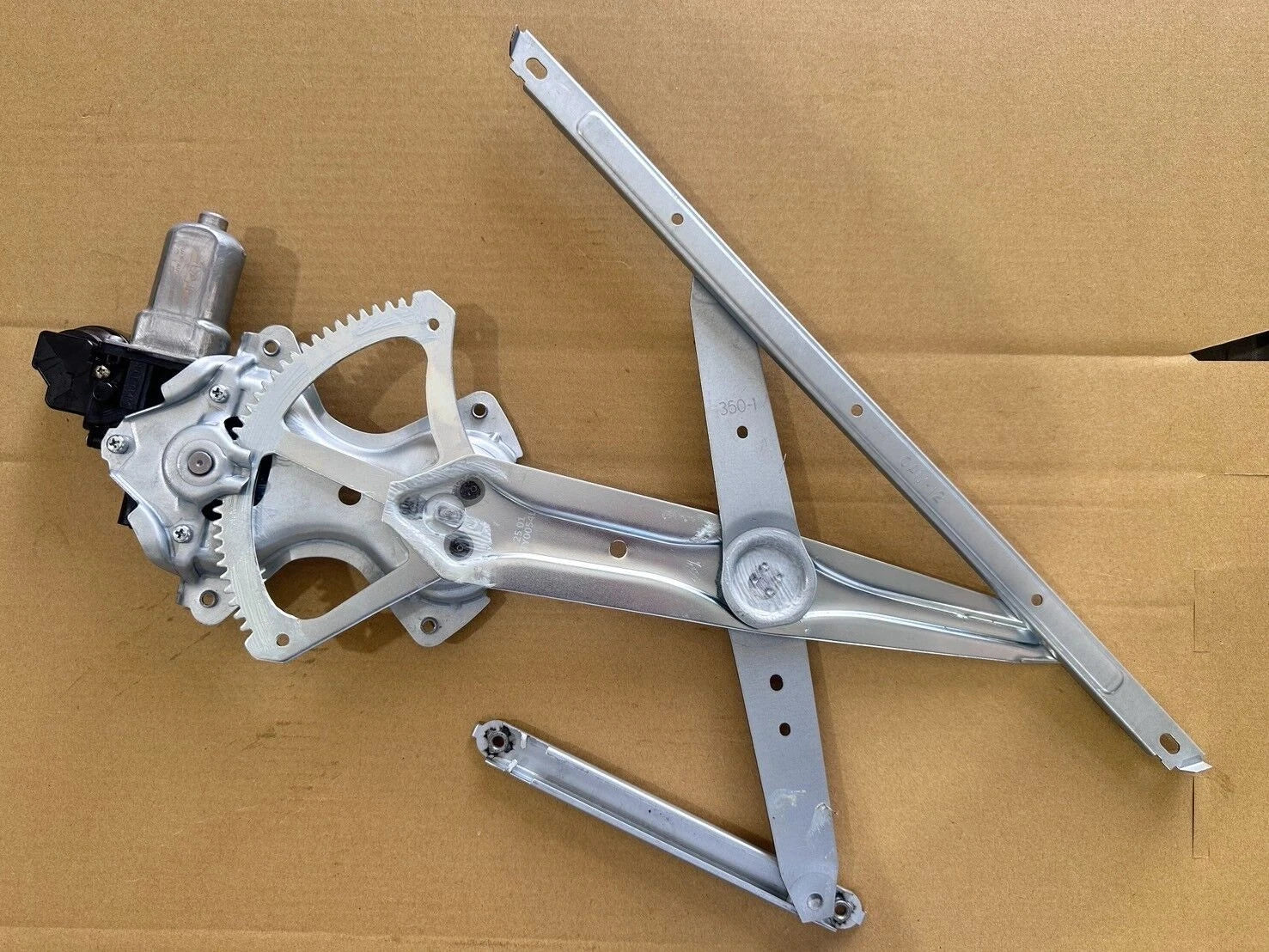

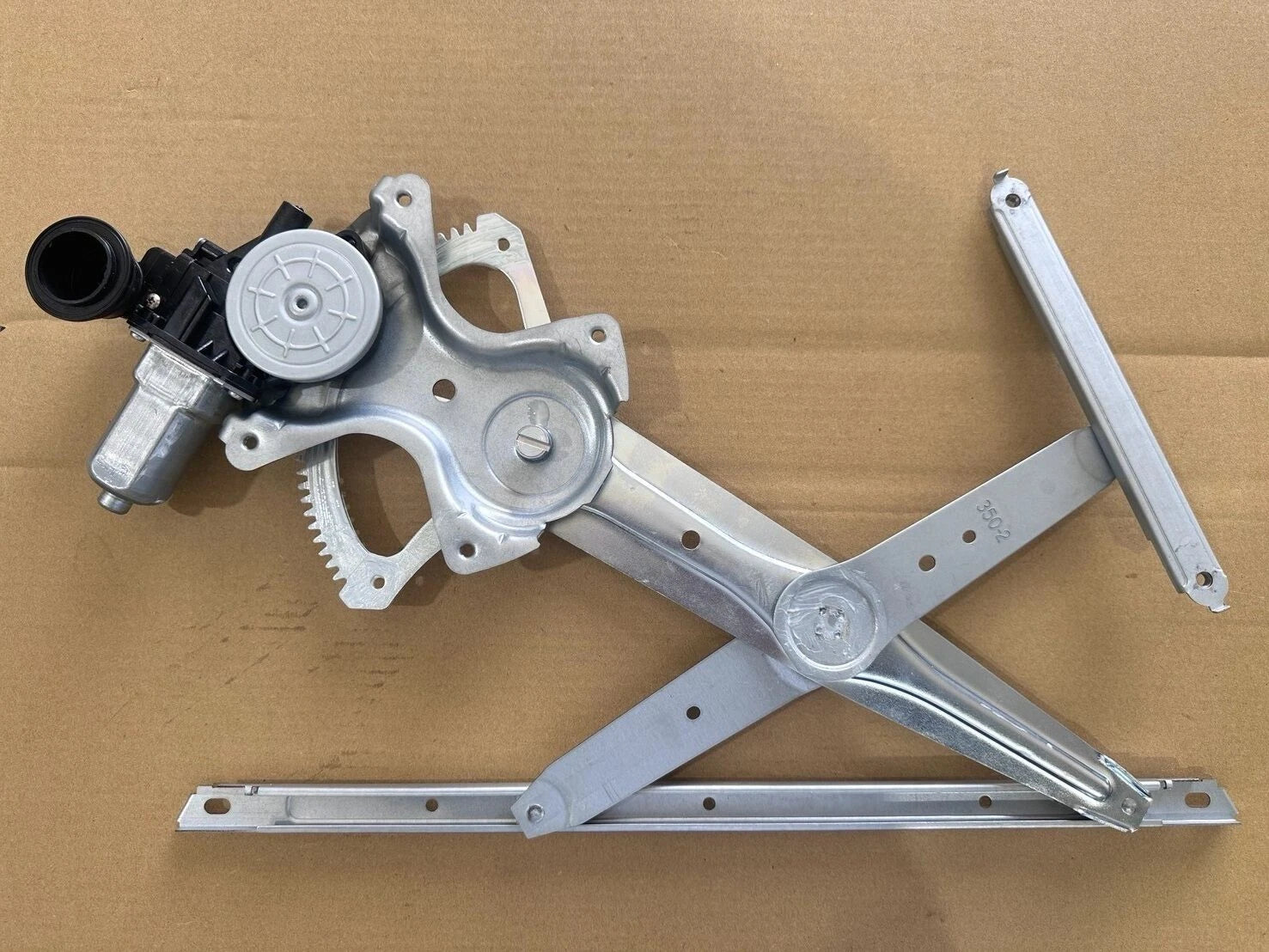

• Complete regulator assembly with pre-fitted electric motor
• 6-pin motor connection for correct plug-and-play installation
• Front left (front passenger side) door position
• Durable construction for consistent window operation
• Supplied brand new, high quality aftermarket part

SPECIFICATIONS

• Product: Window regulator with motor
• Operating mode: Electric
• Placement on vehicle: Front left (front passenger side)

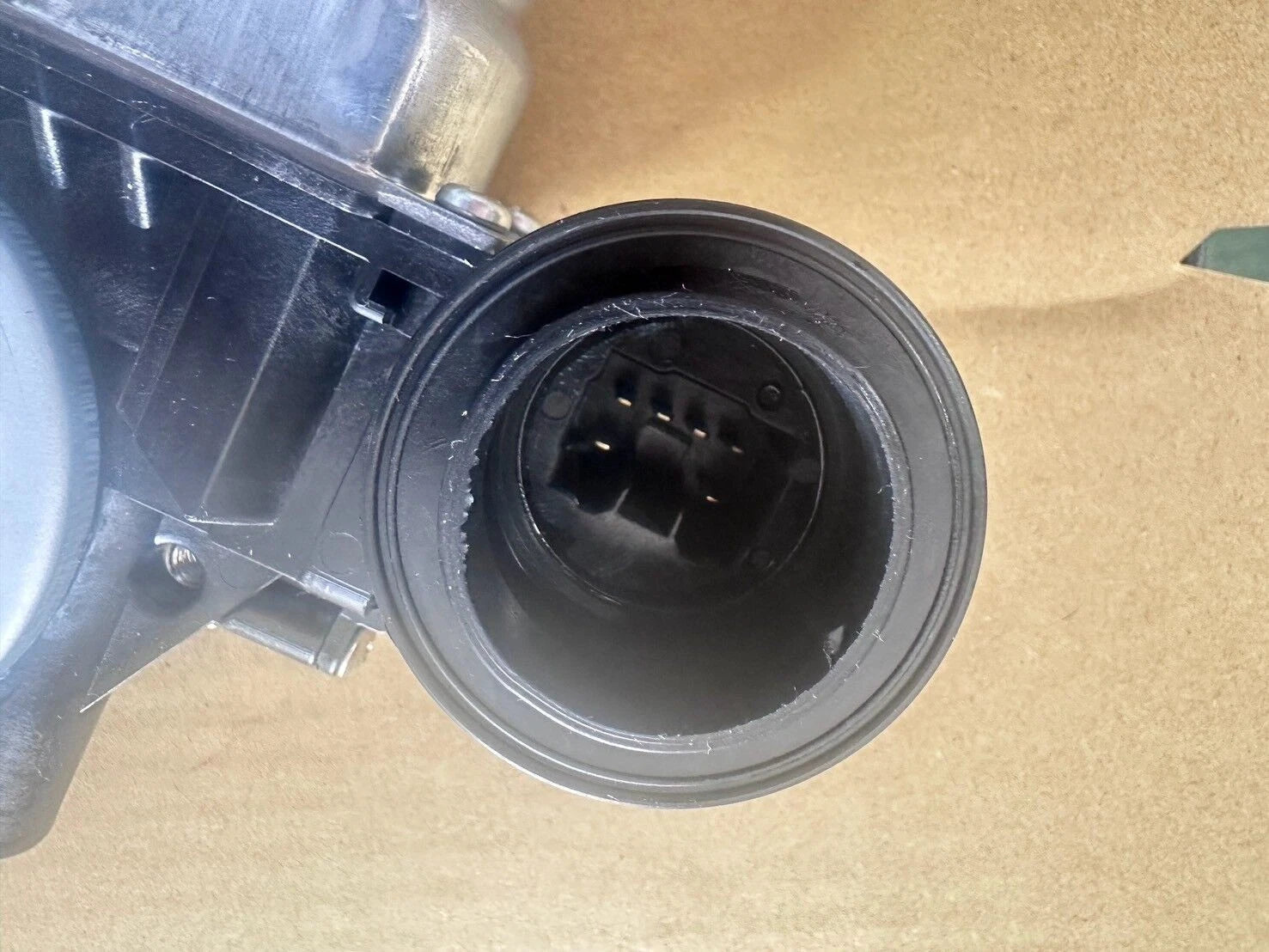

• Motor connector: 6 pins
• Part specification: High quality aftermarket
• Condition: Brand new
• MPN/Item No.: 102183M6I
• Warranty: 1 year (part only)
• Quantity supplied: 1 piece

VEHICLE FITMENT

• Toyota Corolla ZRE182R 10/2012 – 08/2018
• Toyota Corolla ZWE186R 06/2016 – 08/2018

Always compare the part number, plug type, mounting points and images with your original regulator before purchase to ensure compatibility.

ANTI-PINCH RESET INSTRUCTIONS

This motor may be equipped with an anti-pinch (one-touch) safety function. Incorrect testing before installation can cause malfunction of this feature.

• Do not power or test the motor before it is installed in the door.
• Install the regulator and connect it to the one-touch window switch.
• Pull the switch up; the window should travel fully to the top.
• If the window drops after reaching the top, follow the reset steps below.

Anti-pinch reset procedure:

• Step 1: Pull the window switch briefly so the glass moves slightly up to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds with the window at the top.
• Step 3: Press the window switch briefly so the glass moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds with the window at the bottom.
• Step 5: Pull the one-touch switch to raise the window fully to the top and check that it no longer drops.

If the window still drops after reaching the top, repeat the reset steps until the anti-pinch function is correctly initialised.

IMPORTANT NOTES

• For repair and replacement use only.
• Installation by a qualified automotive technician is strongly recommended.
• Product colour or finish may vary slightly from images due to lighting and screen settings.
• Images show the actual style of part supplied; verify against your original before ordering.
