Front Left Electric Window Regulator with Motor 6-Pin for Toyota Corolla ZRE152R

PRODUCT OVERVIEW

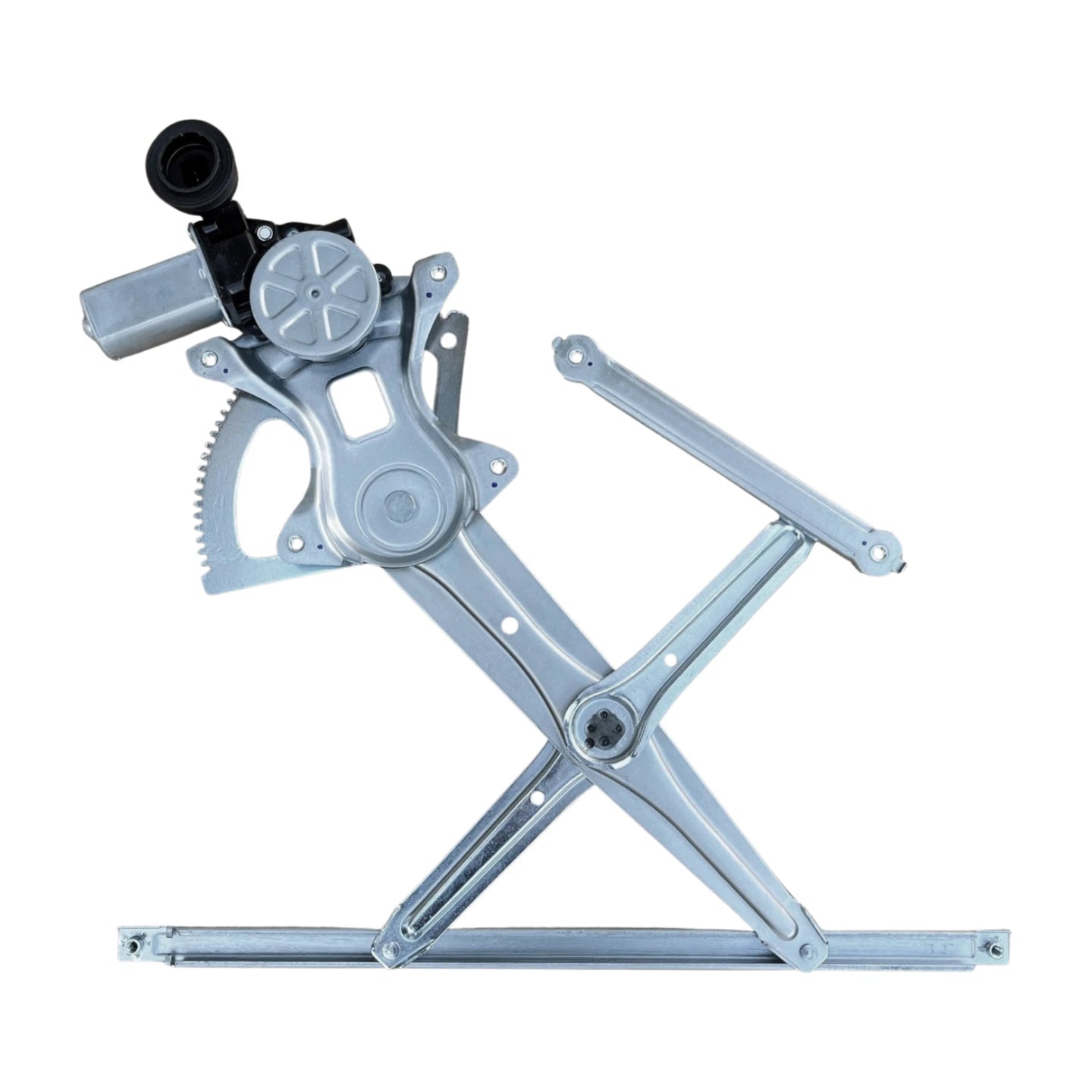

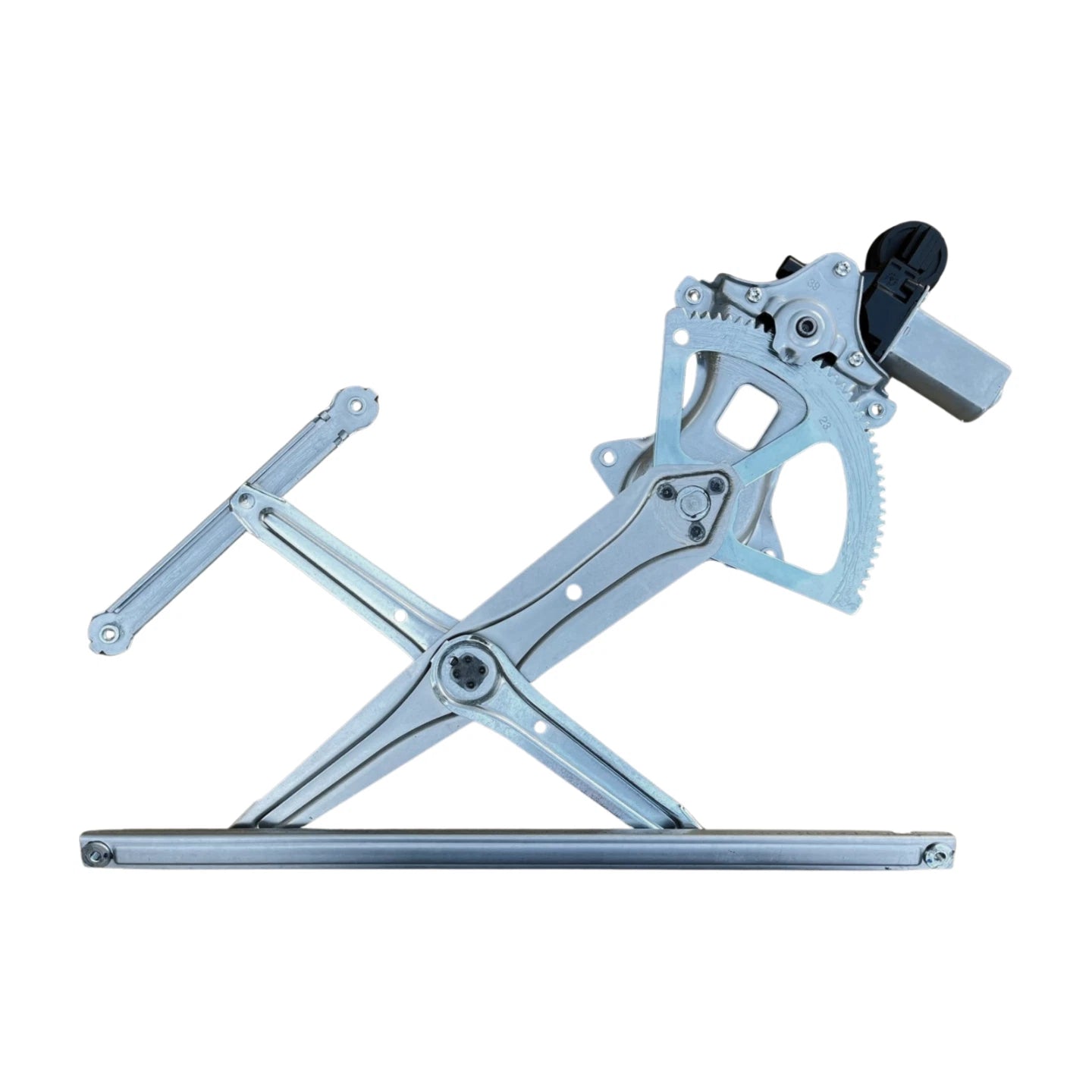

This front left electric window regulator with motor is a high-quality aftermarket replacement designed for selected Toyota Corolla ZRE152R models. Supplied as a complete assembly, it is suitable for repairing faulty, non-operational or slow power windows.

KEY FEATURES

• Complete window regulator with pre-fitted electric motor

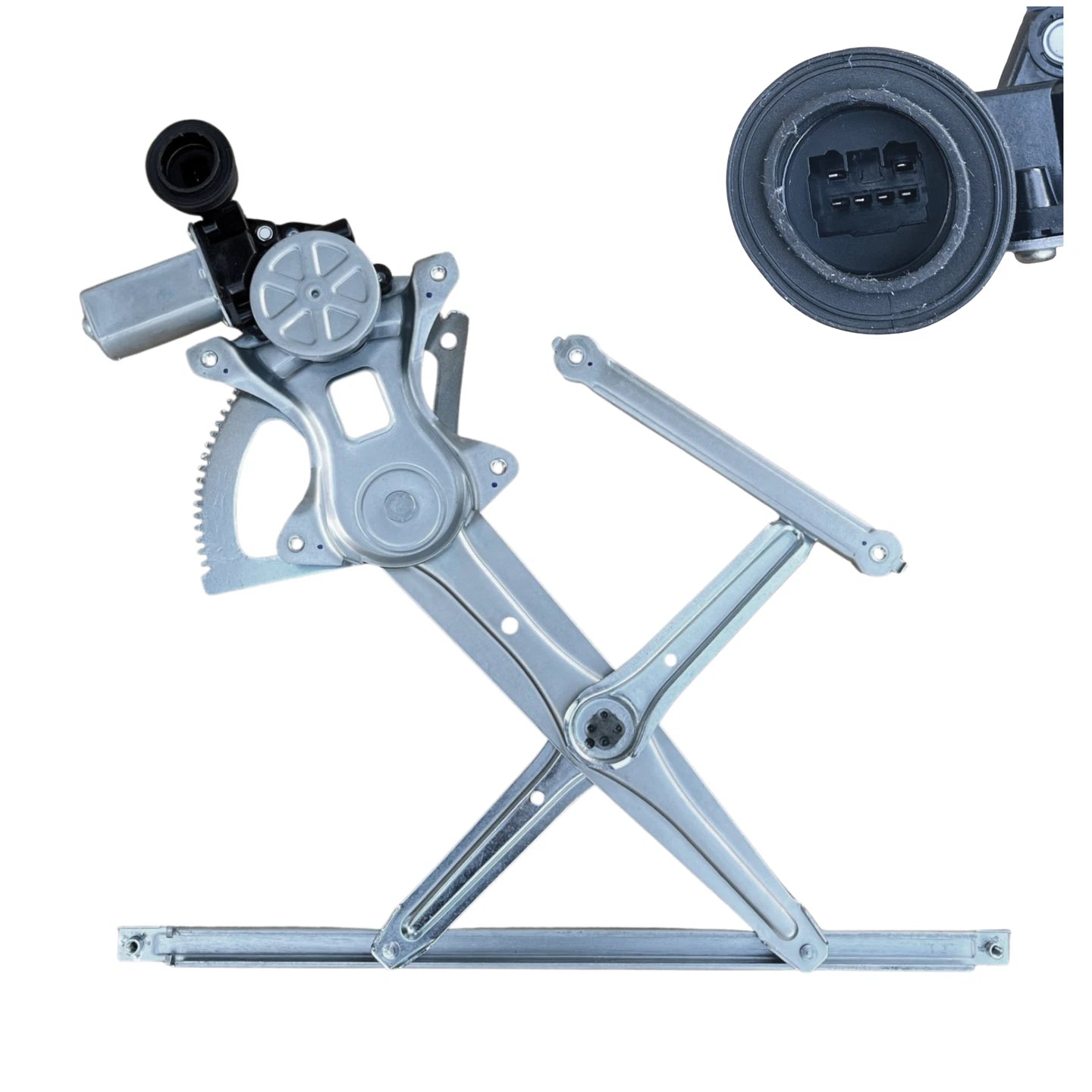

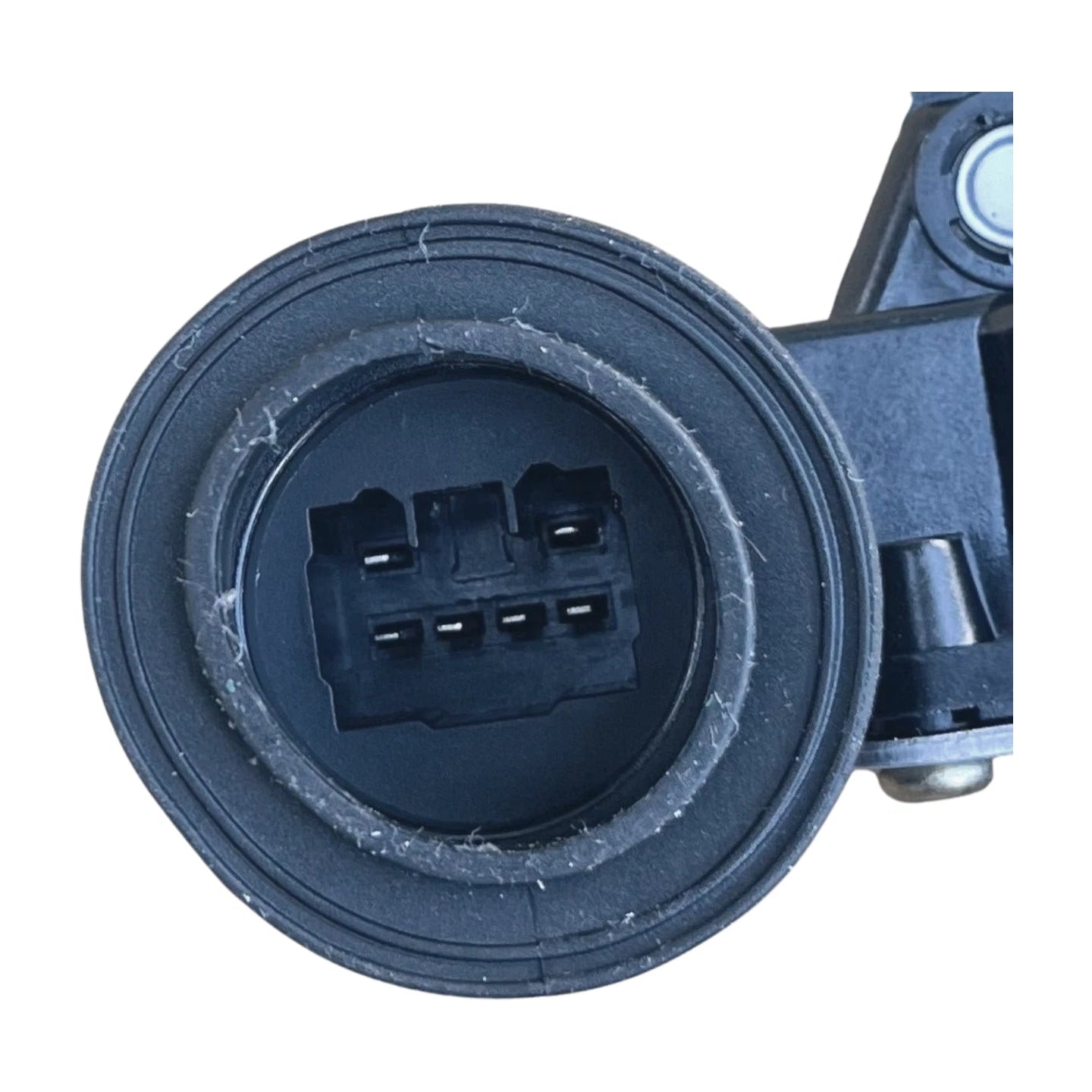

• 6-pin motor connector for compatible power window systems
• Front left (front passenger side) door position
• High-quality aftermarket construction
• Brand new unit, supplied as 1 piece
• 12-month warranty (part only)
• MPN / Item No.: 101514

VEHICLE FITMENT

Confirm the part number, plug type and mounting points match your original unit before purchase.

• Toyota Corolla ZRE152R 06/2010–01/2014 3ZR-FE 2.0L
• Toyota Corolla ZRE152R 05/2007–01/2014 2ZR-FE 1.8L

SPECIFICATIONS

• Product type: Window regulator assembly
• Operating mode: Electric
• Placement on vehicle: Front left (front passenger side)
• Motor connector: 6-pin
• Part type: High-quality aftermarket replacement
• Condition: Brand new
• MPN / Item No.: 101514
• Warranty: 1 year (part only)
• Quantity supplied: 1 piece

ANTI-PINCH FUNCTION SETUP

The motor is equipped with an anti-pinch (one-touch) safety function. Incorrect testing before installation can cause malfunction. Follow these guidelines:

• Do not power-test the motor before it is installed in the door.
• The motors are pre-tested and set correctly prior to dispatch.
• Install the regulator and connect it to the one-touch window switch.
• Pull the switch up: the window should travel fully to the top.
• If the window drops after reaching the top, perform the reset procedure below.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly so the window moves slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to move the window fully up to the top.

The reset is complete if the window remains at the top. If it still drops after reaching the top, repeat the procedure until the function is correctly set.

INSTALLATION & NOTES

• Professional installation by a qualified automotive mechanic is strongly recommended.
• Intended for repair and replacement of an existing electric window system.
• Compare images, mounting points and connector pins with your original part before ordering.
• Colour or finish may vary slightly due to lighting and screen display differences.
