Front/Rear 6-Pin Electric Window Lift Motor for Mazda 2 3 6 CX-7 CX-9 RX-8

PRODUCT OVERVIEW

This high-quality aftermarket electric window lift motor is designed to restore smooth and reliable window operation. It suits selected Mazda 2, 3, 6, CX-7, CX-9 and RX-8 applications in front or rear positions, depending on the vehicle model.

KEY FEATURES

• Electric window lift motor with 6-pin connector
• Suitable for front or rear door fitment (see fitment list)
• High quality aftermarket replacement part
• Brand new unit supplied as a single piece
• Backed by a 12-month manufacturer warranty (part only)

SPECIFICATIONS

• Product: Window Lift Motor
• Operating mode: Electric

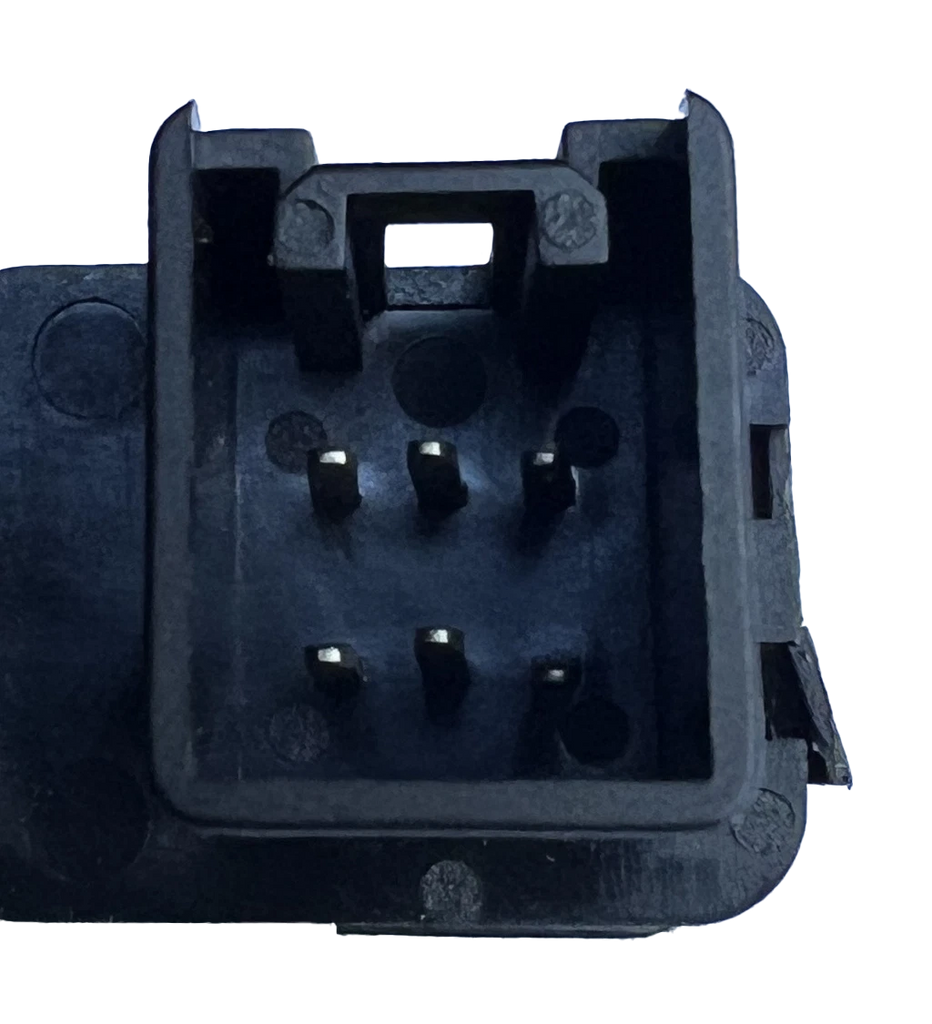

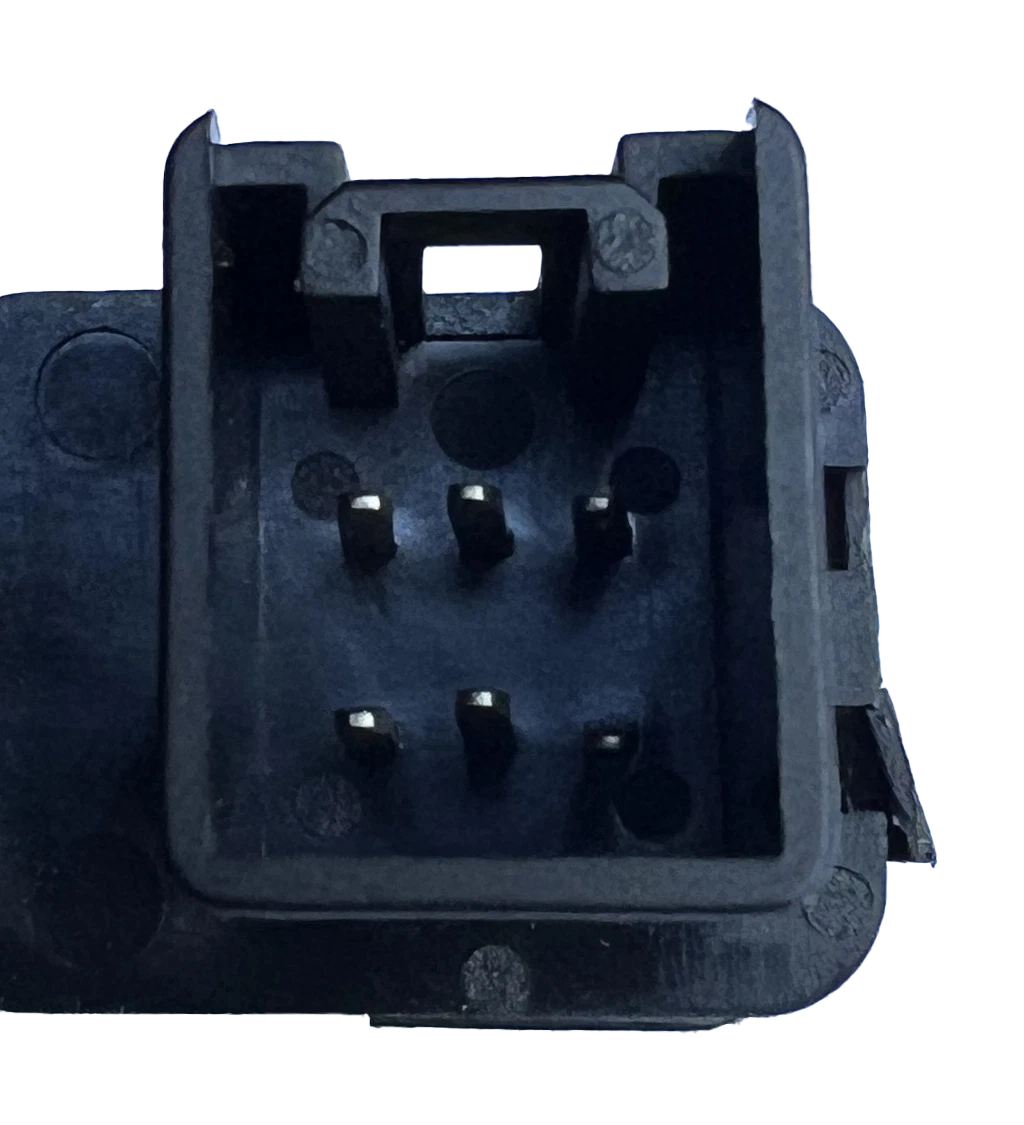

• Connector: 6 pins
• Placement on vehicle: Front or rear left (passenger side) / front or rear right (driver side) as per fitment
• Condition: Brand new
• Part specs: High quality aftermarket
• MPN / Item No.: 100697MF
• Quantity supplied: 1 piece
• Manufacturer warranty: 1 year (part only)

VEHICLE FITMENT

Ensure the part number and plug type match your original motor. This window lift motor is listed to suit the following Mazda models:

• Mazda 2 DY 12/2002–05/2007 (front left or rear left)
• Mazda 3 BK 09/2003–04/2009 (front right or rear left)
• Mazda 6 GG 05/2002–11/2007 (front right or rear left)
• Mazda CX-7 ER 09/2006–12/2012 (front right or rear left)
• Mazda CX-9 TB 11/2007–05/2016 (front right or rear left)
• Mazda RX-8 FE 07/2003–07/2012 (front left)

Always compare the images, mounting points and connector with your original unit before purchase.

ANTI-PINCH FUNCTION SETUP

If your vehicle uses an anti-pinch (one-touch) function, the motor must be correctly initialised after installation.

• Do not test the motor before it is installed in the door or the anti-pinch function may fail and require resetting.
• Install the motor and connect it to the one-touch window switch. Pull the switch up and confirm the window travels fully to the top.
• If the window drops down after reaching the top, follow the reset procedure below.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly so the window moves slightly up to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to raise the window fully to the top and confirm it no longer drops.

If the window still drops after reaching the top, repeat the reset steps until the anti-pinch function is correctly set.

INSTALLATION & WARRANTY NOTES

• Professional installation by a qualified automotive mechanic is recommended to maintain warranty.
• Part is supplied for repair and replacement purposes only.
• Colour or finish may vary slightly from images due to screen and lighting differences.

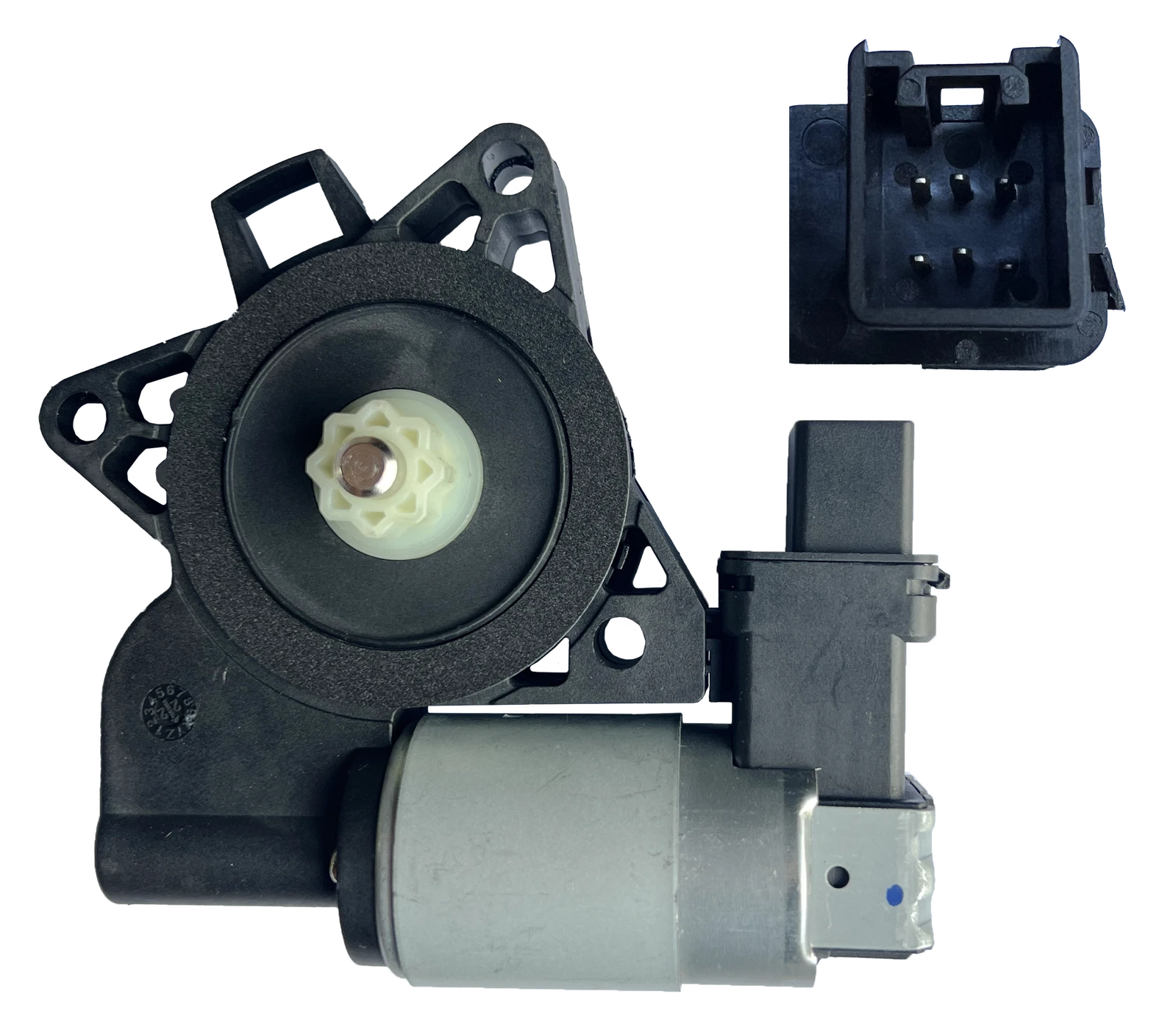

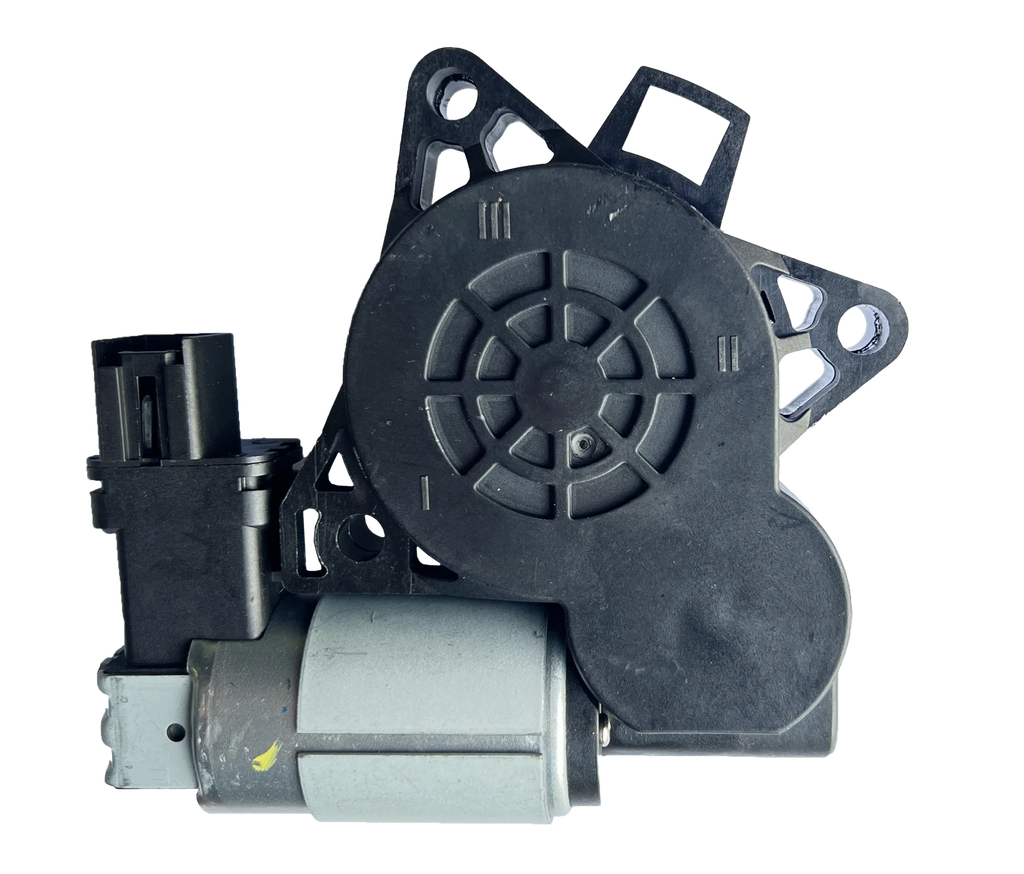

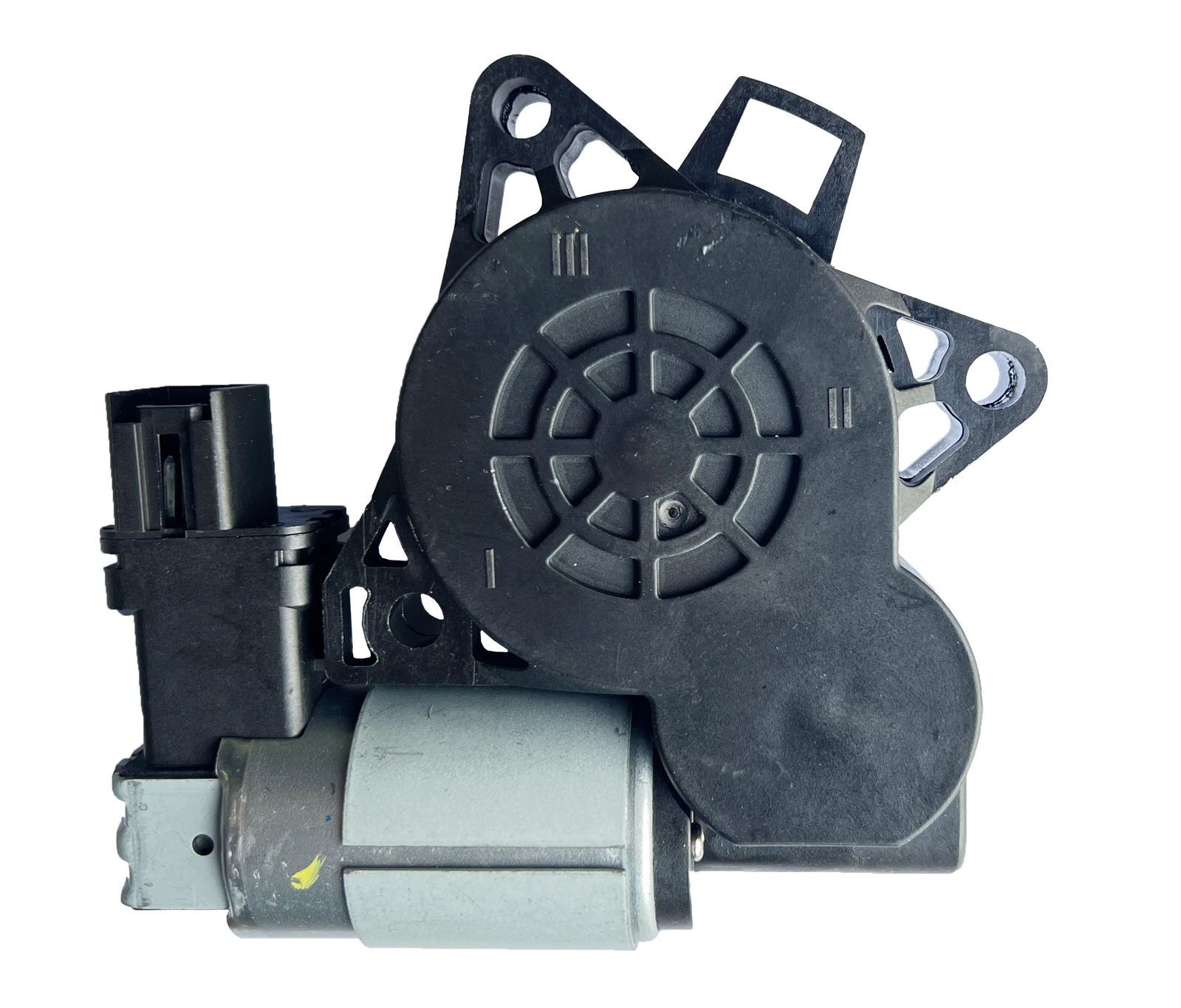

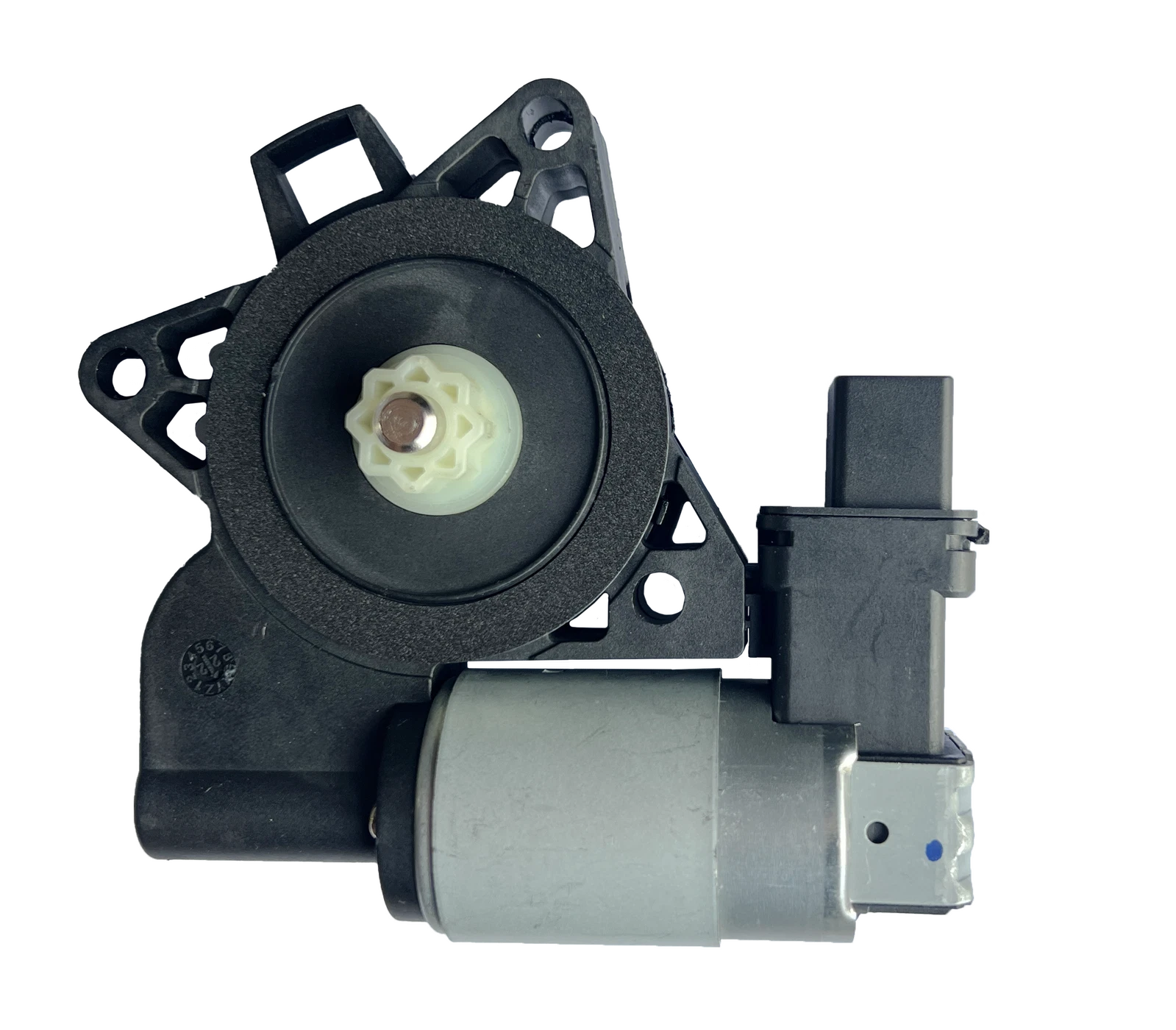

• Images shown are of the actual style of product supplied; please match to your original part.
