Window Regulator Motor Gear Repair Kit for Mazda 3 5 CX-7 CX-9 RX-8

PRODUCT OVERVIEW

This high-quality aftermarket window regulator motor gear repair kit is designed for front or rear, left or right doors on selected Mazda models. It restores smooth electric window operation without replacing the complete regulator assembly.

KEY FEATURES

• Application: Front or rear, left or right door
• Product type: Window regulator motor repair kit

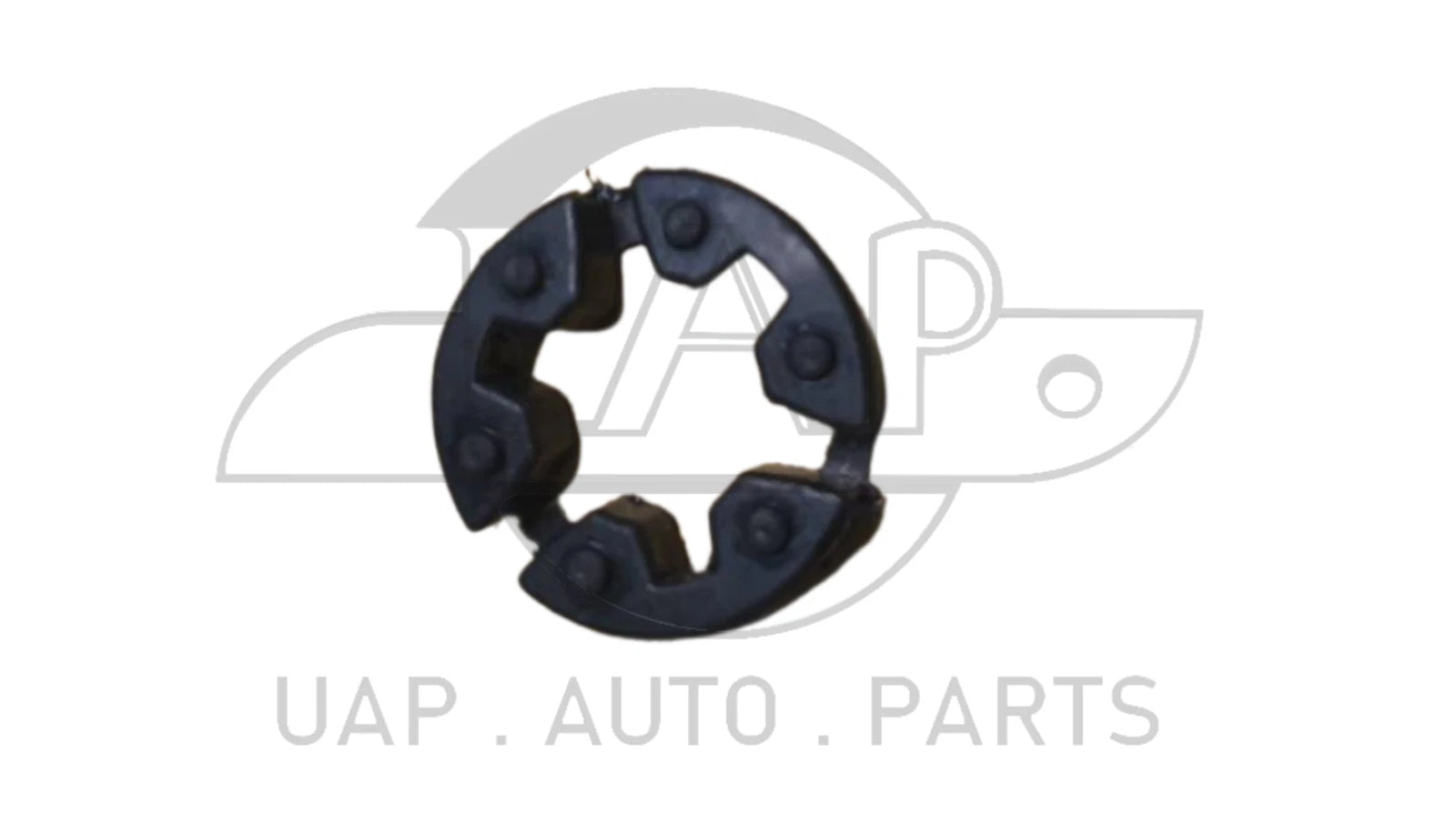

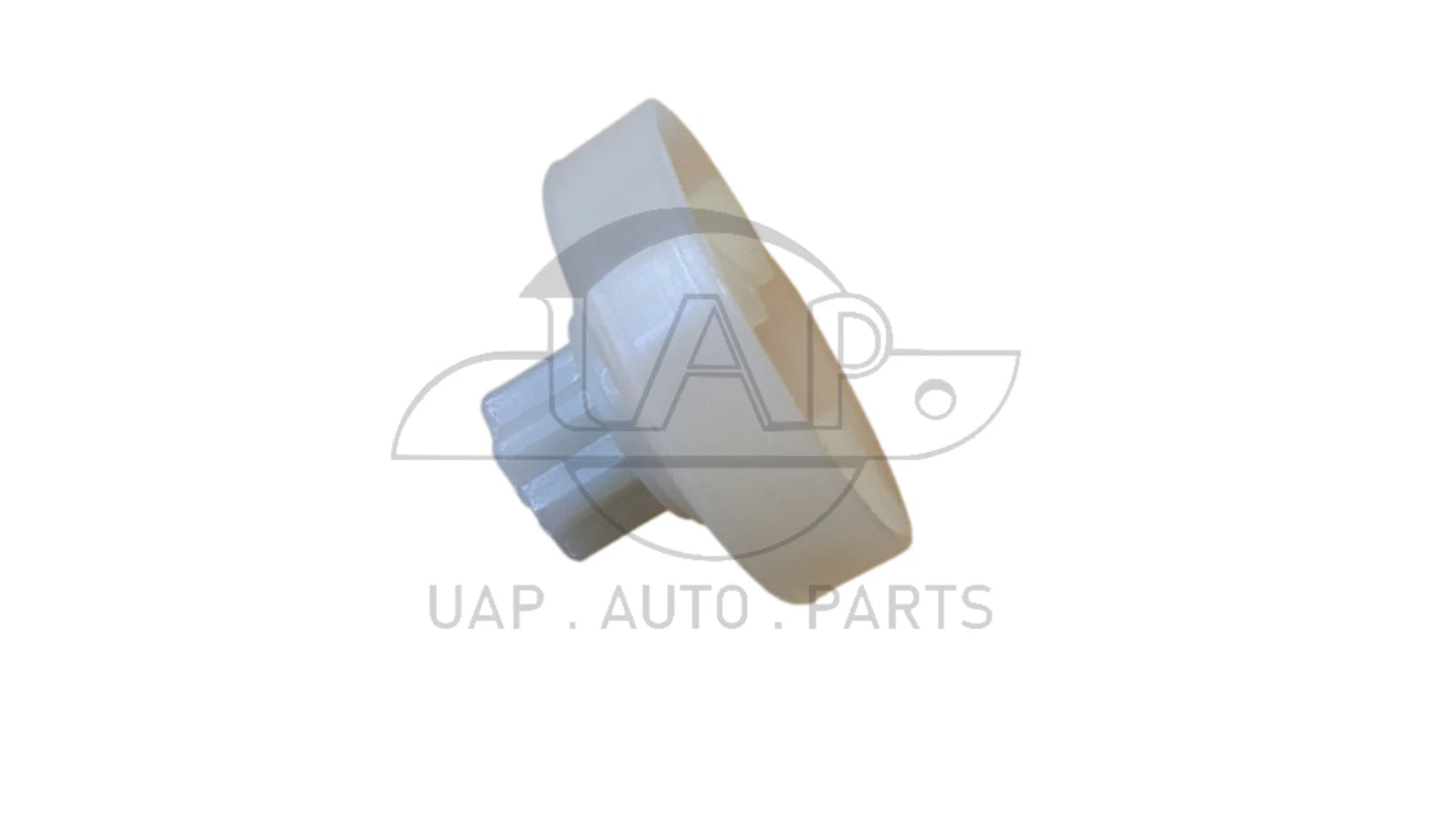

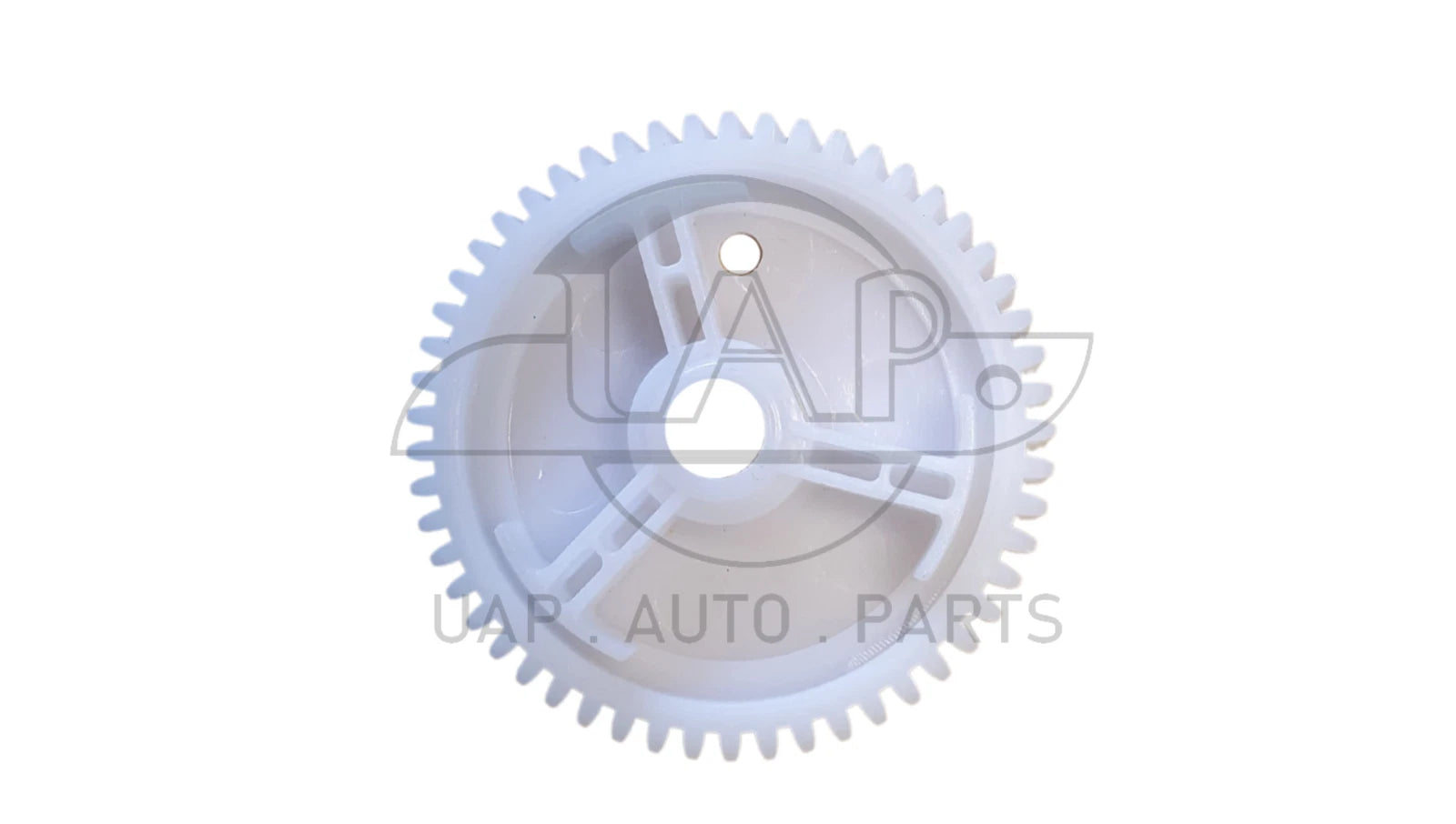

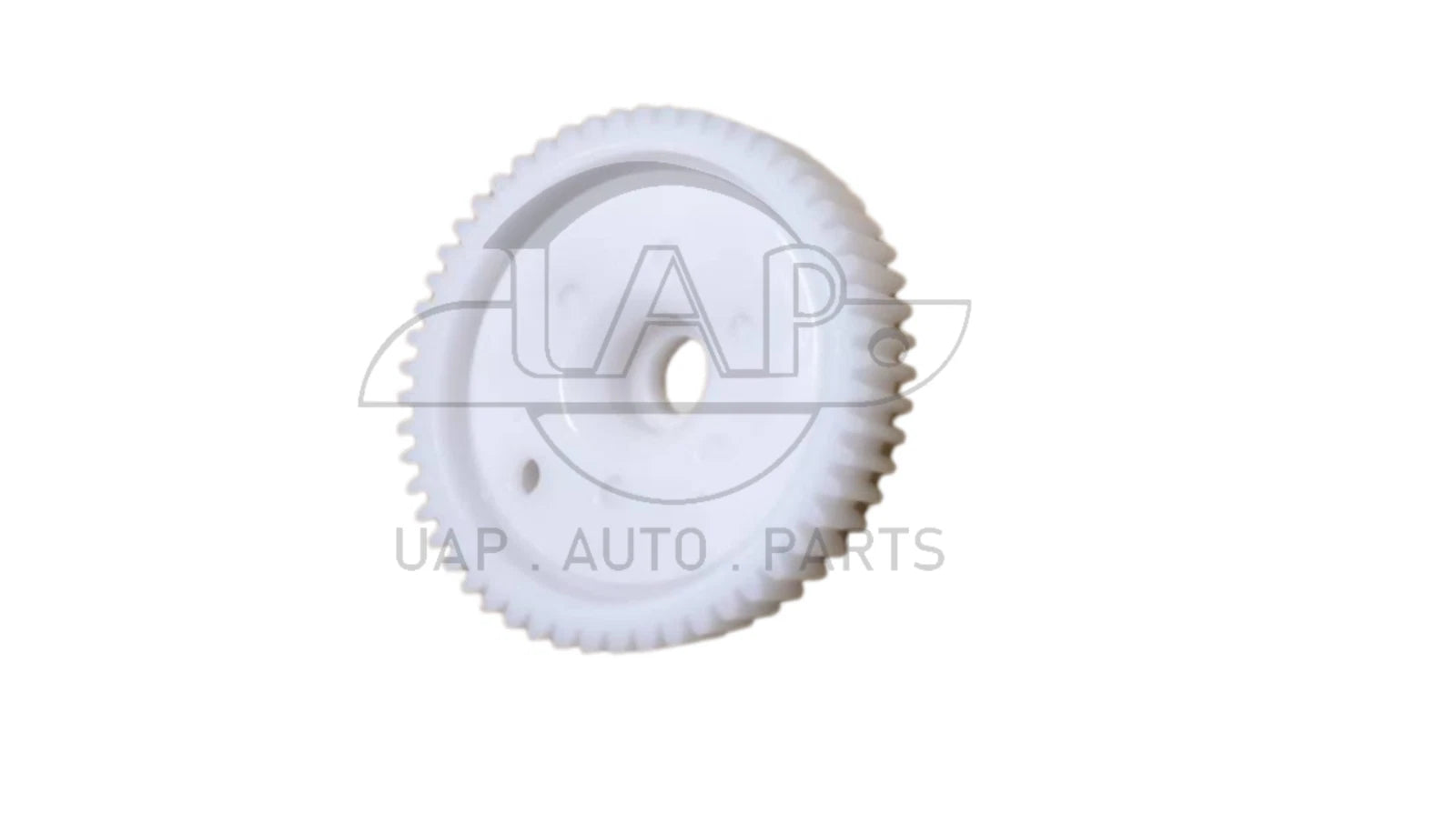

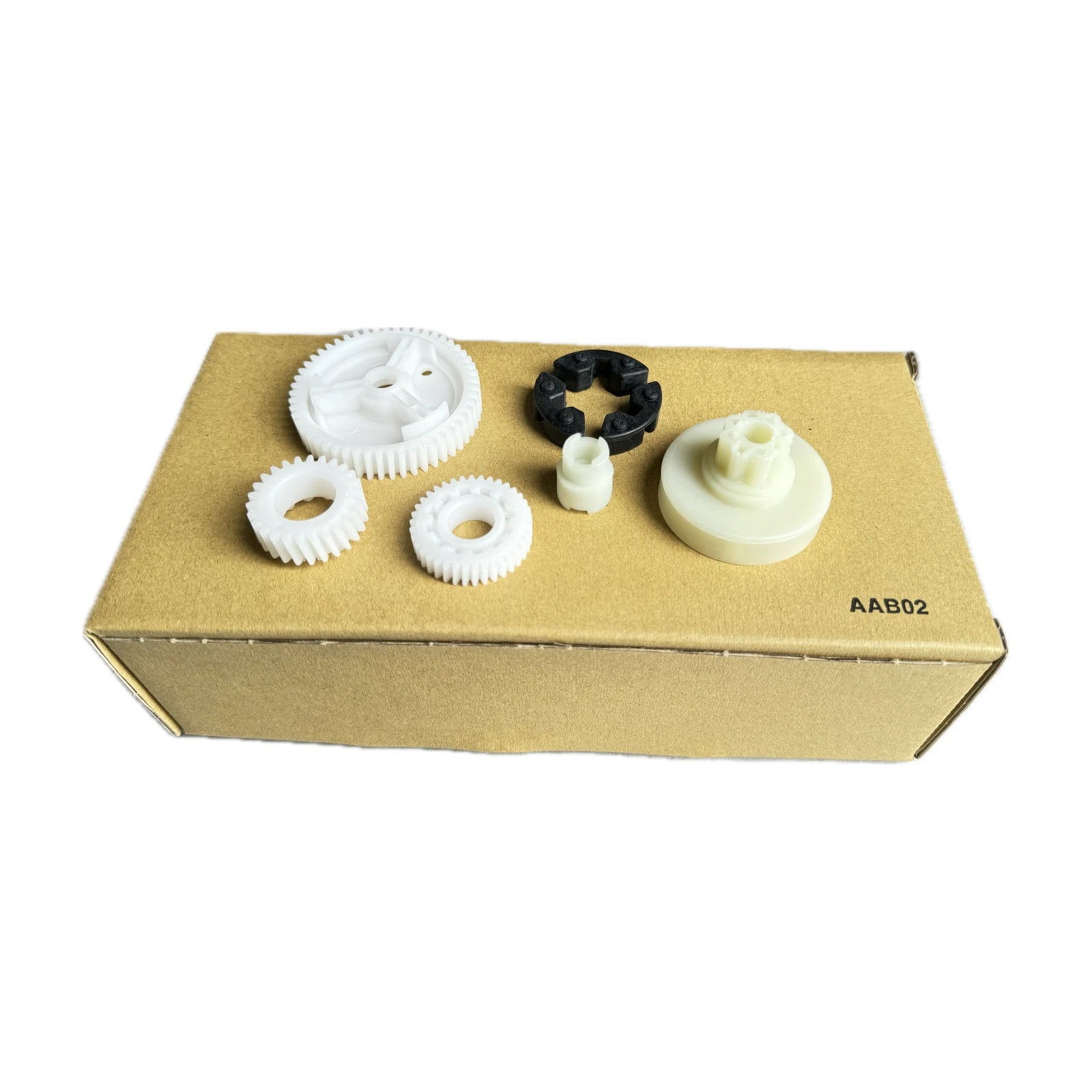

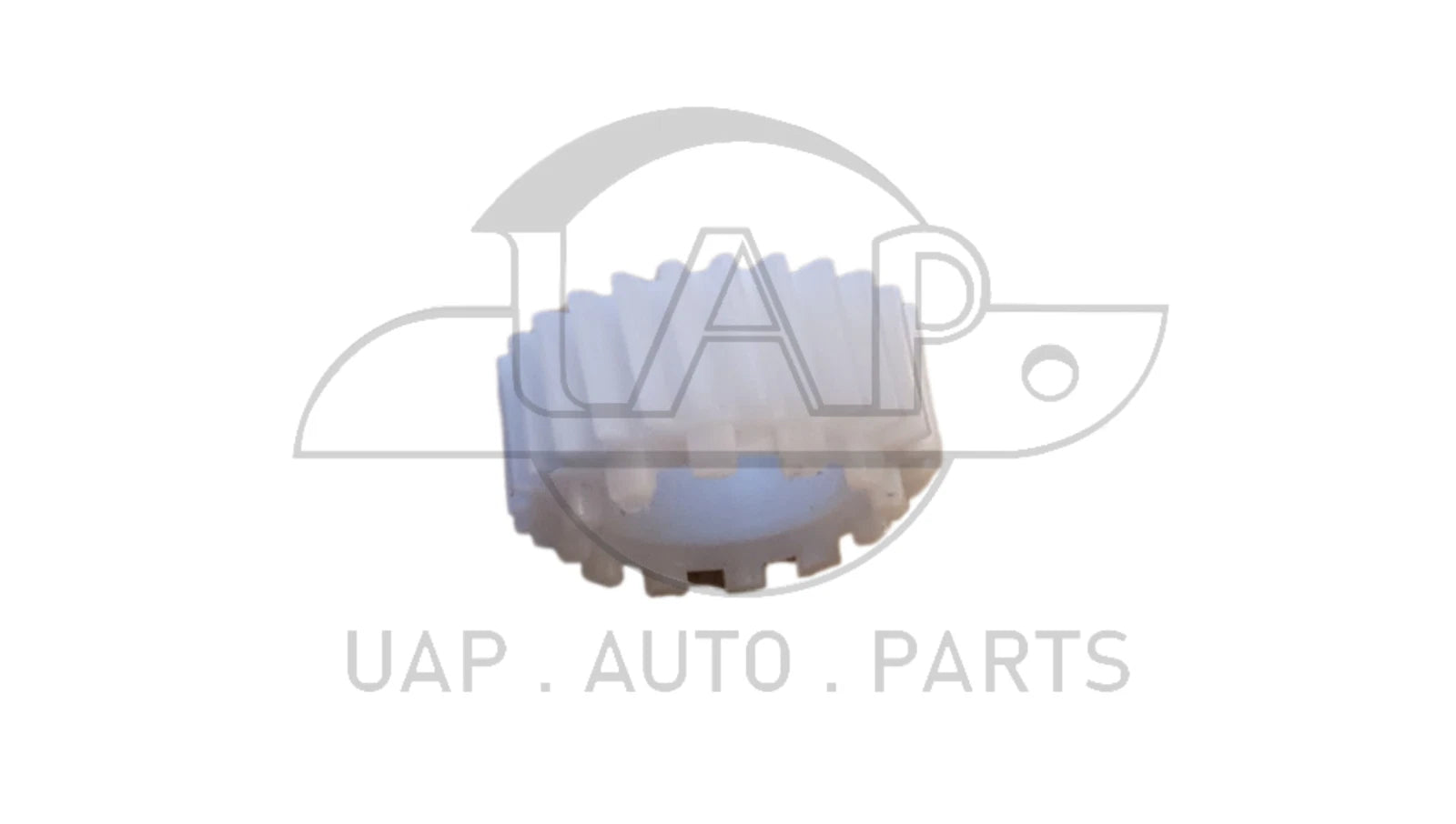

• Kit contents: 6-piece gear and slider set
• Material: Durable plastic components
• Condition: Brand new
• Specification: High-quality aftermarket replacement
• Warranty: 1-year warranty (part only)

VEHICLE COMPATIBILITY

Suitable for repairing the window regulator motor gears on the following Mazda vehicles:

• Mazda 3: 2003 – 2009
• Mazda 5: 2006 – 2010, 2012 – 2013
• Mazda CX-7: 2007 – 2012
• Mazda CX-9: 2009 – 2014
• Mazda RX-8: 2004 – 2008

Always visually compare this kit with your original components and confirm compatibility with your vehicle before purchase.

ANTI-PINCH FUNCTION NOTICE

For window regulator motors equipped with an anti-pinch (one-touch) safety function, the motor must be correctly set after installation. Do not test the motor before it is installed in the door, otherwise the anti-pinch function may fail and require resetting.

ANTI-PINCH RESET PROCEDURE

• Install the motor and connect it to the one-touch window switch. Pull the switch up; the window should move fully to the top.
• If the window drops down after reaching the top, perform the following reset steps.

• Step 1: Pull the window switch briefly so the window moves slightly up to the top position.
• Step 2: Hold the one-touch switch in the up position for 3–5 seconds once the window is at the top.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom position.
• Step 4: Hold the one-touch switch in the down position for 3–5 seconds once the window is at the bottom.
• Step 5: Pull the one-touch switch again to move the window fully up to the top.

The reset is complete if the window remains at the top and does not drop. If it still drops, repeat the procedure until successful.

INSTALLATION & USAGE NOTES

• Intended for repair of existing window regulator motors only.
• Professional installation by a qualified automotive technician is recommended.
• Product colour may appear slightly different due to screen settings and lighting.
• Images are representative of the actual product supplied; match to your original parts before ordering.

WARRANTY SUMMARY

• Standard coverage: 12-month manufacturer warranty on parts only.
• Warranty covers replacement of the defective part only.
• Labour, installation, and any consequential damage are not covered.
• All parts should be installed following the supplied instructions and vehicle manufacturer guidelines.

Keep your proof of purchase and installation records to support any warranty claim.
