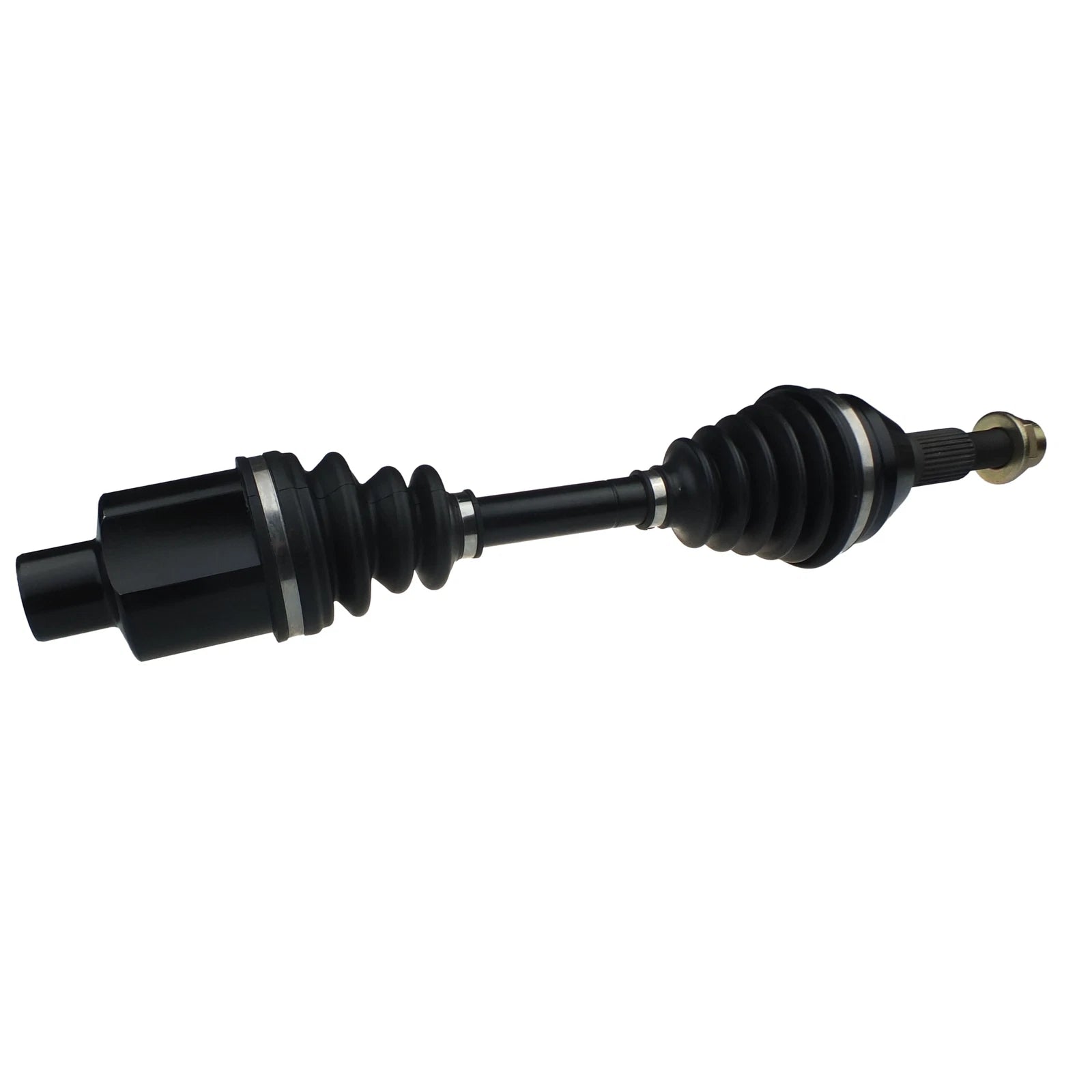

Front Right CV Axle Drive Shaft for Holden Captiva CG Series 1 2007-2012

PRODUCT OVERVIEW

Front right-hand CV axle drive shaft suitable for selected Holden Captiva CG Series 1 models. Designed for 4WD manual and automatic, and FWD manual applications, built to OEM specification for reliable driveline performance.

Note: Suits Series 1 vehicles with build dates up to 01/2011 and 05/2012 only. Please confirm manufacturing date before purchase.

Important: For Series 2 right-hand drive shaft, check part CVA1595.

KEY FEATURES

• Manufactured to OEM specifications for precise fit and function
• Heat-treated chrome steel construction for maximum strength and durability
• High-quality neoprene dust boots with stainless steel clamps to reduce contamination
• Filled with molybdenum grease for smooth operation at varying angles, speeds, and high RPM

VEHICLE COMPATIBILITY

This CV axle is suitable for the following Holden Captiva CG Series 1 applications (verify against your vehicle details):

• Holden Captiva CG 2.0L Z20S1 (LLW) 4WD Manual (03/2007 - 01/2011) Series 1 sub models, including SX
• Holden Captiva CG 2.0L Z20S1 (LLW) 4WD Auto (03/2007 - 01/2011) Series 1 sub models, including SX, CX, LX
• Holden Captiva CG 2.0L Z20S1 (LLW) FWD Manual (08/2008 - 01/2011) Series 1 sub models, including SX
• Holden Captiva CG 2.4L Z24SED (LD9) FWD Manual (12/2009 - 01/2011) Series 1 sub models, including Captiva 5
• Holden Captiva CG 2.4L Z24SED (LD9) 4WD Auto (12/2009 - 01/2011) Series 1 sub models, including Captiva 5
• Holden Captiva CG 3.0L LF1 4WD Auto (01/2011 - 05/2012) Series 1 sub models, including Captiva 7 CX and 7 LX
• Holden Captiva CG 3.2L LU1 (HM) 4WD Auto (10/2006 - 01/2011) Series 1 sub models, including CX, LX, SX, MAXX

Always cross-check engine code, drivetrain type (4WD/FWD), and build date against these specifications before ordering.

TECHNICAL SPECIFICATIONS

• Position: Front right (RH)
• Drivetrain: 4WD manual & automatic / FWD manual
• Length (compressed): 555 mm
• Spline count (outer / wheel side): 30T
• Spline count (inner / diff side): 27T
• Inboard joint type: Tripod
• Outboard joint type: Ball

WHAT'S INCLUDED

• 1 x complete front right CV axle drive shaft assembly

WARRANTY

• 12 month / 20,000 km warranty on CV driveshaft assembly
• CV boots warranted for 3 months from date of purchase

Ensure correct installation by a qualified technician and verify compatibility before fitment to maintain warranty coverage.
