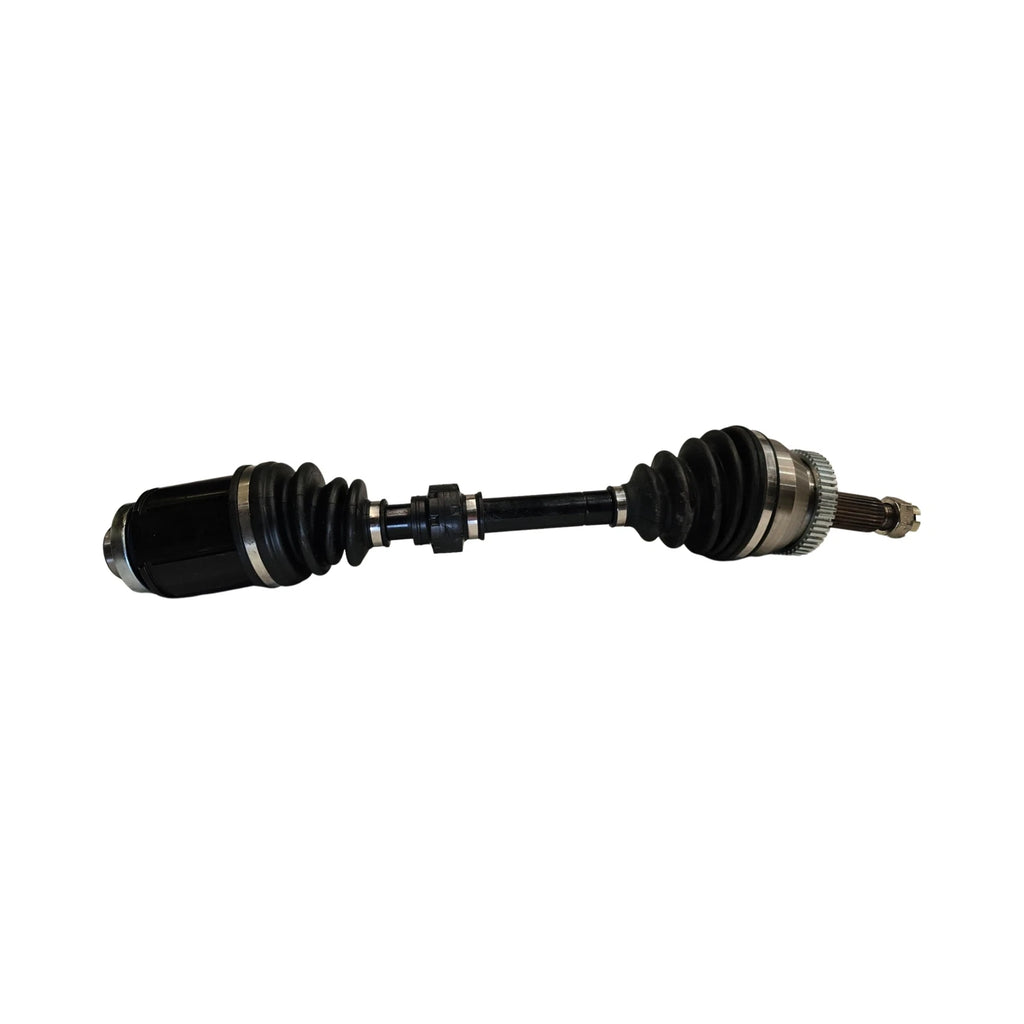

Front Right CV Axle Drive Shaft for Hyundai Santa Fe CM 4WD FWD MT

PRODUCT OVERVIEW

This front right CV axle drive shaft is designed for Hyundai Santa Fe CM models with manual transmission, in both FWD and 4WD configurations. Built to OEM specifications, it delivers reliable power transfer from the differential to the wheel while maintaining smooth operation at varying speeds and angles.

FEATURES & BENEFITS

• Manufactured to OEM specifications for precise fit and performance.
• Heat-treated chrome steel construction for maximum strength and durability.
• High-quality neoprene dust boots with stainless steel clamps to help prevent contamination.
• Filled with molybdenum (moly) grease for reduced friction at high revolutions and operating angles.

VEHICLE COMPATIBILITY

Suitable for selected Hyundai Santa Fe CM manual transmission models. Refer to detailed vehicle specifications below to confirm compatibility before purchase.

• Hyundai Santa Fe CM 2.2L D4EB 16V SOHC (11/2006 - 10/2009) 4WD manual, including SX CRDi variants.
• Hyundai Santa Fe CM 2.7L G6EA V6 24V DOHC (05/2006 - 10/2009) 4WD manual, including SLX and ELITE variants.
• Hyundai Santa Fe CM 2.7L G6EA V6 24V DOHC (05/2006 - 10/2009) 4WD manual, including SX variants.
• Hyundai Santa Fe CM 2.2L D4HB 16V DOHC (11/2009 - 08/2012) 4WD manual, including CRDi variants.

TECHNICAL SPECIFICATIONS

• Position: Front right (passenger side).
• Drivetrain: Manual FWD and 4WD.
• Compressed length: 611 mm.
• Outer / wheel side spline count: 30.
• Inner / differential side spline count: 26T female with 2 keyway slots.
• ABS ring teeth: 52.
• Hub nut: M22 x 1.5.

WHAT'S INCLUDED

• 1 x Front right CV axle drive shaft.

WARRANTY INFORMATION

The CV driveshaft is covered by a 12 month / 20,000 km warranty. CV boots are covered for 3 months from the date of purchase. Warranty applies to manufacturing defects under normal operating conditions.
