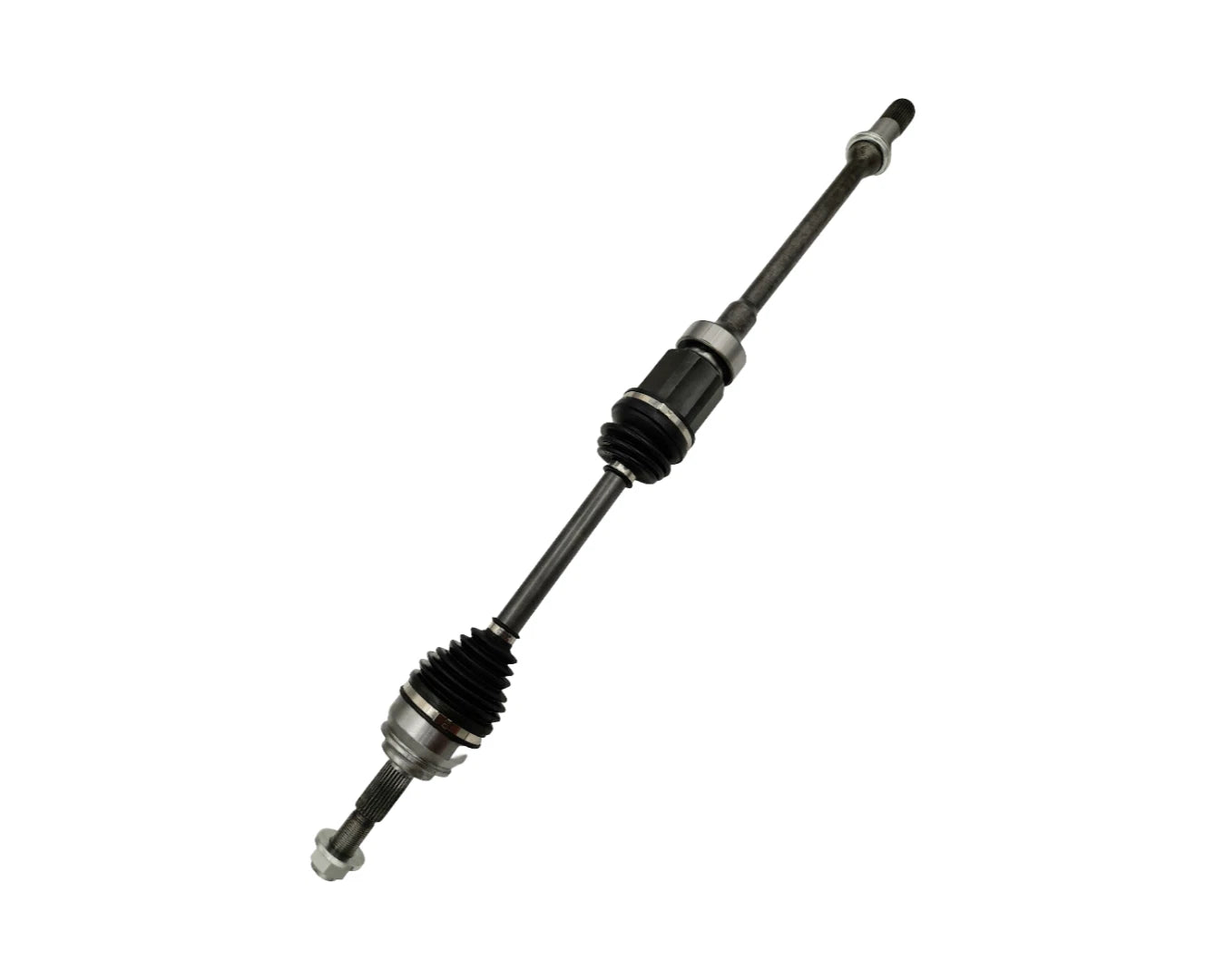

Front Right CV Axle Shaft for Mazda 2 DJ/DL 1.5L FWD Auto 2014-On

PRODUCT OVERVIEW

Front right CV joint axle drive shaft for automatic transmission FWD Mazda 2 DJ/DL 1.5L (08/2014-onwards). Built to OEM specifications for reliable driveline performance and durability.

KEY FEATURES

• Designed for front right (passenger) side, automatic transmission FWD only
• Heat-treated chrome steel construction to maximise service life
• High-quality Neoprene dust boots with stainless steel clamps to resist contamination
• Molybdenum grease for smooth operation at varying angles, speeds and high RPM
• Manufactured to OEM specifications for fitment and performance

WHAT'S INCLUDED

• 1 x Complete CV axle shaft (front right)

SPECIFICATIONS

• Position: Front right
• Drive type: FWD
• Transmission: Automatic only
• Engine: 1.5L P5-VPS I4 16V DOHC VVT
• Application: Mazda 2 DJ 200 DJ2HA / DL 200 DL2SA (08/2014-onwards)
• Length (compressed): 946 mm
• Spline count outer / wheel side: 26
• Spline count inner / diff side: 26
• Bearing outer diameter on extension shaft: 70 mm
• Extension shaft bearing width: 25 mm
• Extension shaft length from outside of bearing: 370 mm
• Outboard joint type: Ball
• Inboard joint type: Tripod
• Hub nut style: M22 x 1.5
• Inner joint oil seal ID: 35 mm

MODEL DETAILS

Suitable for applicable Mazda 2 DJ/DL 1.5L FWD automatic variants including (where fitted): G15 Evolve, G15 GT, G15 GT 100th Anniversary, G15 Pure, G15 Pure SP, Genki, GT, Maxx, Neo.

WARRANTY

• 12 month / 20,000 km warranty on CV driveshaft
• CV boots warranted for 3 months from date of purchase

FITMENT NOTE

• Confirm side (front right), transmission type (automatic) and spline counts before purchase
• Professional installation is recommended
