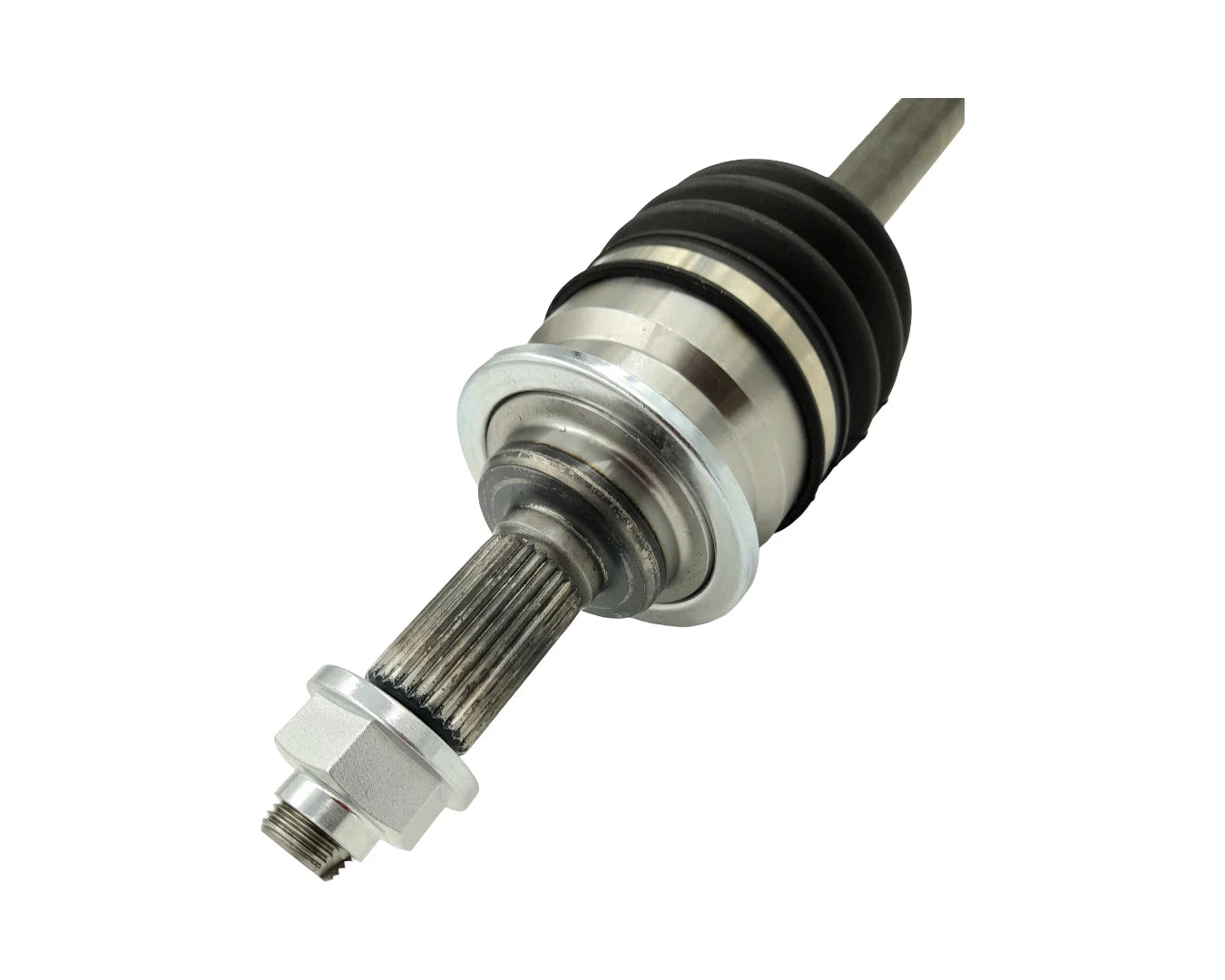

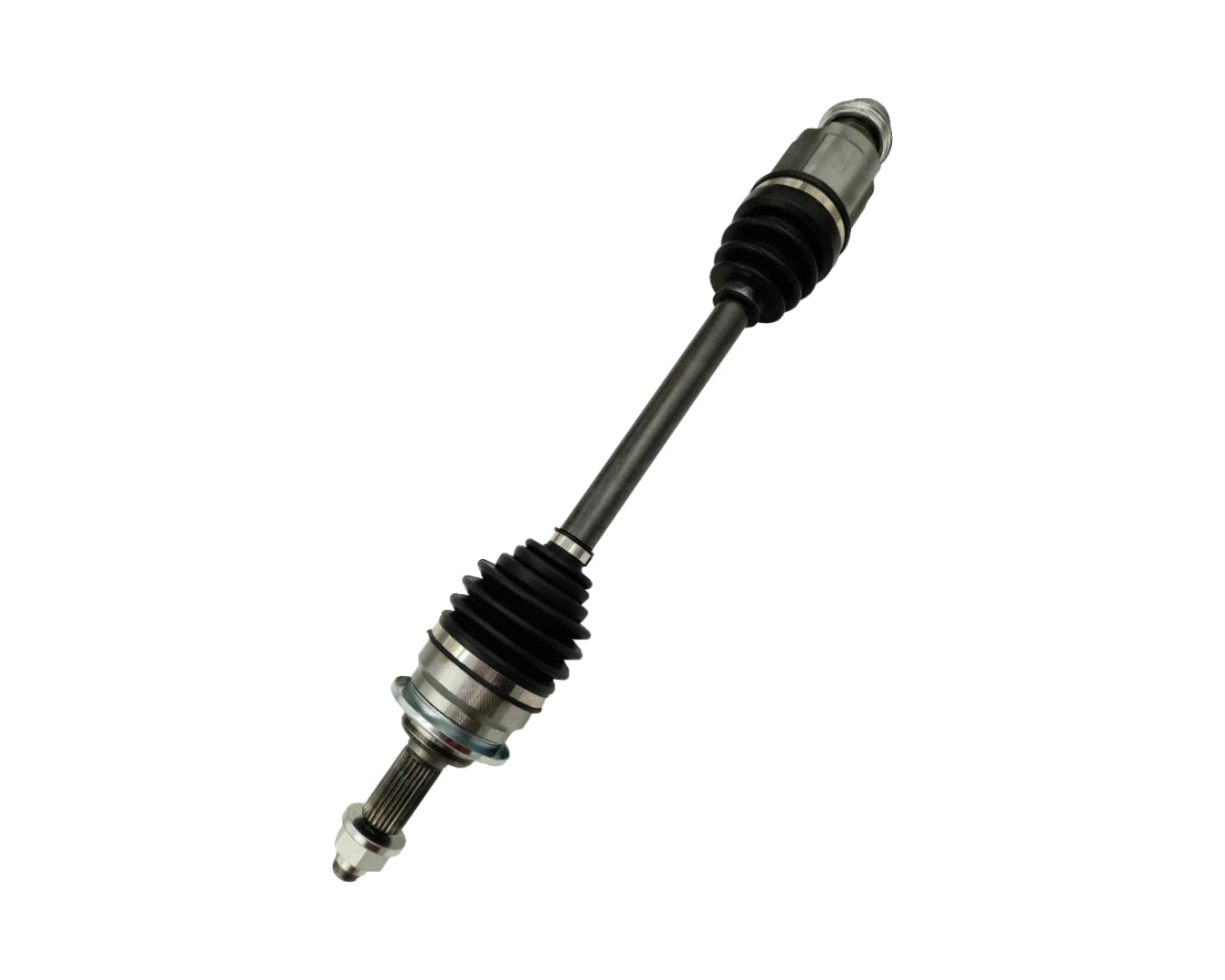

Front Right CV Axle Shaft for Suzuki Swift FZ K14B FWD Auto 2011-2017

PRODUCT OVERVIEW

Front right CV axle drive shaft designed for Suzuki Swift FZ with K14B engine, front wheel drive and automatic transmission. Built to OEM-style specifications for reliable performance and long service life.

KEY FEATURES

• Front right-hand side CV axle for FWD automatic models
• Female differential (diff) joint configuration
• Heat-treated chrome steel construction for strength and durability
• High-quality neoprene dust boots with stainless steel clamps to help prevent contamination
• Molybdenum (moly) grease for smooth operation at varying angles, speeds and RPM

FITMENT DETAILS

Suitable for selected Suzuki Swift FZ models as outlined below. Always confirm all specifications and measurements against your original part before purchase.

• Model: Suzuki Swift FZ (ZC82S)
• Engine: 1.4L K14B I4 16V DOHC VVT
• Drivetrain: Front Wheel Drive (FWD)
• Transmission: Automatic only
• Production years: 02/2011 – 06/2017
• Includes sub-models: Classic, Extreme, GA, GL, GLX, RE, SE, Navi, Navigator

SIZING & SPECIFICATIONS

• Position: Front right (passenger side in RHD markets)

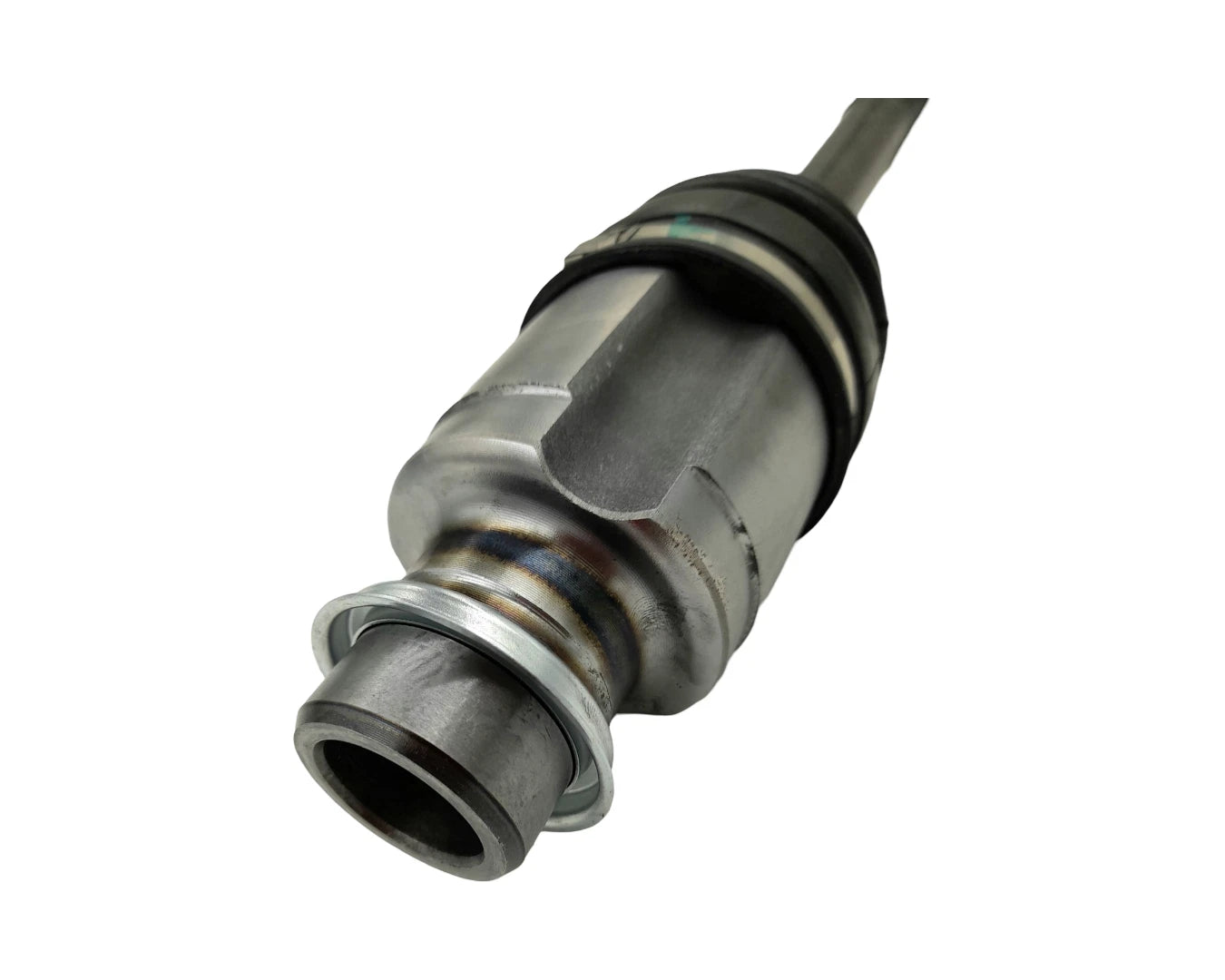

• Joint type (diff side): Female diff joint
• Compressed length: 563 mm
• Spline count outer / wheel side: 25
• Spline count inner / diff side (female): 26

WHAT'S INCLUDED

• 1 x complete front right CV axle shaft assembly

WARRANTY

Supplied with a 12 month / 20,000 km warranty on the CV driveshaft assembly. CV boots are covered for 3 months from date of purchase.

INSTALLATION NOTE

Professional installation is recommended. Ensure spline counts, joint type, and overall compressed length match the original axle before fitting.
