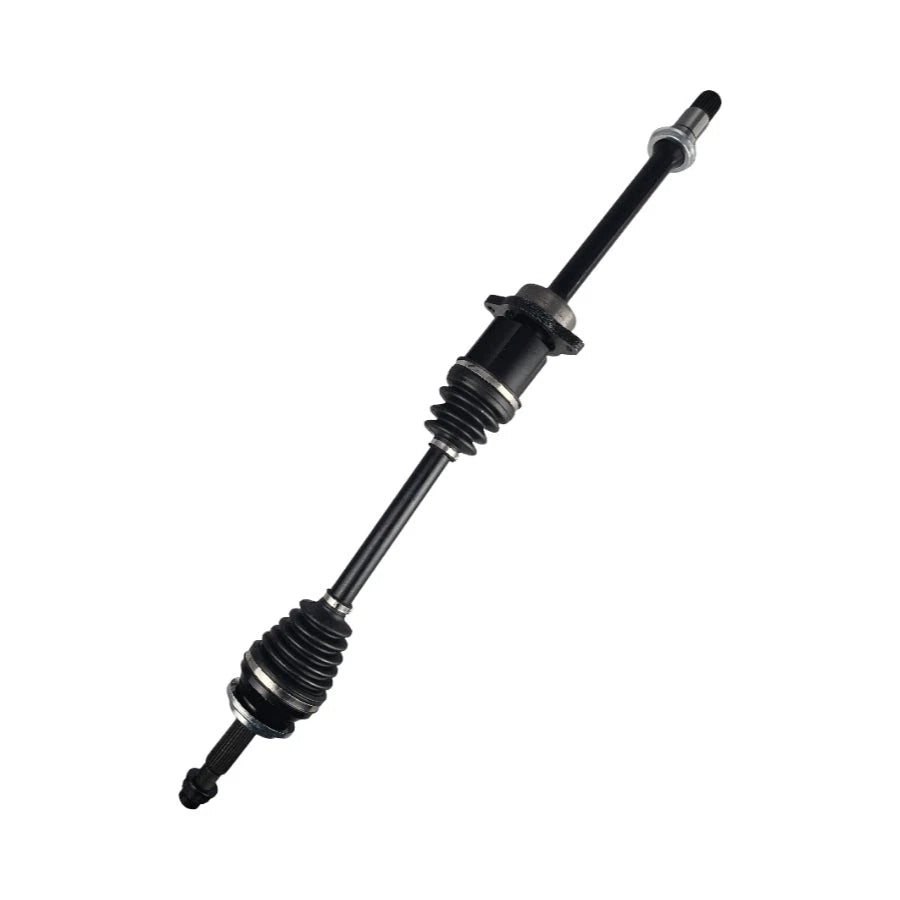

Front Right CV Axle Shaft for Toyota RAV4 ACA38 2.4L FWD Auto 2008-2016

PRODUCT OVERVIEW

Front right-hand CV axle drive shaft designed for Toyota RAV4 ACA38 2.4L FWD automatic models. Manufactured to OEM-style specifications for reliable driveline performance and long service life.

KEY FEATURES

• Front right (passenger side) CV axle for FWD automatic transmission only
• Heat-treated chrome steel construction for strength and durability
• High-quality neoprene dust boots with stainless-steel clamps to resist contamination
• Molybdenum grease for smooth operation at varying angles and speeds
• Engineered to meet or exceed OEM performance standards

FITMENT DETAILS

Suitable for the following application:

• Toyota RAV4 ACA38 2.4L 2AZ-FE FWD (08/2008 - 06/2016), including Altitude, Cruiser, CV, 240S, G, Style & X sub-models

Important: Front right side, FWD automatic transmission only. Check all specifications and spline counts before purchase.

SPECIFICATIONS

• Position: Front right (passenger side)
• Drivetrain: FWD
• Transmission: Automatic
• Length (compressed): 977 mm
• Spline count – outer/wheel side: 26T
• Spline count – inner/diff side: 24T
• Inboard joint type: Tripod

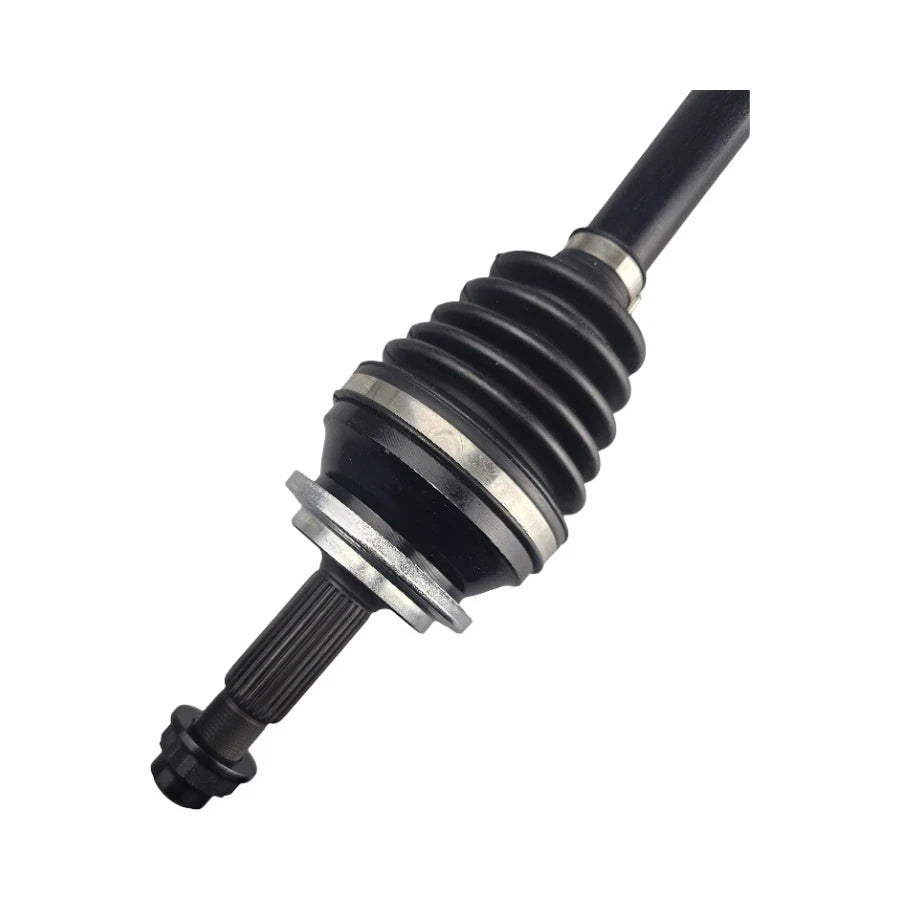

• Outboard joint type: Ball
• Inner joint seal ID: 40 mm
• Hub nut style: M10 x 1.25 @ 113.8 mm centre to centre

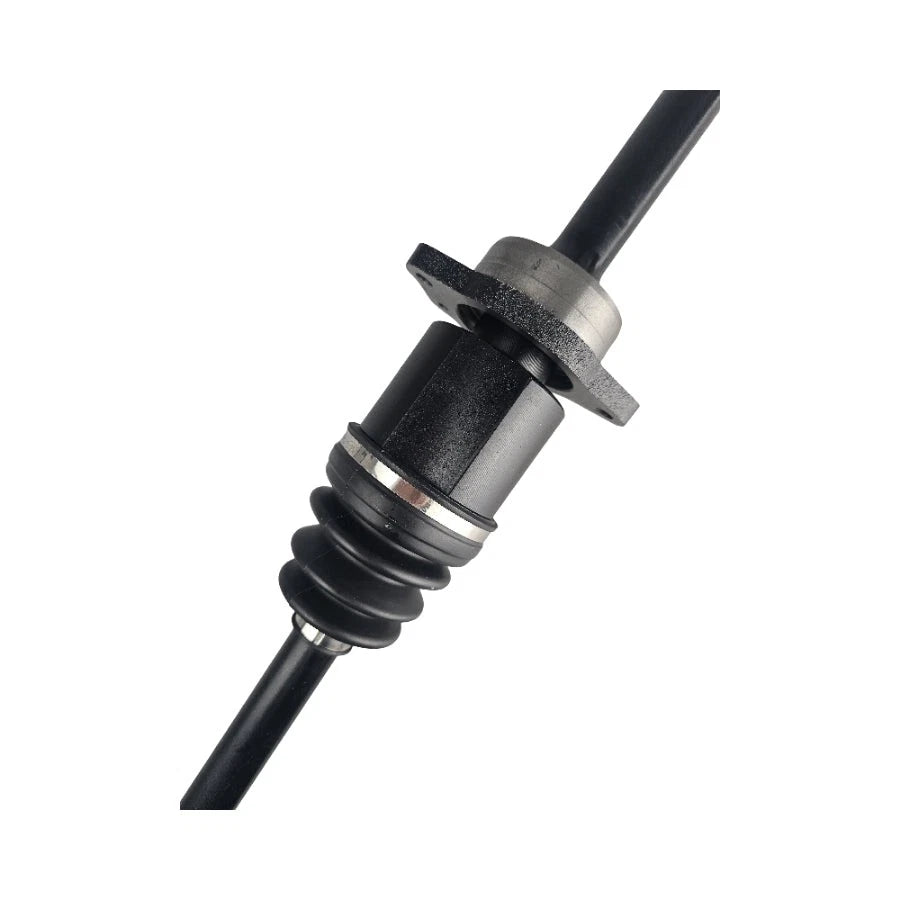

• Extension shaft length (from inside of bearing face): 364 mm
• Bearing outer diameter on extension shaft: 62 mm

WHAT'S INCLUDED

• 1 x Front right CV axle shaft

WARRANTY

• 12 month / 20,000 km warranty on CV driveshaft
• CV boots warranted for 3 months from date of purchase

Professional installation is recommended. Always compare all dimensions, spline counts and joint types with the original part before fitment.
