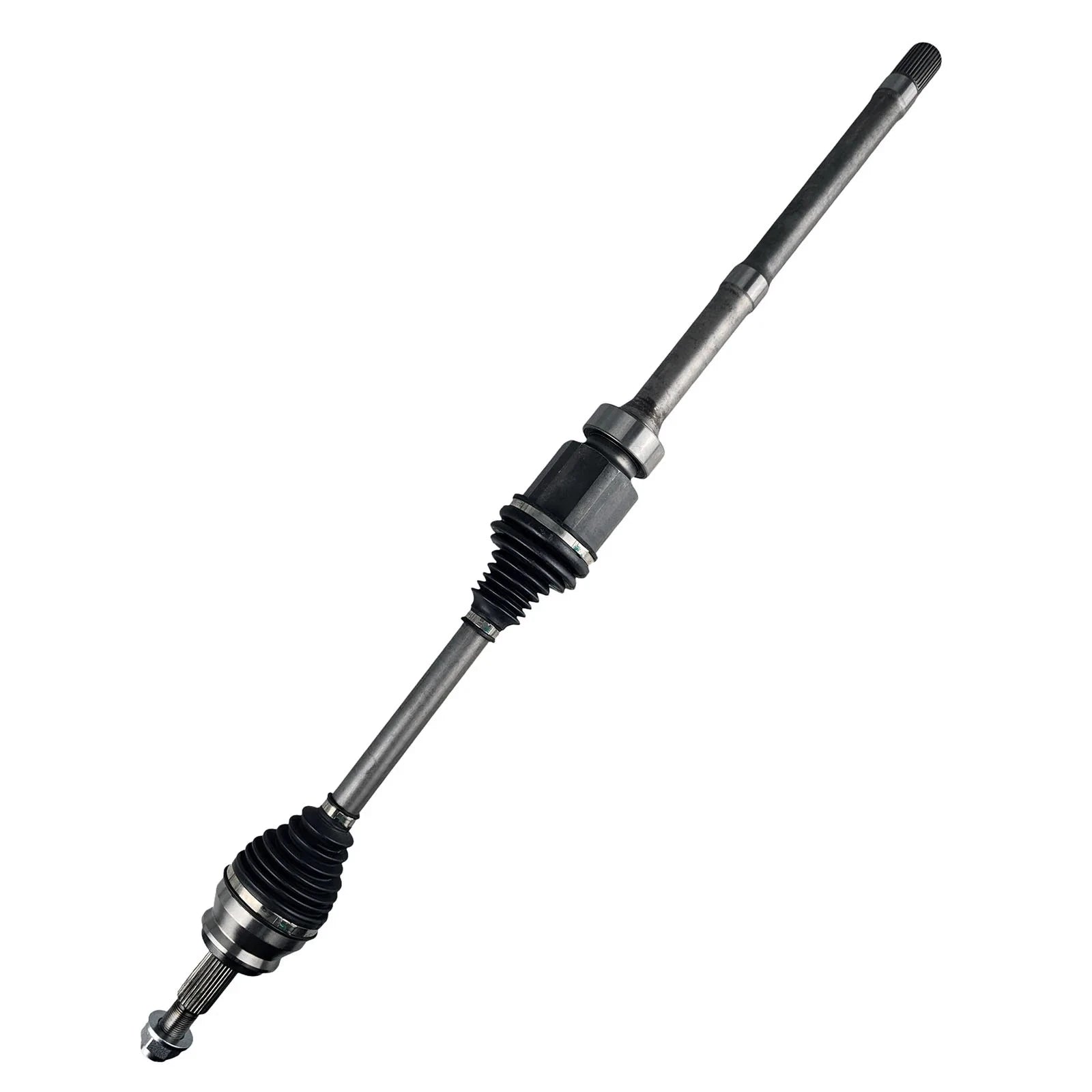

Front Right CV Drive Shaft for Mazda CX-30 DM AWD 2.0L 2.5L Auto 2019-2025

PRODUCT OVERVIEW

Front right CV axle drive shaft designed for Mazda CX-30 DM all-wheel drive automatic models. Built to OEM-style specifications for reliable driveline performance and fitment.

KEY FEATURES

• Front right-hand side CV drive shaft for automatic AWD models
• Manufactured to OEM-style tolerances for correct fit and operation
• Heat-treated chrome steel for strength and extended service life
• High-quality neoprene dust boots to help prevent contamination
• Stainless steel clamps for secure boot retention
• Molybdenum grease for smooth operation at varying angles and speeds

SPECIFICATIONS

• Position: Front right (RH), drive axle
• Drivetrain: All-wheel drive (AWD)
• Transmission: Automatic
• Length (compressed): 1008 mm
• Spline count (outer / wheel side): 28T
• Spline count (inner / diff side): 31T

VEHICLE COMPATIBILITY

Suitable for selected Mazda CX-30 DM AWD automatic models, including but not limited to:

• Mazda CX-30 DM 2.0L PE-VPS AWD Automatic (10/2019 - onwards), including Takami
• Mazda CX-30 DM 2.5L PY-ZC AWD Automatic (10/2019 - onwards), including G25, Astina, Astina 100th Anniversary, GT SP, GT SP Vision, Touring, Touring Vision, Touring SP Vision, GTX, LTD

Always confirm spline counts and length against the original part before purchase and installation.

WHAT'S INCLUDED

• 1 x Front right CV drive shaft assembly

WARRANTY

• 12 month / 20,000 km warranty on CV driveshaft
• CV boots warranted for 3 months from date of purchase

Warranty is subject to correct installation and normal operating conditions.
