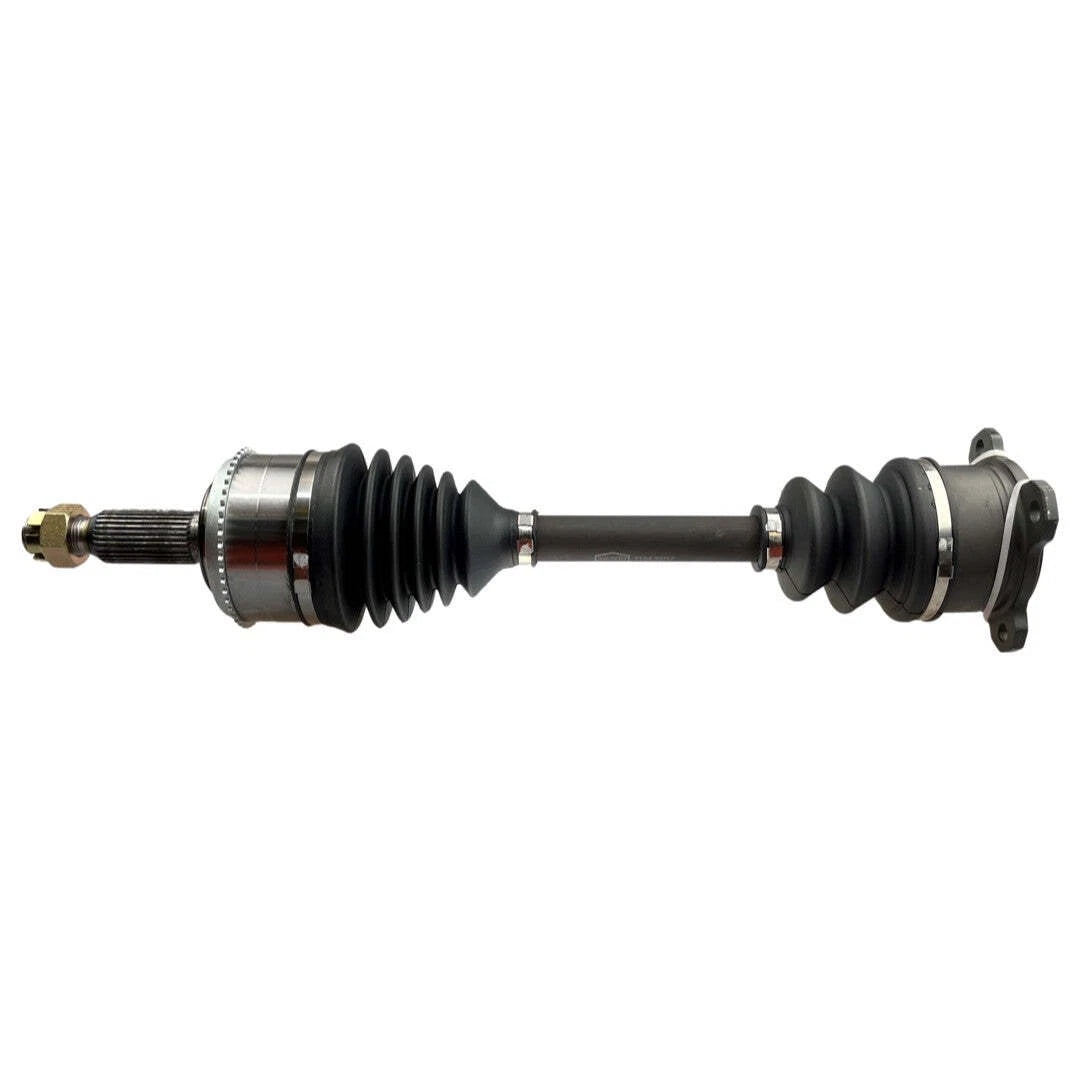

Front Right CV Axle Drive Shaft for Mitsubishi Pajero NM NP 4WD

PRODUCT OVERVIEW

Front right-hand side CV axle drive shaft suitable for Mitsubishi Pajero NM and NP 4WD models with manual or automatic transmissions. Designed as a direct replacement, built to OEM-style specifications for reliable driveline performance.

KEY FEATURES

• Heat-treated chrome steel construction for strength and long service life
• High-quality neoprene dust boots with stainless steel clamps to help prevent contamination
• Filled with molybdenum grease for smooth operation at varying angles and speeds
• Engineered to meet or exceed typical OEM performance requirements

VEHICLE COMPATIBILITY

Suitable for the following Mitsubishi Pajero 4WD applications (front right position):

• Pajero NM 3.5L 6G74 4WD Auto/Man (02/2000 - 05/2004)
  Sub-models: EXCEED, GL, GLS, GLX
• Pajero NM 2.8L 4M40T 4WD Man (02/2000 - 03/2002)
  Sub-models: EXCEED, GL, GLS, GLX
• Pajero NM 3.2L 4M41T 4WD Auto/Man (1999 - 03/2002)
  Sub-models: EXCEED, GLS, GLX
• Pajero NP 3.8L 6G75 4WD Auto/Man (08/2003 - 09/2006)
  Sub-models: EXCEED, GLS, GLX, VRX

Always confirm all specifications and fitment details against your vehicle before purchase.

SPECIFICATIONS

• Position: Front right (RH), 4WD
• Outboard spline count: 30
• Outboard joint type: Ball
• Inboard joint type: Ball
• Inboard spline: N/A – 4-bolt flange
• Length (compressed): 530 mm
• ABS tone ring: 50T
• Mounting holes centre-to-centre: 110.46 mm
• Bolt hole diameter: 10.5 mm

WHAT'S INCLUDED

• 1 x complete CV axle shaft (front right)

WARRANTY

• 12 month / 20,000 km warranty on CV driveshaft
• CV boots warranted for 3 months from date of purchase

Installation by a qualified technician is recommended to ensure correct fitment and optimal performance.
