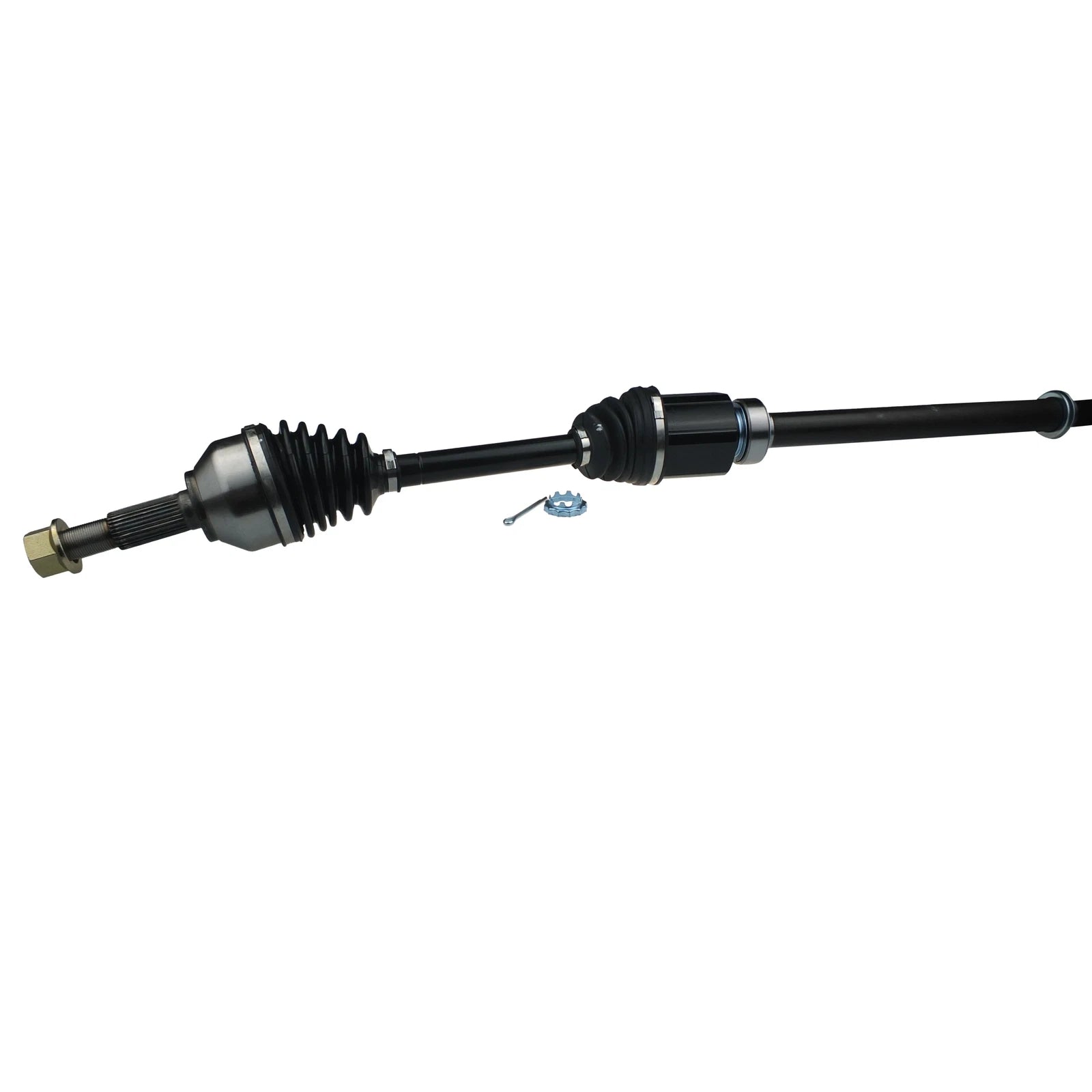

Front Right CV Drive Shaft for Nissan X-Trail T31, Dualis, Qashqai J10

PRODUCT OVERVIEW

Brand new front right (RH) CV joint drive shaft for selected Nissan X-Trail T31, Dualis and Qashqai J10 automatic/CVT applications. Supplied fully assembled and ready to install.

COMPATIBILITY NOTES

Suitable for various ST, ST-L, Ti, Limited Edition, Adventure Edition, 20G, 20S, FOUR 4WD, 25S, 25ST, 25X, 25XT, 25XTT and AXIS 4WD sub-models where specifications match. For certain Dualis and Qashqai J10 models it is recommended to confirm the original shaft length; in many cases part CVA1390 is the most common alternative.

Always compare overall compressed length, spline counts and joint type with the original shaft before purchase and installation.

KEY FEATURES

• Front right CV drive shaft, complete assembly
• Built to OEM-style specifications for fit and performance
• Heat-treated chrome steel for strength and durability
• High-quality neoprene dust boots with stainless steel clamps
• Pre-packed with moly grease for high-angle, high-RPM operation

SPECIFICATIONS

• Position: Front right
• Length (compressed): 970 mm
• Inboard joint type: Tripod
• Outboard joint type: Ball
• Spline count outer (wheel side): 29 teeth
• Spline count inner (diff side): 27 teeth
• Bearing O.D. on extension: 62 mm
• Extension shaft length from inside: 396 mm
• Hub nut style: M4 x 1.5 pitch

FITMENT SUMMARY

• Nissan X-Trail T31 2.5L QR25DE 4WD, CVT, right front
• Nissan Dualis J10 2.0L MR20DE (FWD and AWD) where dimensions and spline counts match
• Nissan Qashqai J10 2.0L MR20DE (FWD and selected later models subject to length check)
• Renault Koleos H45 2.5L FWD CVT right side where specifications match

Fitment information is a guide only. Always verify against the vehicle VIN and original shaft measurements before ordering.

PACKAGE CONTENTS

• 1 x Front right CV drive shaft assembly

WARRANTY

• 12 month / 20,000 km warranty on CV driveshaft assembly
• CV boots covered for 3 months from date of purchase

Incorrect installation, misuse or fitment to non-approved applications may void warranty. Professional installation is recommended.
