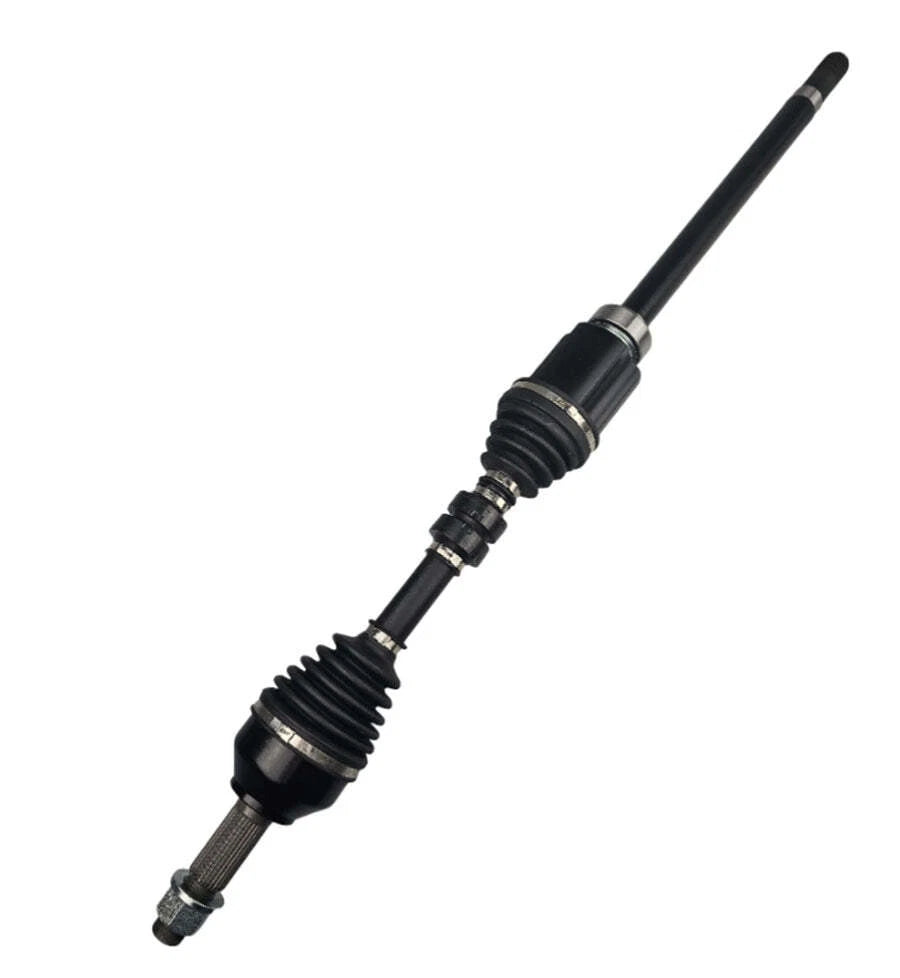

Front Right CV Drive Shaft for Nissan Dualis J10 & X‑Trail T31 AWD Manual

PRODUCT OVERVIEW

Front right CV axle drive shaft for manual AWD applications, built to OEM specifications for durability and long service life. Ideal replacement for worn or failing original shafts, ensuring smooth power delivery to the front wheels.

KEY FEATURES

• Front right-hand side CV axle for AWD manual transmission
• Manufactured to OEM specifications using heat-treated chrome steel
• High-quality neoprene dust boots with stainless steel clamps
• Filled with moly grease for smooth operation at varying angles and speeds
• Designed for reliable performance and extended service life

VEHICLE COMPATIBILITY

• Nissan Dualis J10 / FBNJ10 / JBNJ10 2.0L MR20DE AWD MT (12/2007 - 01/2016) – 29 spline manual only
  Models include ST, +2 ST, Ti, Ti-L, +2 Ti, +2 Ti-L.
• Nissan X-Trail T31 / NT31 2.0L MR20DE 4WD MT (08/2007 - 03/2015) – 29 spline manual only
  Models include 20S 4WD, 20ST 4WD, 20X 4WD, 20XT 4WD, 20XTT 4WD AXIS, 4WD, DRIVING GEAR 4WD.

Important: Please confirm your vehicle is AWD/4WD manual with 29-spline front right shaft before purchasing.

SIZE & SPECIFICATIONS

• Position: Front right (RH), AWD/4WD manual
• Length (compressed): 1003.5 mm
• Spline count – outer/wheel side: 29T
• Spline count – inner/diff side: 29T
• Outboard joint type: Ball
• Inboard joint type: Tripod
• Bearing outer diameter on extension shaft: 62 mm
• Extension shaft length from inside of bearing face: 426 mm
• Bearing width: 22.5 mm
• Hub nut style: M24 x 1.5

WHAT'S INCLUDED

• 1 x complete front right CV drive shaft assembly

WARRANTY

• 12 month / 20,000 km warranty on CV driveshaft
• CV boots warranted for 3 months from date of purchase
