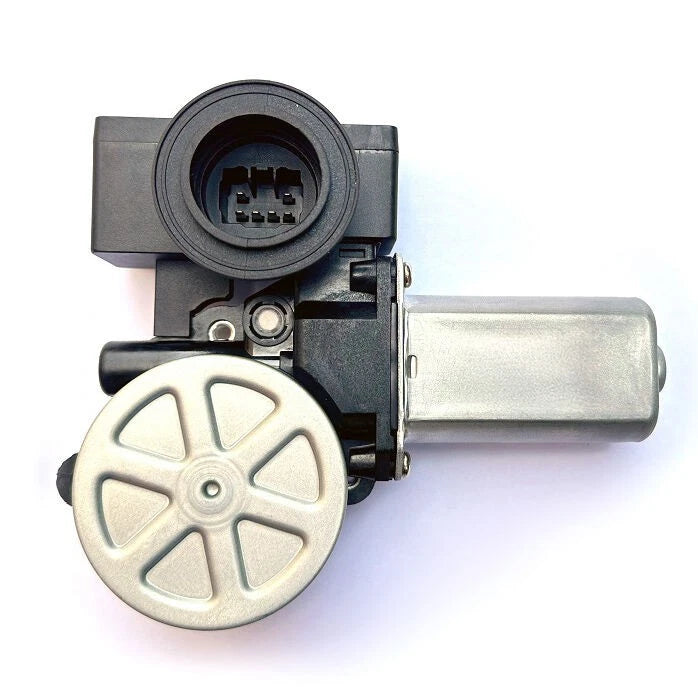

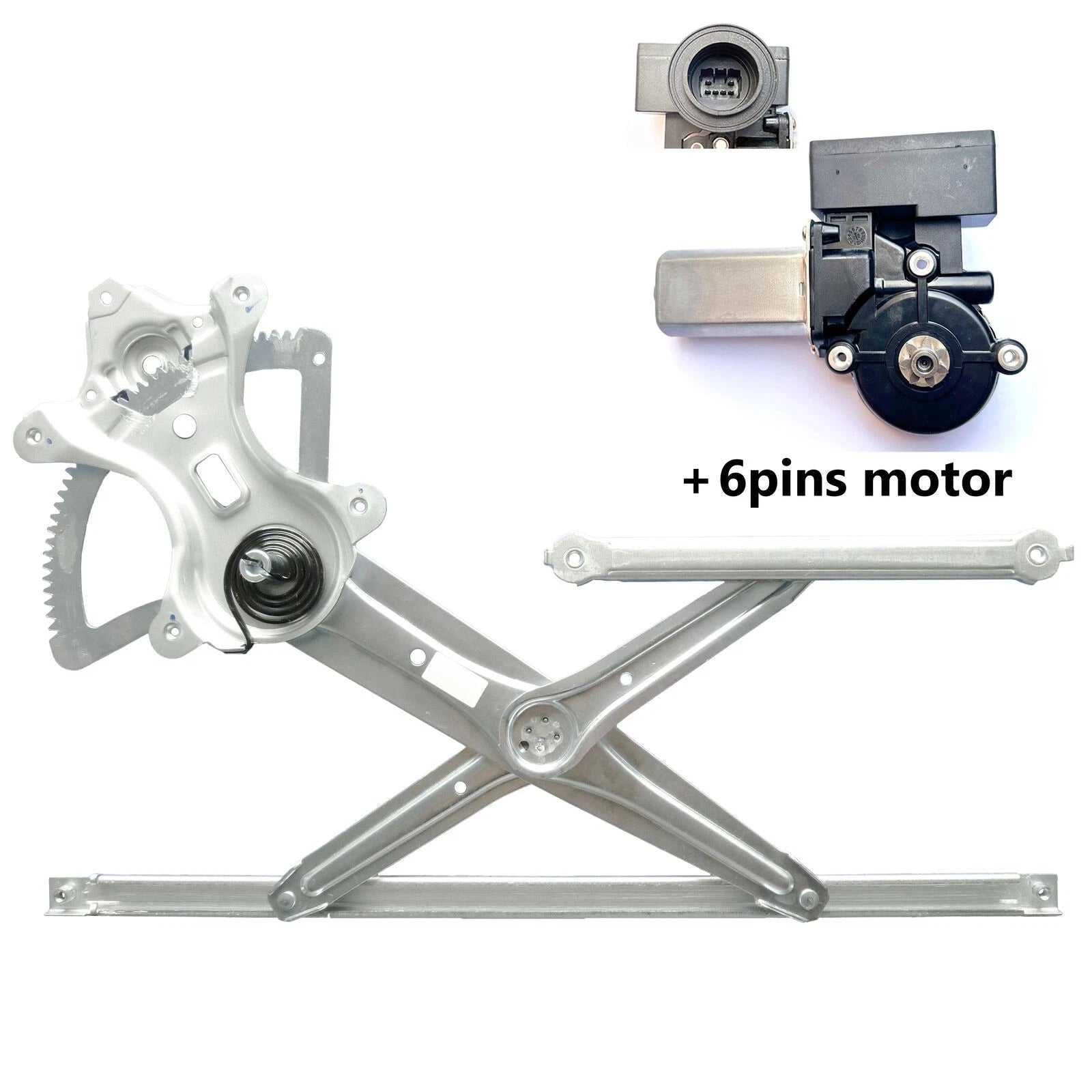

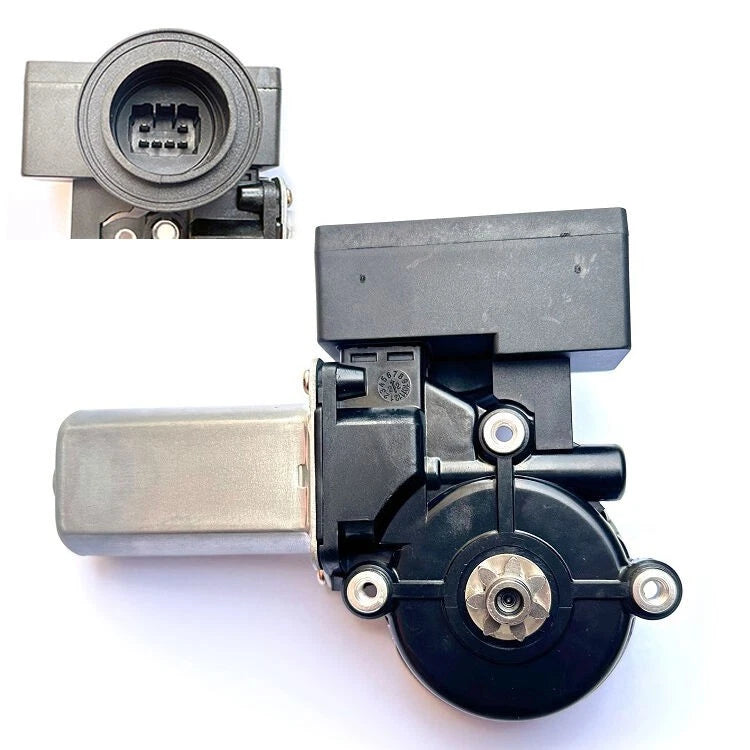

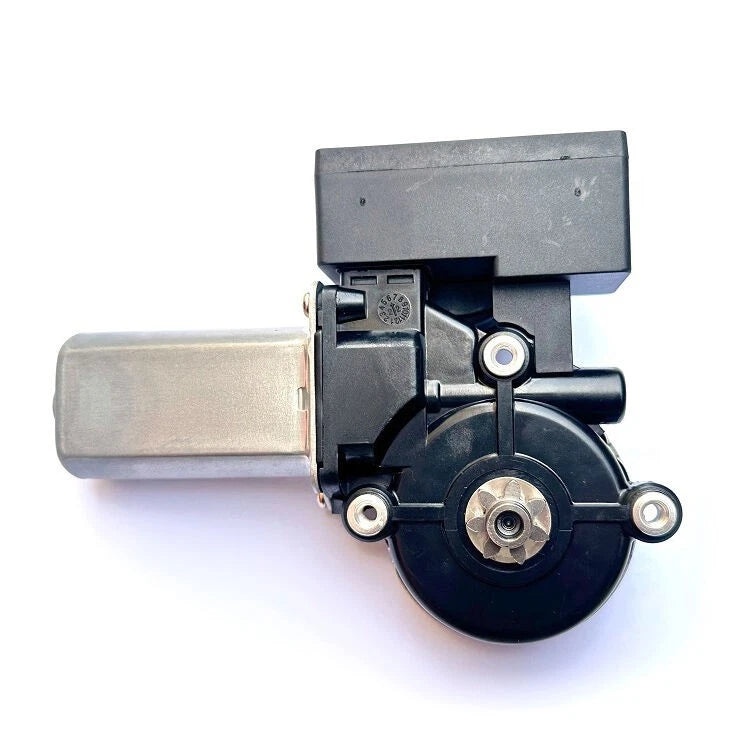

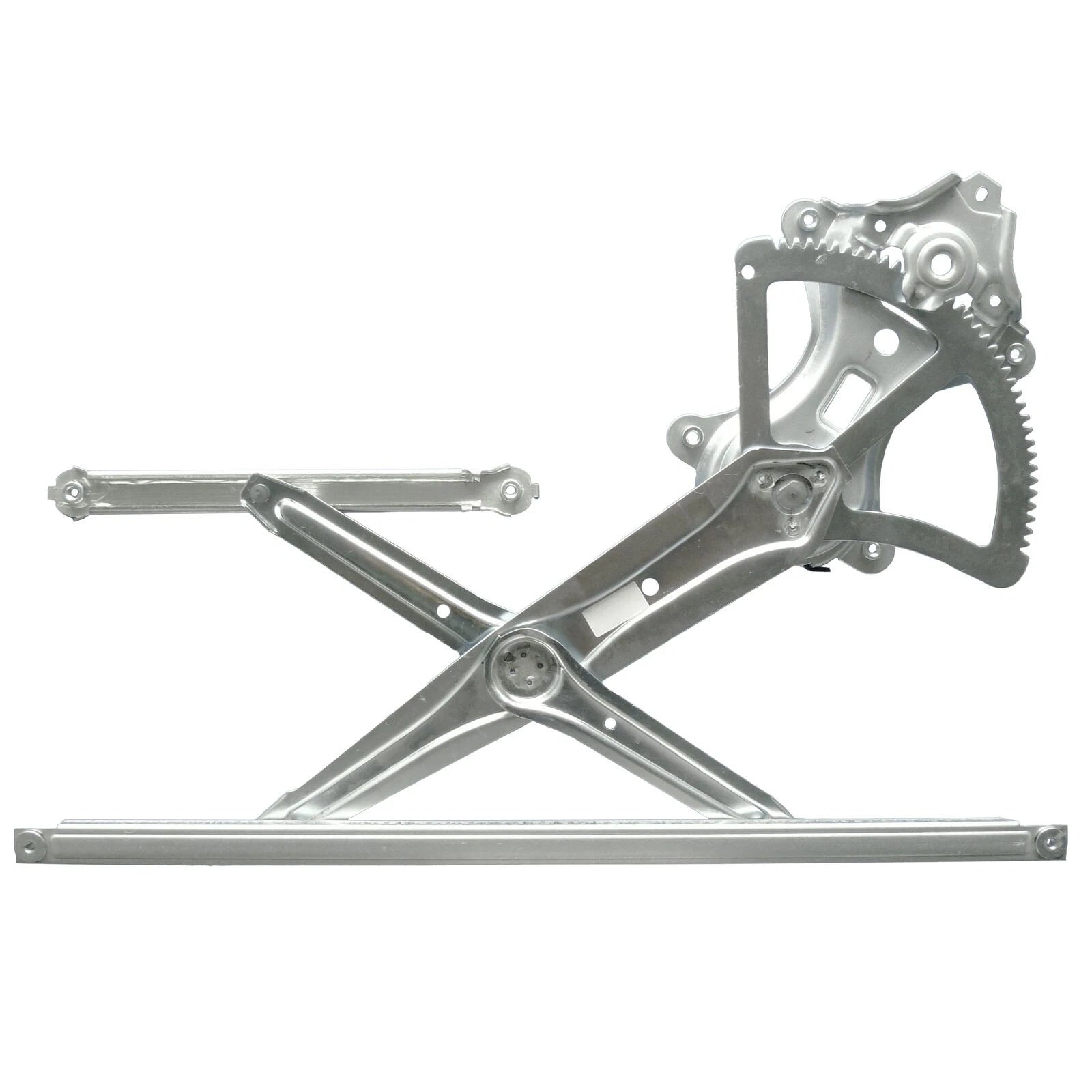

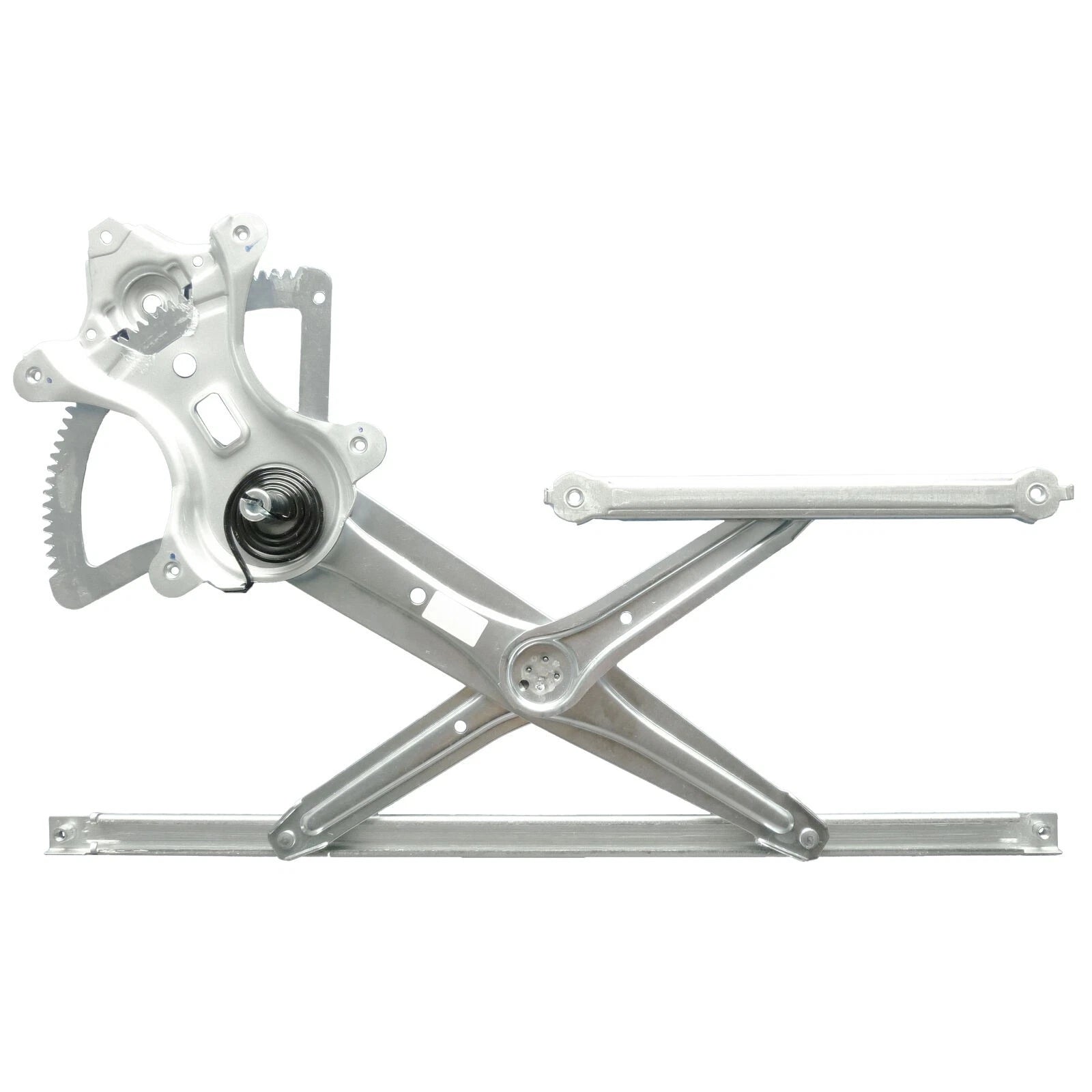

Front Right Electric Window Regulator & 6-Pin Motor for Toyota Camry ACV36R

PRODUCT OVERVIEW

This front right electric window regulator with integrated 6-pin motor is a high-quality aftermarket replacement for selected Toyota Camry ACV36R models. Supplied as a complete assembly, it is designed for reliable power window operation and straightforward installation.

KEY FEATURES

• Complete electric window regulator with integrated motor (6-pin connector)
• Position: Front right (front driver side)
• High-quality aftermarket construction
• Supplied brand new as a single piece (1 x regulator assembly)
• 12-month manufacturer warranty on the part
• Suitable for repair and replacement of faulty window mechanisms

FITMENT DETAILS

• Toyota Camry ACV36R 2AZ-FE 2.4L Sedan, 09/2002–06/2006 (front right door)

Compare the 6-pin connector, mounting points, and regulator layout with your original part before purchase.

SPECIFICATIONS

• Product type: Window regulator
• Operating mode: Electric
• Placement on vehicle: Front right (front driver side)
• Motor connector: 6 pins
• Part specs: High-quality aftermarket
• Condition: Brand new
• MPN/Item No.: 100124A
• Quantity supplied: 1 piece
• Manufacturer warranty: 1 year (part only)

ANTI-PINCH FUNCTION SETUP

This motor may include an anti-pinch function. Incorrect testing before installation can cause the anti-pinch feature to malfunction and require reset.

• Do not power-test the motor before installing it in the door.
• Motors are pre-tested and set correctly before dispatch.
• Install the motor and connect it to the one-touch window switch, then operate the switch to confirm correct up/down movement.
• If the window drops down after reaching the top, follow the reset procedure below.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly to move the glass fully to the top.
• Step 2: Hold the one-touch switch in the up position for 3–5 seconds at the top.
• Step 3: Press the window switch briefly to move the glass fully to the bottom.
• Step 4: Hold the one-touch switch in the down position for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to move the window back up to the top and confirm it no longer drops down.

If the window still drops after reaching the top, repeat the reset steps until the function is correctly learned.

INSTALLATION & WARRANTY NOTES

• Professional installation by a qualified automotive mechanic is recommended to maintain warranty coverage.
• Part is supplied for repair and replacement purposes only.
• Images are for reference only; colour and small details may vary due to lighting and screen settings.
• Check plugs, mounting points, and regulator design to ensure compatibility with your vehicle.
