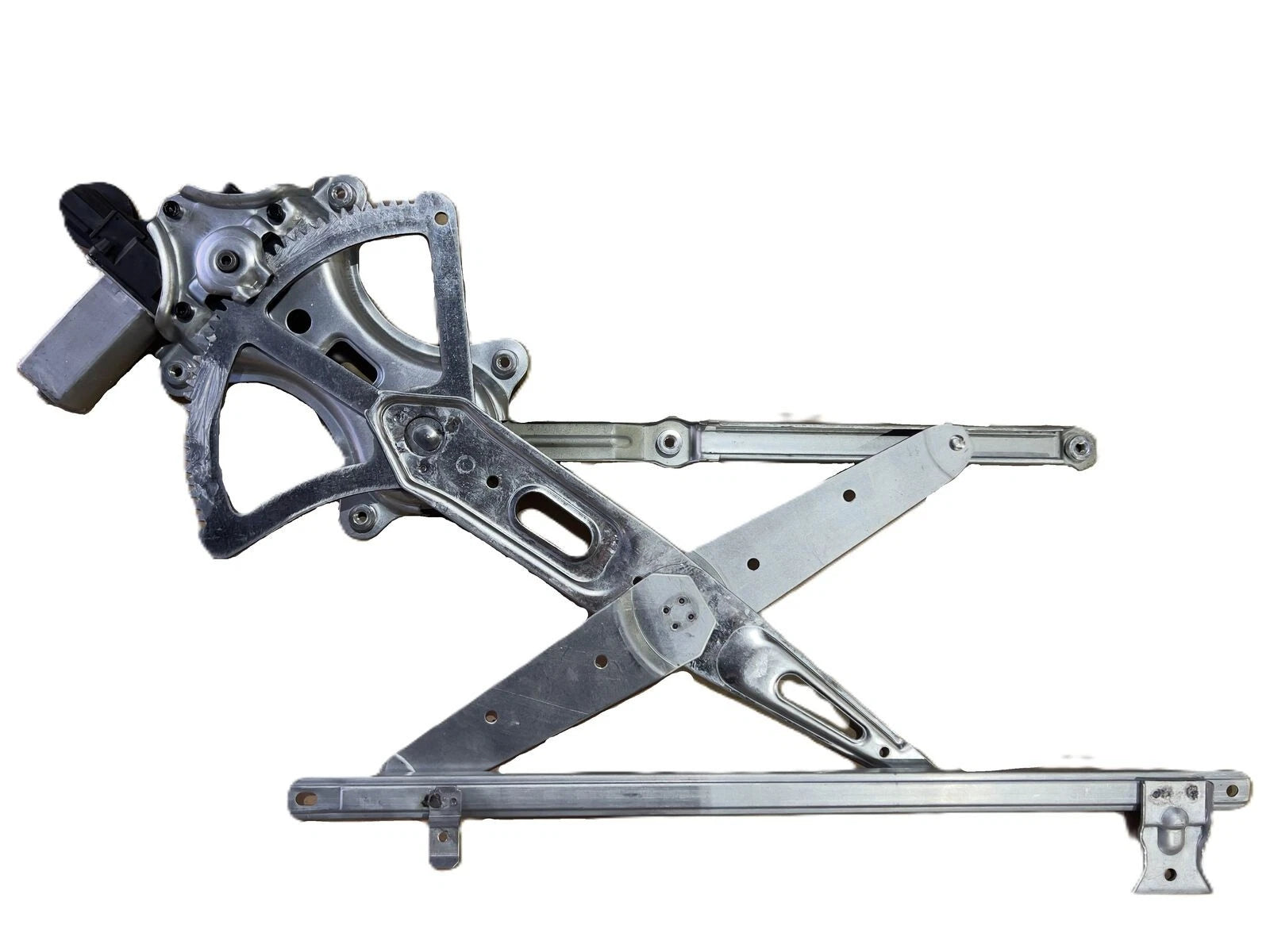

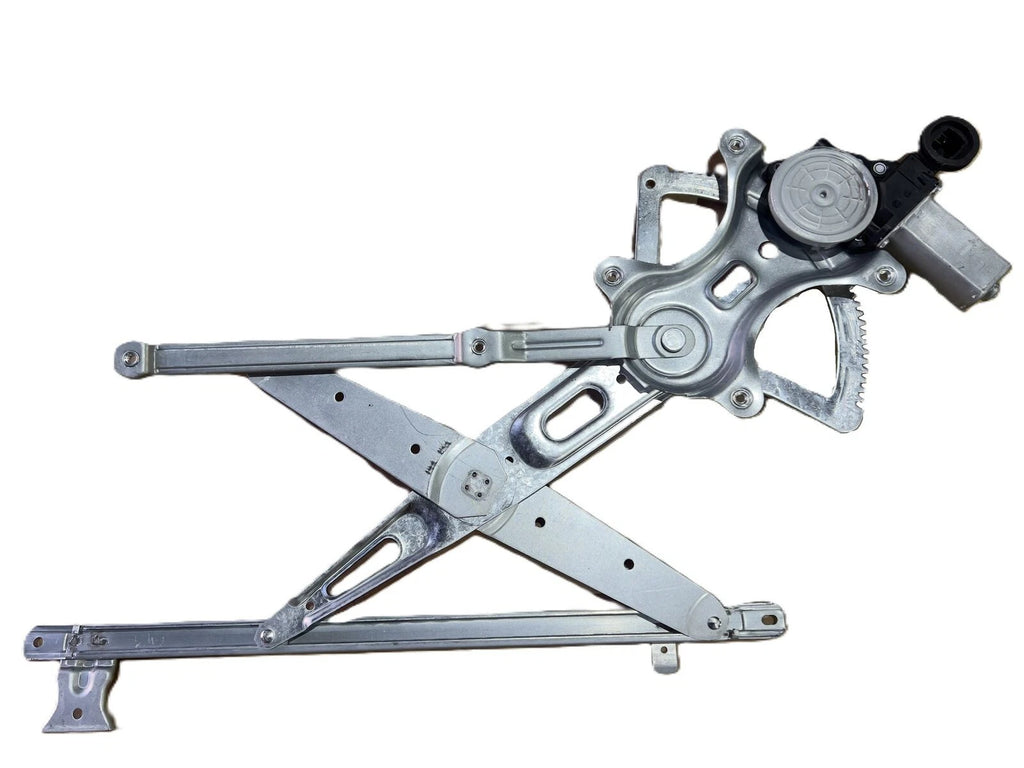

Front Right Electric Window Regulator 2-Pin Motor for Toyota HiAce 2005-2019

PRODUCT OVERVIEW

This front right electric window regulator is a high-quality aftermarket replacement designed for Toyota HiAce models built between 01/2005 and 01/2019. Supplied as a complete assembly with a 2-pin motor, it is ideal for restoring smooth and reliable power window operation.

KEY FEATURES

• Direct-fit replacement window regulator assembly
• Includes pre-fitted 2-pin electric motor
• Designed for front right (driver side) door
• High-quality aftermarket construction
• Supplied brand new with manufacturer warranty

SPECIFICATIONS

• Product: Window regulator
• Operating mode: Electric
• Placement on vehicle: Front right (front driver side)

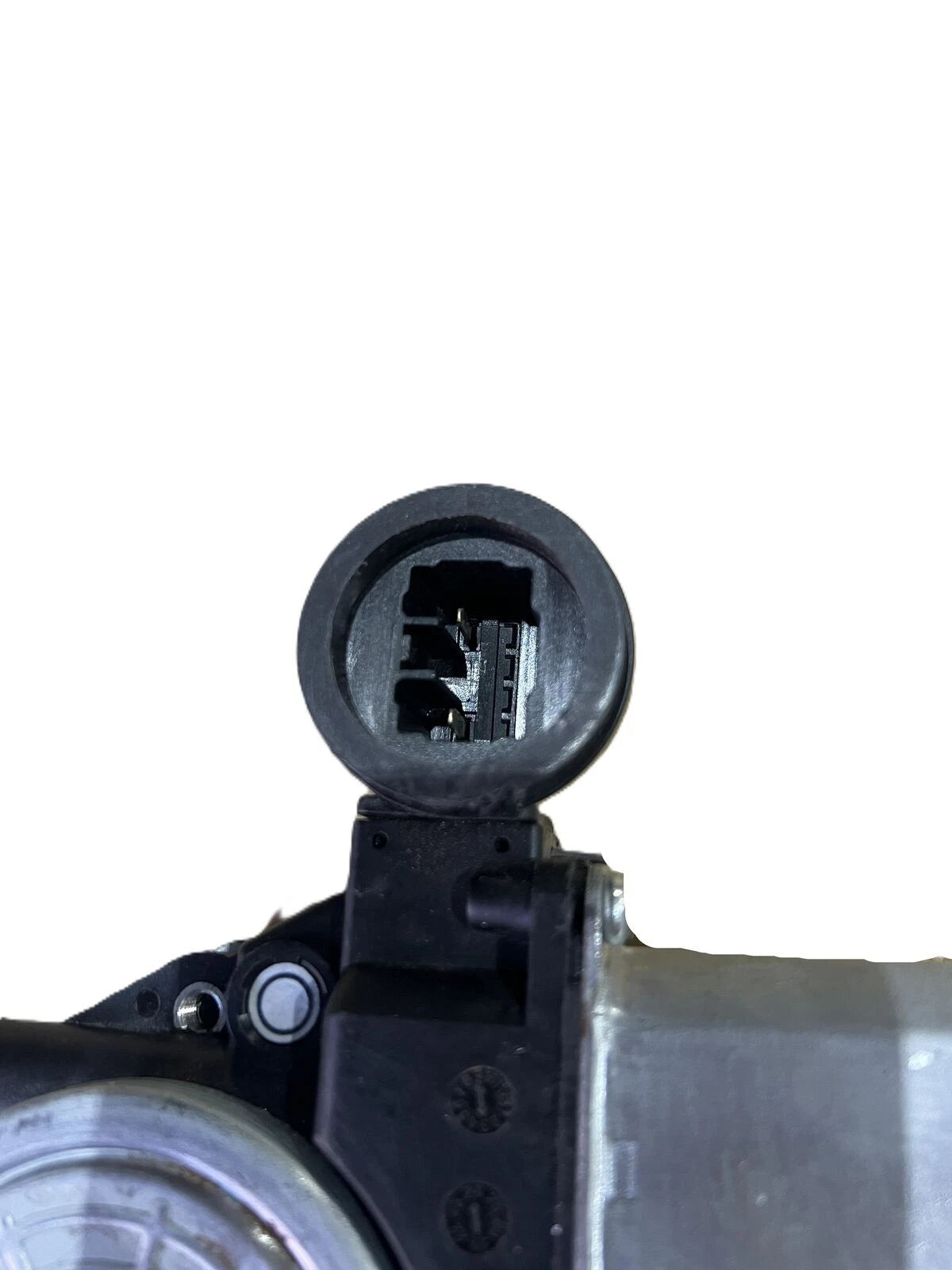

• Motor type: 2-pin
• Part specification: High quality aftermarket
• Condition: Brand new
• MPN / Item No.: 100666M2F
• Warranty: 1 year (part only)
• Quantity supplied: 1 piece

FITMENT

• Toyota HiAce TRH / KDH 01/2005 - 01/2019

Always compare this part and connector style with your original window regulator to confirm compatibility before purchase.

ANTI-PINCH FUNCTION SETUP

For regulators with motors featuring an anti-pinch function, the motor must be set correctly after installation. Do not power-test the motor before it is mounted in the door, as this can cause the anti-pinch function to fail and require resetting.

• Install the motor and connect it to the one-touch window switch.
• Operate the switch to raise the window fully.
• If the window drops after reaching the top, follow the reset steps below.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly to move the glass slightly up to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the switch briefly to move the glass slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to raise the window fully.

The reset is complete if the window remains at the top. If it drops again, repeat the procedure.

INSTALLATION & WARRANTY NOTES

• Intended for use as a replacement part for repair purposes.
• Professional installation by a qualified automotive mechanic is recommended to maintain warranty.
• Images are for reference; colour or finish may appear slightly different due to screen and lighting variations.
• Match the photos and specifications with your original part before ordering.
