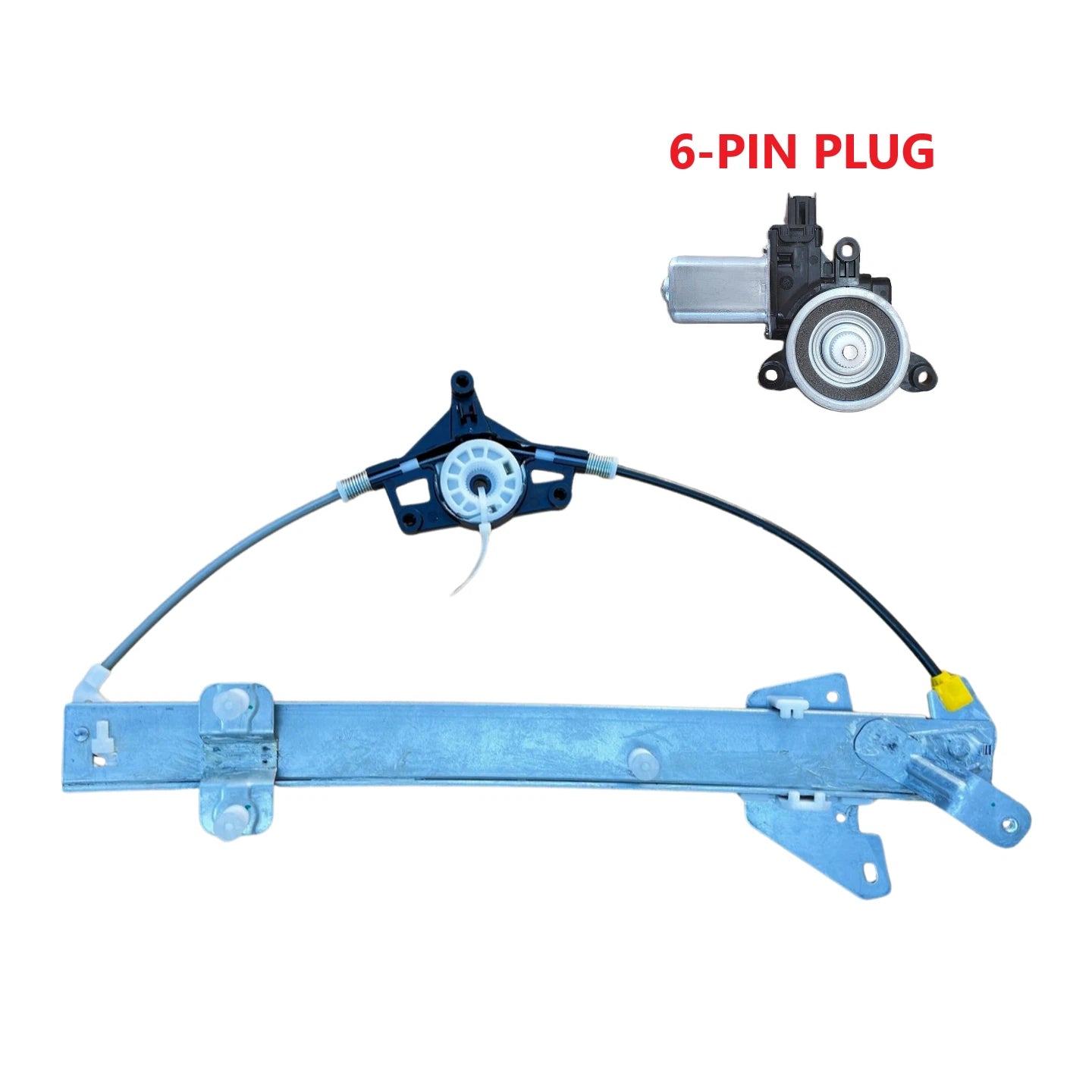

Front Right Electric Window Regulator 6-Pin Motor for Mazda 3 BM BN

Product Overview

This front right electric window regulator is a high quality aftermarket replacement, complete with a 6-pin motor, designed for Mazda 3 BM and BN models built between 2013 and 2019. Supplied as a brand new unit, it is ideal for restoring smooth and reliable power window operation.

Key Features

• Complete electric window regulator assembly with motor
• 6-pin motor connection for correct electrical interface
• Front right position (driver side in RHD vehicles)
• High quality aftermarket construction
• Supplied brand new, not reconditioned

Specifications

• Product: Window regulator
• Operating mode: Electric
• Placement on vehicle: Front right (front driver side)
• Motor: 6-pin connector
• Part specs: High quality aftermarket
• Condition: Brand new
• MPN / Item No.: 101711M6D
• Quantity supplied: 1 piece
• Warranty: 1 year (part only)

Vehicle Compatibility

• Mazda 3 BM 09/2013 – 07/2016
• Mazda 3 BN 07/2016 – 02/2019

Always compare the part number, connector type, and mounting points with your original regulator before purchase.

Anti-Pinch Function Setup

This regulator motor is designed to work with an anti-pinch one-touch window function. Do not operate or test the motor before it is installed in the door, as this may cause the anti-pinch function to lose its calibration.

• The motors are pre-tested and preset before dispatch.
• Install the motor and connect it to the one-touch window switch.
• Pull the switch up; the window should go all the way up if correctly set.
• If the window drops down after reaching the top, perform the reset procedure.

Anti-Pinch Reset Procedure

• Step 1: Pull the window switch briefly to move the glass slightly up to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the window switch briefly to move the glass slightly down to the bottom position.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to move the window fully up to the top.

The reset is complete if the window remains at the top and does not drop down. If it still drops, repeat the procedure until the function is correctly calibrated.

Installation & Notes

• Professional installation by a qualified automotive technician is recommended.
• Use care when handling the regulator and glass to avoid damage.
• Colour or finish may vary slightly from images due to lighting and screen settings.
• Images are of the actual product supplied; match layout and connectors to your original part.
