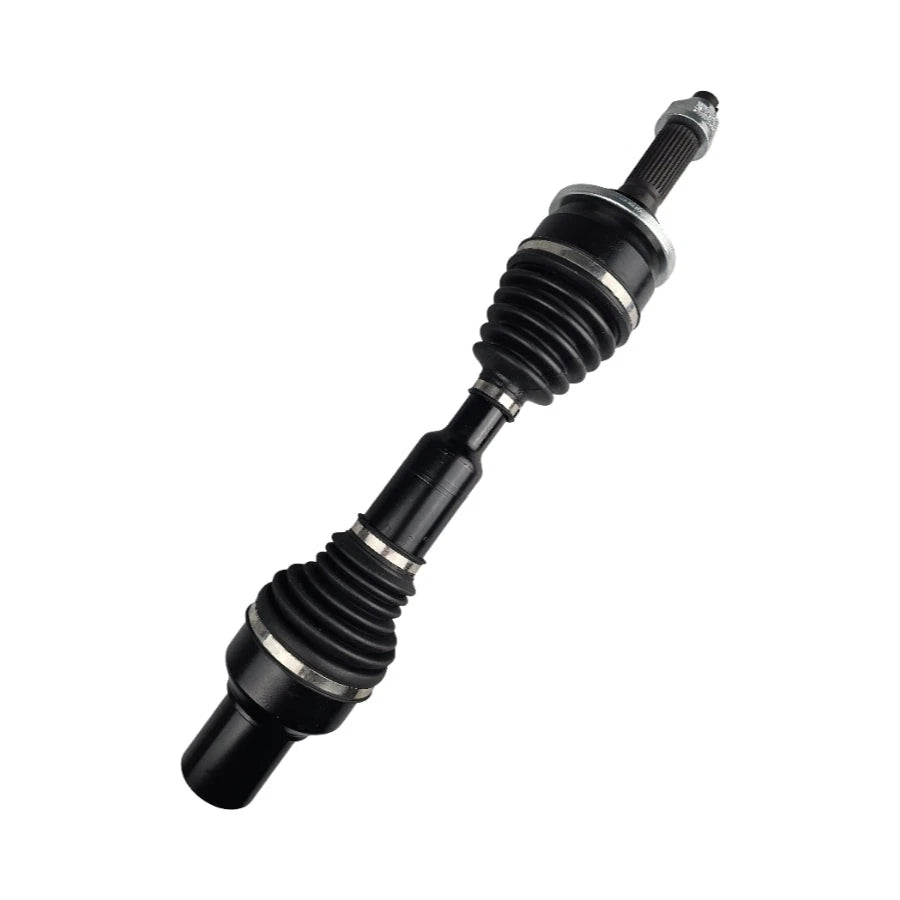

Front Right Telescopic CV Drive Shaft for Ford Ranger PX & Mazda BT-50

PRODUCT OVERVIEW

Front right-hand side telescopic CV axle drive shaft for 4WD automatic and manual applications. Designed to provide increased linear travel compared with standard CV shafts, allowing greater suspension articulation and reduced driveline stress on lifted and non-lifted vehicles.

Manufactured to OEM specifications using heat-treated chrome steel for strength and durability. High-quality neoprene dust boots and stainless-steel clamps help prevent contamination, while molybdenum grease ensures reliable performance at varying angles, speeds and high revolutions.

VEHICLE FITMENT

• Ford Ranger PX1, PX2, PX3 2.0L Y2NS, 2.2L P4AT, 3.2L P5AT 4WD Manual/Automatic (09/2011–06/2022)
  Does not fit Raptor or Raptor X models
  Sub-models include XL, XLS, XL PLUS, XLT, Wildtrak, Super Cab XL, Sport, FX4, Limited
• Mazda BT-50 UP, UR 3.2L P5AT 4WD Manual/Automatic (11/2011–07/2020)
  Sub-models include XT, GT, XTR, XT Freestyle Cab, XTR Freestyle Cab, Boss

Ensure all specifications and spline counts match your original shaft before purchase.

KEY SPECIFICATIONS

• Position: Front right (passenger side) – 4WD

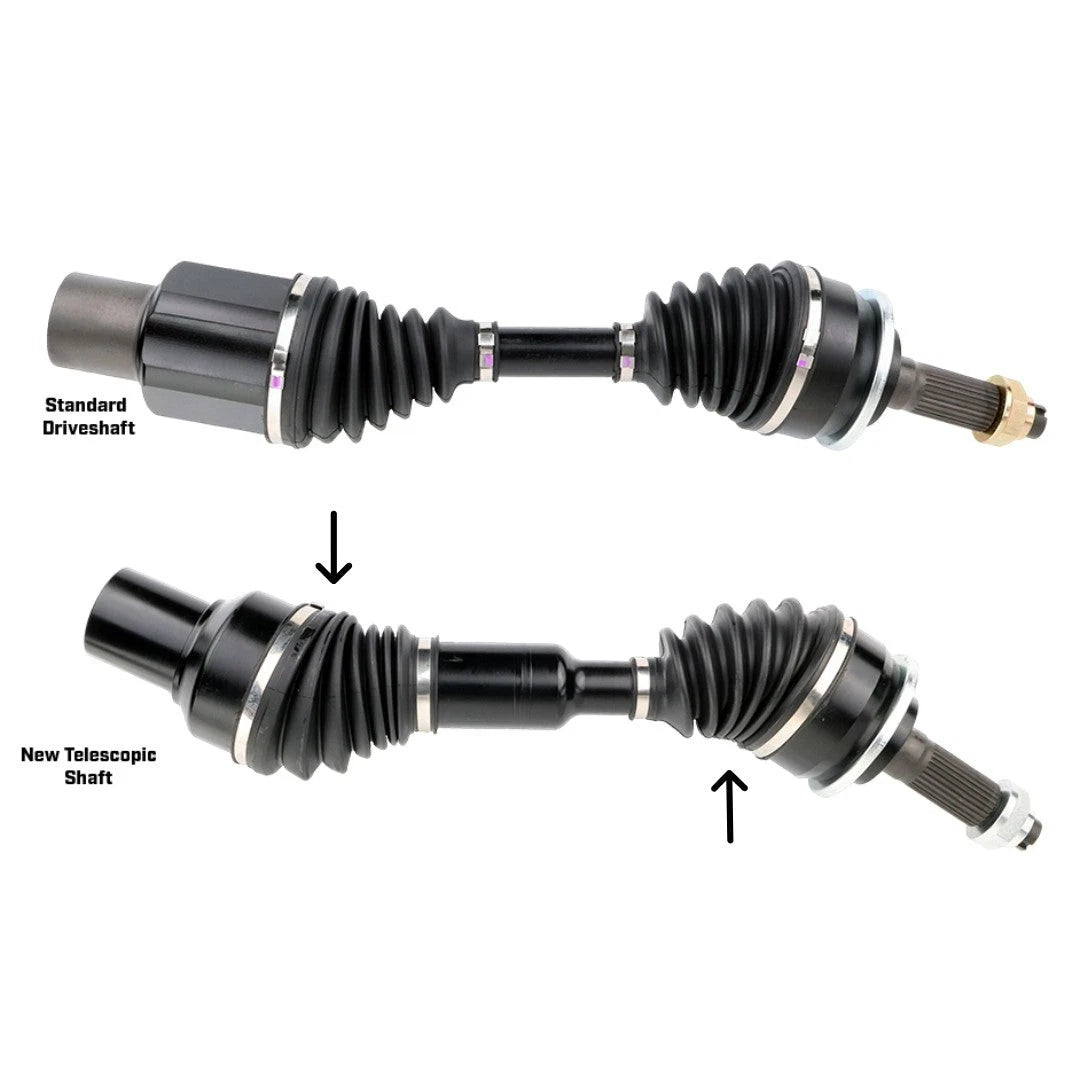

• Design: Telescopic CV drive shaft
• Length: 568 mm compressed / 625 mm extended

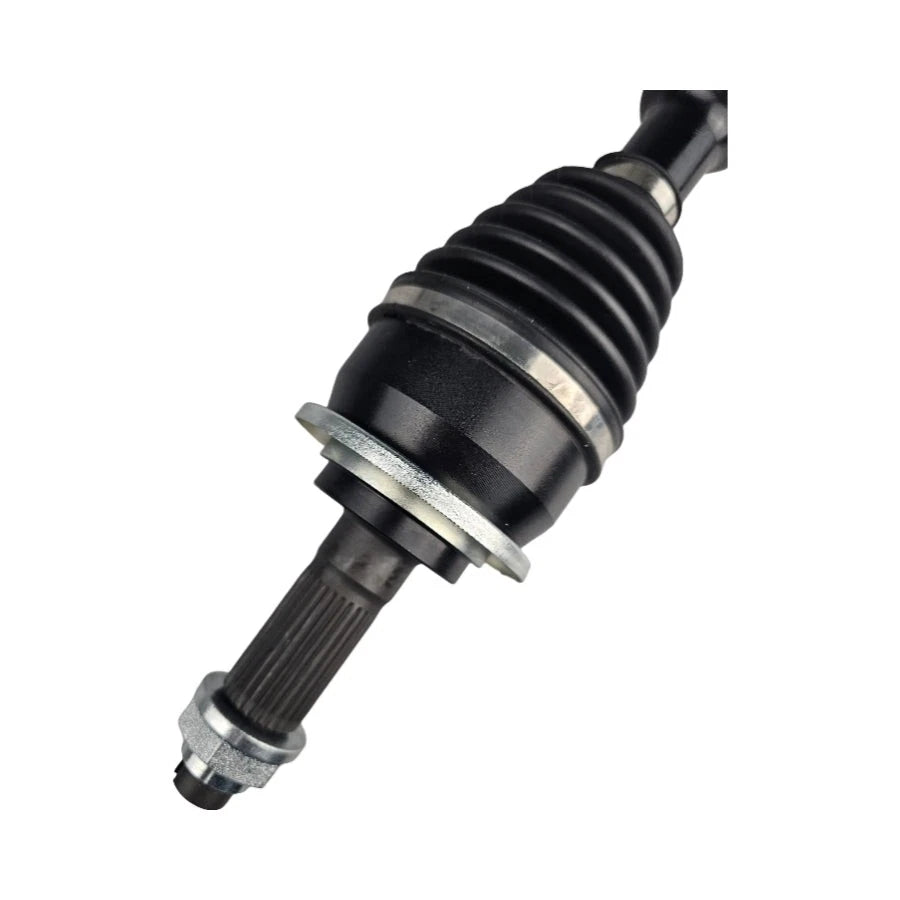

• Spline count (outer/wheel side): 28T
• Spline count (inner/diff side): 28T + 1 blank keyway
• Inboard joint type: Ball
• Outboard joint type: Ball
• Hub nut style: M24 x 1.5

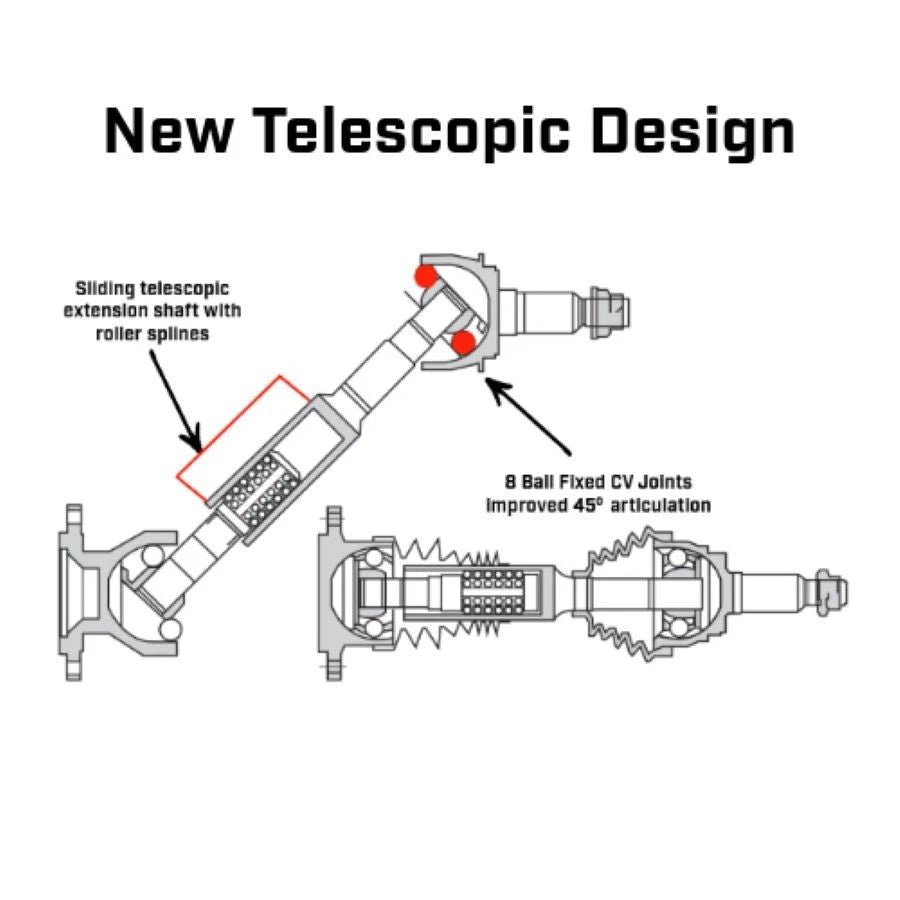

• Telescopic design: Centre bar housing with extending roller spline
• Heavy duty design: Sliding extension shaft with roller splines
• Suitable for: Lifted and non-lifted vehicles (568 mm to 625 mm range)

WHAT'S INCLUDED

• 1 x Telescopic CV drive shaft – front right

FEATURES & BENEFITS

• Increased travel to better accommodate suspension lift and off-road articulation
• Heat-treated chrome steel components for long service life
• High-quality neoprene boots and stainless clamps to reduce contamination risk
• Moly grease for smooth operation at high angles and RPM
• Direct-fit replacement built to OEM-style specifications

WARRANTY

• CV driveshaft: 12-month / 20,000 km warranty (whichever occurs first)
• CV boots: 3-month warranty from date of purchase

Warranty applies to manufacturing defects only and is subject to correct installation and application.
