Front Right Electric Window Regulator 2-Pin Motor for D-Max / Rodeo / Colorado

PRODUCT OVERVIEW

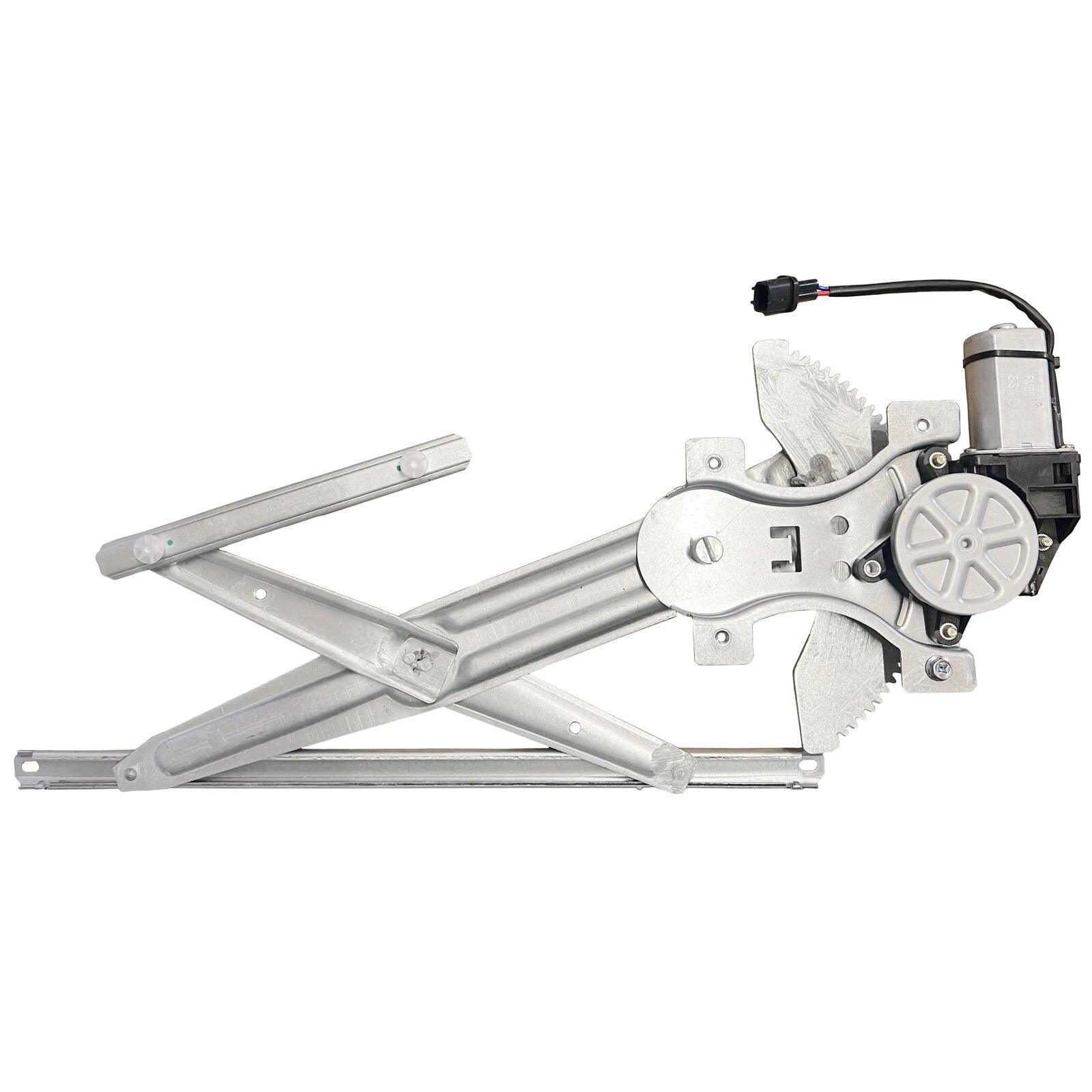

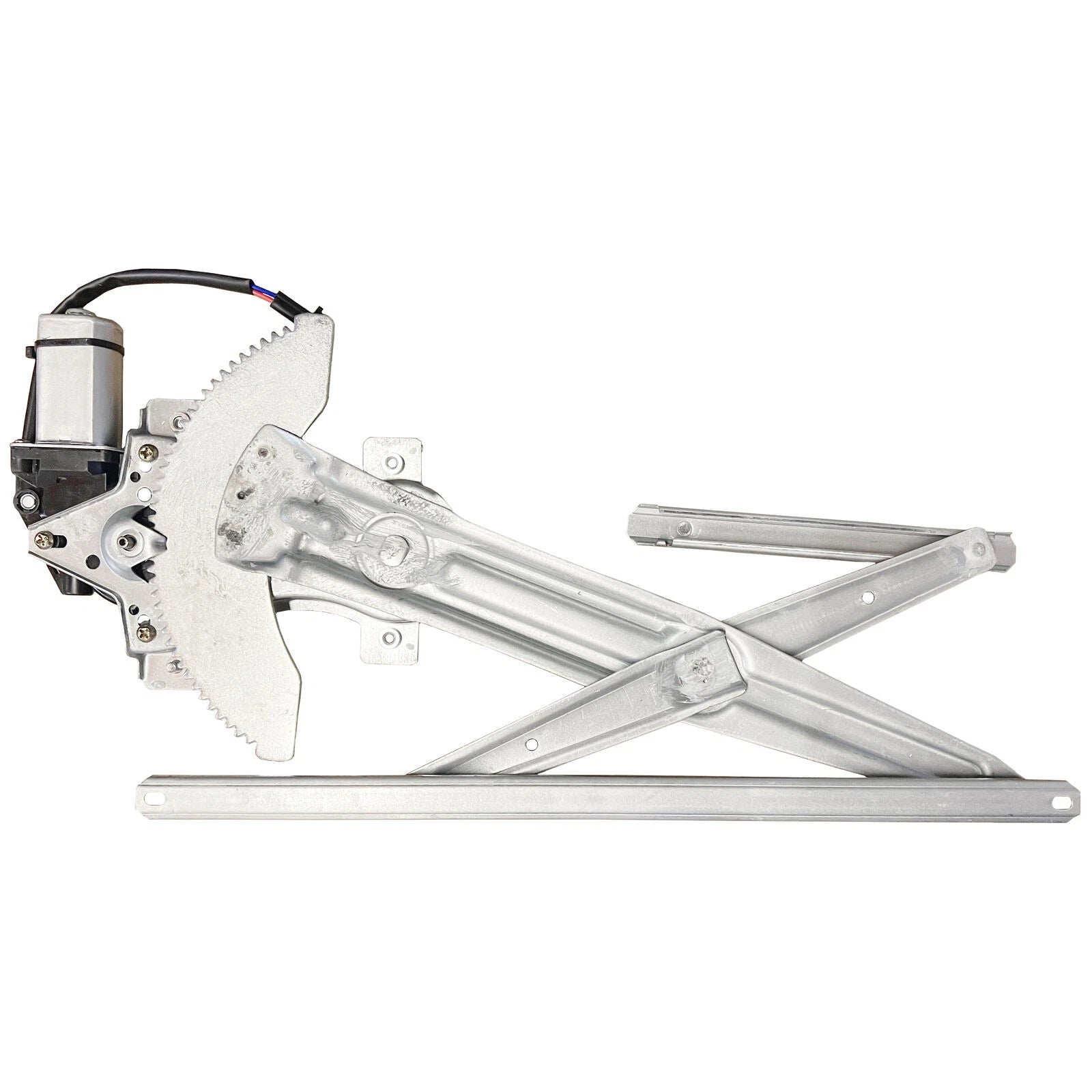

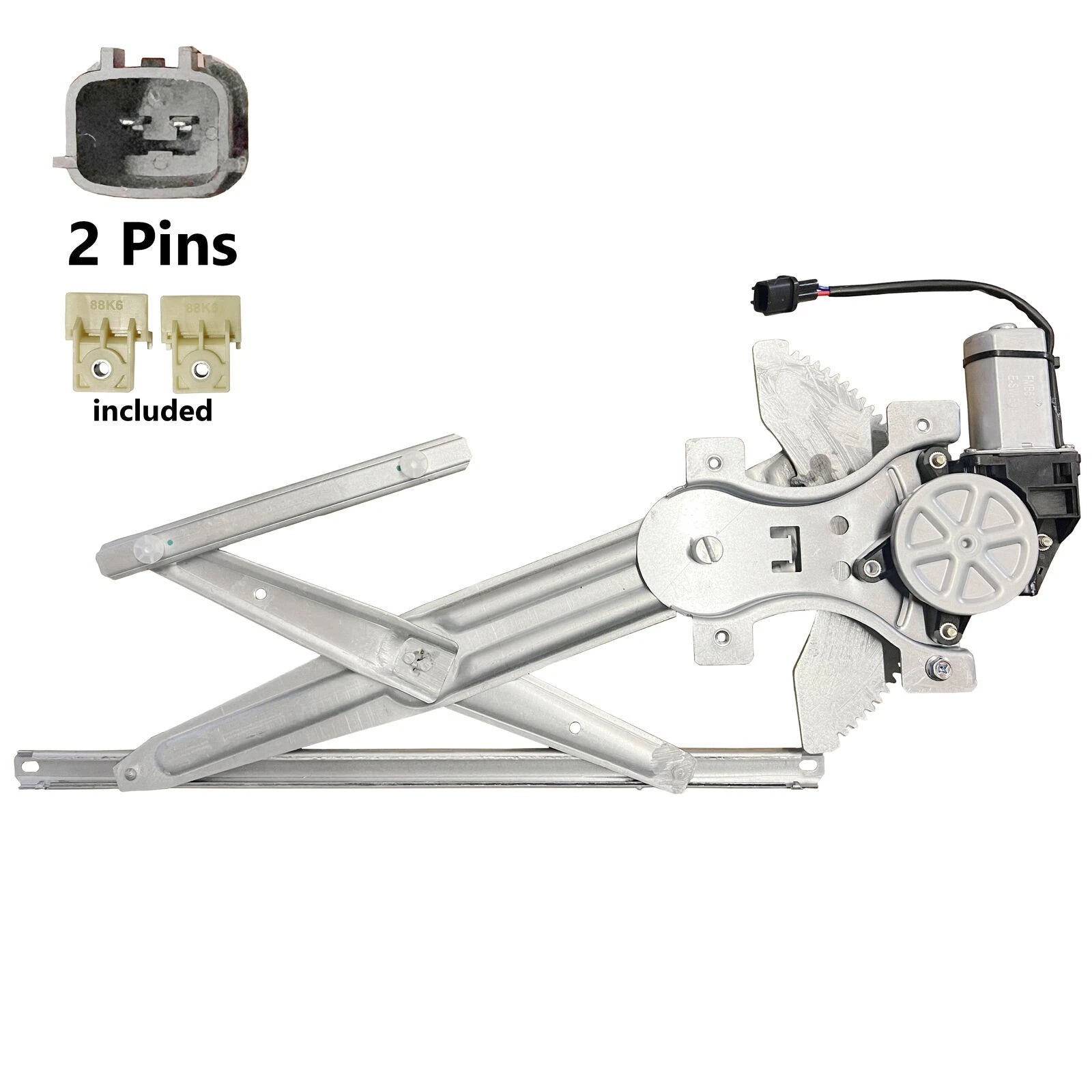

Front right (driver side) electric window regulator assembly with 2-pin motor. High quality aftermarket replacement supplied as a complete unit, ready for installation.

KEY FEATURES

• Complete window regulator with pre-fitted electric motor
• Front right (driver side) door position
• 2-pin motor connection
• High quality aftermarket construction
• Brand new part, supplied as a single piece
• 12-month manufacturer warranty (part only)
• MPN / Item No.: 101644

SPECIFICATIONS

• Product type: Window regulator
• Operating mode: Electric
• Placement on vehicle: Front right (front driver side)

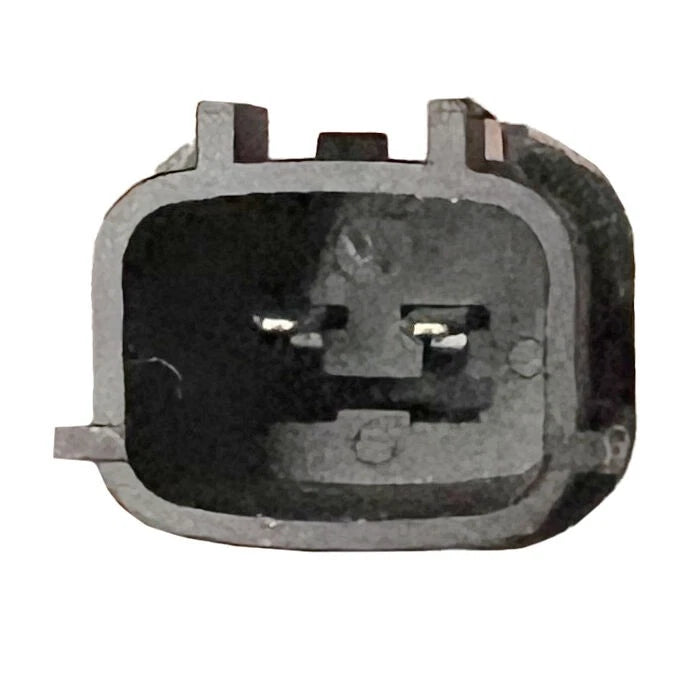

• Motor plug: 2 pins
• Quantity supplied: 1 piece
• Condition: Brand new

VEHICLE FITMENT

• Isuzu D-Max 10/2006 - 05/2012
• Holden Rodeo RA 03/2003 - 06/2008
• Holden Colorado RC 07/2008 - 05/2012

Fitment information is provided as a guide only. Always compare the part number, plug type, mounting points and images with the original component before purchase.

ANTI-PINCH FUNCTION SETUP (WHERE APPLICABLE)

For regulators with an anti-pinch feature, the motor must be set up correctly in the vehicle. Do not test the motor before installation, as this can affect the anti-pinch calibration.

• Install the regulator and motor in the door and connect to the one-touch window switch.
• Operate the switch to raise the window. If it reaches the top and stays up, the setup is correct.
• If the window drops after reaching the top, follow the reset procedure below.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly so the glass moves slightly up to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the switch briefly so the glass moves slightly down to the bottom position.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to raise the window fully to the top and check it remains closed.

If the window still drops after reaching the top, repeat the reset steps until the anti-pinch function is correctly calibrated.

INSTALLATION & WARRANTY NOTES

• Intended for use as a replacement repair part.
• Professional installation by a qualified automotive technician is recommended to maintain warranty.
• Warranty covers replacement of the defective part only and excludes labour, misuse, incorrect installation or modification.
• Some regulators and motors may be fitted with tamper-evident seals; removal or damage to these may affect return eligibility.

Product images are for reference and may appear slightly different due to screen settings and lighting. Always match the design, mounting points and electrical connector to your original unit before purchasing.
