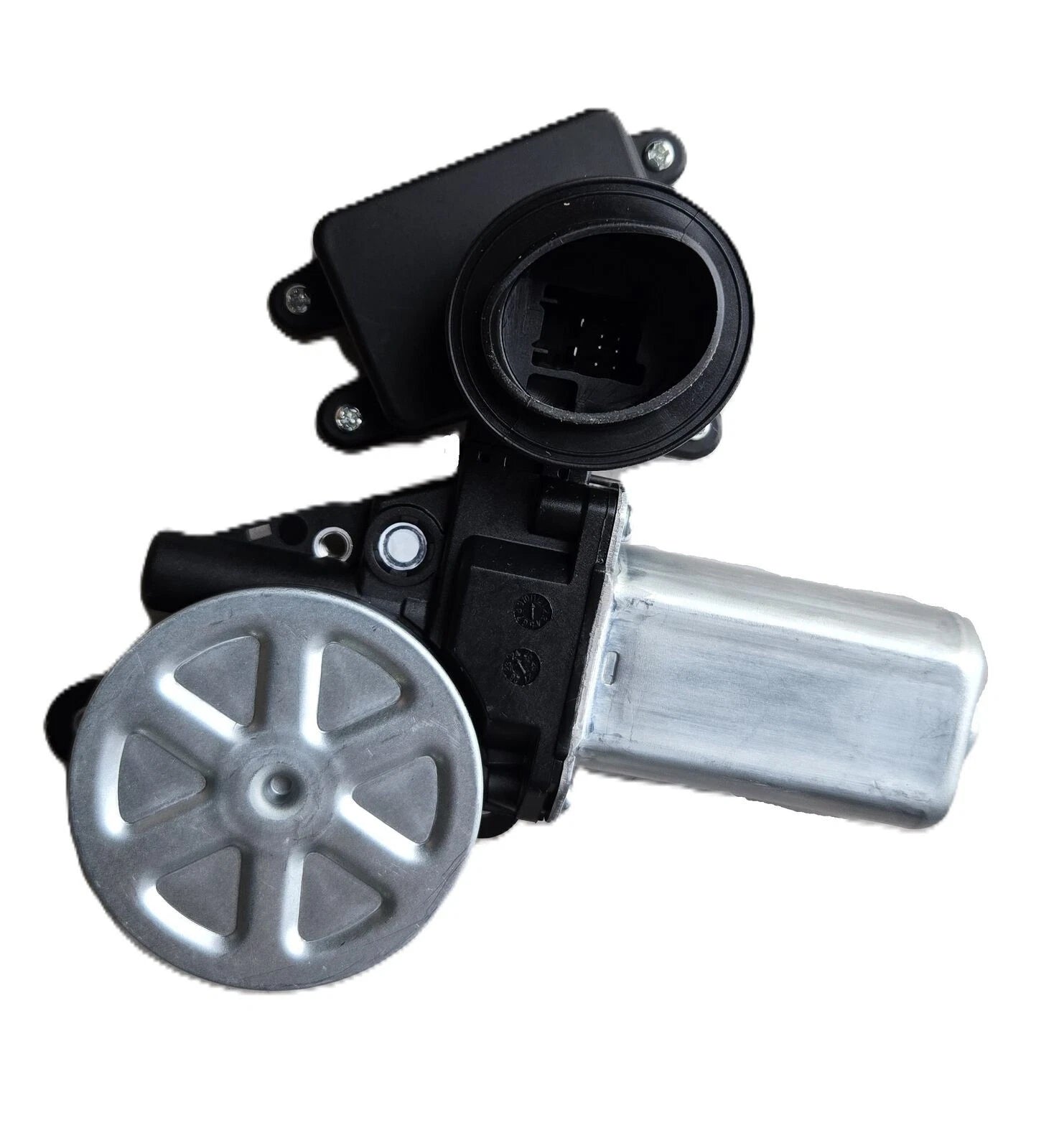

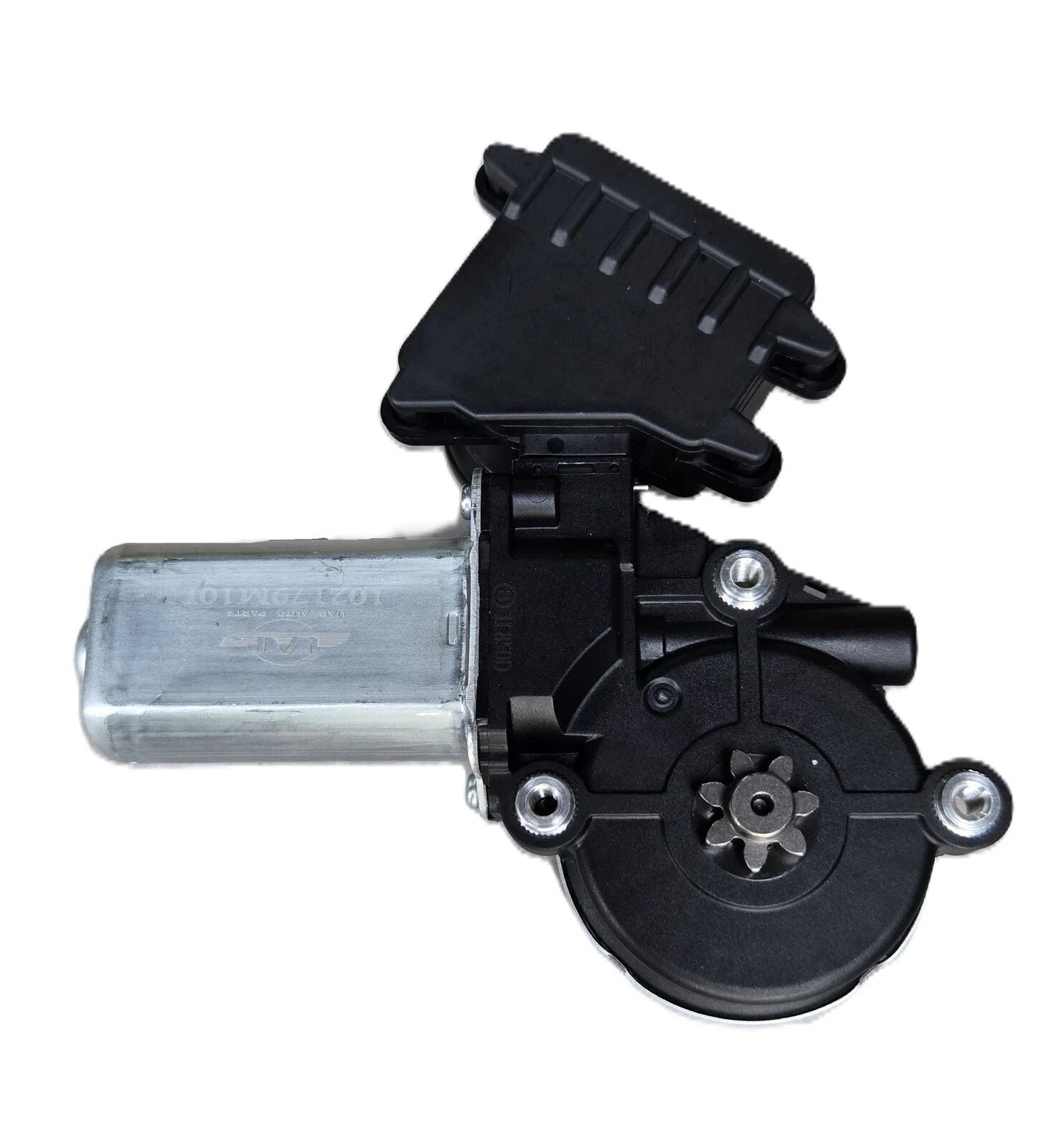

Front Right 10-Pin Window Lift Motor for Toyota Kluger GSU40 2007-2013

PRODUCT OVERVIEW

This front right electric window lift motor is a high-quality aftermarket replacement designed for Toyota Kluger GSU40 models built from 06/2007 to 12/2013. It is supplied brand new and includes a 1-year parts-only warranty.

KEY FEATURES

• Application: Front right (front driver side) door
• Motor type: Electric window lift motor
• Connector: 10-pin plug
• Construction: High-quality aftermarket replacement
• Condition: Brand new
• MPN / Item No.: 102179M10I
• Quantity supplied: 1 piece
• Warranty: 1-year manufacturer warranty (part only)

VEHICLE COMPATIBILITY

• Toyota Kluger GSU40: 06/2007 – 12/2013

Always compare the plug, mounting points and overall design with your original motor before purchase to ensure correct fitment.

ANTI-PINCH FUNCTION SETUP

This motor is compatible with one-touch window switches that use an anti-pinch safety function. The motor must be installed and calibrated correctly for the function to operate.

• Do not test the motor before it is installed in the door, otherwise the anti-pinch function may fail and require resetting.
• The motors are pre-tested and set prior to dispatch.
• After installation, connect the one-touch window switch and pull the switch up to raise the window fully.
• If the window drops down slightly after reaching the top, perform the reset procedure below.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly so the window moves up slightly to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom position.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to raise the window to the top again and check operation.

The reset is complete if the window remains at the top and does not drop back down. If it drops, repeat the procedure until successful.

INSTALLATION & WARRANTY NOTES

• For safety and warranty validity, installation should be carried out by a qualified automotive mechanic.
• This part is intended as a repair/replacement component and is not produced by the vehicle manufacturer.
• Images are for reference; colour and finish may vary slightly due to screen and lighting.
• Window regulators and motors may use tamper-evident seals on plugs and housings; do not remove these, as this may affect return eligibility.

Ensure all instructions are followed carefully to maintain correct window operation and protect the anti-pinch safety function.
