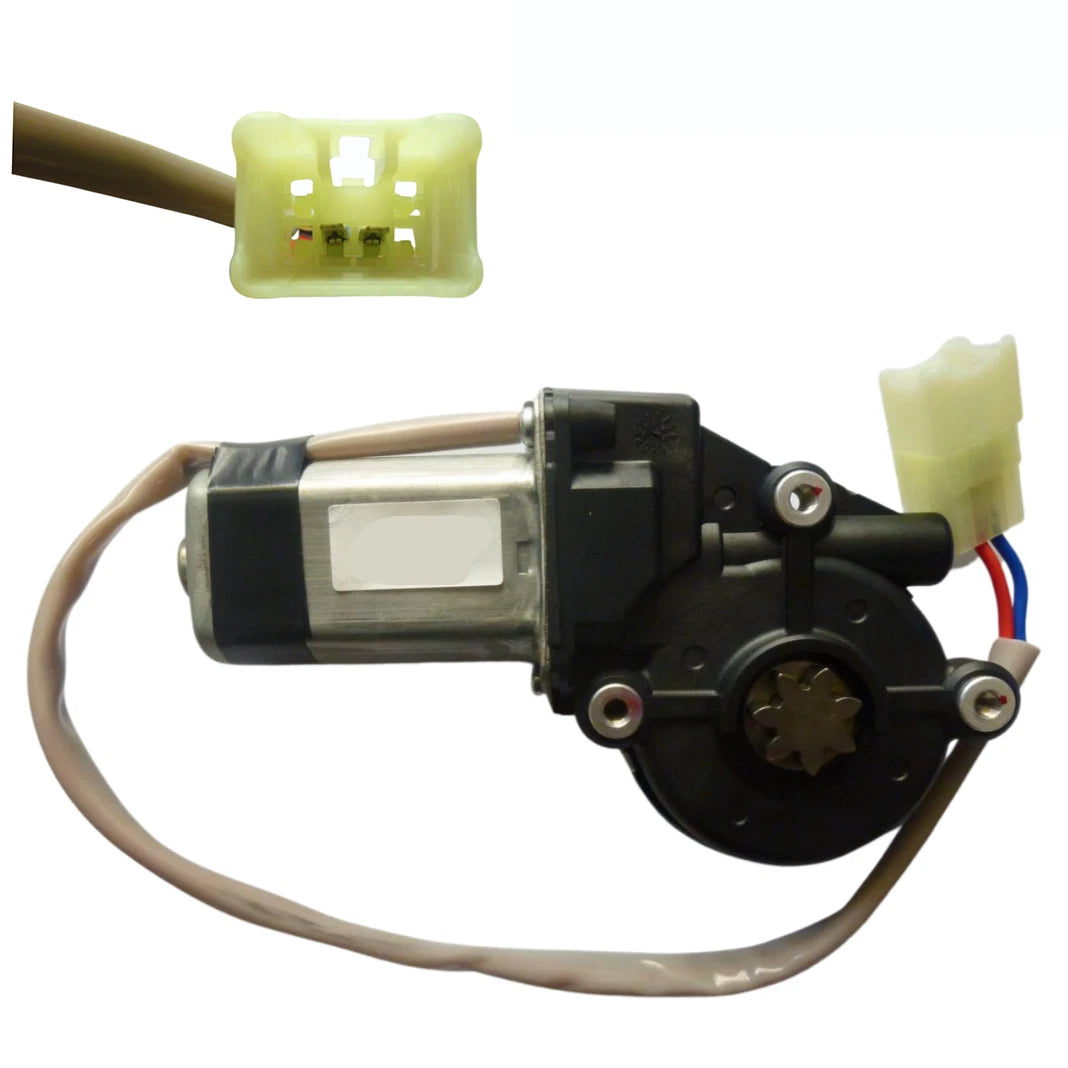

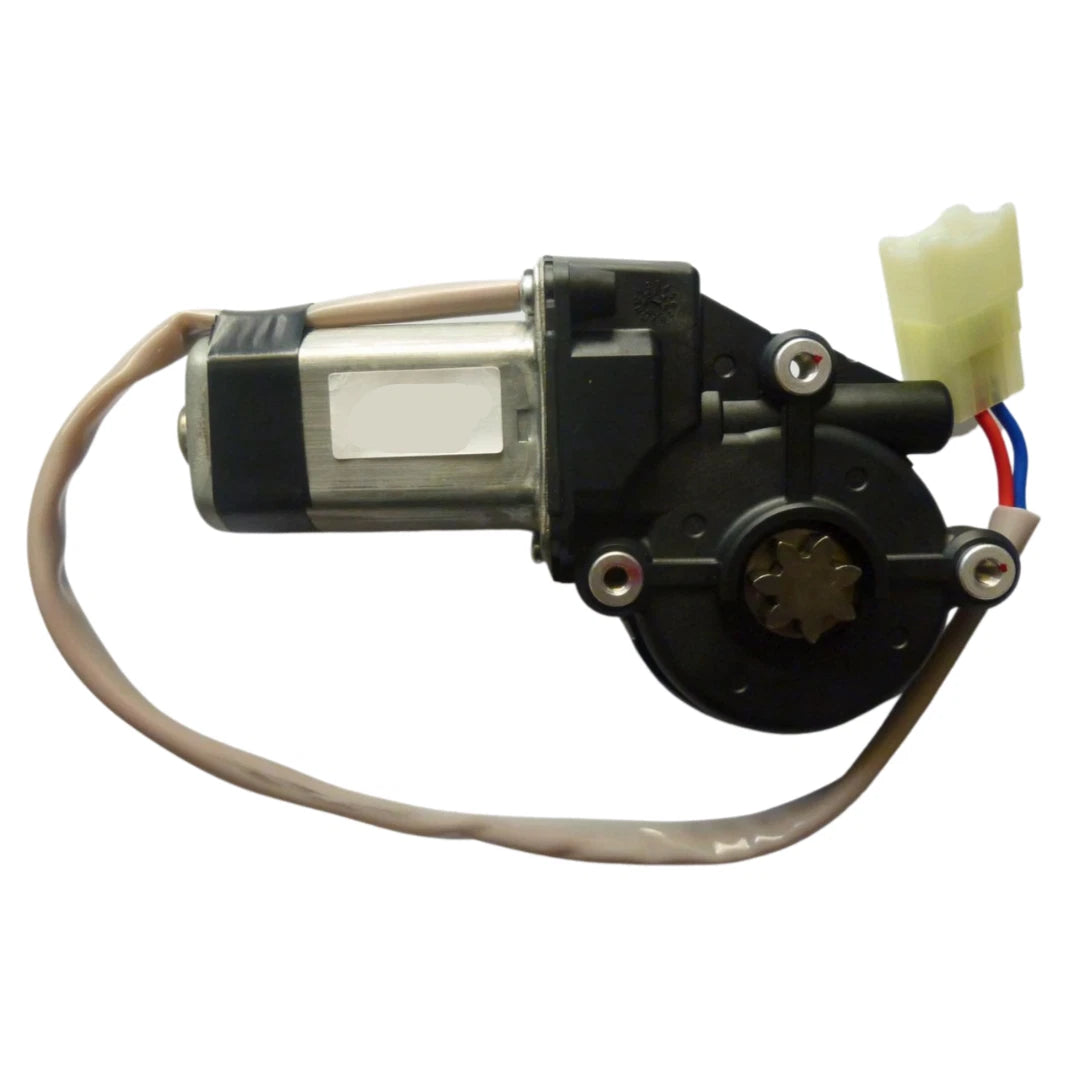

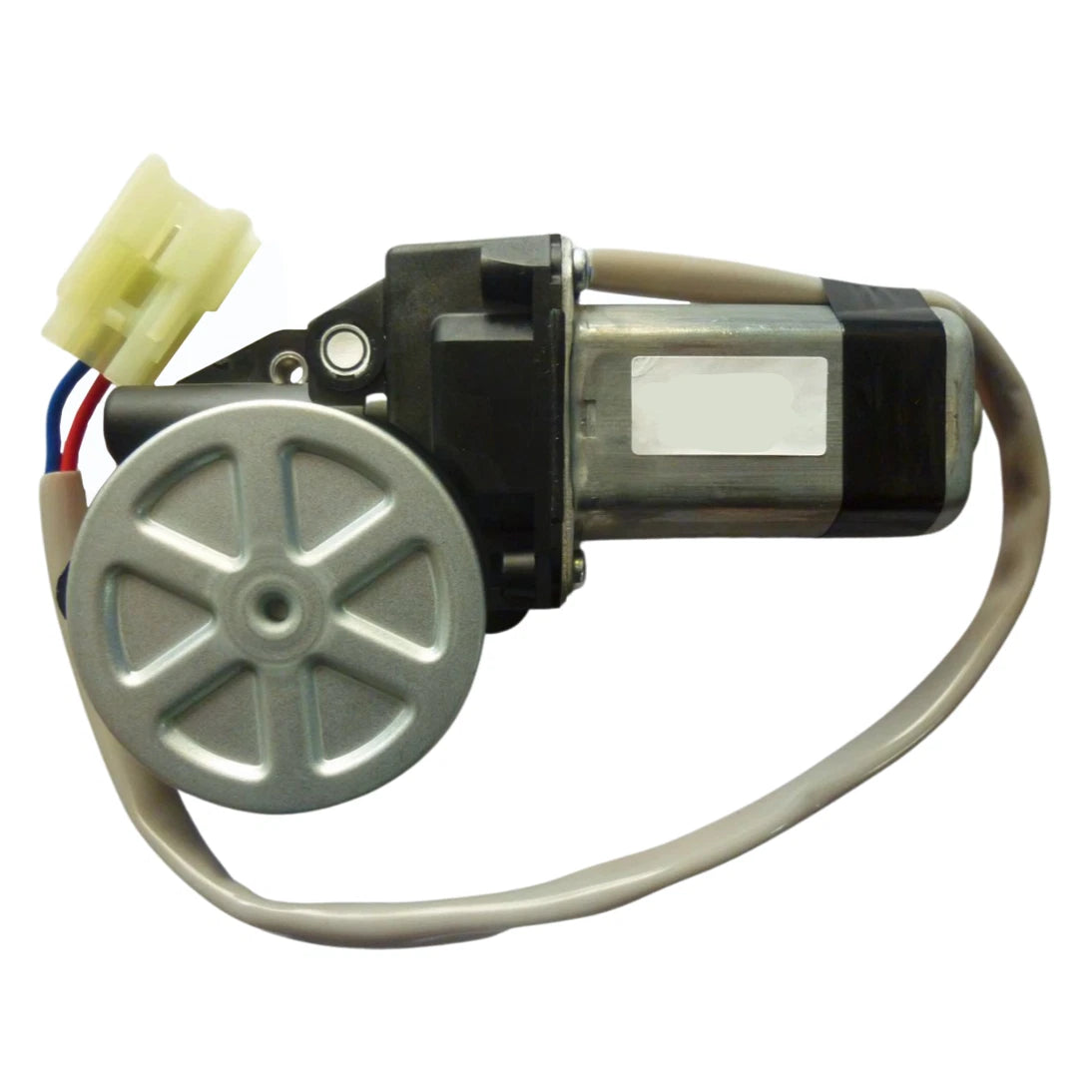

Front Right Window Lift Motor 2-Pin for Toyota Camry ACV36R 2002–2006

PRODUCT OVERVIEW

This front right electric window lift motor is a high-quality aftermarket replacement designed for selected Toyota Camry ACV36R models. It restores reliable power window operation on the driver side.

KEY FEATURES

• Front right (driver side) window lift motor
• 2-pin electric motor connection
• High quality aftermarket construction
• Brand new unit – not remanufactured
• Supplied as 1 piece

SPECIFICATIONS

• Product: Window Lift Motor
• Operating mode: Electric
• Placement on vehicle: Front right (front driver side)

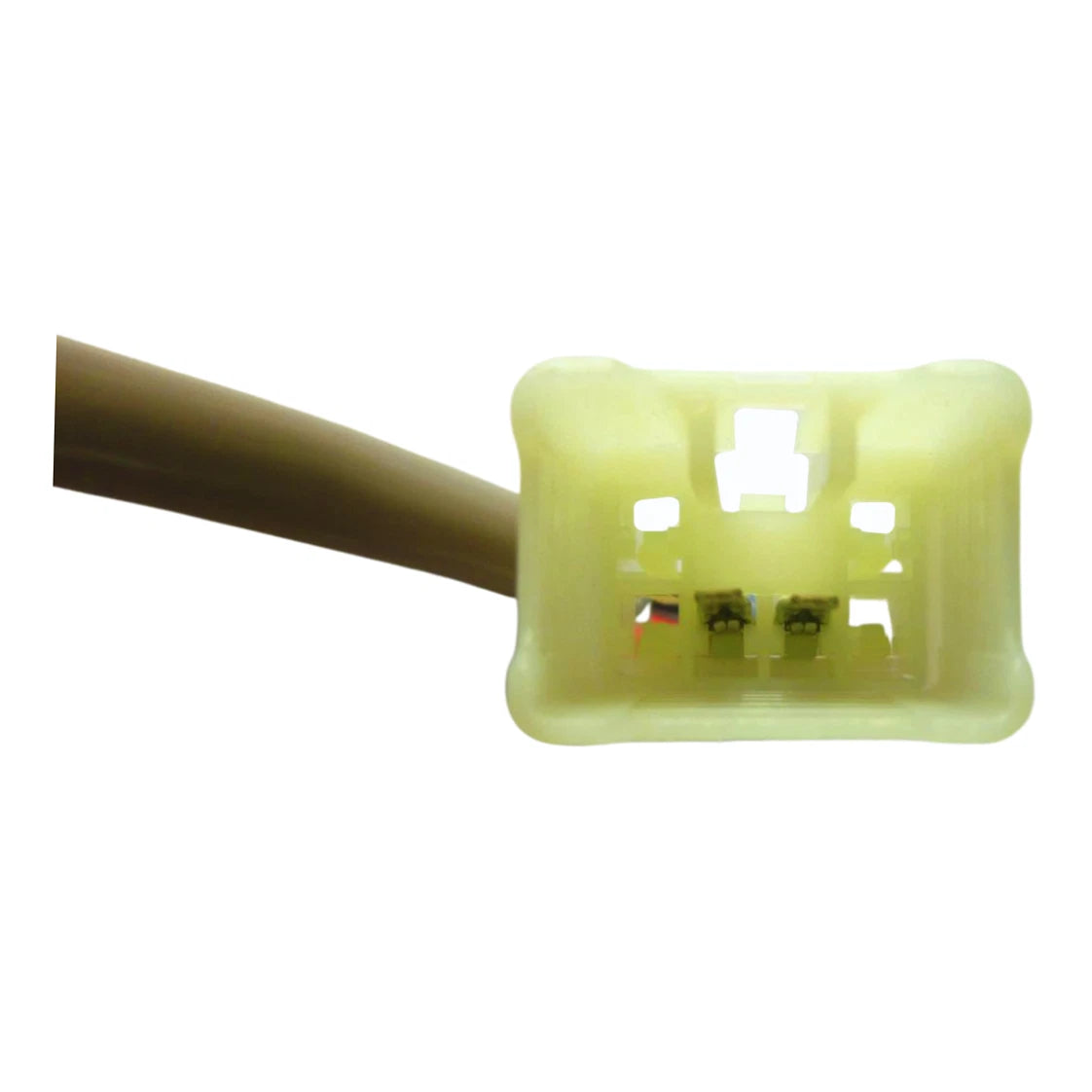

• Connector: 2 pins
• Condition: Brand new
• Part type: High quality aftermarket
• MPN / Item No.: 101500B
• Warranty: 1 year (part only)
• Quantity supplied: 1 piece

VEHICLE FITMENT

• Toyota Camry ACV36R 09/2002–06/2006 2AZFE 2.4L Sedan

Always compare this part and connector type with your original motor before purchase to confirm compatibility.

ANTI-PINCH FUNCTION SETUP (IF APPLICABLE)

For window regulator motors with anti-pinch/one-touch function, the motor must be installed and initialised correctly to ensure proper operation.

• Do not test the motor before it is installed in the door, or the anti-pinch function may require resetting.
• Install the motor and connect it to the one-touch window switch.
• Pull the switch up – the window should travel fully to the top.
• If the window drops after reaching the top, perform a reset as below.

Reset procedure (general guide):

• Step 1: Pull the window switch briefly so the window moves slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch again to move the window fully to the top.

If the window still drops after reaching the top, repeat the reset steps until the function is correctly set.

INSTALLATION & WARRANTY NOTES

• Professional installation by a qualified automotive mechanic is strongly recommended.
• Part is intended for repair and replacement purposes only.
• Colour/finish may appear slightly different due to screen and lighting variations.
• Warranty generally applies to the replacement of the defective part only and does not cover labour or consequential damage.

Images are for reference and represent the actual style of the product supplied. Always match the part visually and by part number where possible.
