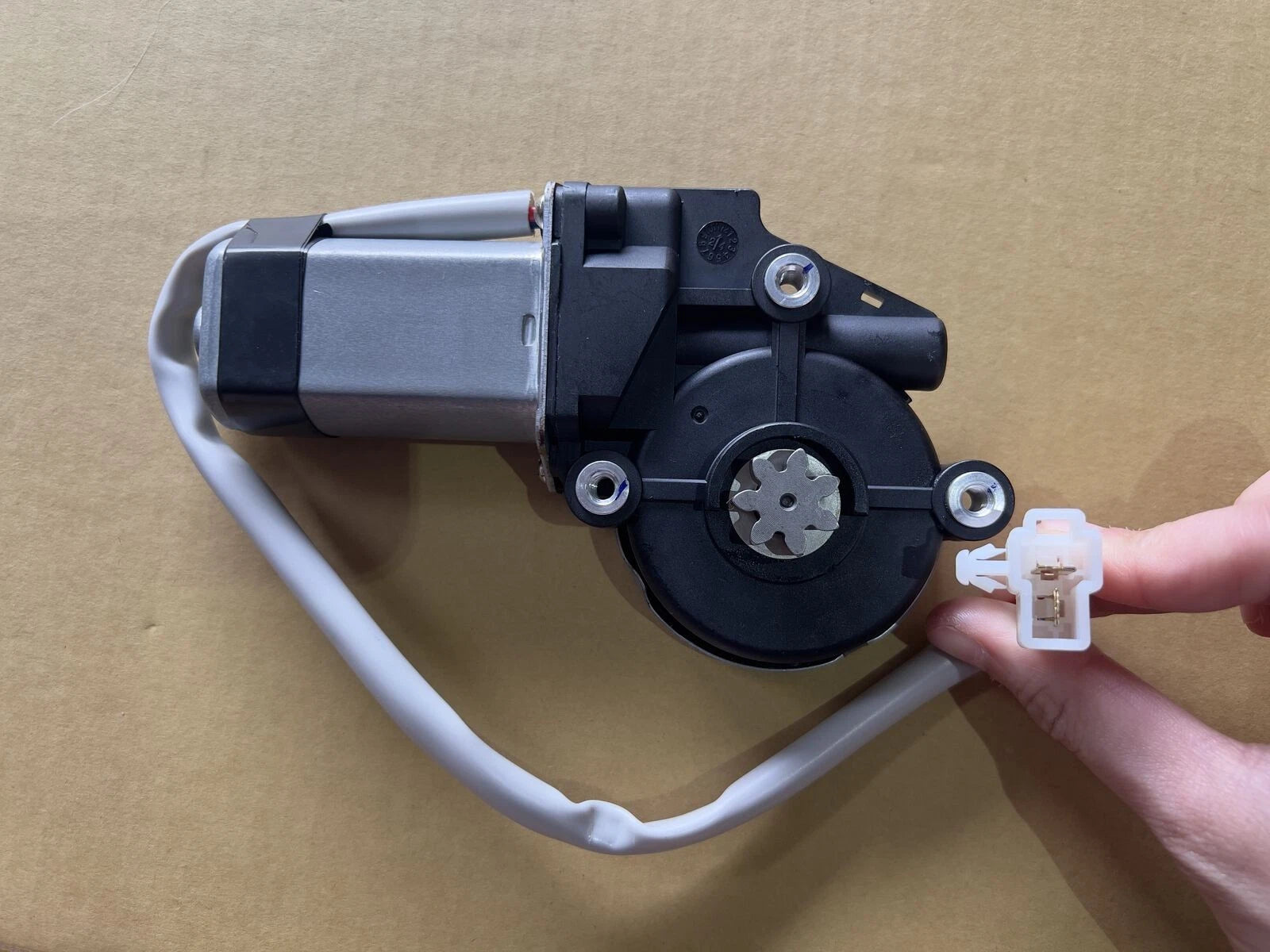

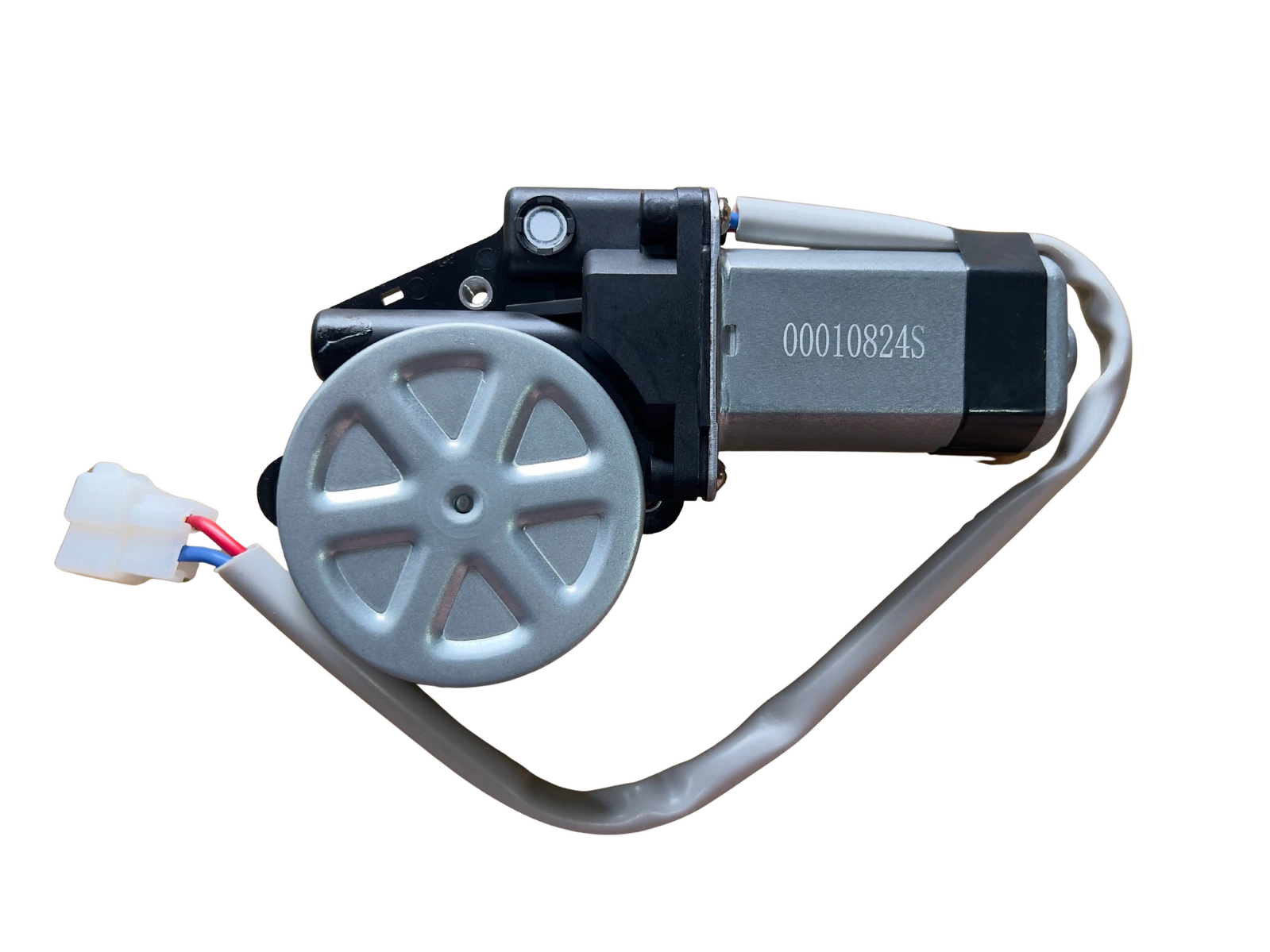

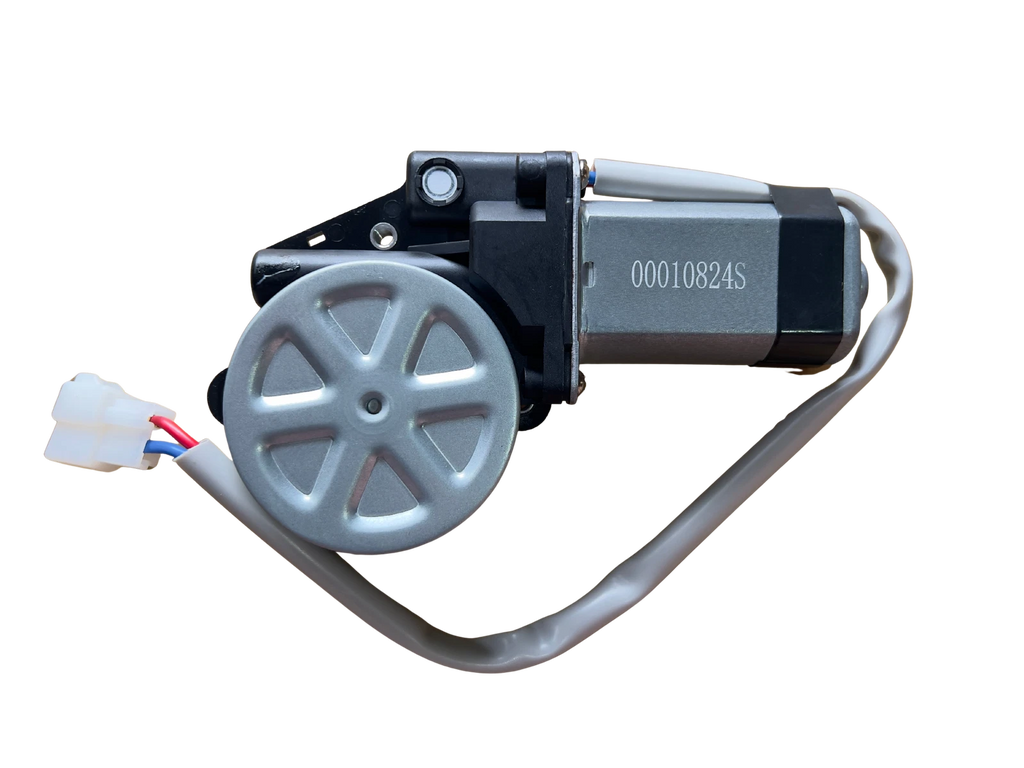

Front Right 2-Pin Window Lift Motor for Toyota Hilux 2005-2015

PRODUCT OVERVIEW

This front right electric window lift motor is a high-quality aftermarket replacement designed to restore smooth and reliable power window operation. Supplied as a brand-new unit with a 1-year parts warranty.

KEY FEATURES

• Electric window lift motor assembly
• Front right (driver side) placement
• 2-pin motor connector
• High-quality aftermarket replacement
• Brand new part, supplied as 1 piece
• Manufacturer warranty: 1 year (part only)
• MPN/Item No.: 102024M2F

VEHICLE COMPATIBILITY

• Toyota Hilux TGN/KUN/GGN 02/2005 - 08/2015
• Toyota HiAce TRH/KDH 01/2005 - 01/2019

Before purchasing, visually match this motor to your original part and confirm connector type and mounting points.

ANTI-PINCH FUNCTION SETUP

If your vehicle uses an anti-pinch window system, the motor must be correctly set up after installation to ensure proper one-touch operation.

• Do not test the motor before it is installed in the door, or the anti-pinch function may require resetting.
• Install the motor and connect it to the one-touch window switch.
• Pull the switch up; the window should travel fully to the top.
• If the window drops down after reaching the top, perform the reset procedure below.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly so the window moves slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to move the window fully up to the top.

The reset is complete if the window remains at the top. If it drops again, repeat the steps until it operates correctly.

INSTALLATION & WARRANTY NOTES

• Intended for use as a replacement repair part.
• Professional installation by a qualified automotive mechanic is recommended to maintain warranty coverage.
• Colour and finish may appear slightly different due to screen settings and lighting.
• Some window motors and regulators may include tamper-evident seals; do not remove these unless instructed, as this may affect return eligibility.

This item is supplied as an aftermarket replacement part and is not manufactured by the vehicle maker.
